Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Accessory Junction Block (School Bus) | Body builder installed. |

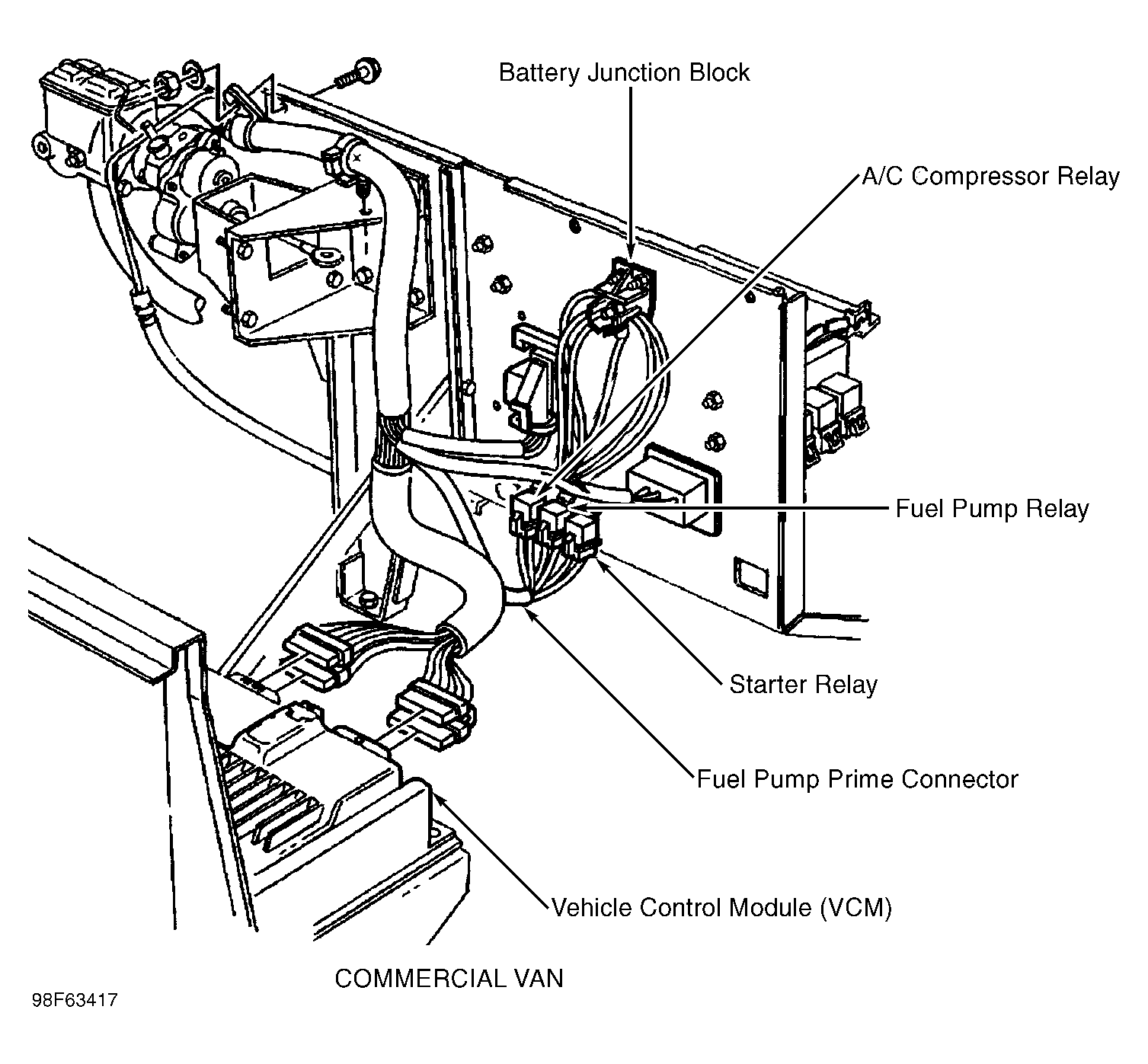

| Battery Junction Block (Commercial Van) | On left side of firewall, above relay bracket. See Figure. |

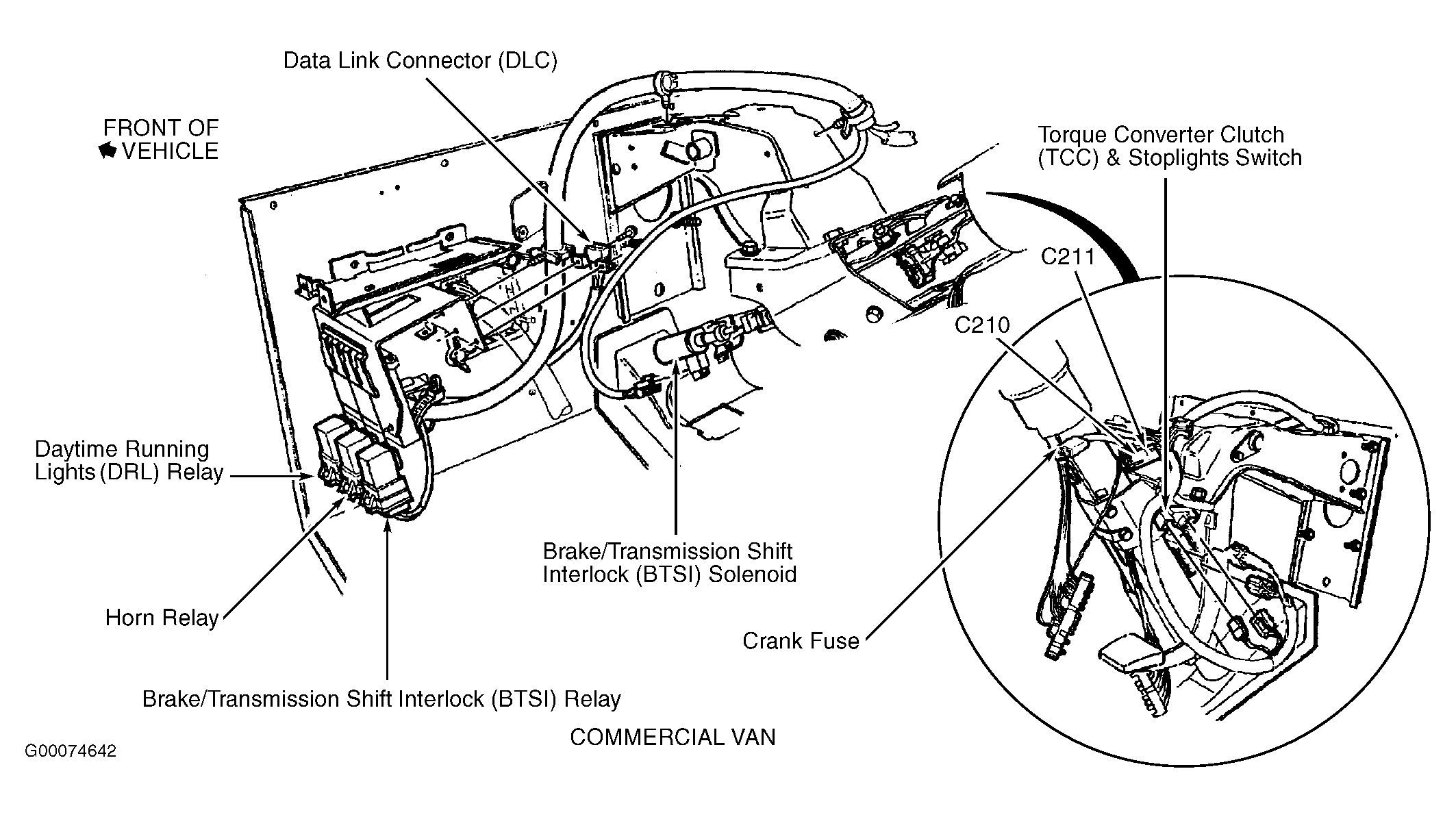

| Crank Fuse (Commercial Van) | On upper right side of steering column support. See Figure. |
| Crank Fuse (Motor Home) | In auxiliary fuse block, right of steering column. |
| Diode Network | On I/P harness (body builder installed). |
| I/P Fuse Block | Behind dash panel (body builder installed). |
