Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

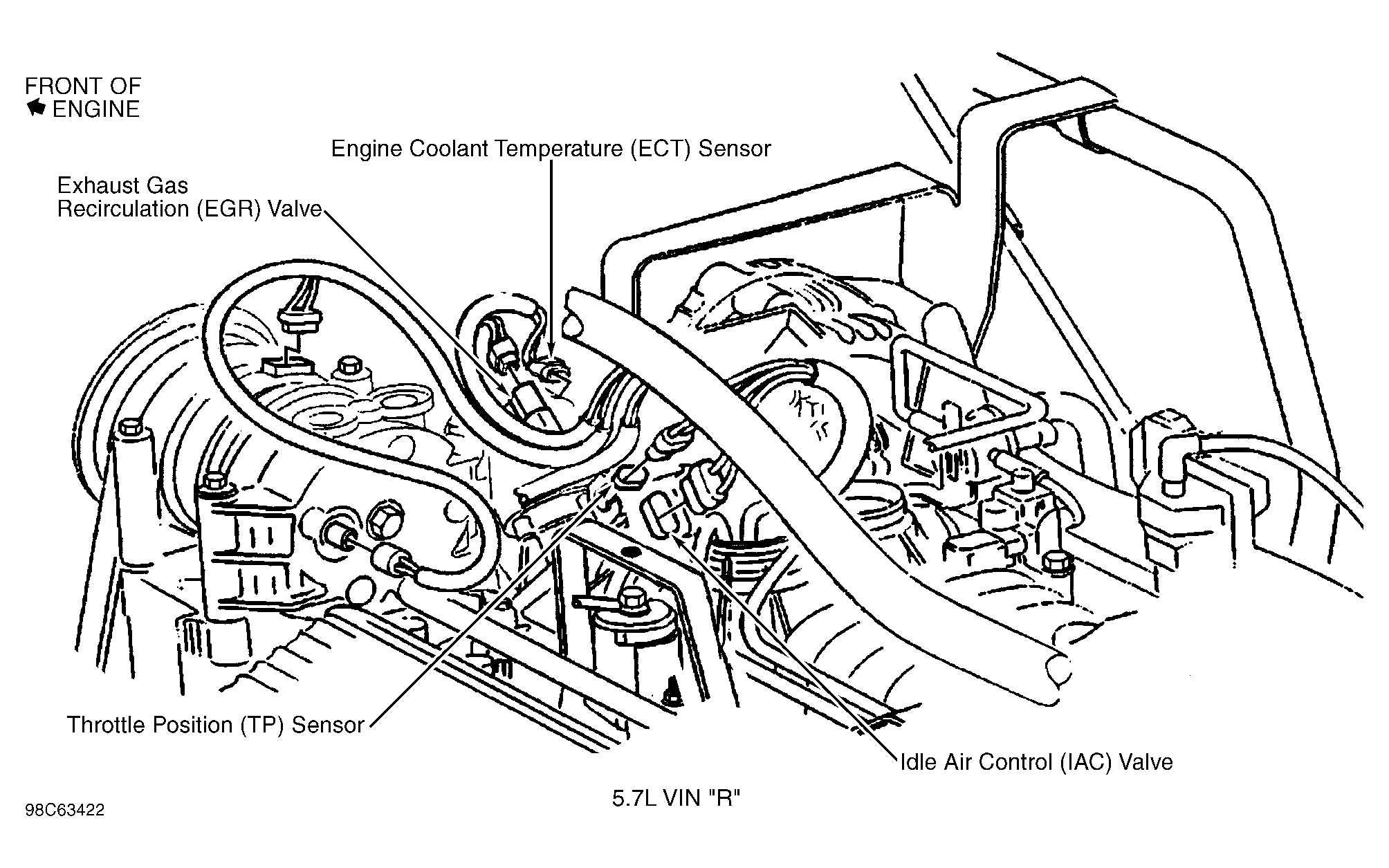

Fig 1: Right Side Of Engine (4.3L VIN W)

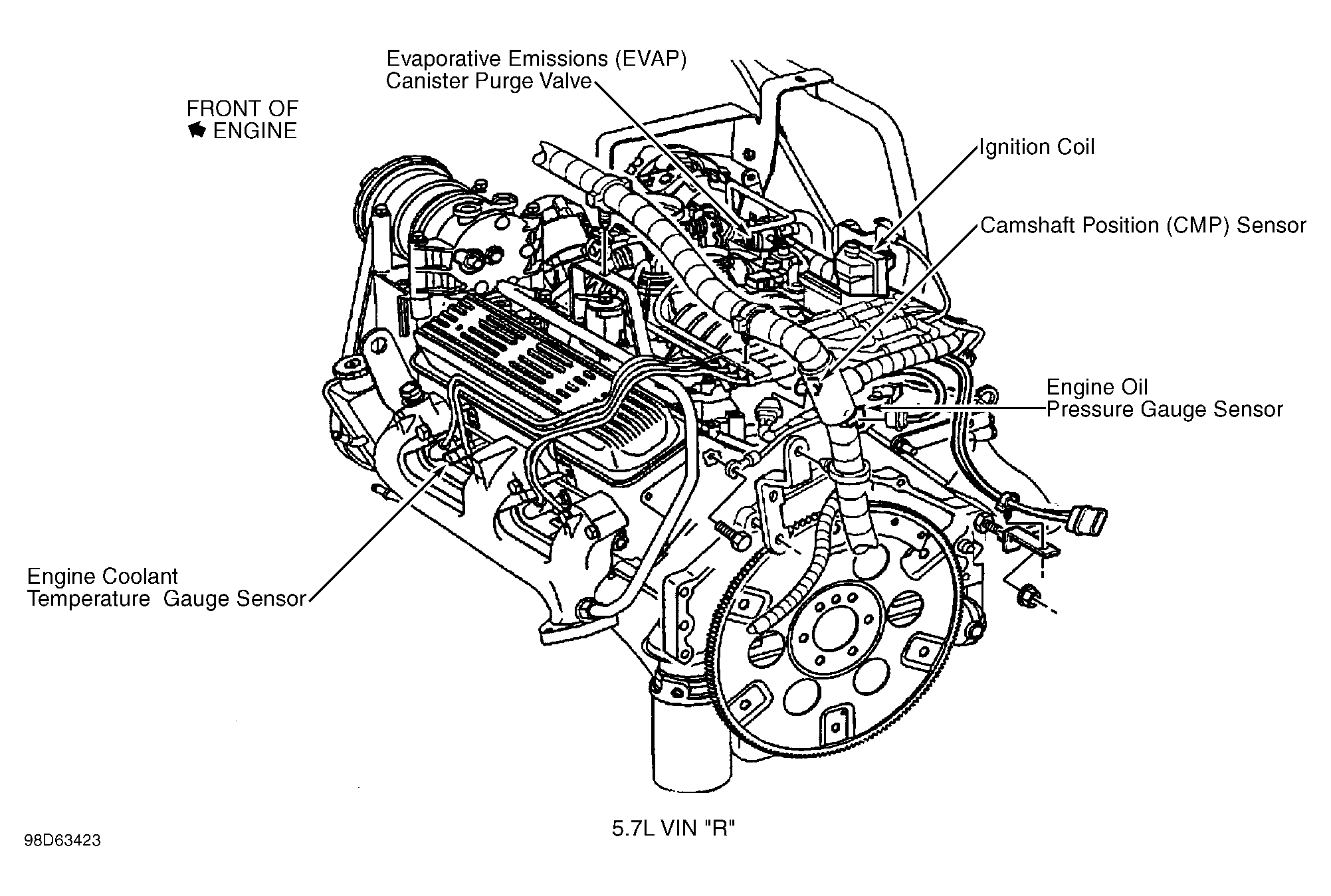

Fig 2: Left Rear Of Engine (5.7L VIN R)

Fig 3: Left Top Of Engine (5.7L VIN R)

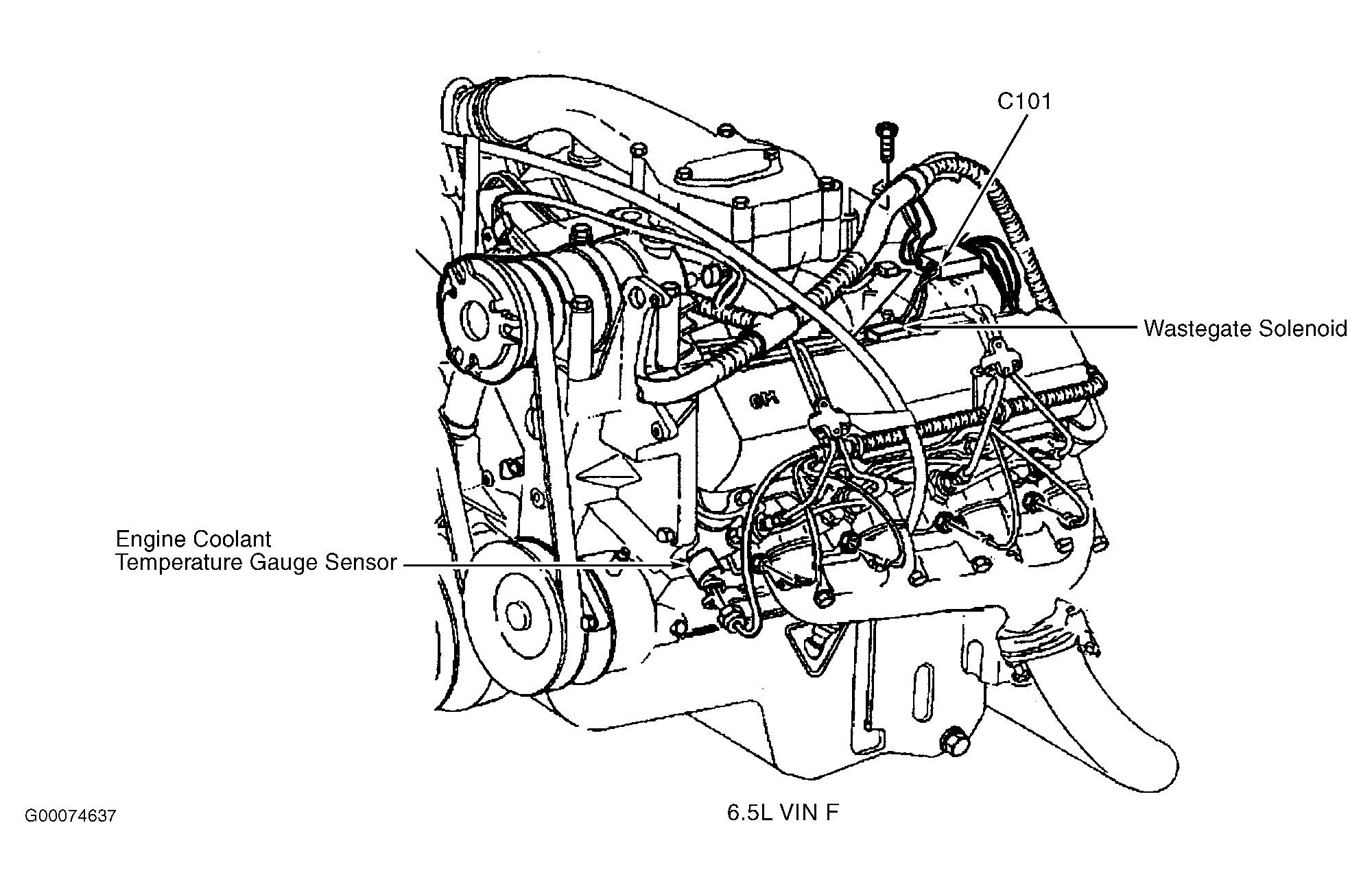

Fig 4: Left Side Of Engine (6.5L VIN F)

Fig 5: Fuel Injection Pump (6.5L VIN F)

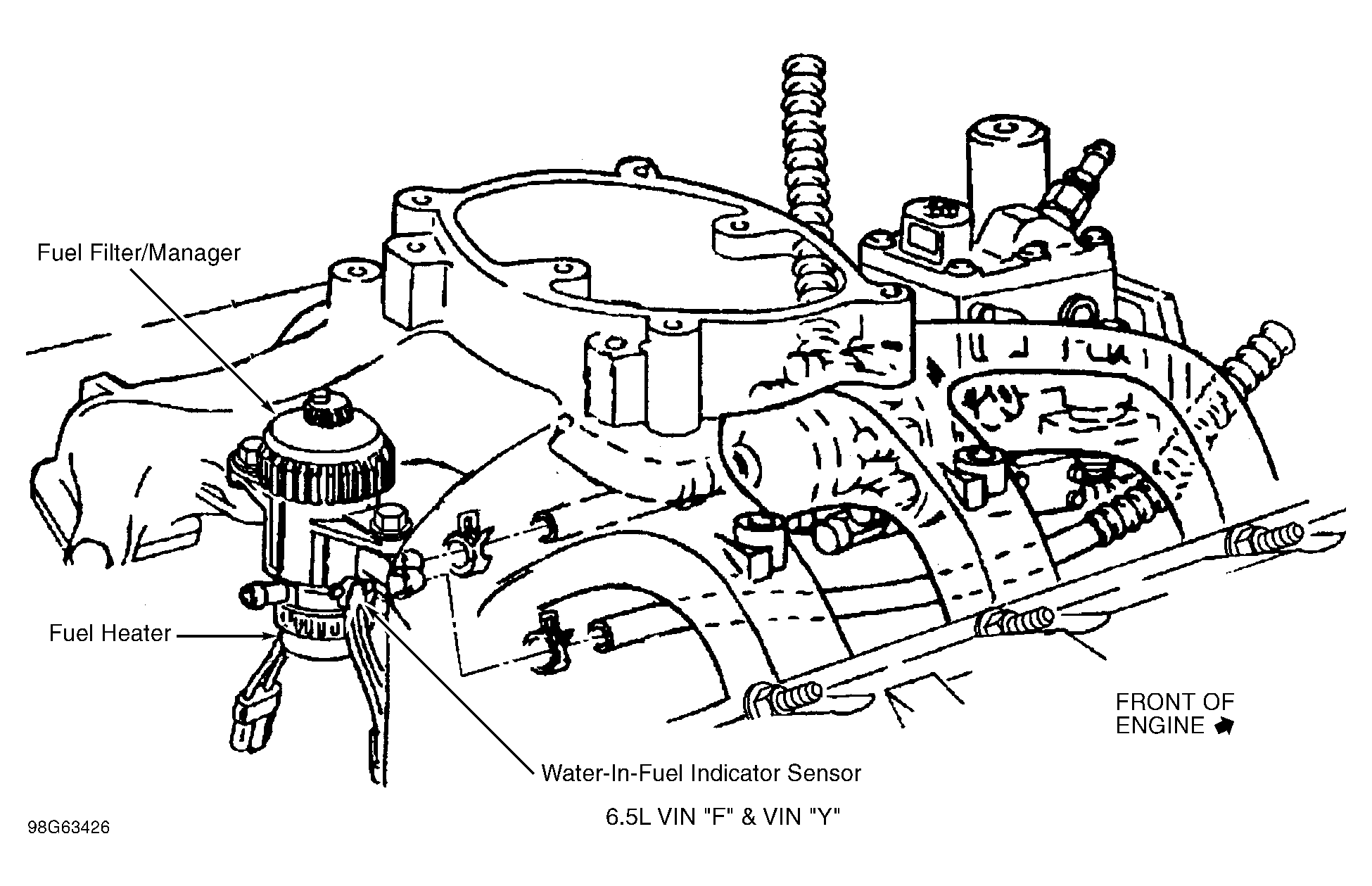

Fig 6: Right Top Of Engine (6.5L VIN F & VIN Y)

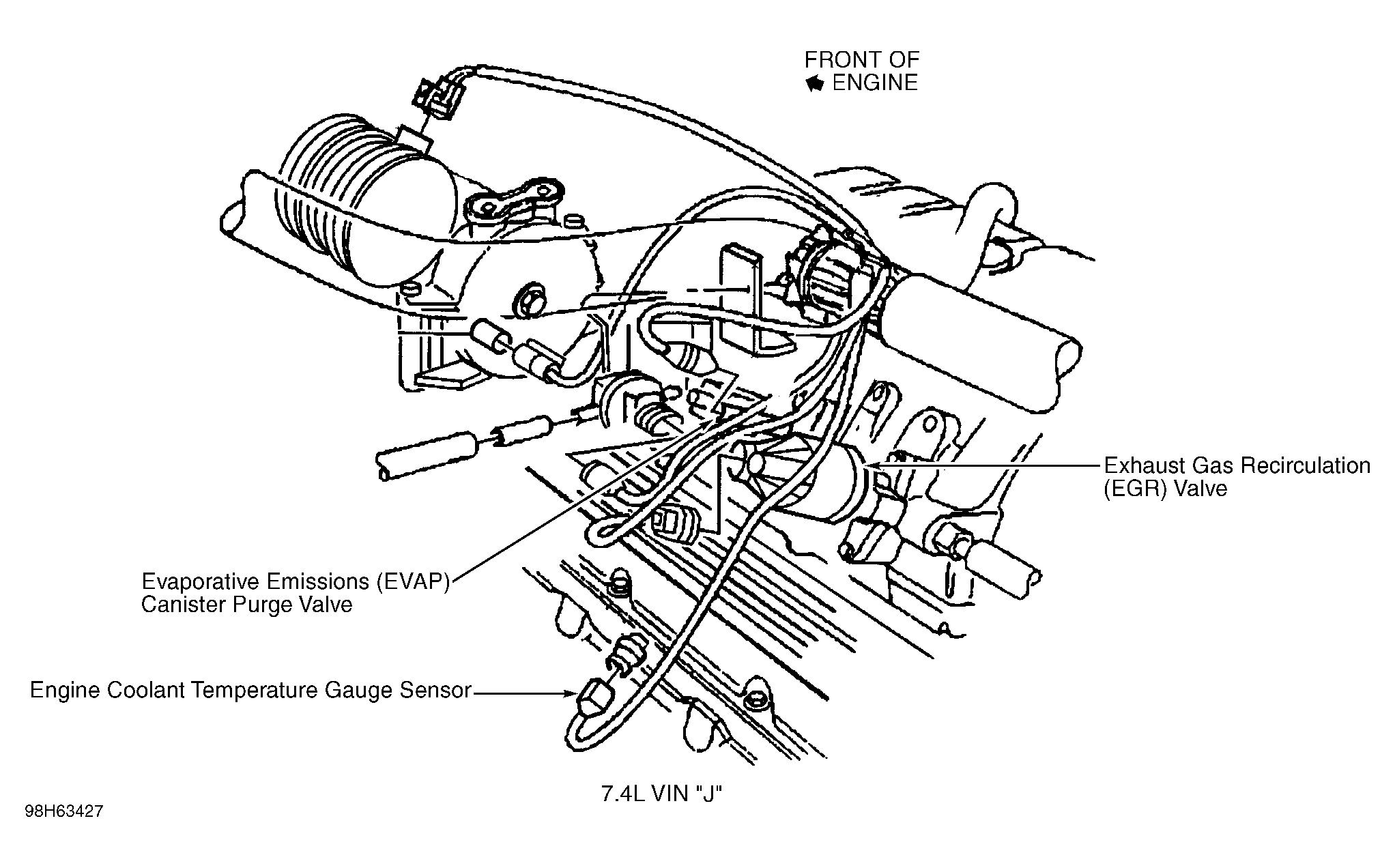

Fig 7: Left Top Of Engine (7.4L VIN J)

Fig 8: Left Rear Of Engine (7.4L VIN J)

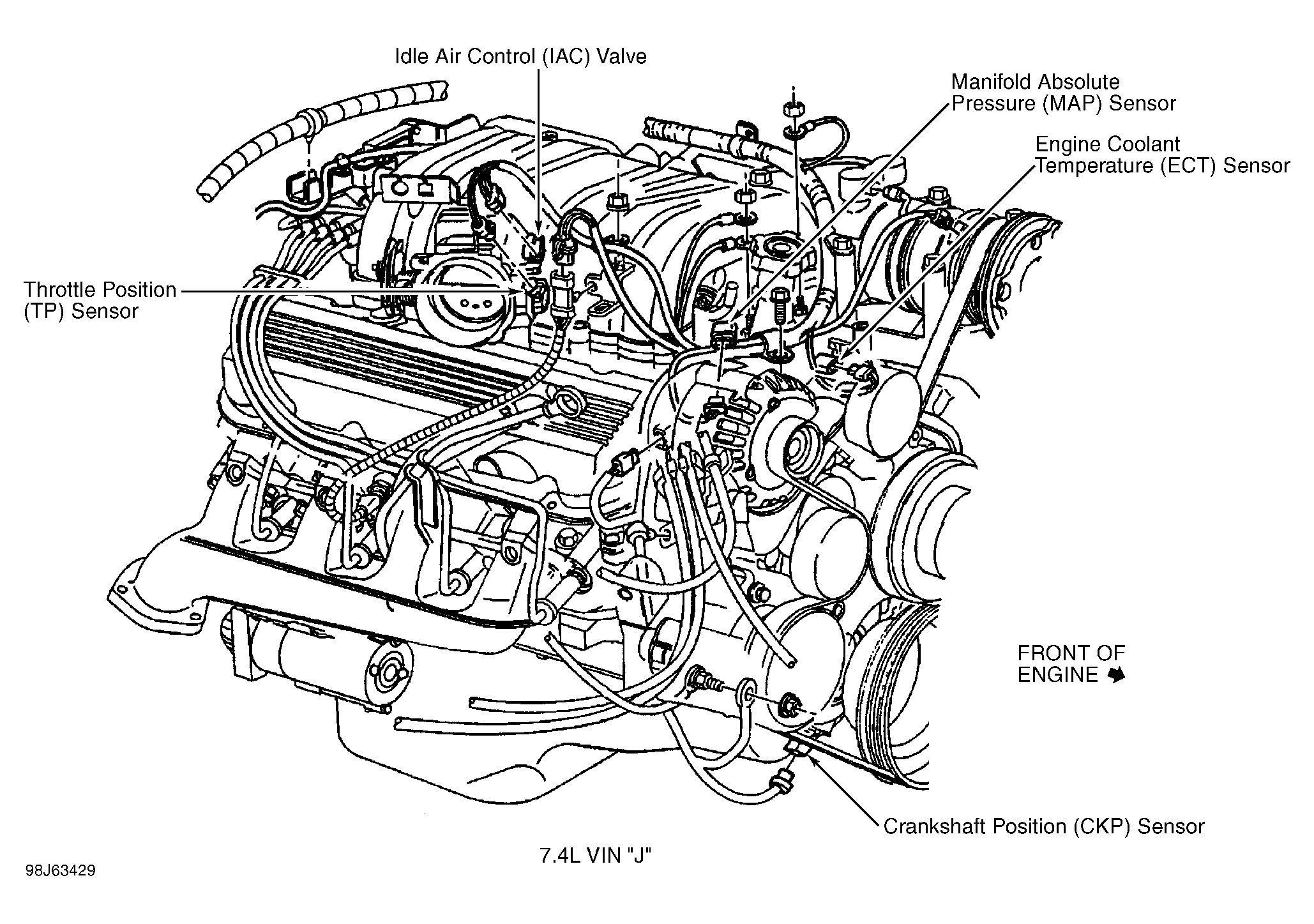

Fig 9: Right Side Of Engine (7.4L VIN J)

Fig 10: Rear Of Engine Compartment (Commercial Van)

Fig 11: Driver's Compartment (Motor Home)

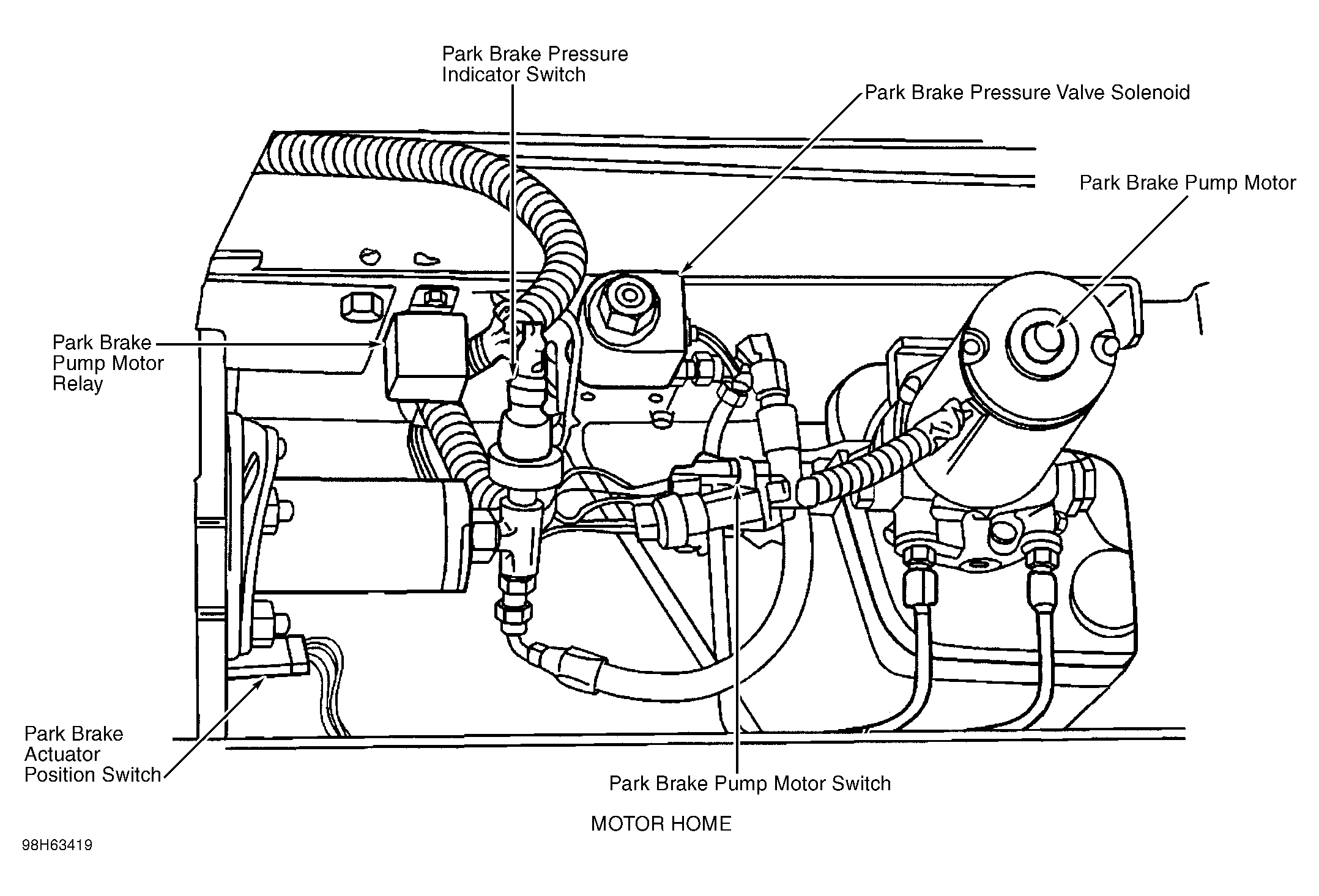

Fig 12: Behind Transmission (Motor Home)

Fig 13: Below Left Side Of Dash (Commercial Van)
