Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1-Fig 3

COMPONENT LOCATIONS

Component	Location
Fuel Pump Balance Module	Inside Left Side Of Frame Rail Near Transmission Crossmember
Fuel Pump Balance Relay	On Fuel Pump Balance Module
G103	Right Front Of Engine, Near Thermostat Housing
G404	Inside Left Frame Rail, Near Rear Crossmember

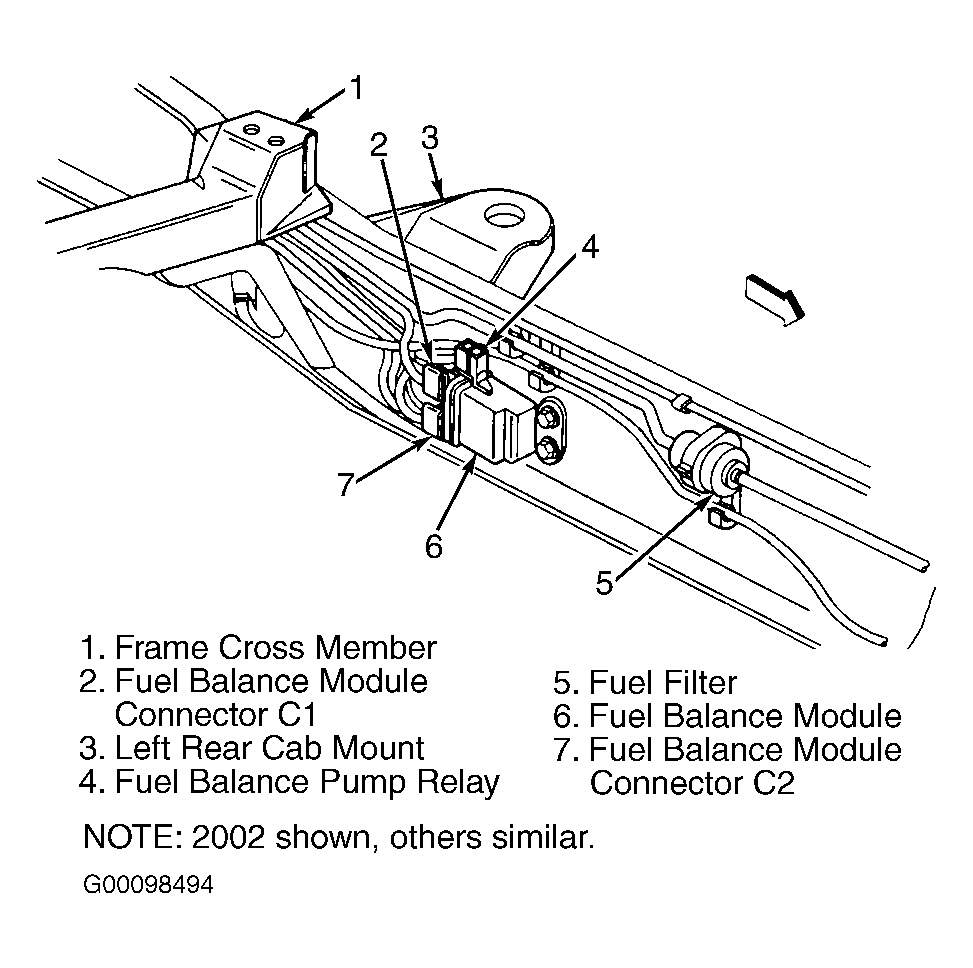

Fig 1: Locating Fuel Balance Module

Courtesy of GENERAL MOTORS CORP.

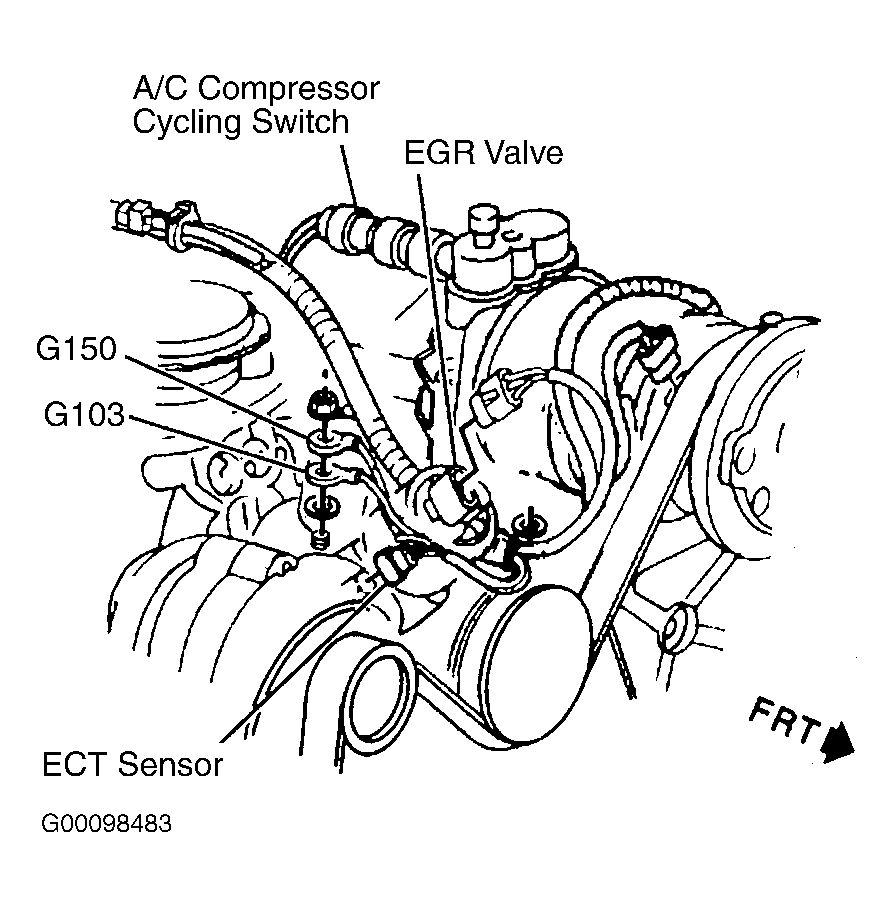

Fig 2: Locating Ground Connection G103

Courtesy of GENERAL MOTORS CORP.

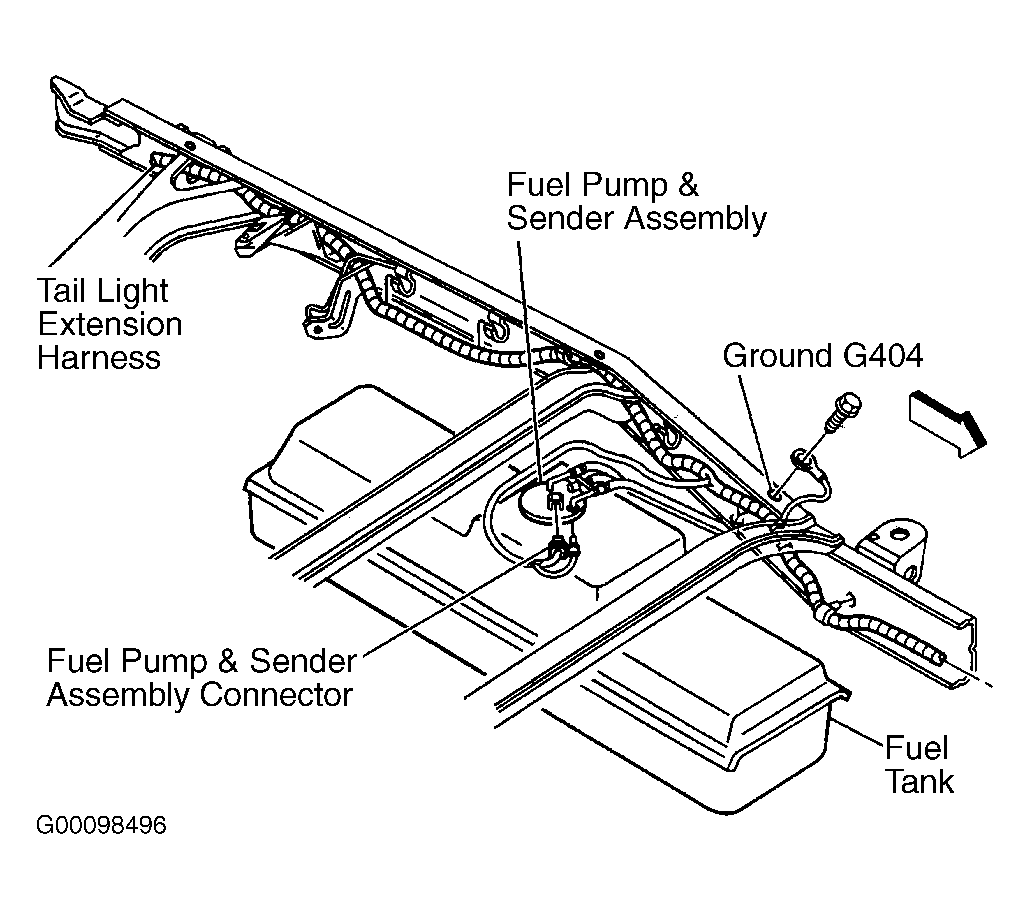

Fig 3: Locating Ground Connection G404

Courtesy of GENERAL MOTORS CORP.
