Glow Plug Relay (CALIFORNIA): Installation

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

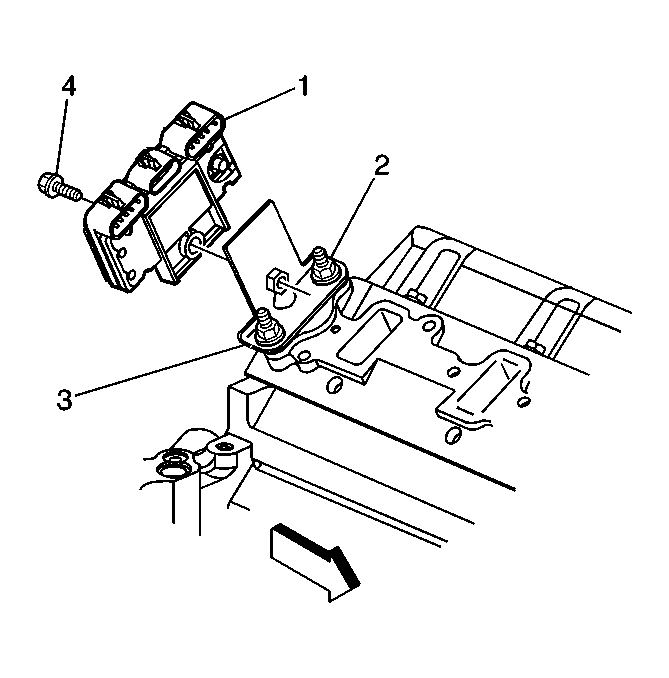

Fig 1: Glow Plug Relay, Mount & Bolts
GM365439Courtesy of GENERAL MOTORS CORP.
  1. Install the glow plug relay (1) on the mounting bracket (3).
  2. Install the glow plug relay mounting bolt.
  3. Tighten the mounting bolt to 22 N.m (16 lb ft).
  4. Install the wiring harness connector to the relay.
  5. Install the glow plug battery feed nut and wire.
  6. Tighten the nut to 4.5 N.m (40 lb in)..
  7. Install the upper intake manifold cover bolts to 11 N.m (100 lb in).
  8. Install the negative battery cables.
