Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Anti-Lock Diode | In instrument cluster. |
| Battery Megafuse | On right side of radiator support, below battery. |
| Body Relay Block | Behind left side of dash, near I/P fuse block. |
| Brake Warning Diode | In instrument cluster. |
| Fuse Holder | In engine compartment, right of radiator. |
| I/P Fuse Block | On left end of dash. |
| Power Seats Circuit Breaker | In body relay block. |
| Power Window Circuit Breaker | In body relay block. |
| Secondary Air Injection Reactor Fuse Block | Mounted to right front fender, next to battery. |

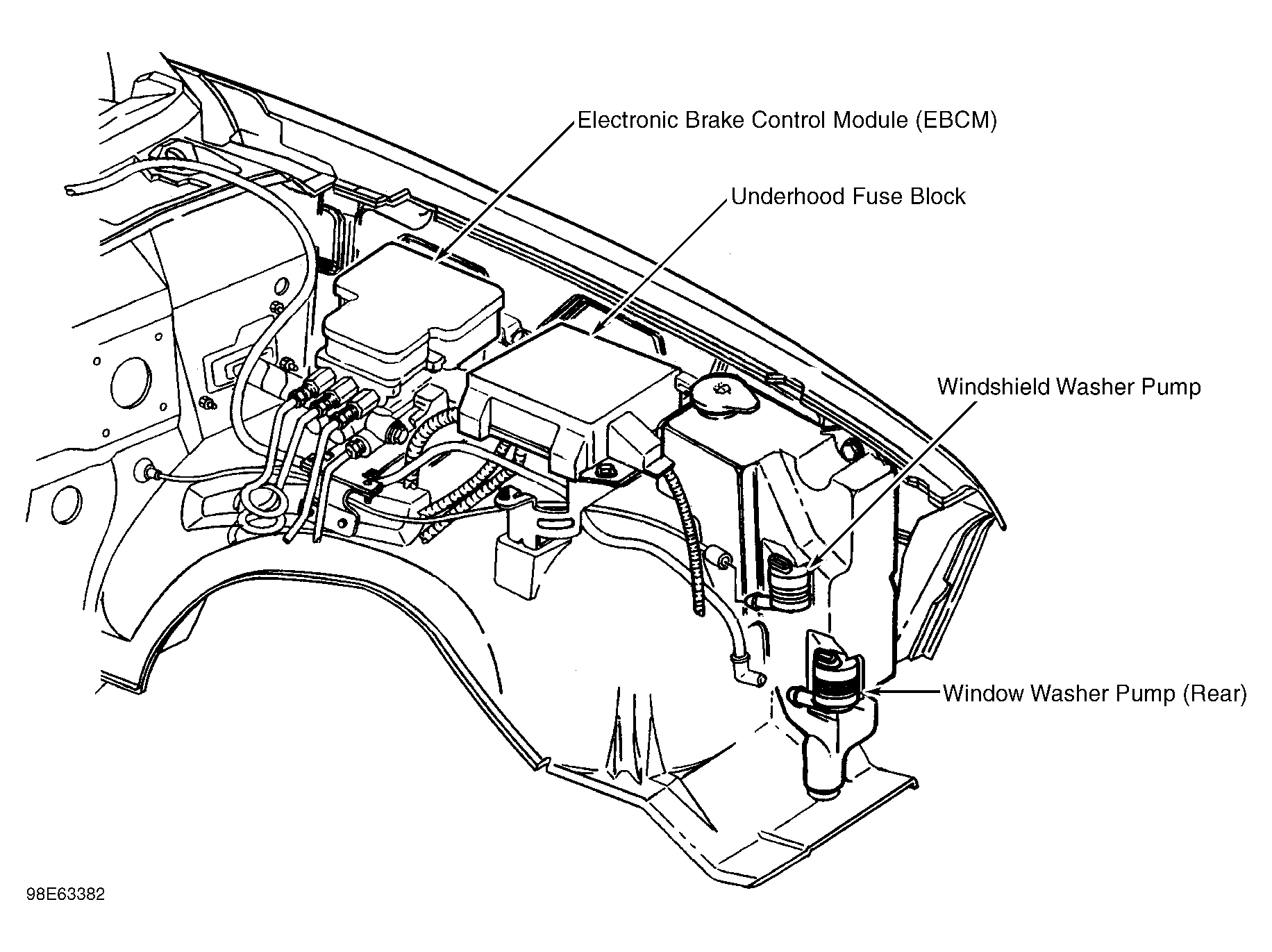

| Underhood Fuse Block | On top of left front fender. See Figure . |
