Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

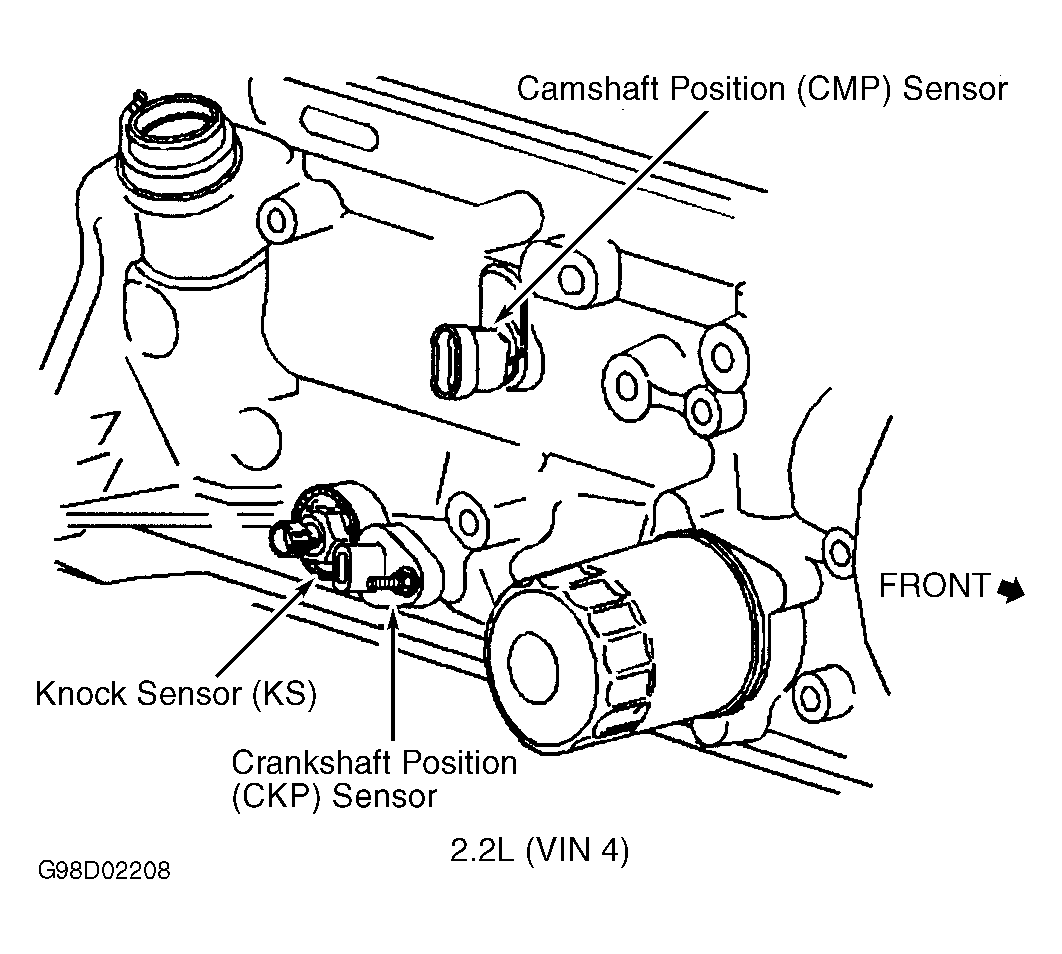

Fig 1: Right Side Of Engine (2.2L VIN 4)

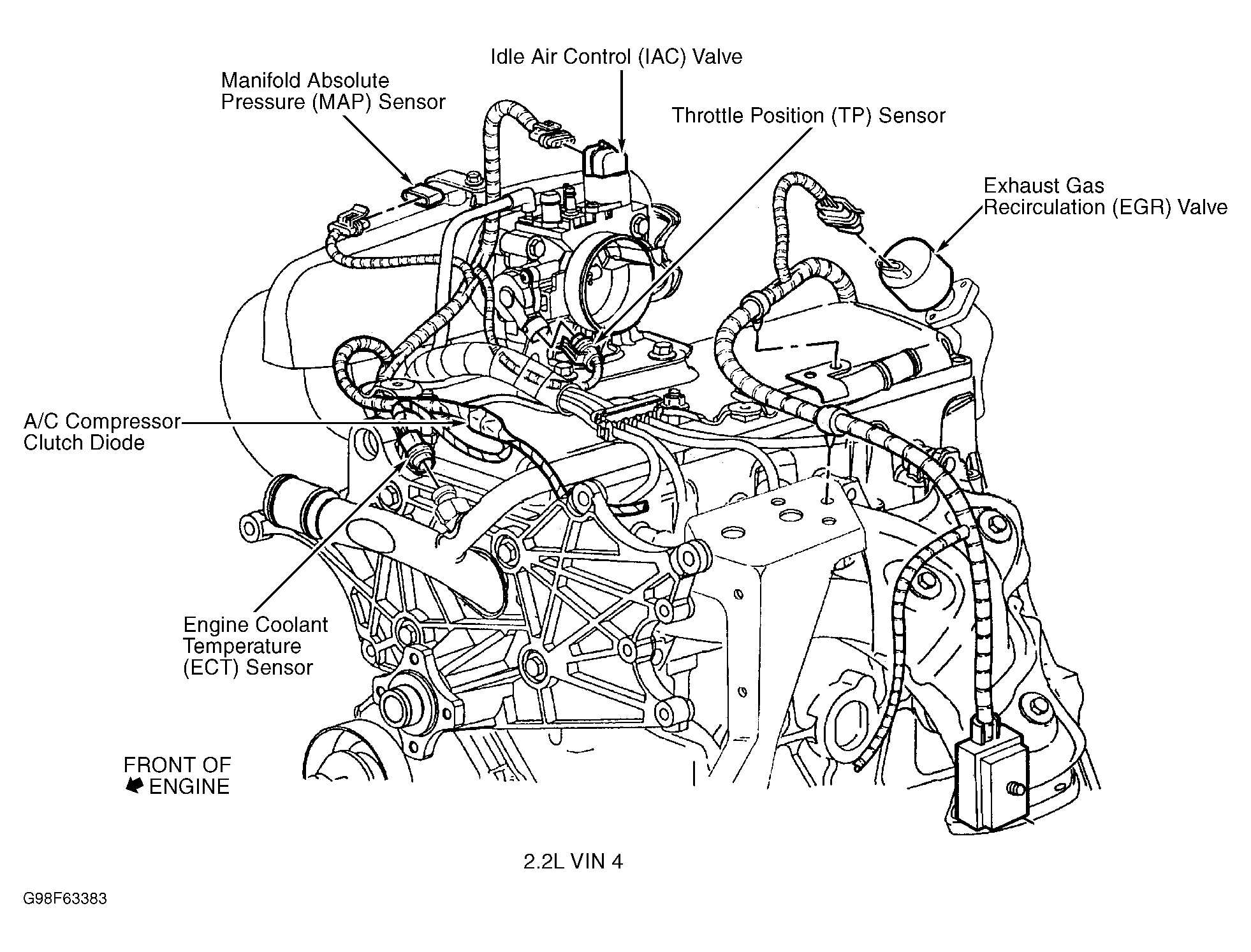

Fig 2: Front Of Engine (2.2L VIN 4)

Fig 3: Lower Right Side Of Engine (2.2L VIN 4)

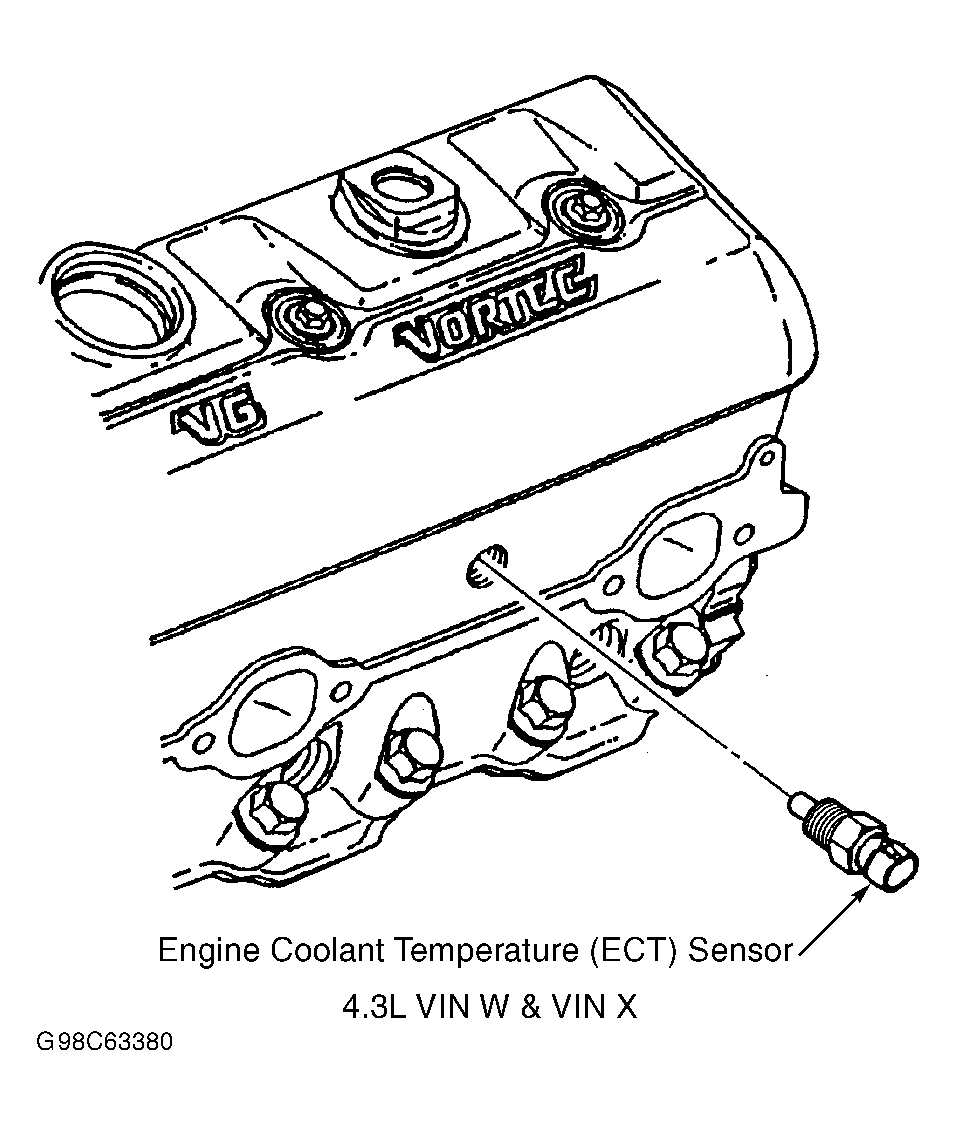

Fig 4: Top Rear Of Engine (4.3L VIN W & VIN X)

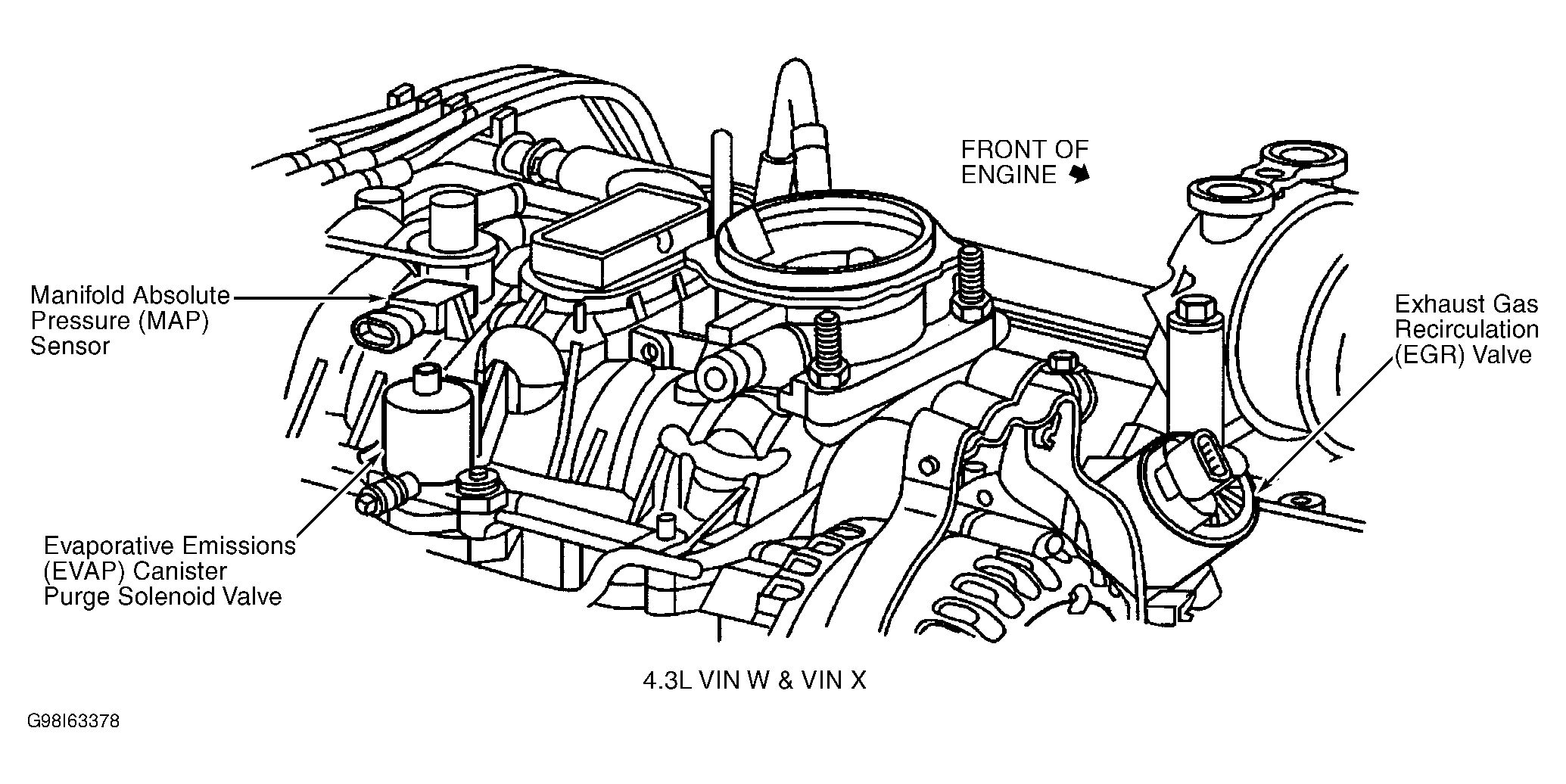

Fig 5: Top Of Engine (4.3L VIN W & VIN X)

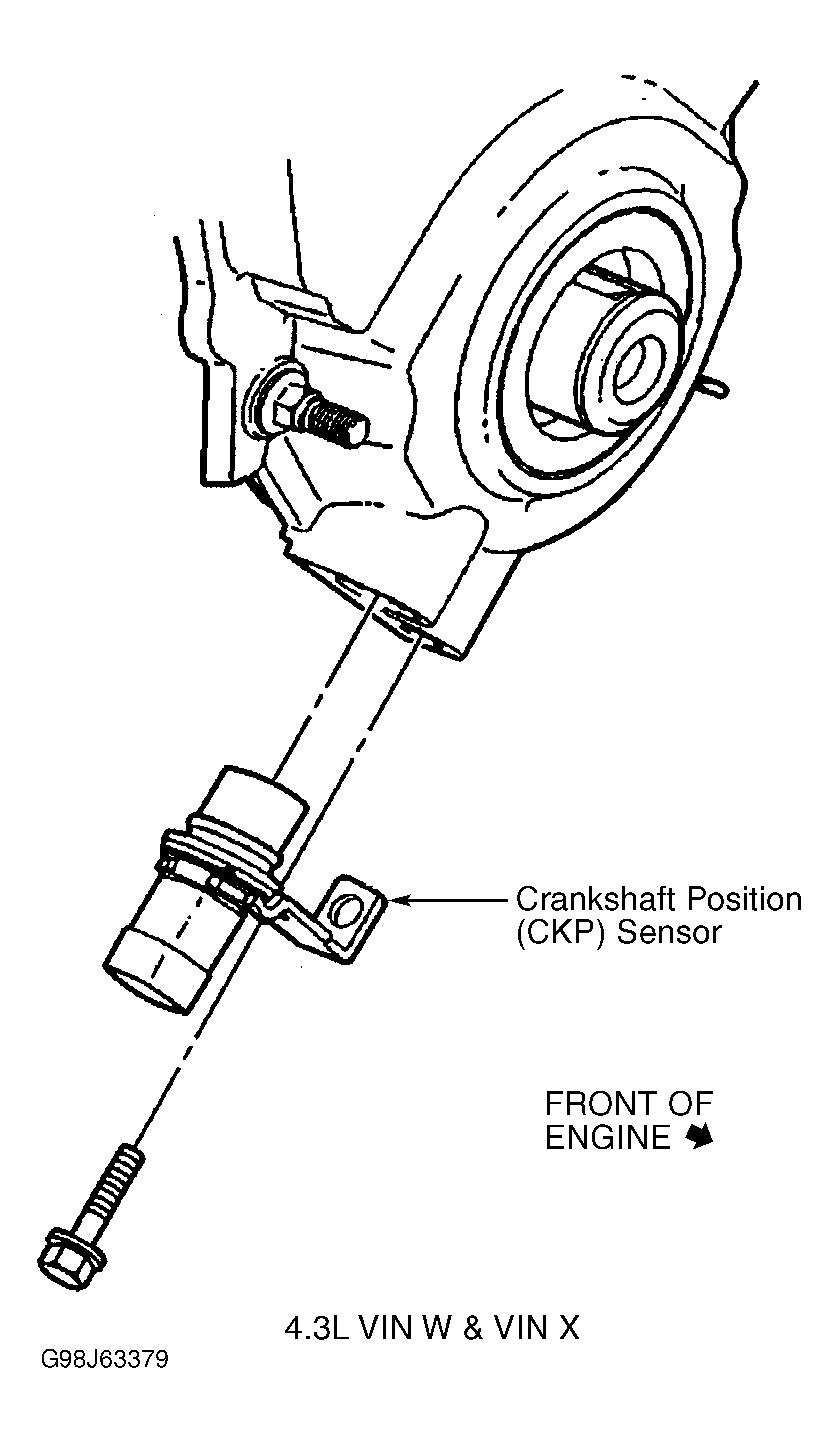

Fig 6: Bottom Of Engine (4.3L VIN W & VIN X)

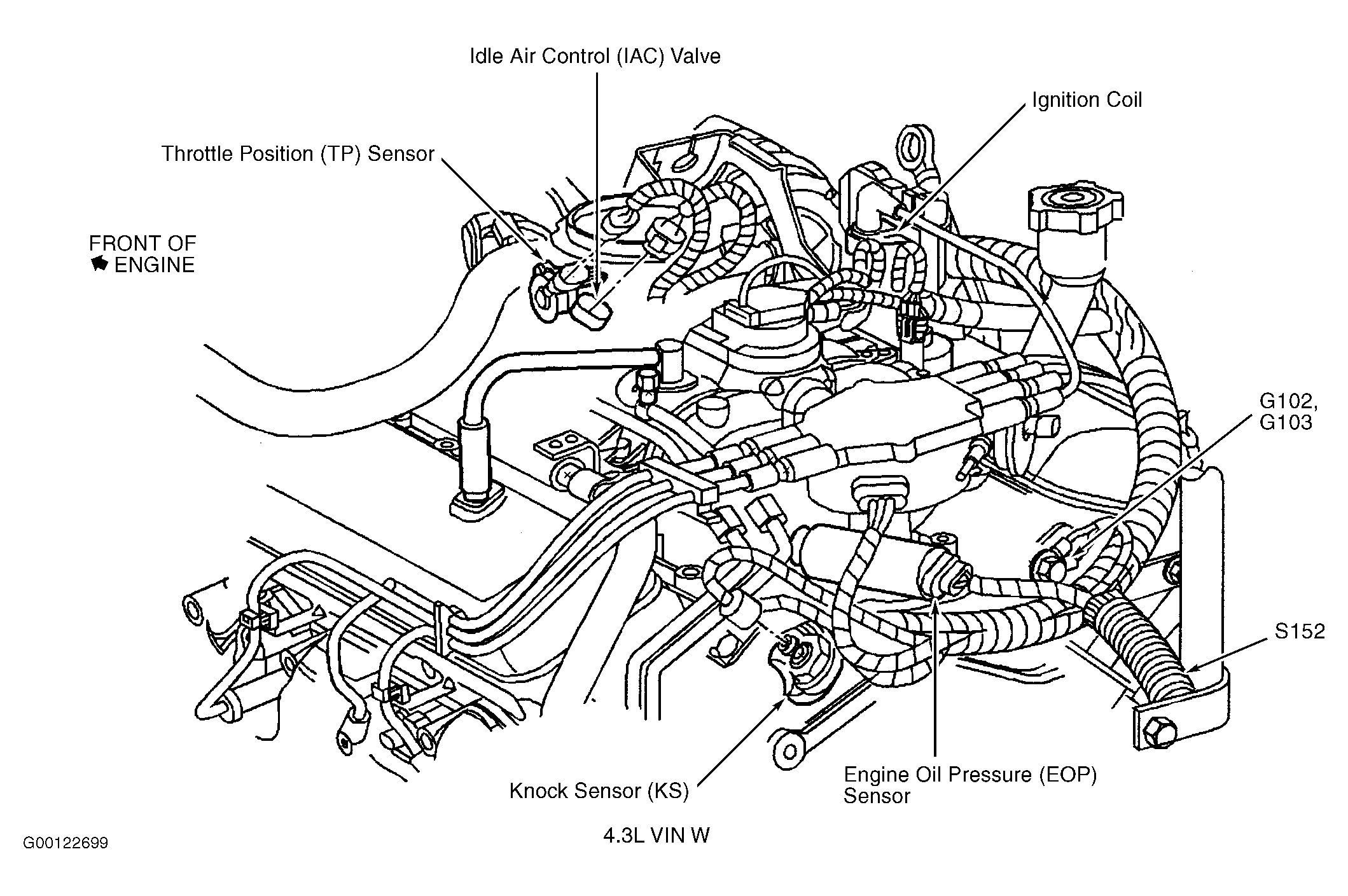

Fig 7: Top Of Engine (4.3L VIN W & VIN X)

Fig 8: Left Side of Engine Compartment
