Power Take Off (PTO) Switch

Power Take Off (PTO) Switch

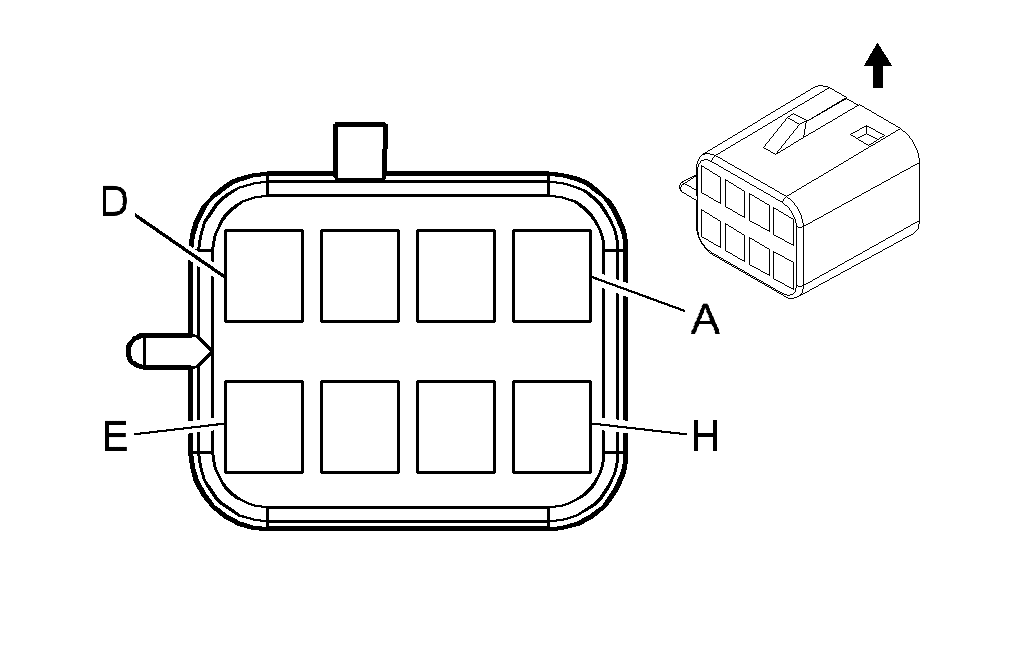

GM280767
Connector Part Information
  • 12186098
  • 8-Way F Metri-Pack 150 Series (LT GRY)
Pin Wire Color Circuit No. Function
A BRN 41 Ignition 3 Voltage
B LT GRN 488 Power Take Off (PTO) relay Switched Enable Control
C GRY 8 Instrument Panel Lamp Supply Voltage - 1
D GRY 397 Cruise Control On Switch Signal
E YEL 2522 Power Take Off (PTO) Status
F BLK 1850 Ground
G DK BLU 84 Cruise Control Set/Coast Switch Signal
H PPL/WHT 1382 LED Dimming Signal
