RR of the Engine Compartment Components (8.1L)

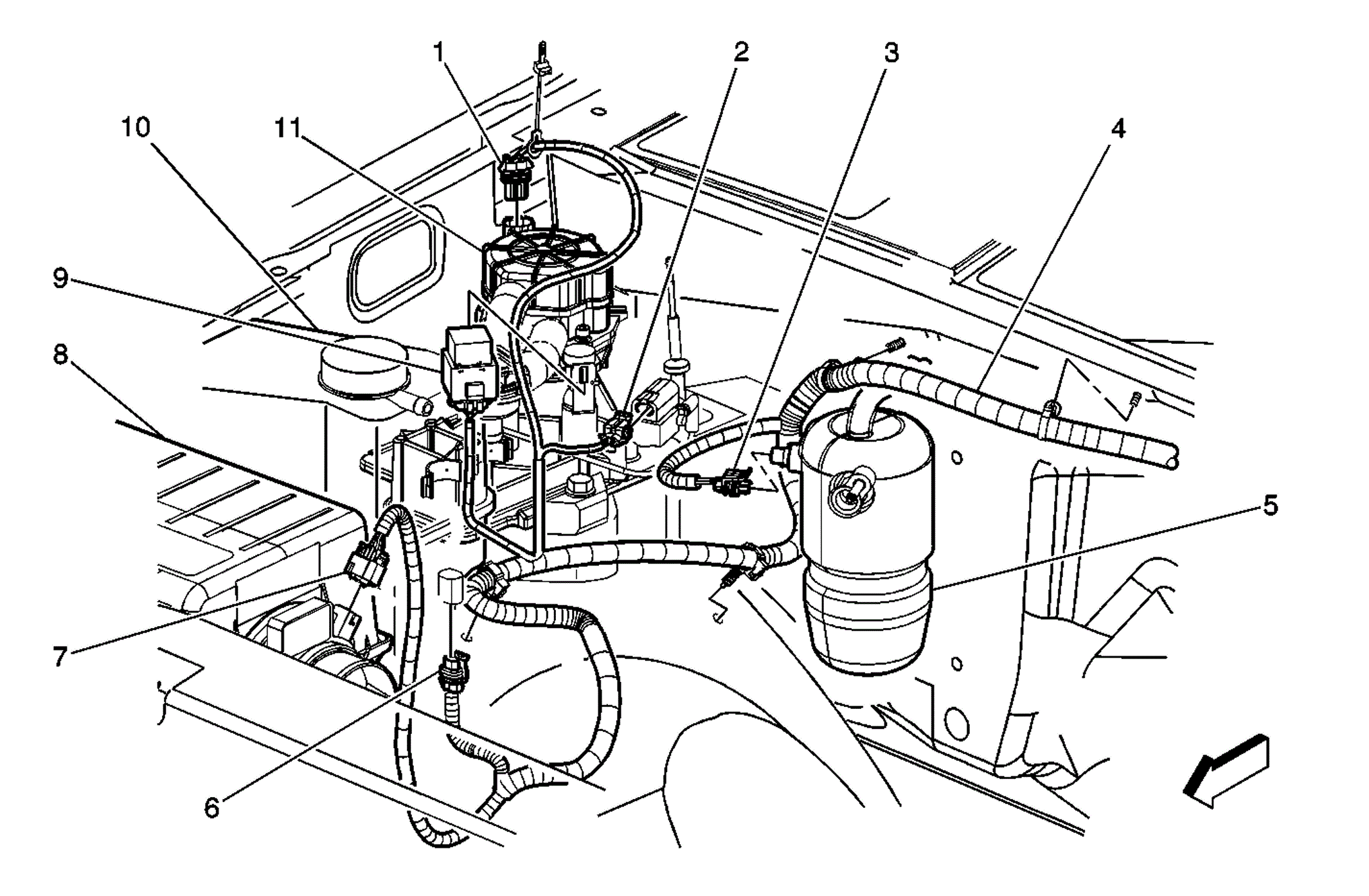

Fig 1: RR of the Engine Compartment Components
GM656571Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Secondary Air Injection Reaction (AIR) Pump Connector
2 AIR Solenoid Connector
3 A/C Accumulator Connector
4 Engine Wiring Harness
5 A/C Accumulator
6 Surge Tank Switch Connector
7 Mass Air Flow (MAF) Switch Connector
8 Air Cleaner
9 AIR Pump Relay
10 Radiator Surge Tank
11 AIR Pump
