Top Left Side of the Engine Components (8.1L)

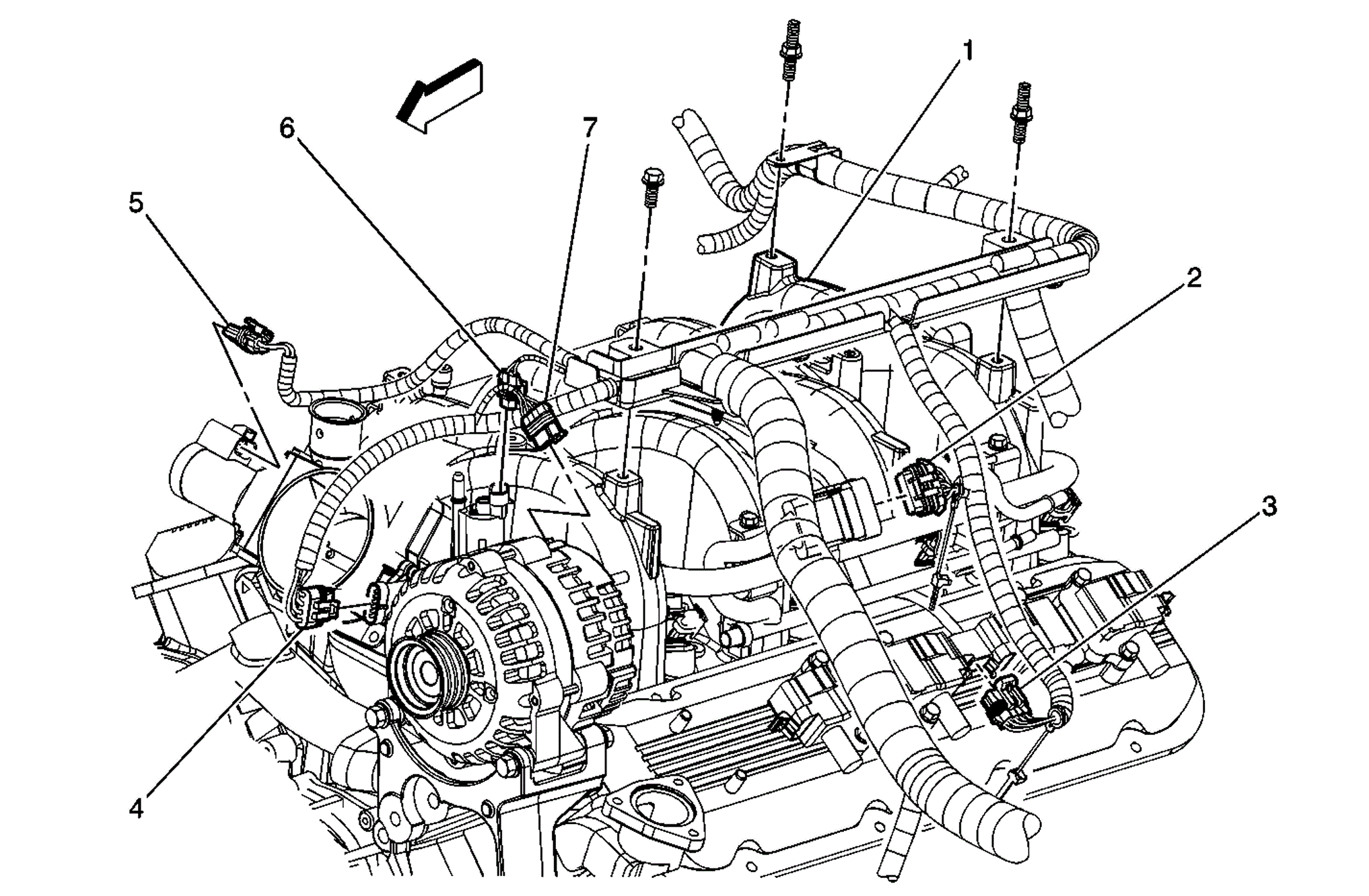

Fig 1: Top Left Side of the Engine Components
GM656543Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine (8.1L)
2 Injector Connector
3 Coil Connector
4 Throttle Position (TP) Sensor Connector
5 Electronic Throttle Control (ETC) Connector
6 Purge Valve Solenoid Connector
7 Generator Connector
