Removal Procedure
IMPORTANT:
Take care when handling the mass air flow/intake air temperature (MAF/IAT) sensor. Do not dent, puncture, or otherwise damage the honeycell located at the air inlet end of the MAF/IAT. Do not touch the sensing elements or allow anything including cleaning solvents and lubricants to come in contact with them. Use a small amount of a non-silicone based lubricant, on the air duct only, to aid in installation. Do not drop or roughly handle the MAF/IAT sensor.
- Remove Air Intake Resonator. Refer to Intake Air Resonator Replacement .
- Disconnect the MAF/IAT sensor electrical connector.

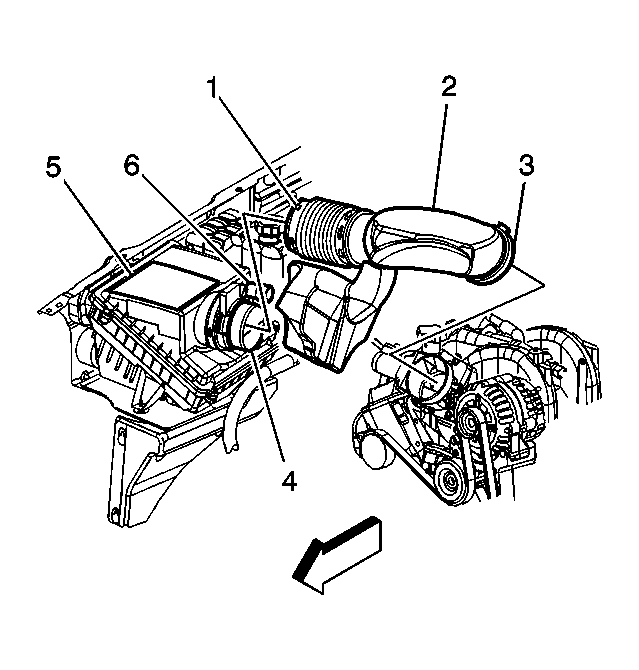

- Loosen the clamp securing the MAF/IAT (4) sensor to the air cleaner housing (5).
- Remove the MAF/IAT (4) sensor from the air cleaner assembly (5).
