Removal Procedure

NOTE:

Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

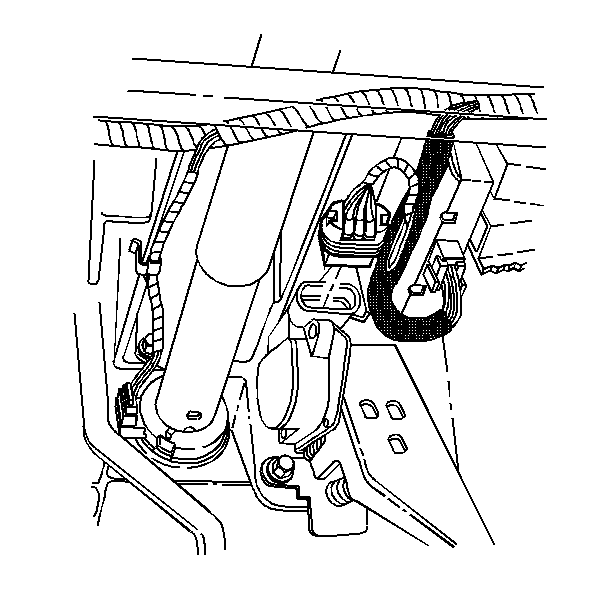

    Fig 1: Accelerator Pedal Sensor Module Electrical Connector
    GM43534Courtesy of GENERAL MOTORS COMPANY
  1. Remove the left instrument panel (IP) lower closeout insulator panel.
  2. Disconnect the APP sensor harness connector.

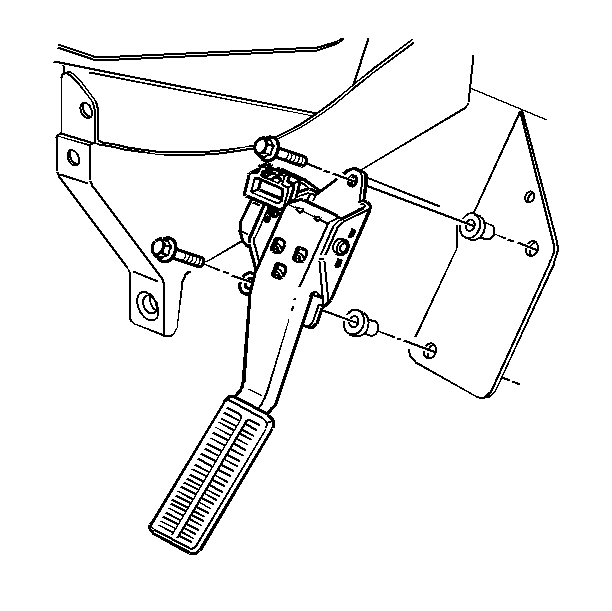

    Fig 2: Accelerator Pedal Mounting & Bolts
    GM43535Courtesy of GENERAL MOTORS COMPANY
  3. Remove the accelerator pedal mounting bolts.
  4. Remove the accelerator pedal.
