Installation Procedure

  1. Install a new gasket (3) on the EGR adapter bracket.

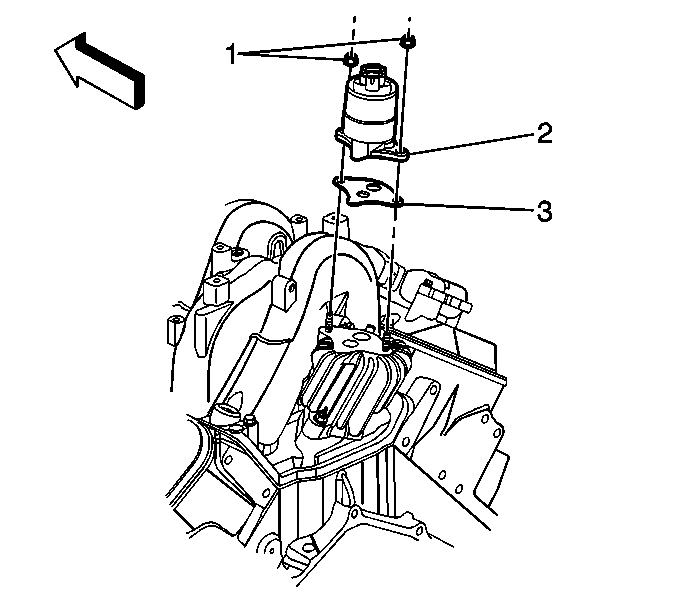

    2. Fig 1: Identifying EGR Valve Assembly
    GM717186Courtesy of GENERAL MOTORS COMPANY
  2. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the EGR (2) valve and two nuts (1).

    Tighten

    Tighten the nuts to 22 N.m (16 lb ft).

  3. Connect the EGR valve electrical connector.
