Engine Controls Component Views

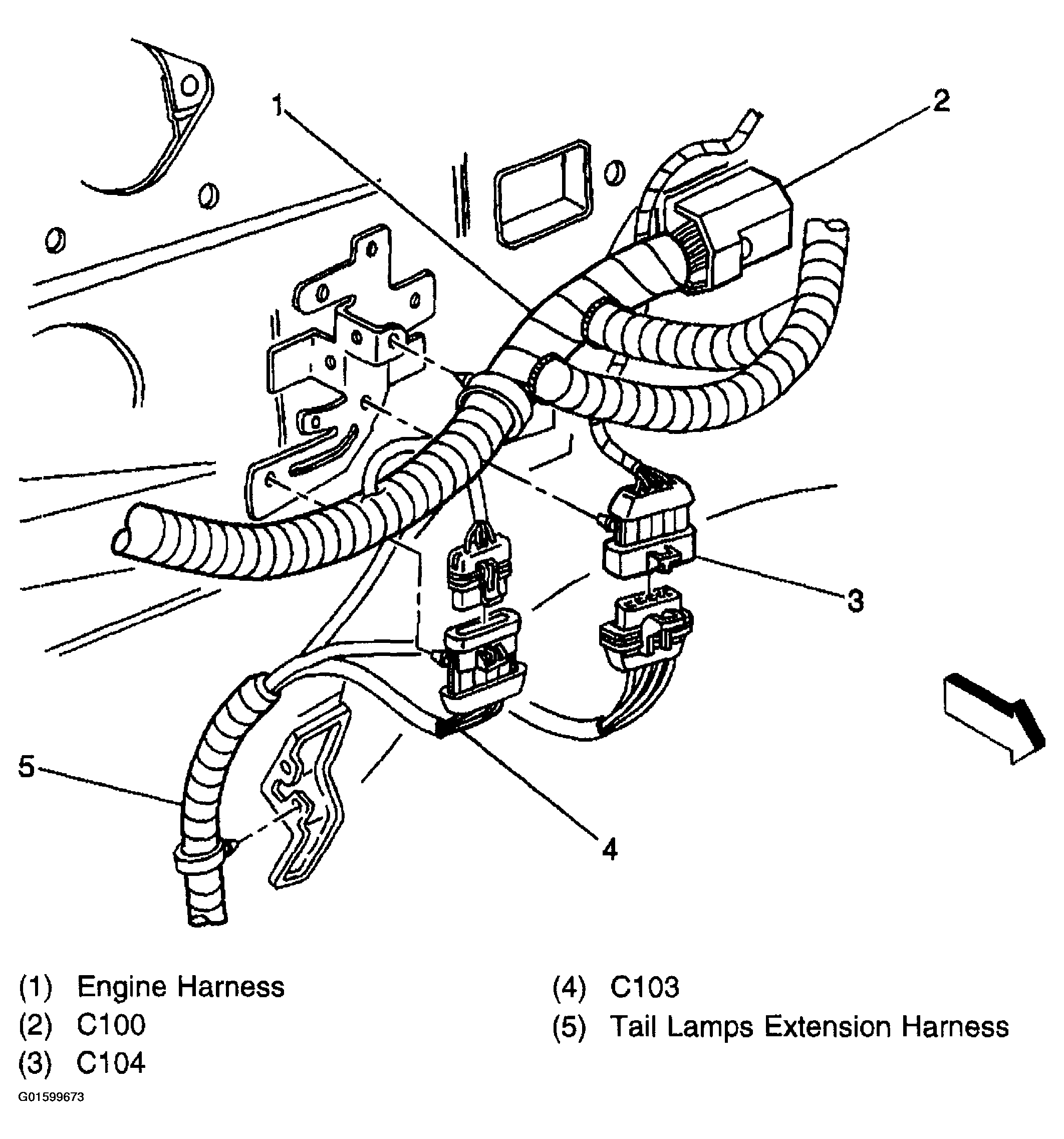

Fig 1: C100, C103 & C104 - Left Rear Of Engine Compartment Component View
G01599673Courtesy of GENERAL MOTORS CORP.

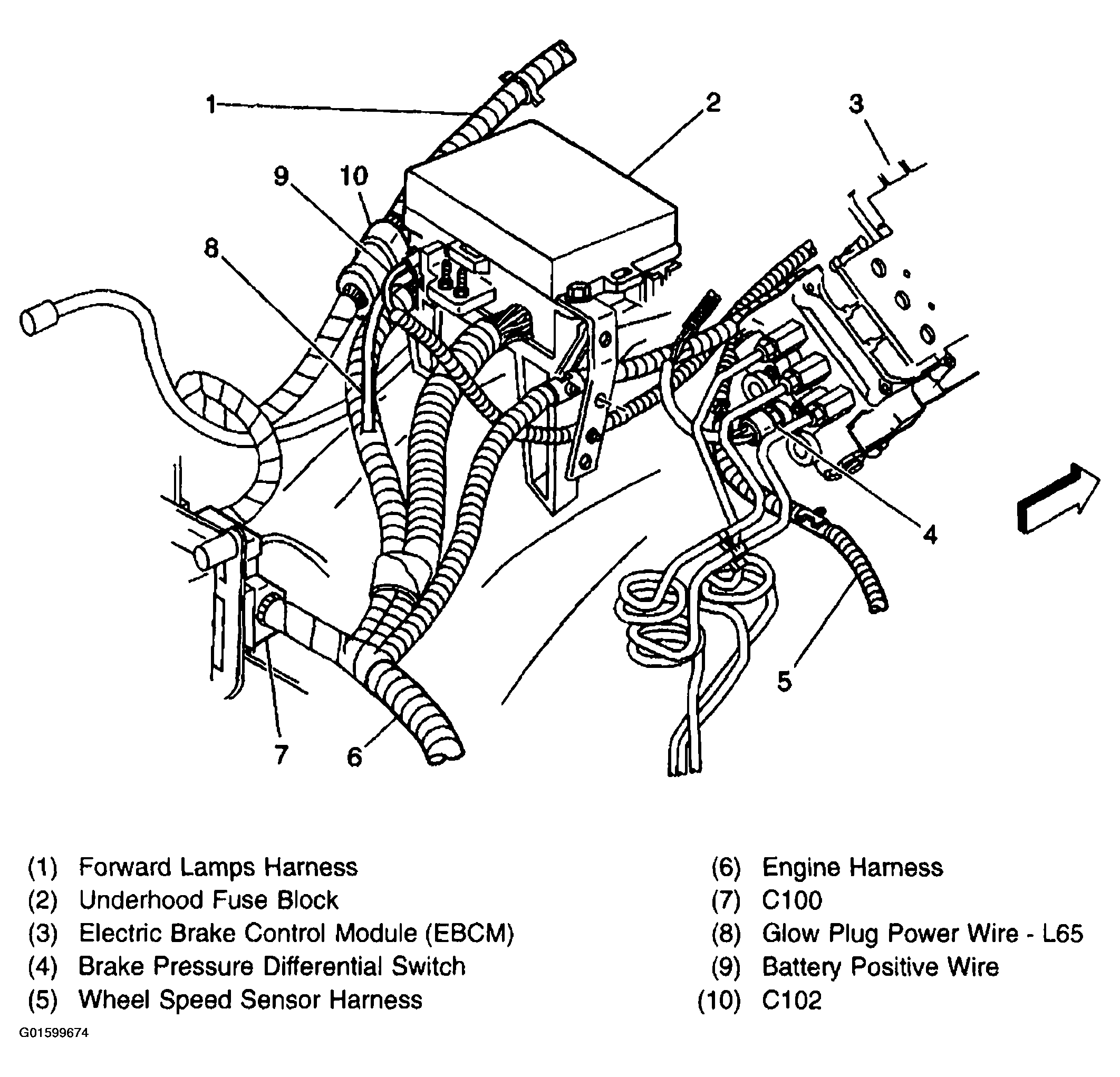

Fig 2: C100, C102, Underhood Fuse Block, EBCM & Brake Pressure Differential Switch Component View
G01599674Courtesy of GENERAL MOTORS CORP.

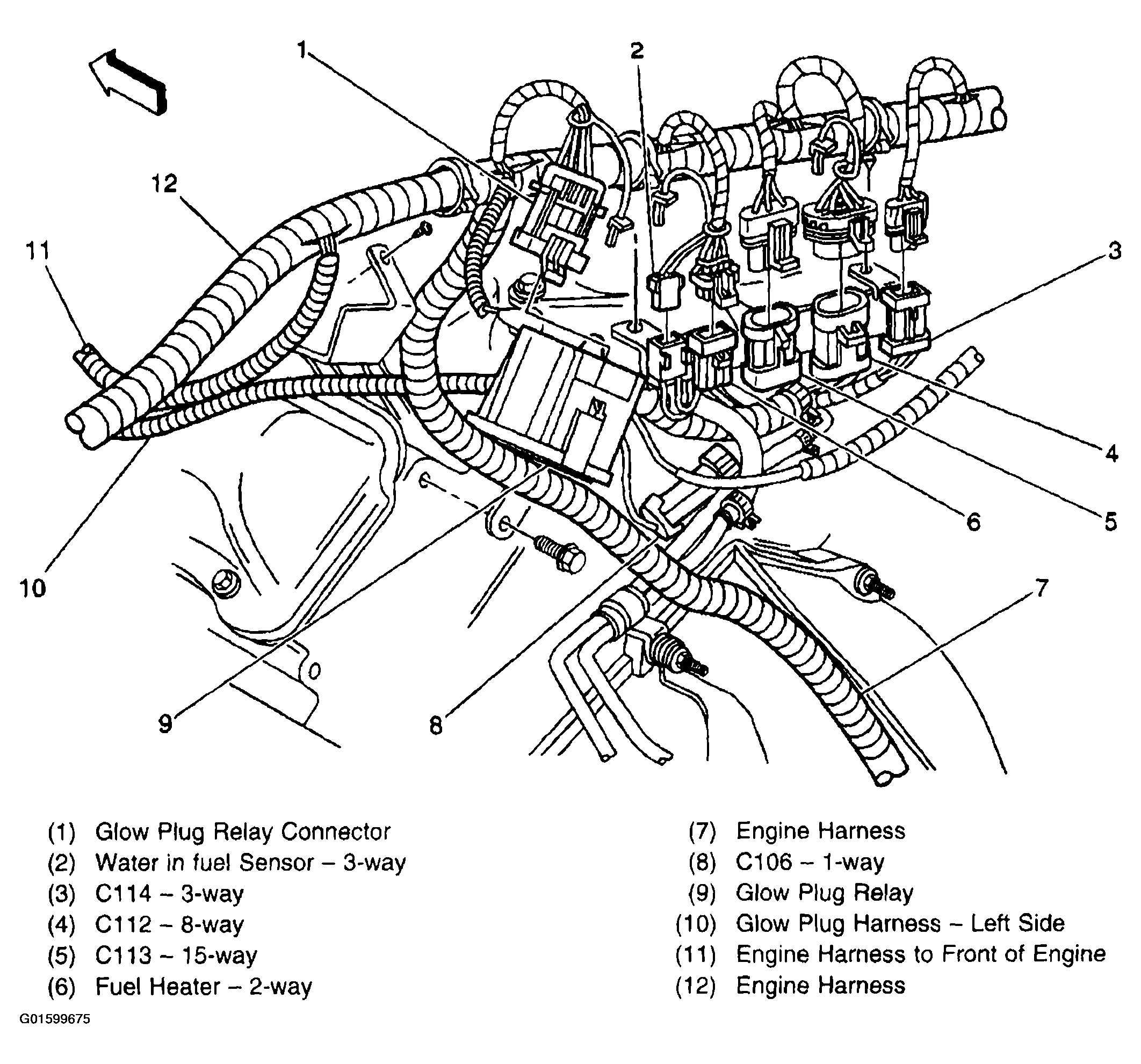

Fig 3: C106, C112, C113, C114, Fuel Filter Connectors & Glow Plug Relay Component View
G01599675Courtesy of GENERAL MOTORS CORP.

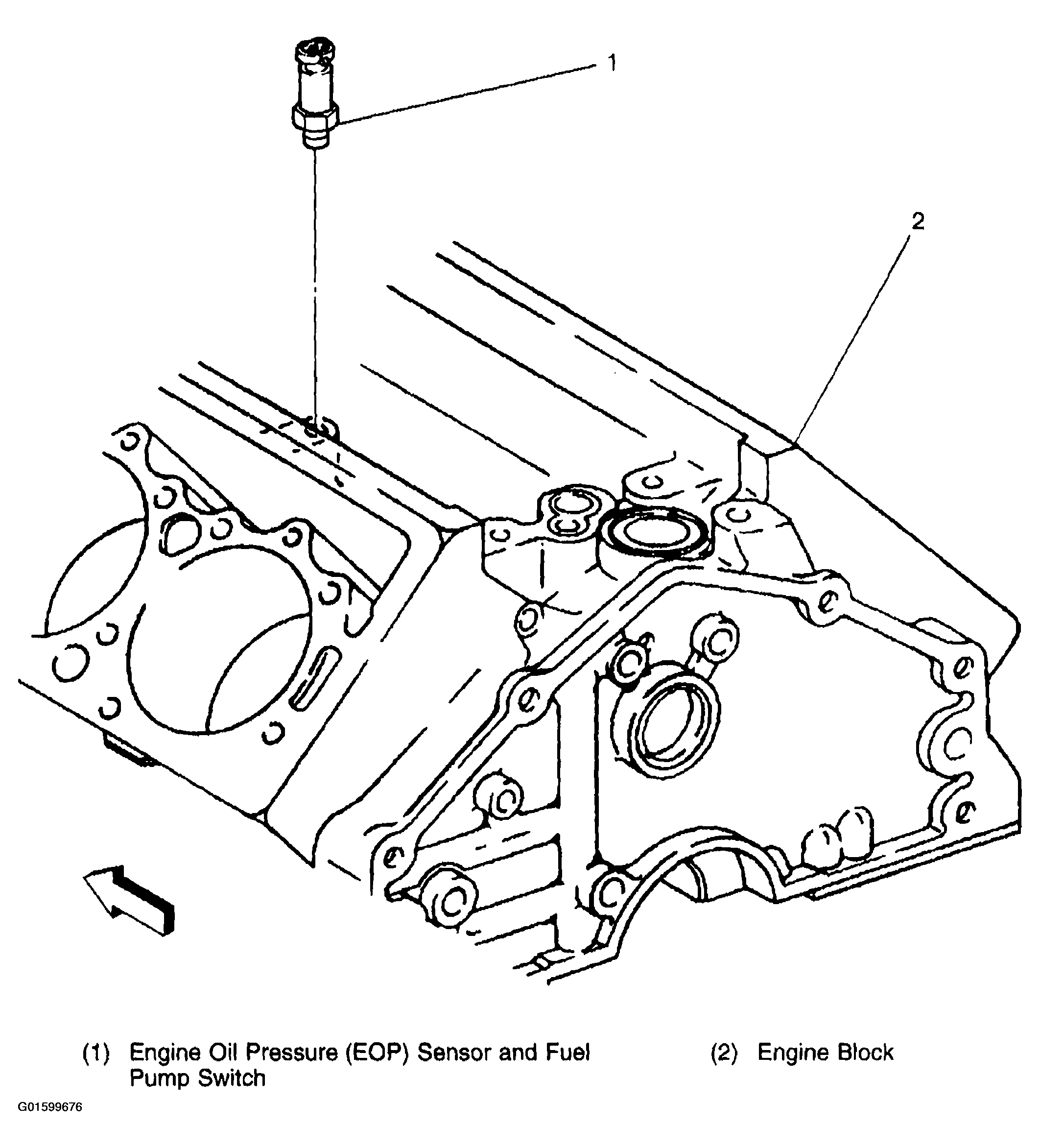

Fig 4: Engine Oil Pressure (EOP) Sensor & Fuel Pump Switch Component View
G01599676Courtesy of GENERAL MOTORS CORP.

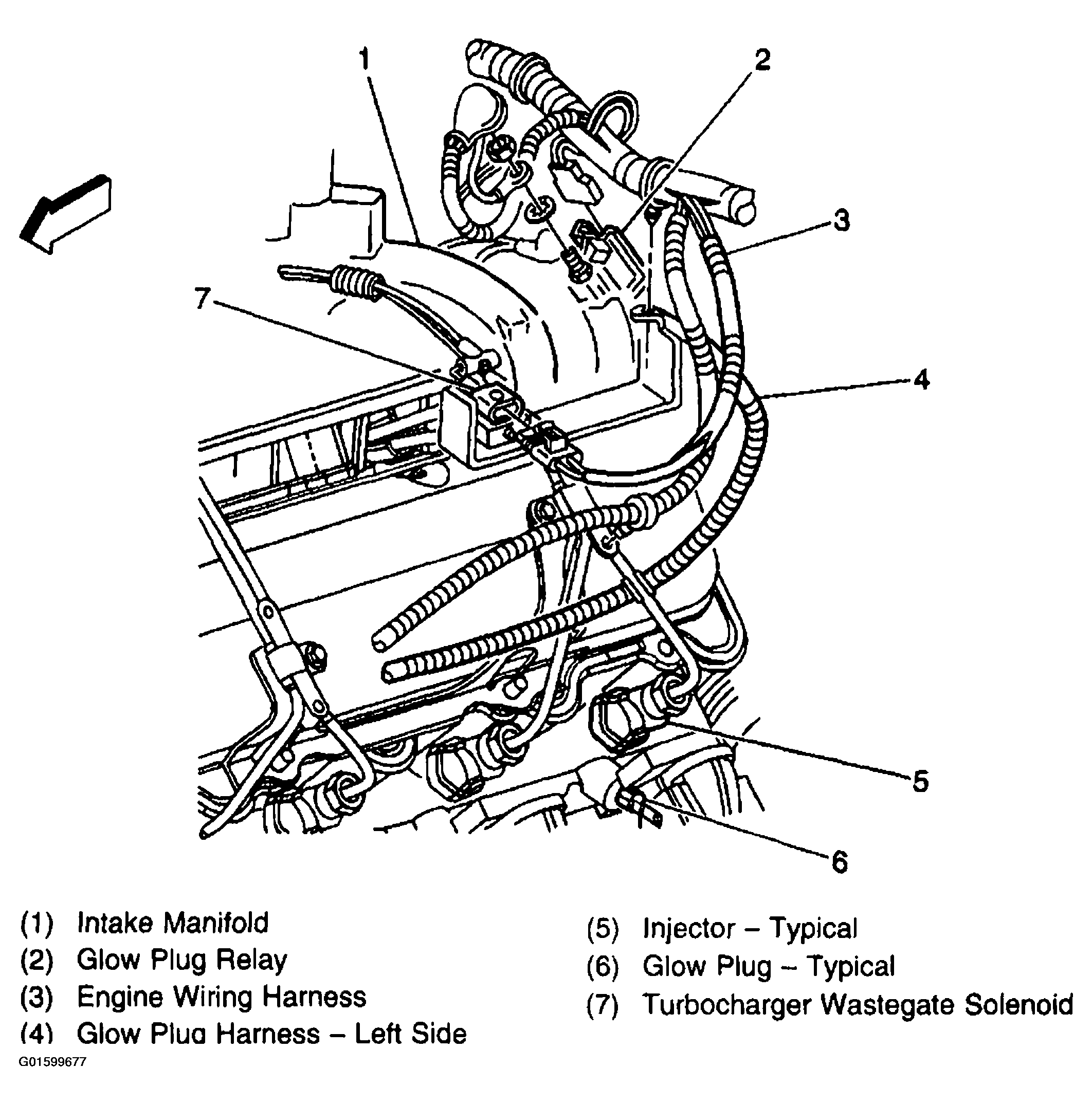

Fig 5: Glow Plug Relay & Turbocharger Wastegate Solenoid Component View
G01599677Courtesy of GENERAL MOTORS CORP.

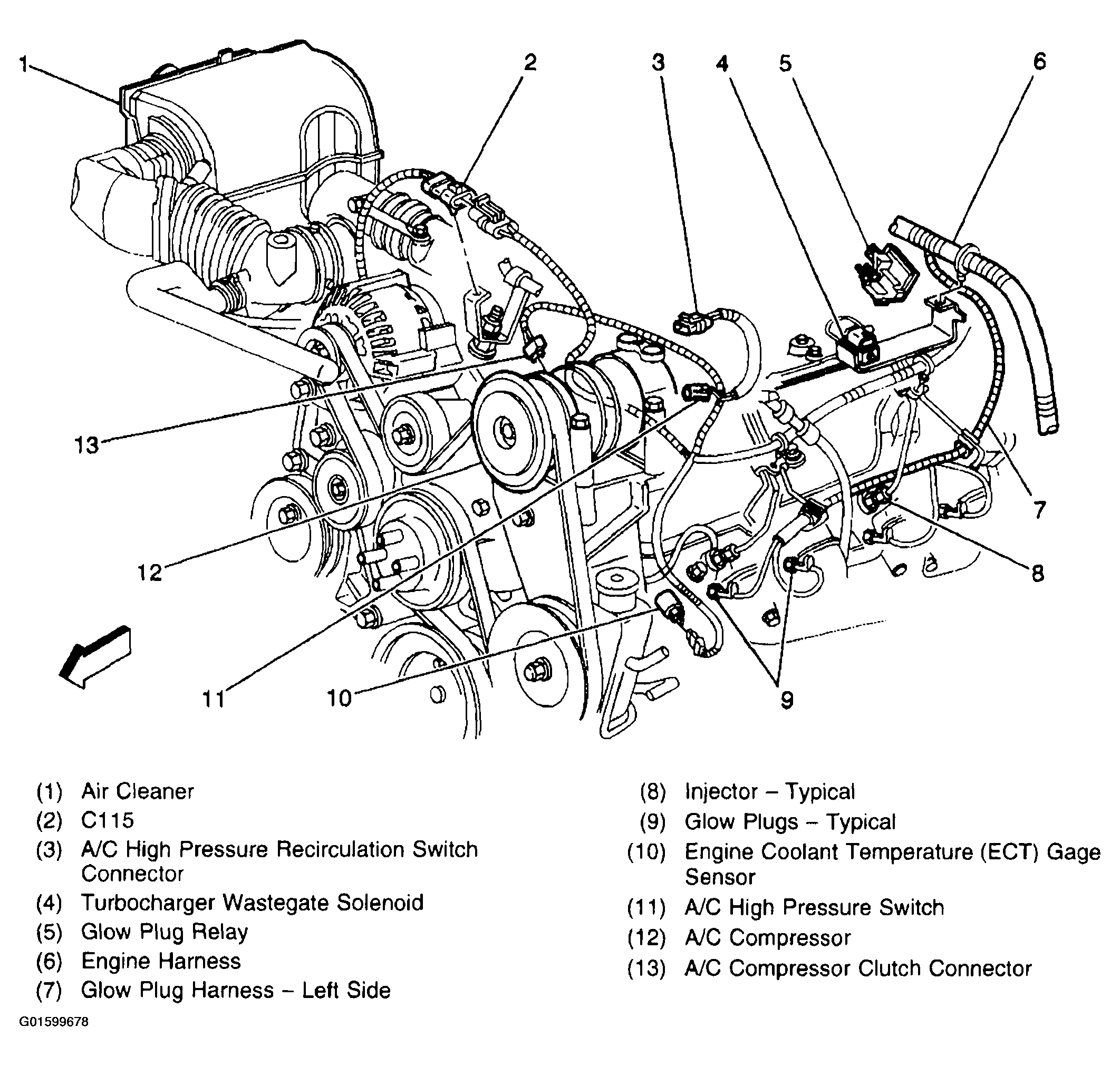

Fig 6: C115, A/C Compressor & Engine Coolant Temperature (ECT) Gauge Sensor Component View
G01599678Courtesy of GENERAL MOTORS CORP.

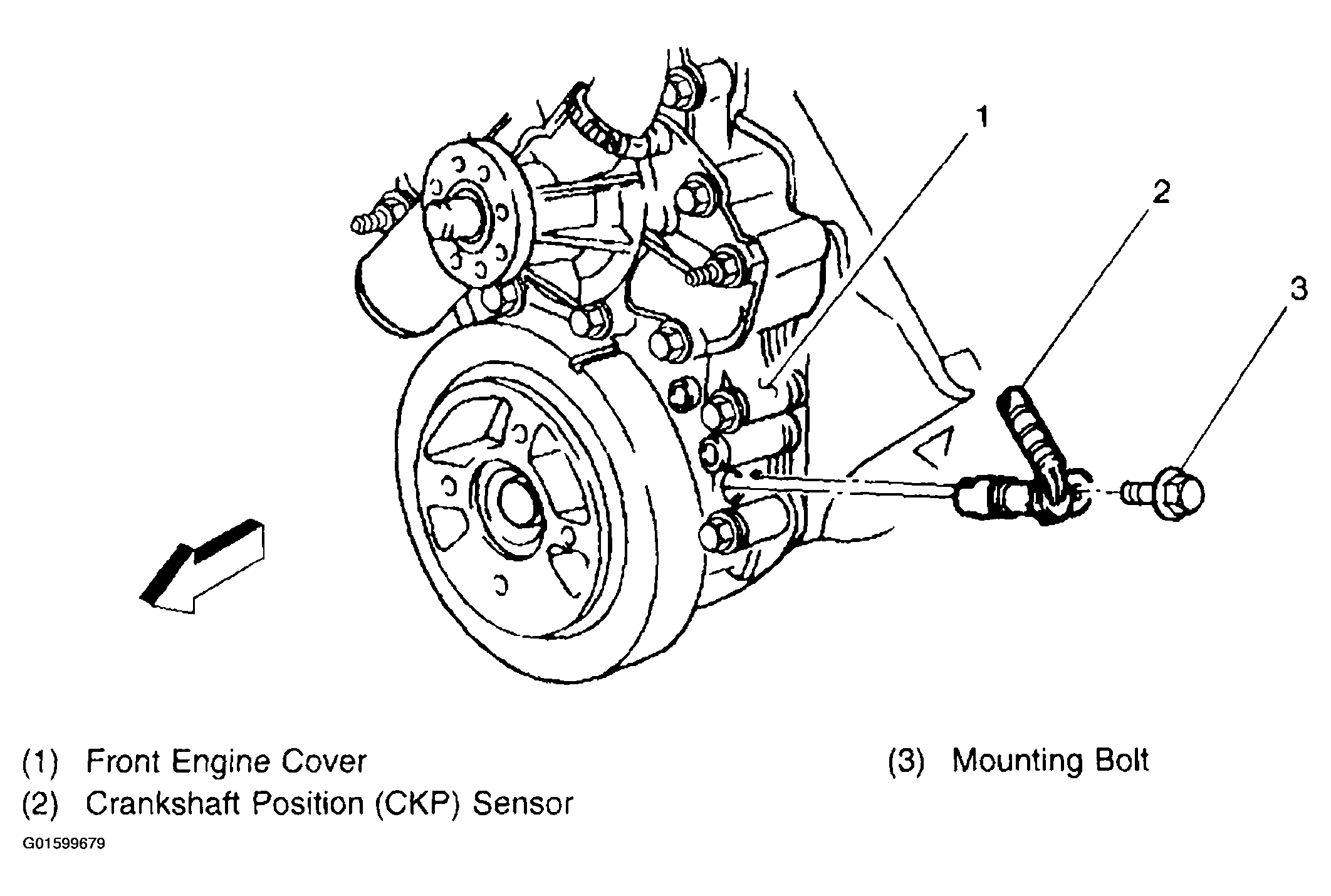

Fig 7: Crankshaft Position (CKP) Sensor Component View
G01599679Courtesy of GENERAL MOTORS CORP.

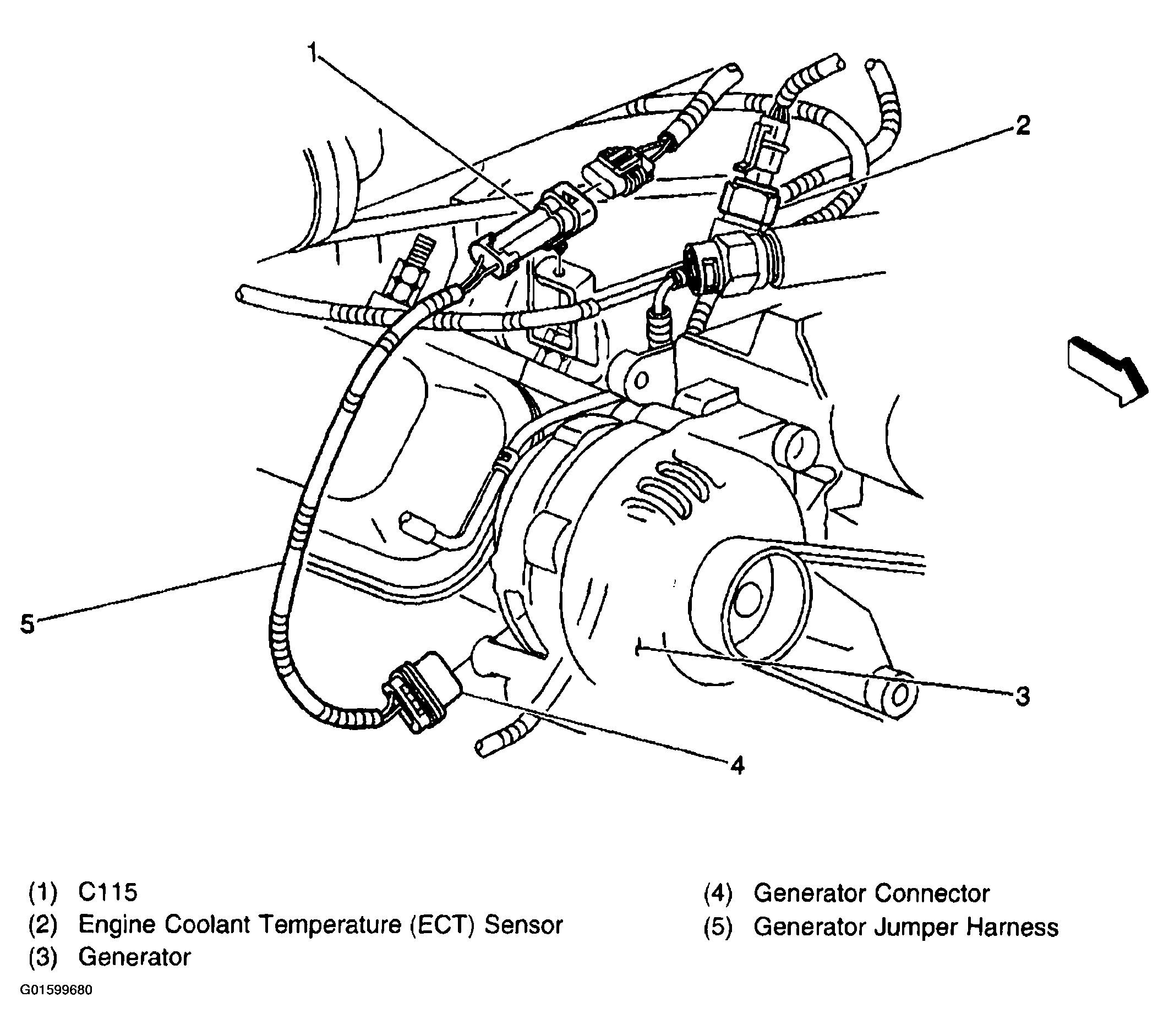

Fig 8: C115, Generator & Engine Coolant Temperature Sensor Component View - L65
G01599680Courtesy of GENERAL MOTORS CORP.

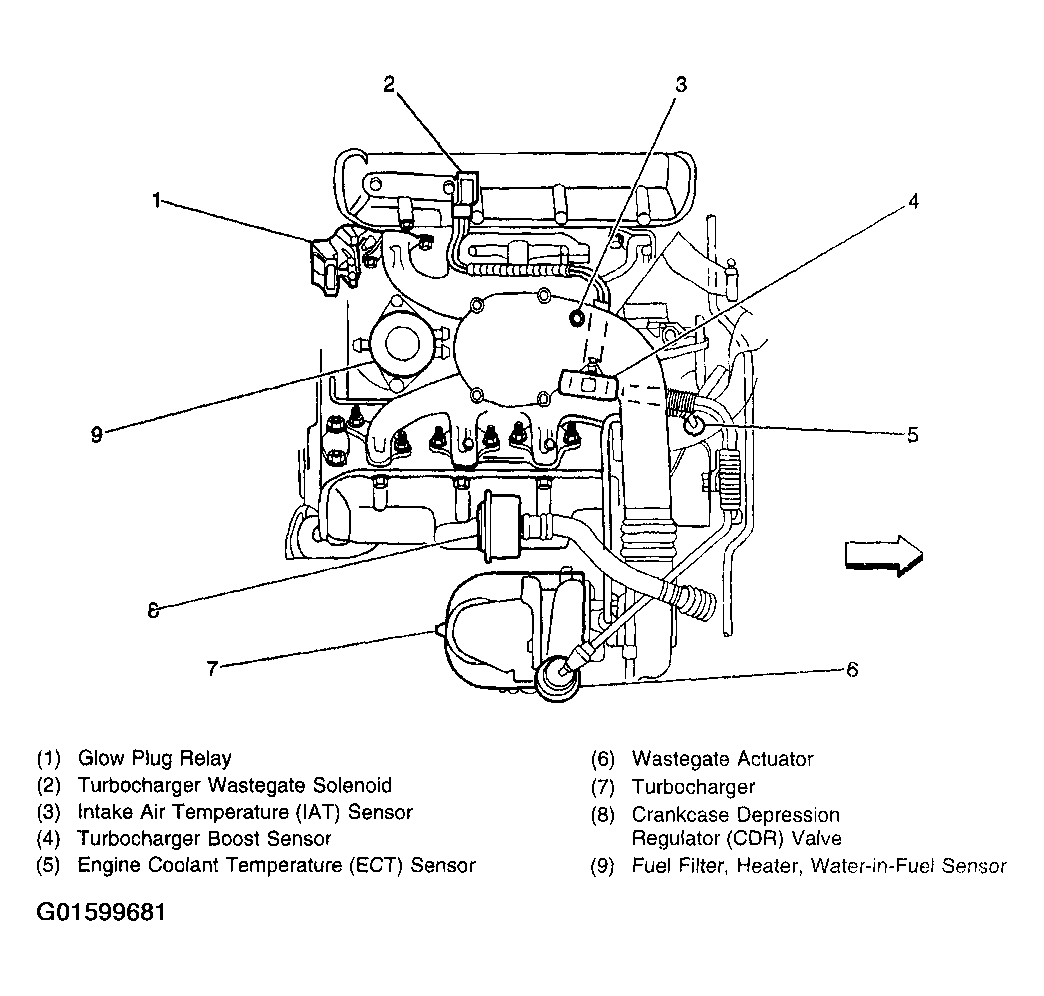

Fig 9: Overhead Engine View -- IAT, MAP & ECT Sensors
G01599681Courtesy of GENERAL MOTORS CORP.

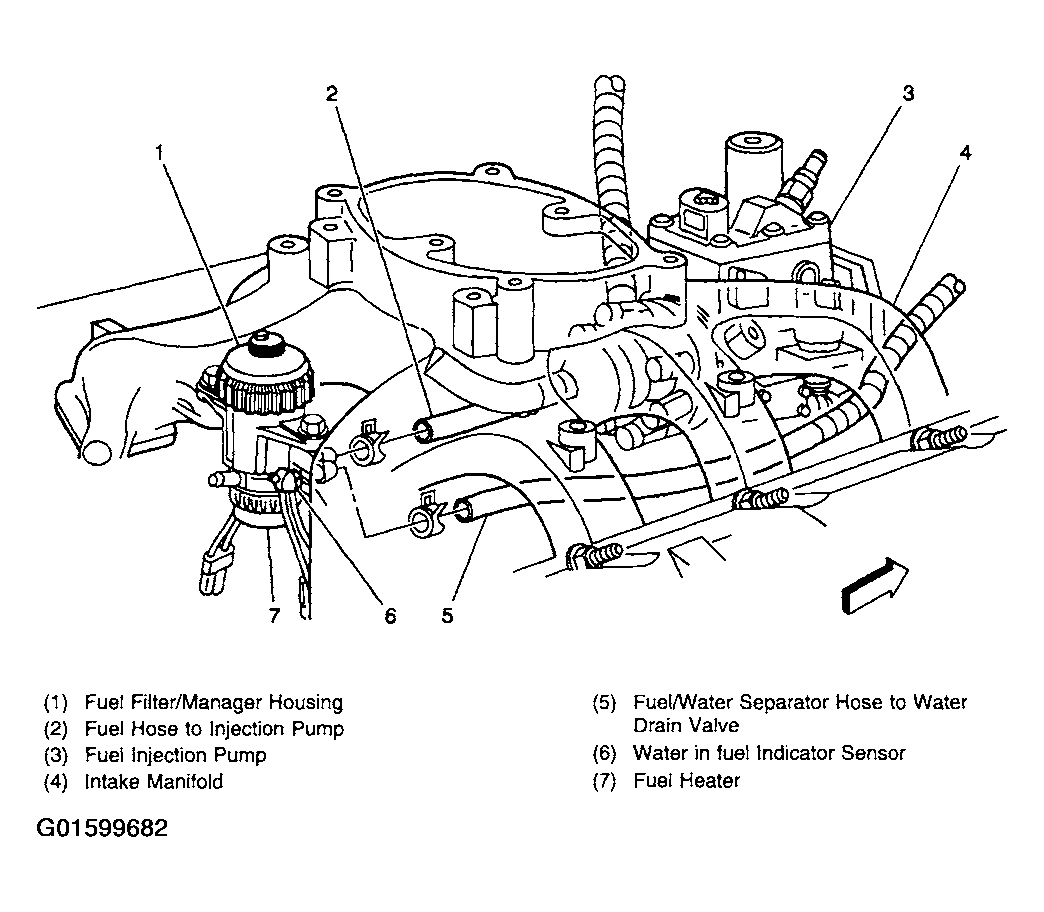

Fig 10: Fuel Filter/Manager & Fuel Injection Pump Component View
G01599682Courtesy of GENERAL MOTORS CORP.

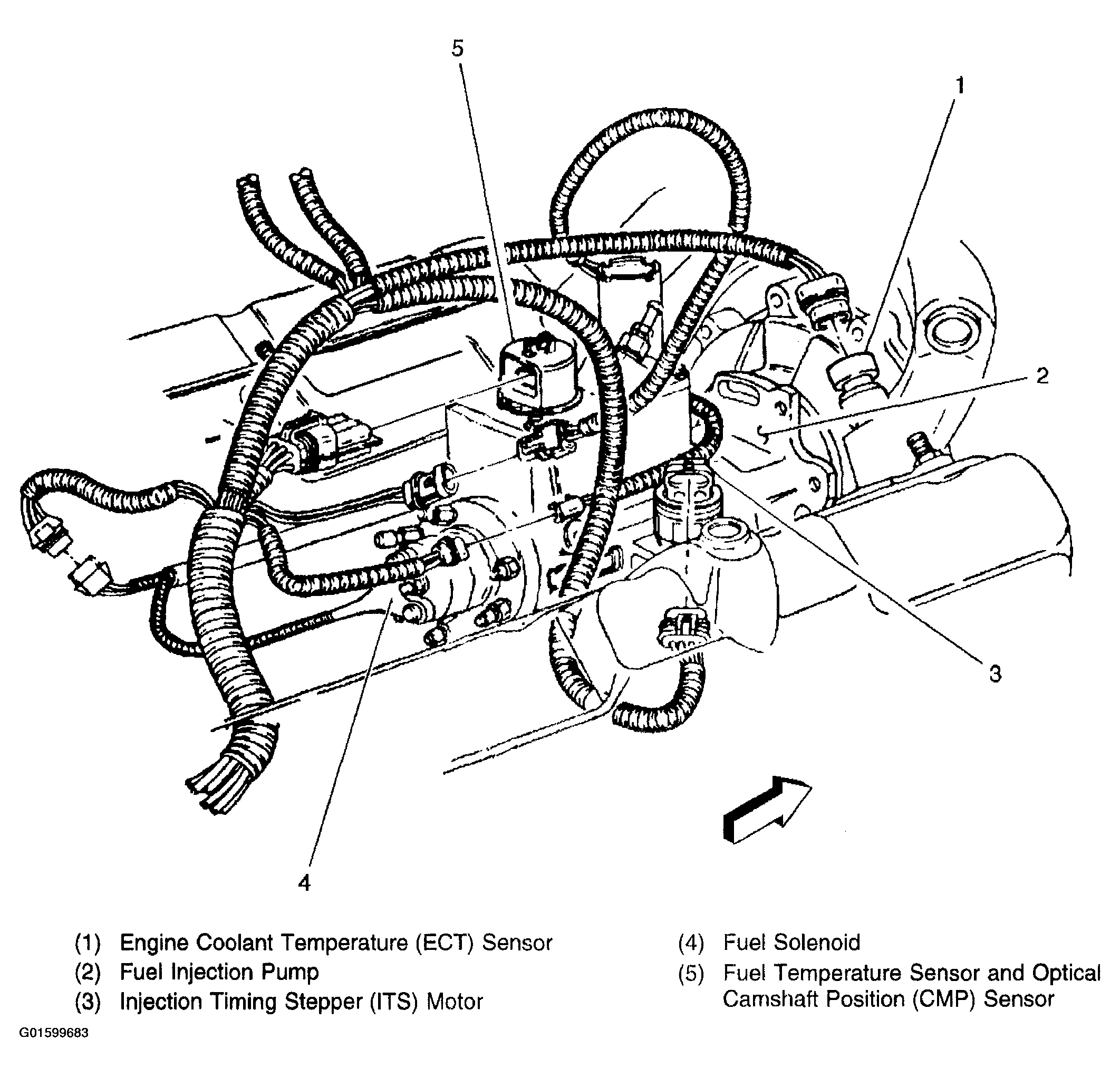

Fig 11: ECT Sensor, ITS Motor & Fuel Temperature Sensor/Optical CMP Sensor Component View
G01599683Courtesy of GENERAL MOTORS CORP.

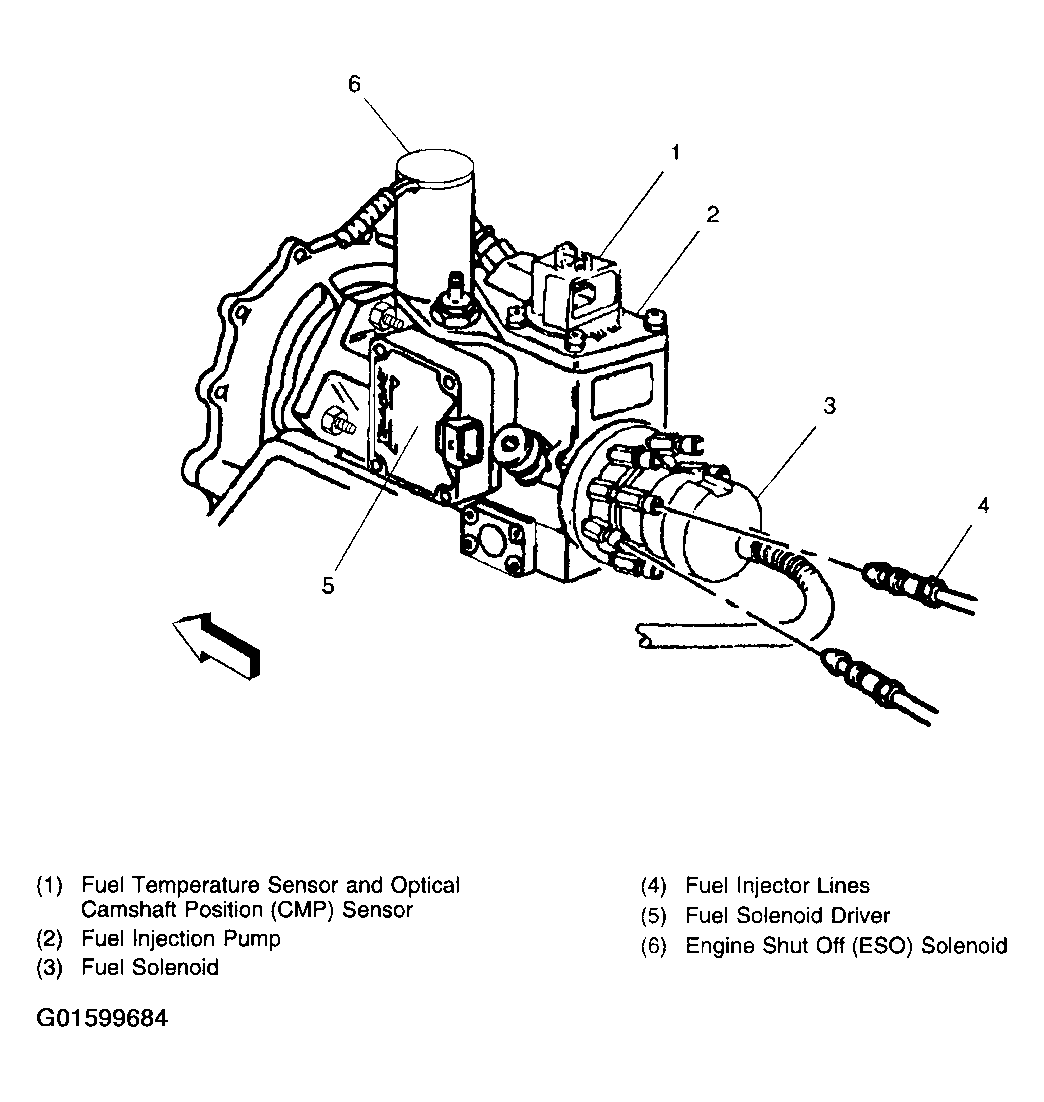

Fig 12: Fuel Solenoid & Fuel Solenoid Driver, ESO Solenoid & Fuel Temperature Sensor Component View
G01599684Courtesy of GENERAL MOTORS CORP.

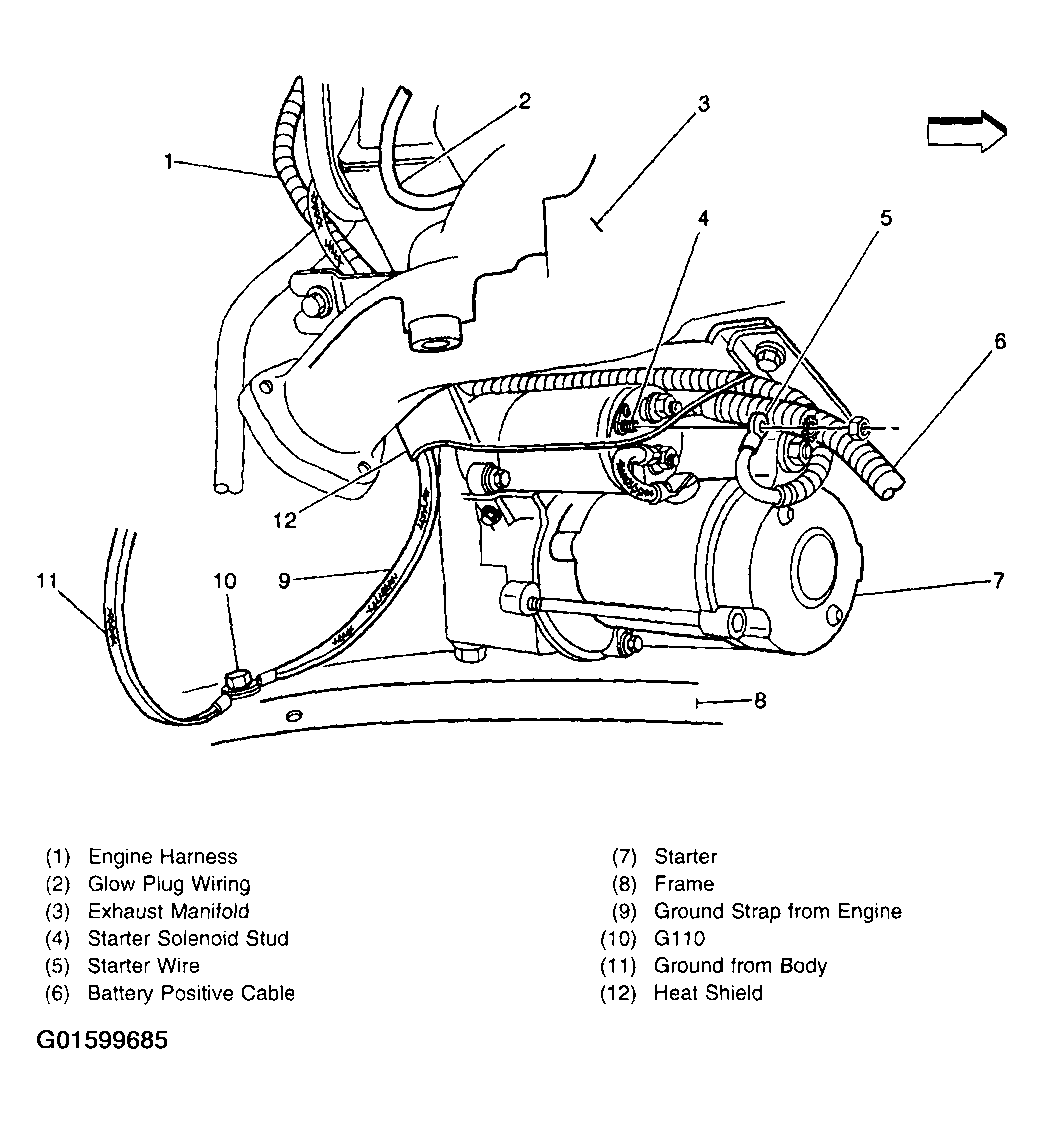

Fig 13: G110 & Starter Component View
G01599685Courtesy of GENERAL MOTORS CORP.

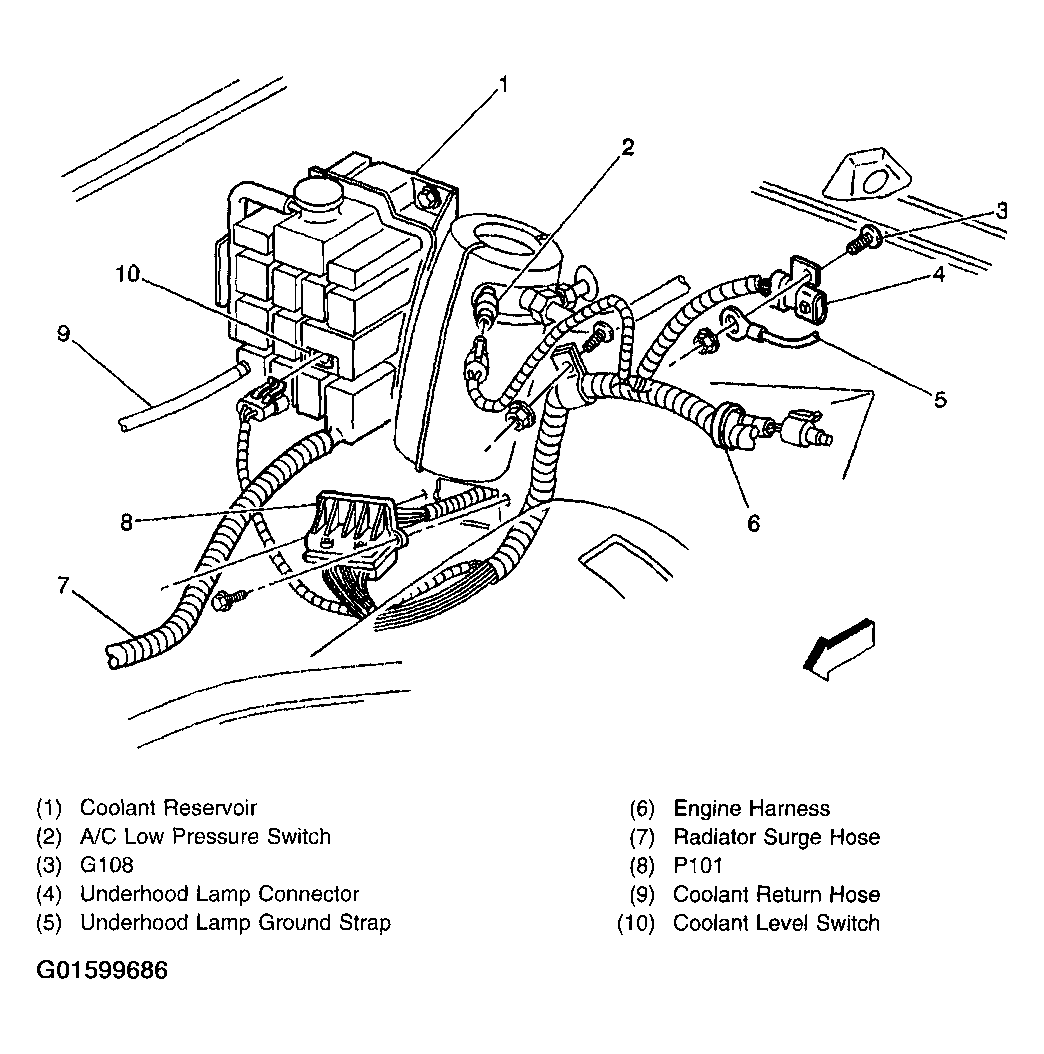

Fig 14: Coolant Level Switch, P101, G108 & A/C Low Pressure Switch Component View
G01599686Courtesy of GENERAL MOTORS CORP.

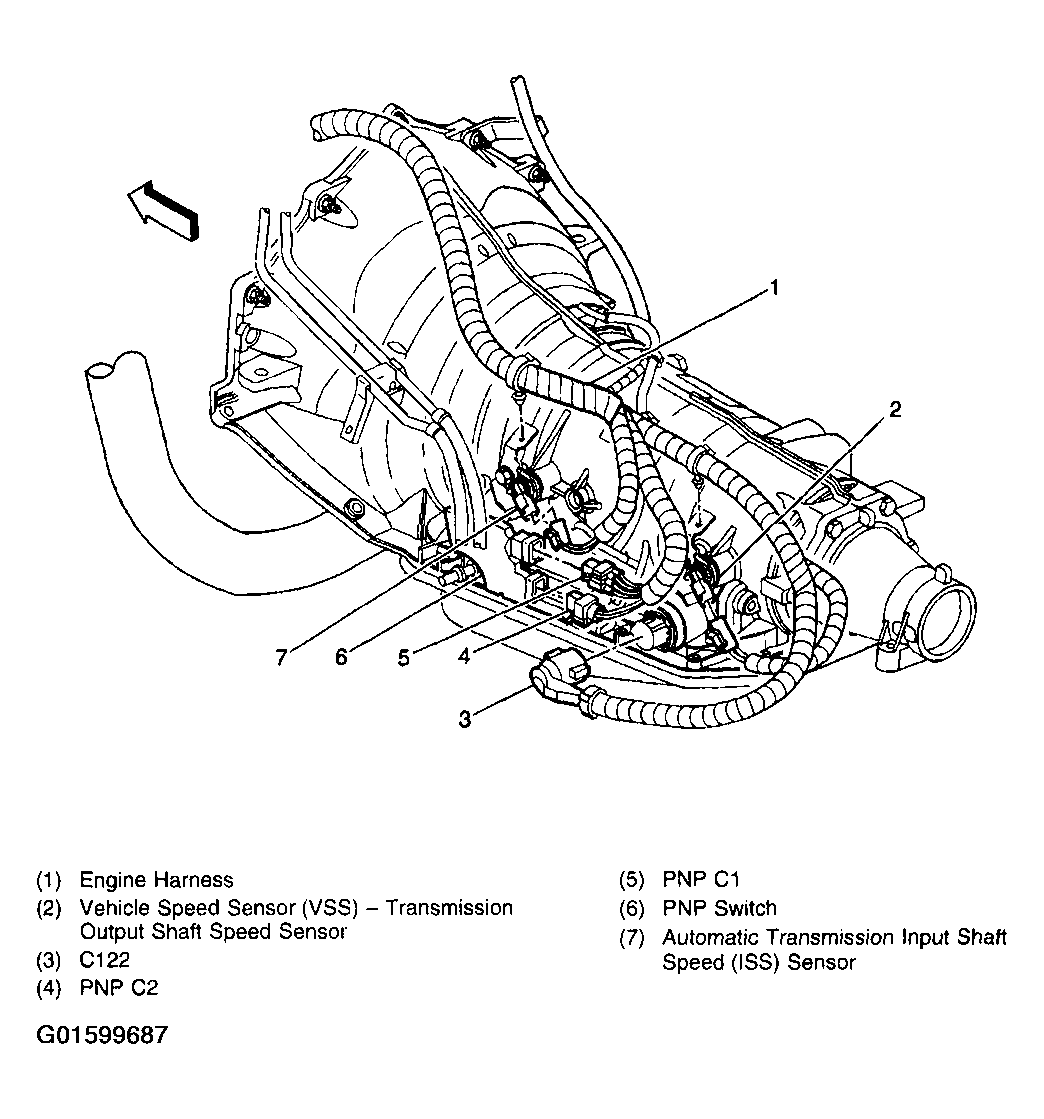

Fig 15: Vehicle Speed Sensor, C122 & Park/Neutral Position (PNP) Switch Component View - Automatic Transmission
G01599687Courtesy of GENERAL MOTORS CORP.

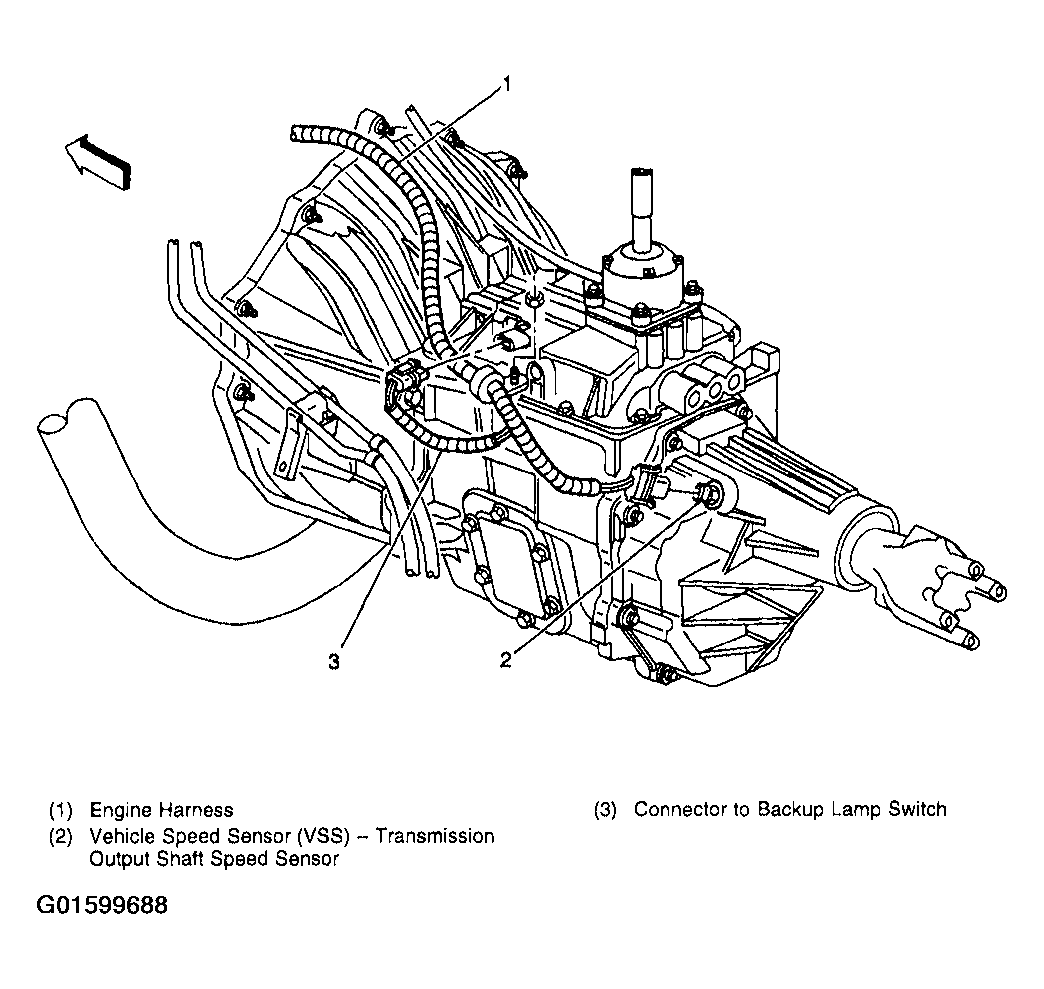

Fig 16: Vehicle Speed Sensor & Backup Lamp Switch Component View - Manual Transmission
G01599688Courtesy of GENERAL MOTORS CORP.

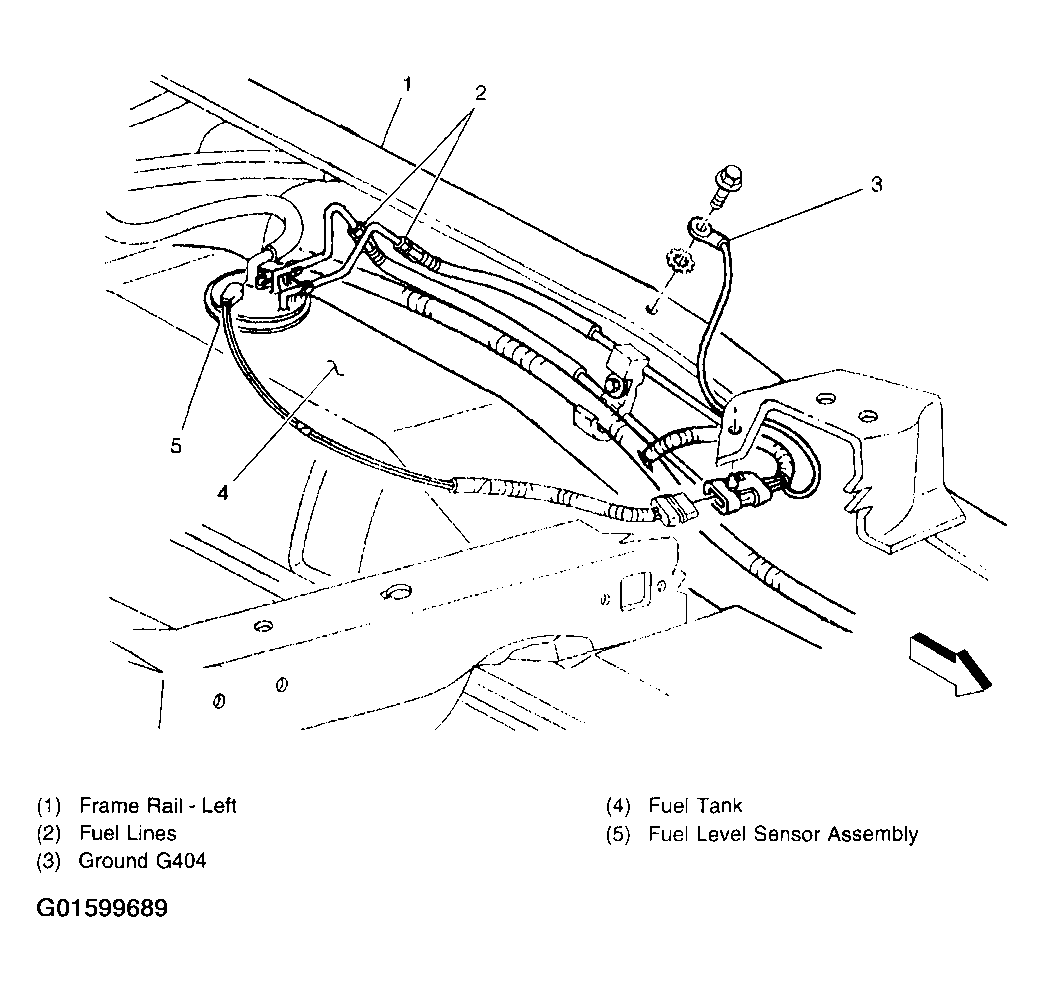

Fig 17: G404, Fuel Tank & Level Sensor Assembly Component View
G01599689Courtesy of GENERAL MOTORS CORP.

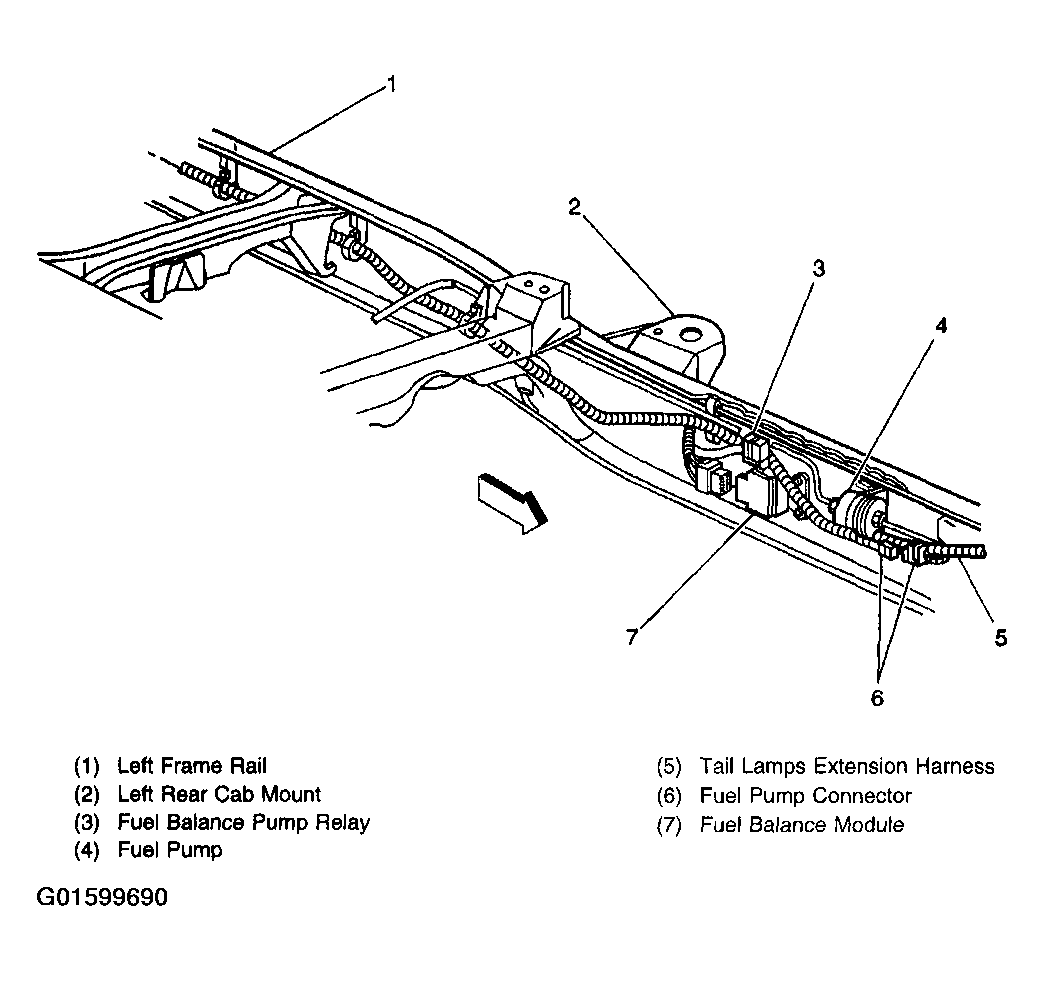

Fig 18: Fuel Balance Module, Balance Pump Relay & Fuel Pump Component View
G01599690Courtesy of GENERAL MOTORS CORP.

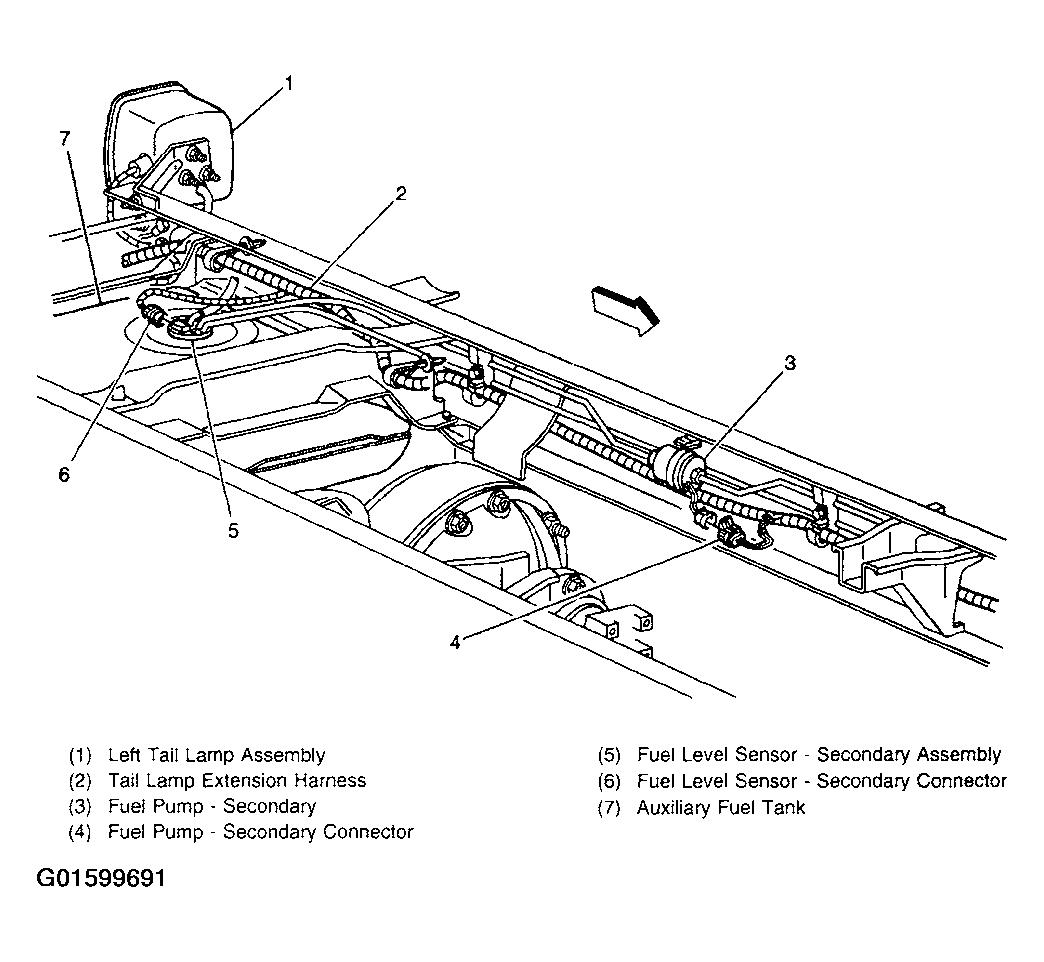

Fig 19: Auxiliary Fuel Tank & Fuel Pump - Secondary - Dual Tank Option Component View
G01599691Courtesy of GENERAL MOTORS CORP.

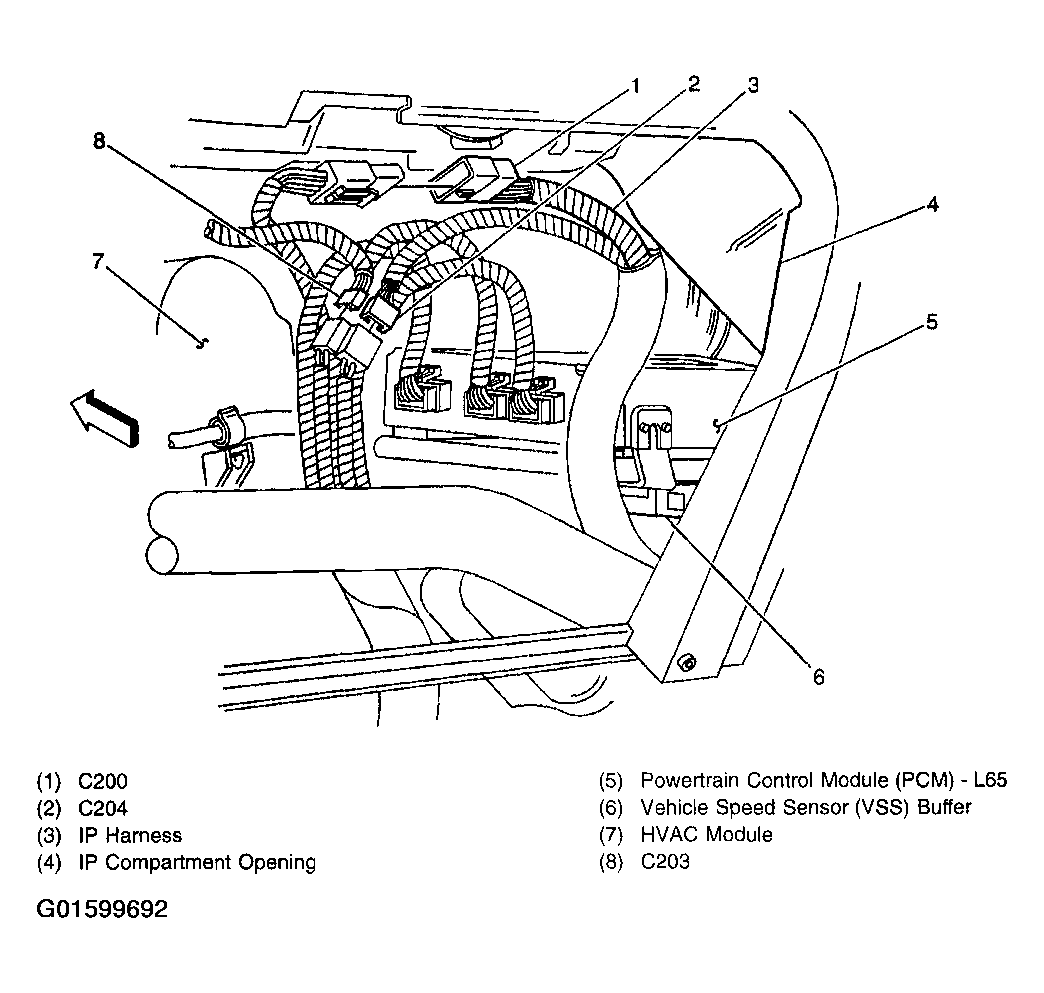

Fig 20: C200, C203, C204, PCM & VSS Buffer Component View
G01599692Courtesy of GENERAL MOTORS CORP.

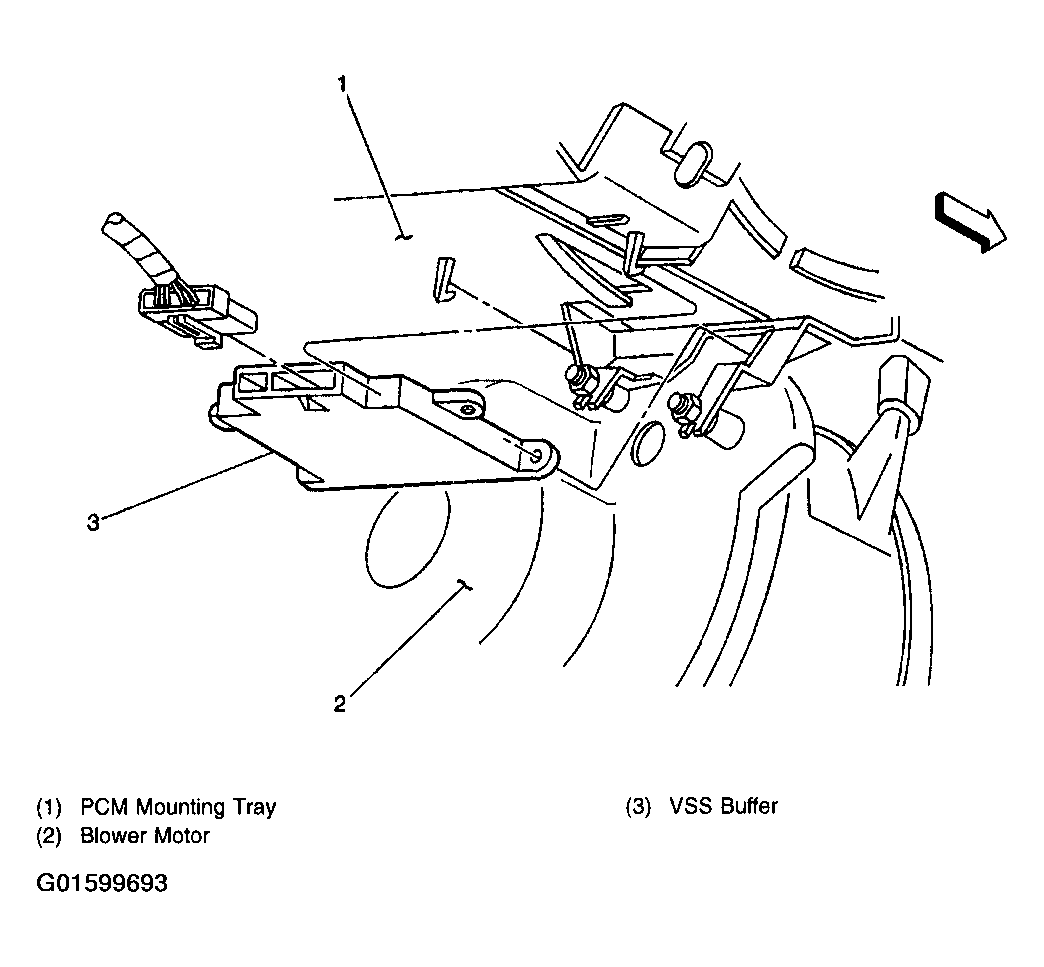

Fig 21: VSS Buffer Mounting Component View
G01599693Courtesy of GENERAL MOTORS CORP.

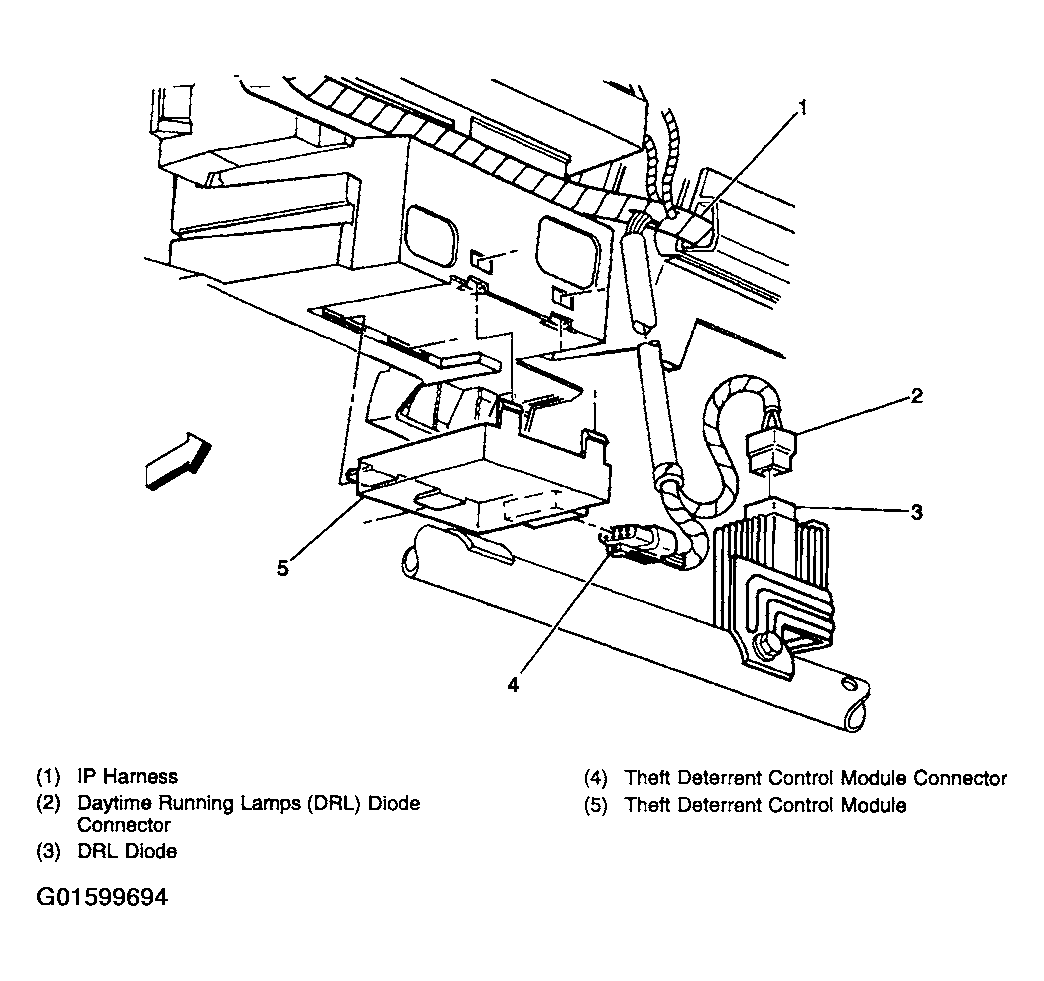

Fig 22: Theft Deterrent Control Module & DRL Diode Component View
G01599694Courtesy of GENERAL MOTORS CORP.

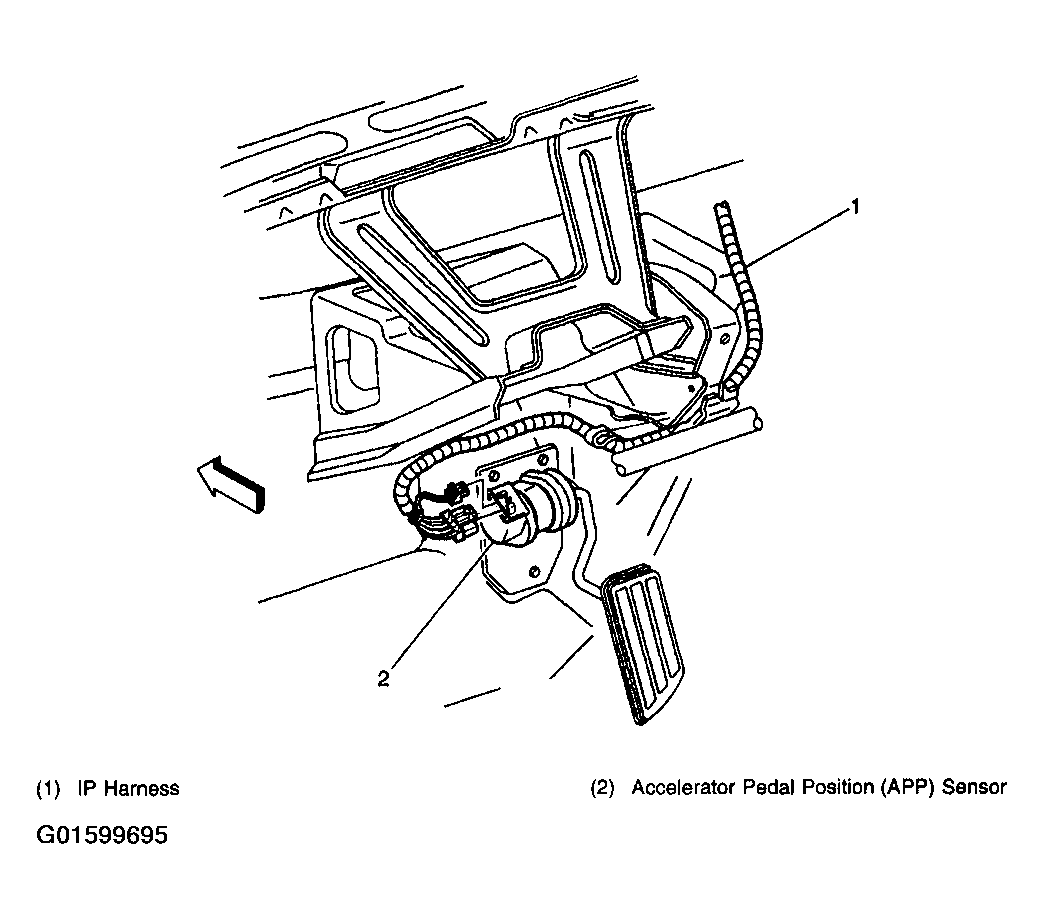

Fig 23: Accelerator Pedal Position (APP) Sensor Component View
G01599695Courtesy of GENERAL MOTORS CORP.

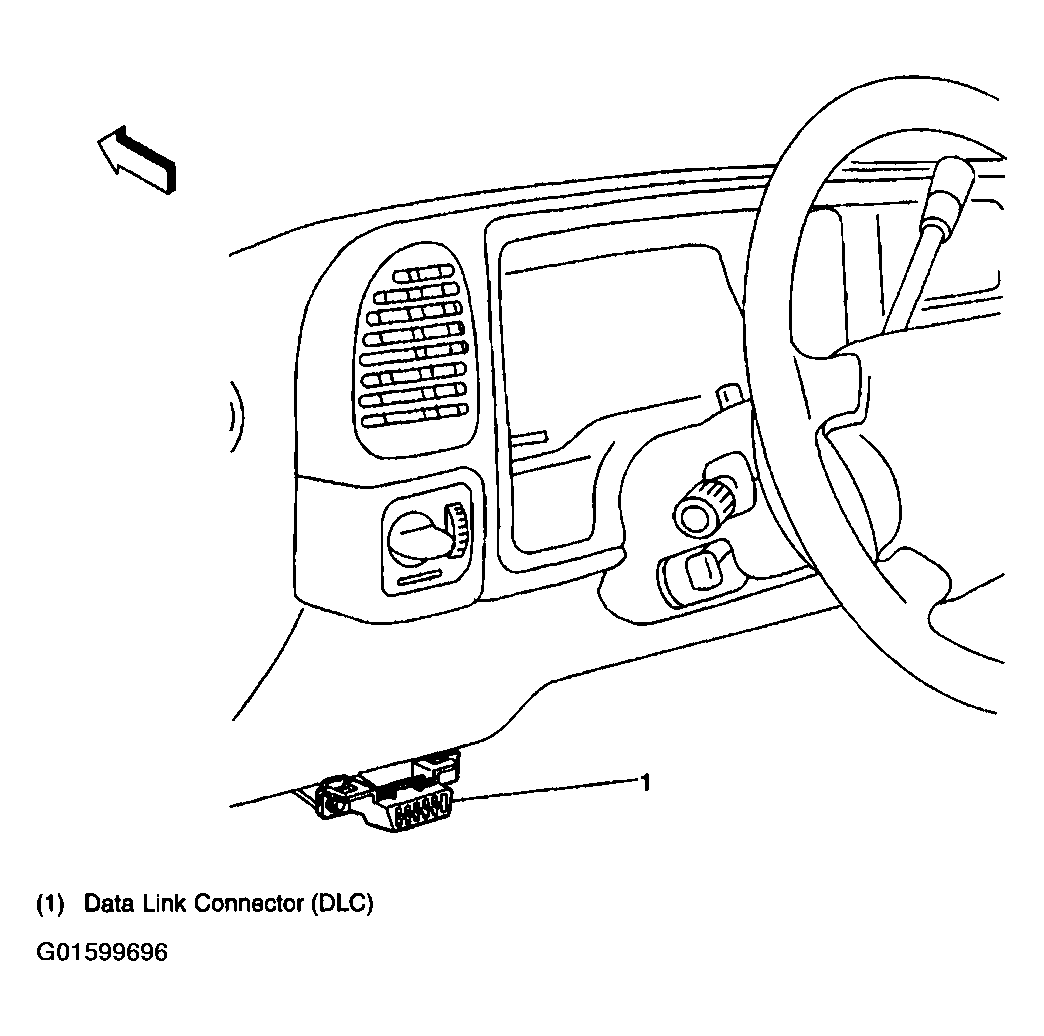

Fig 24: Data Link Connector (DLC) Component View
G01599696Courtesy of GENERAL MOTORS CORP.
