Powertrain Control Module (PCM) Connector End Views

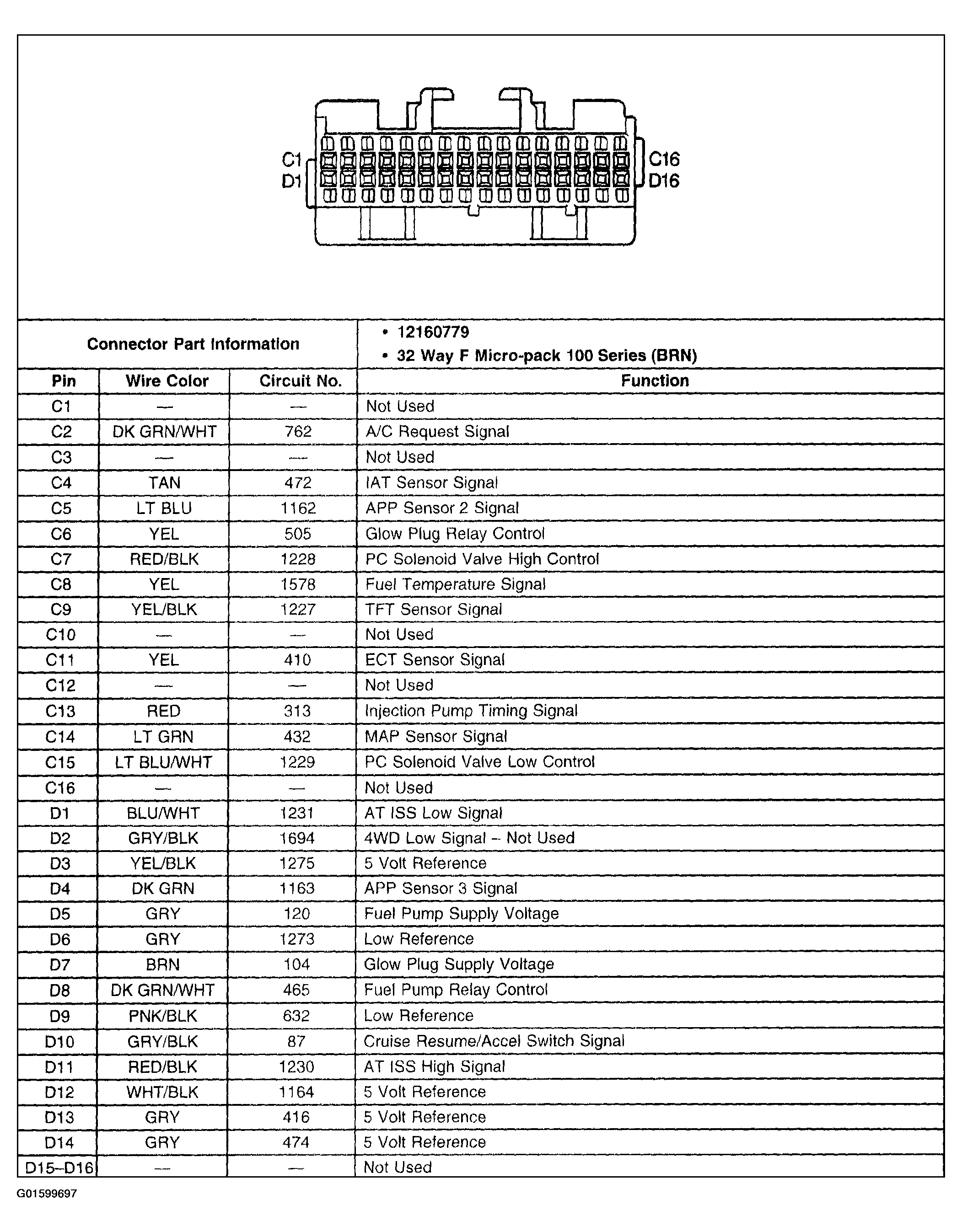

Fig 1: PCM Connector C1
G01599697Courtesy of GENERAL MOTORS CORP.

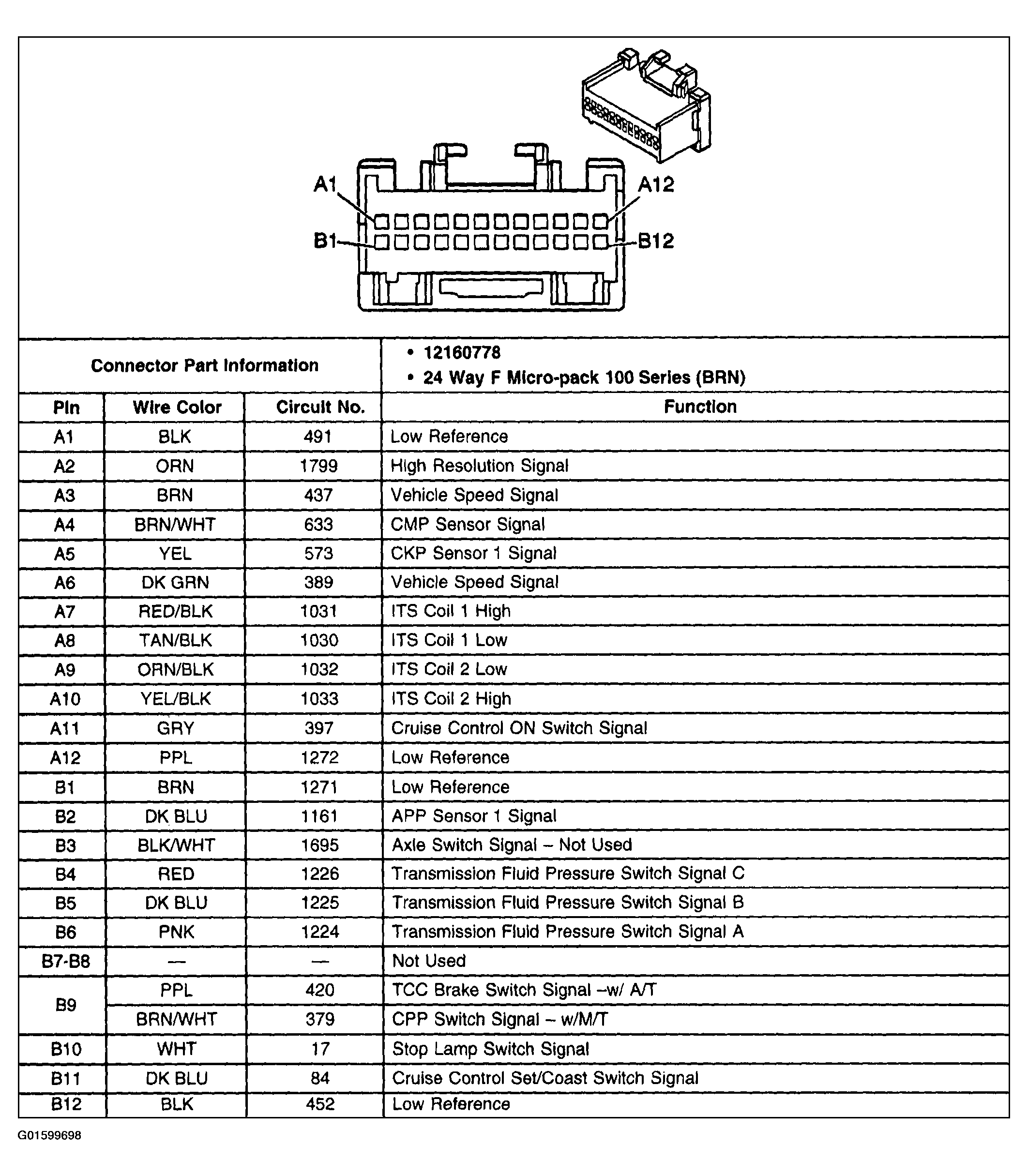

Fig 2: PCM Connector C2
G01599698Courtesy of GENERAL MOTORS CORP.
Fig 3: PCM Connector C3
G01599699Courtesy of GENERAL MOTORS CORP.
