Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step determines if DTC P0123 is the result of a hard failure or an intermittent condition.

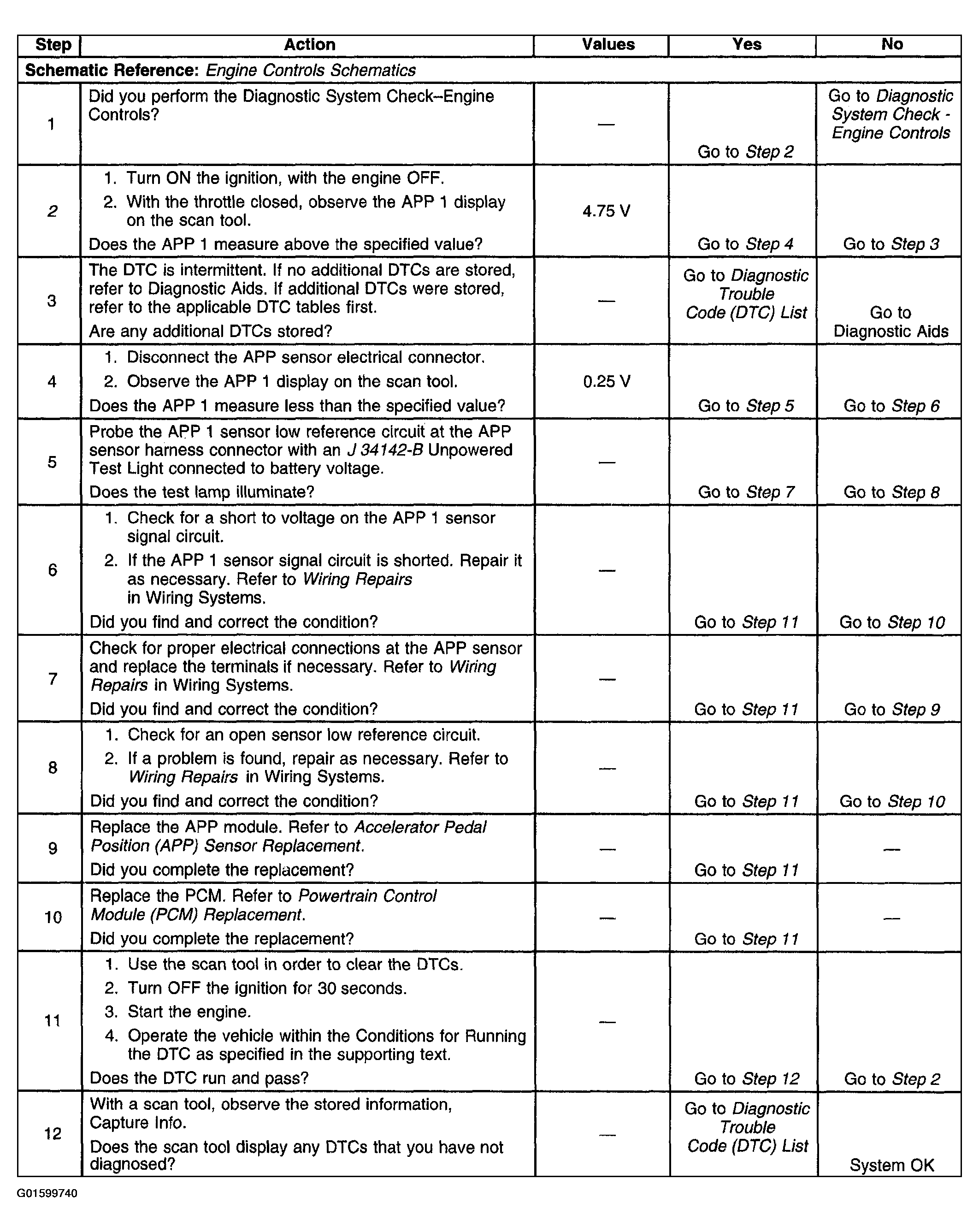

Fig 1: DTC P0123
G01599740Courtesy of GENERAL MOTORS CORP.
