Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step will determine if there is a good voltage reference.

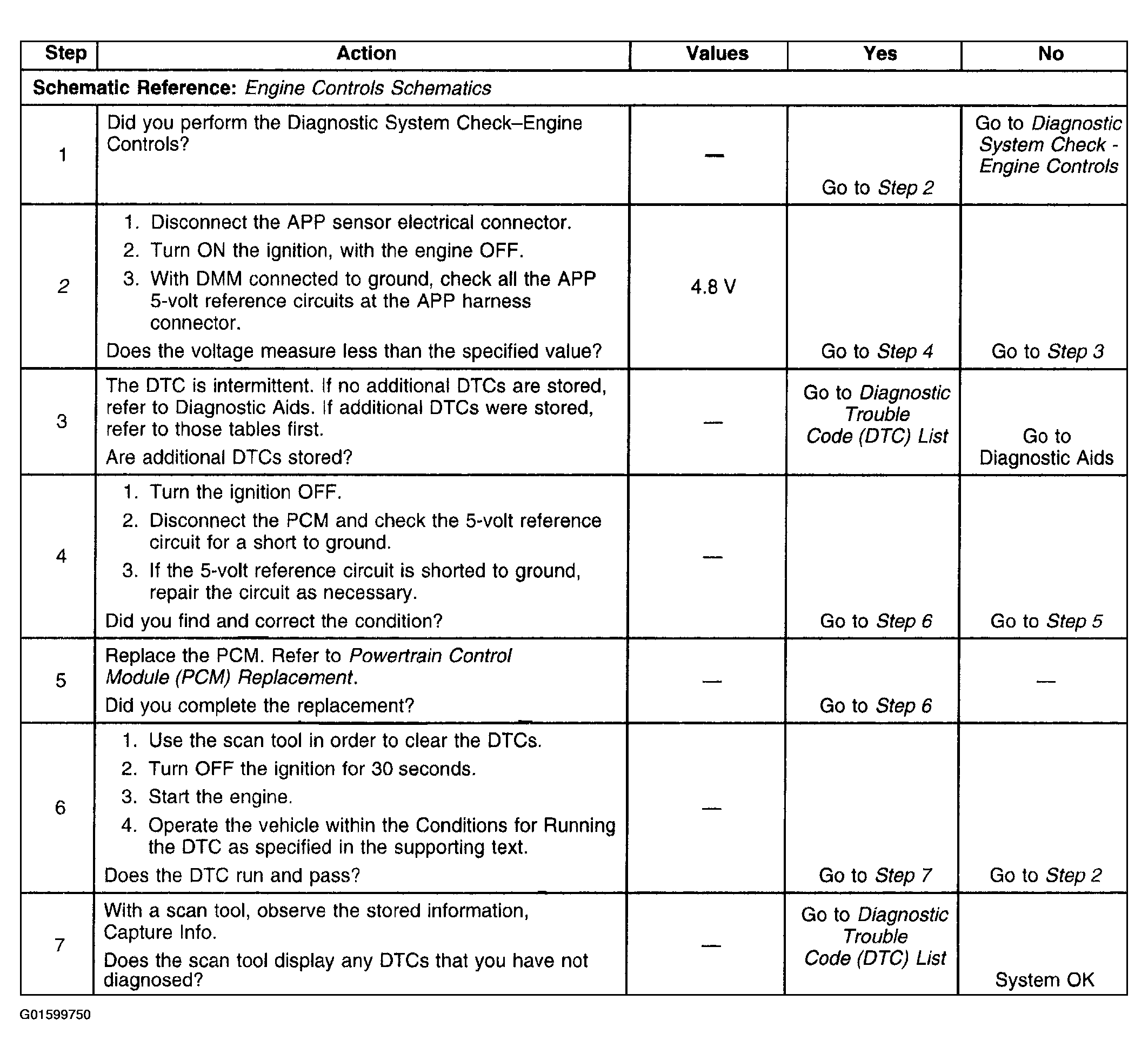

Fig 1: DTC P0220
G01599750Courtesy of GENERAL MOTORS CORP.
