Hard Start

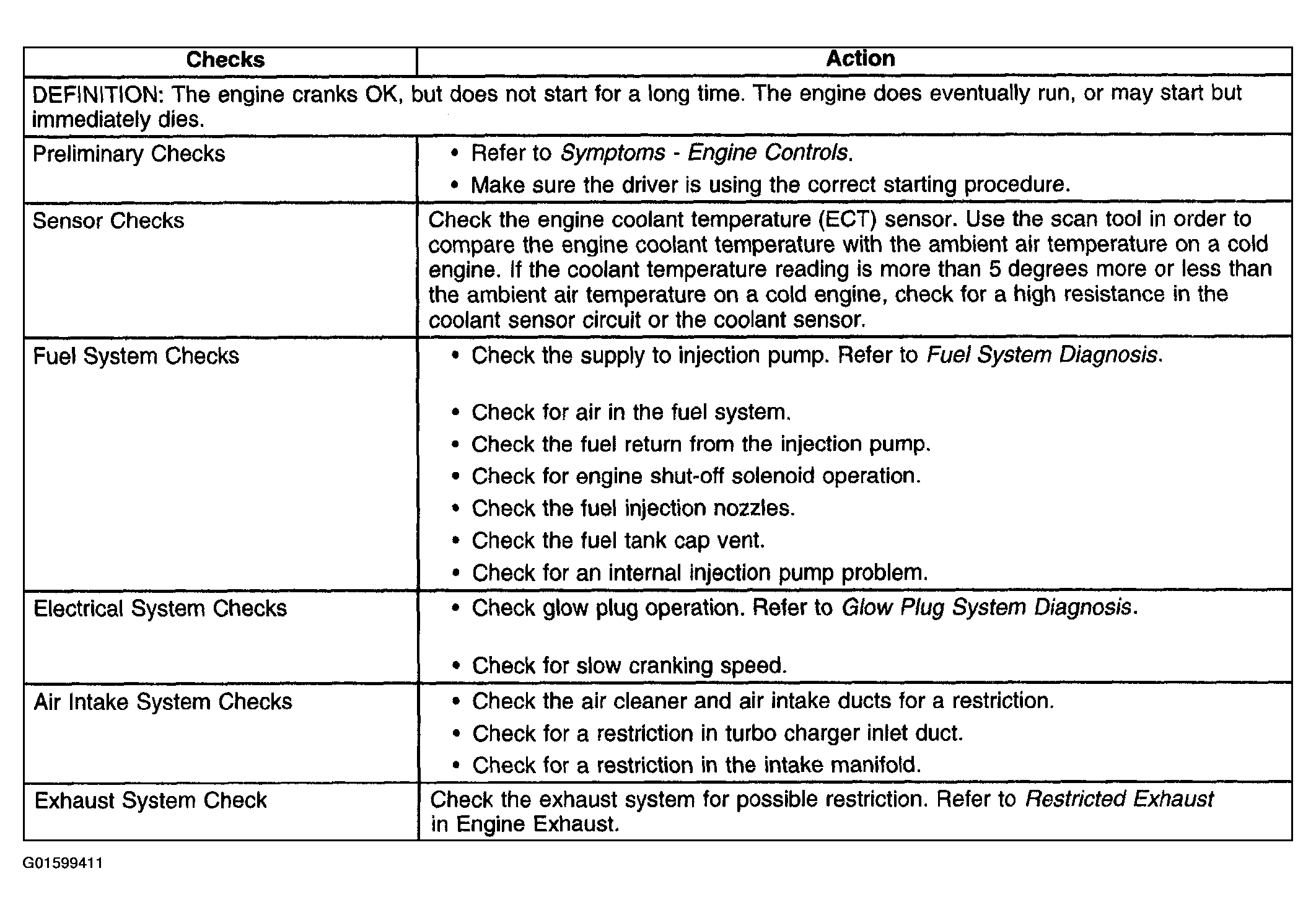

Fig 1: Hard Start (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

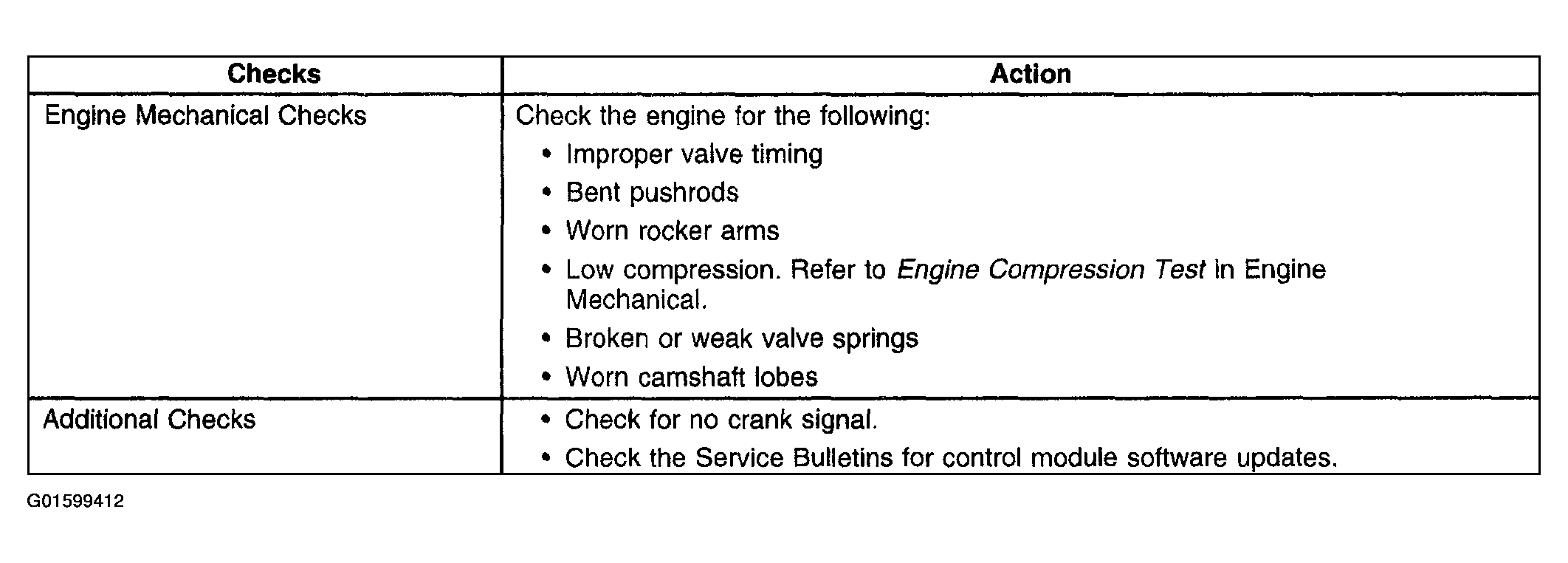

Fig 2: Hard Start (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
