Installation Procedure

  1. Install the air cleaner assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the air cleaner assembly mounting bolts.

    Tighten

    Tighten the mounting bolts to 25 N.m (18 lb ft).

  3. Install the air cleaner filter with the inlet elbow attached.

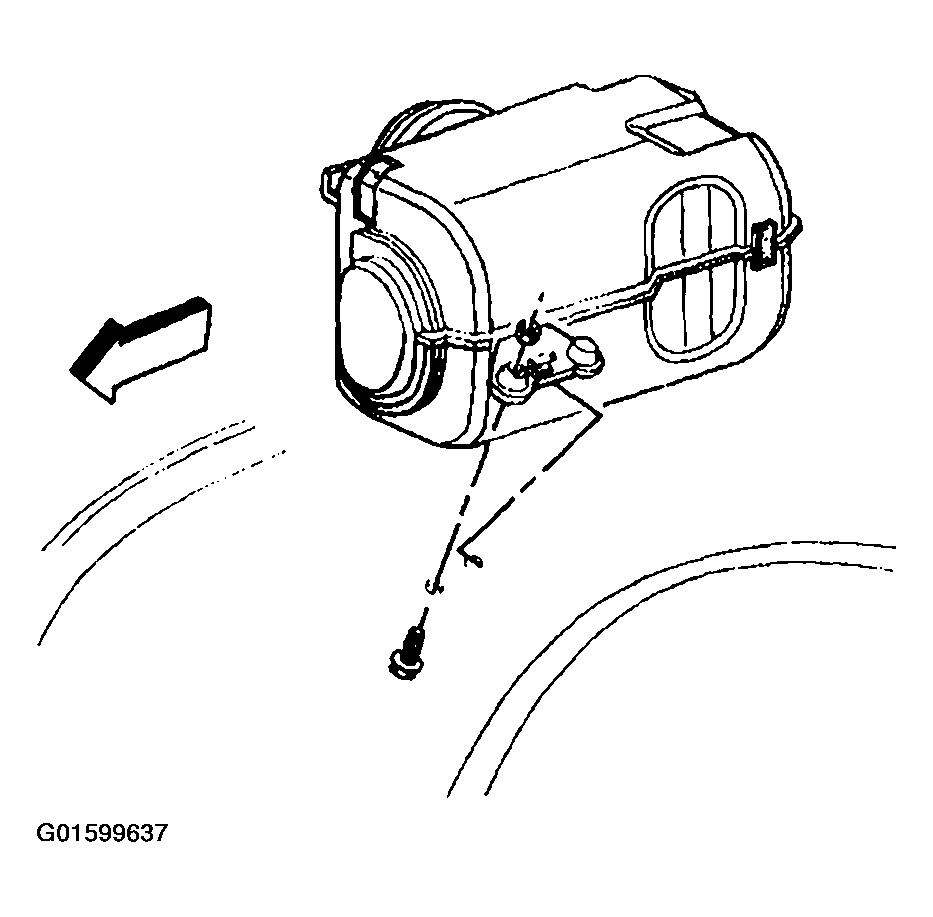

    Fig 1: Air Cleaner Assembly & Mounting Bolts
    G01599637Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner cover to the housing and clip the air cleaner cover into place.
  5. Install the MAF sensor electrical connector (L56 only).

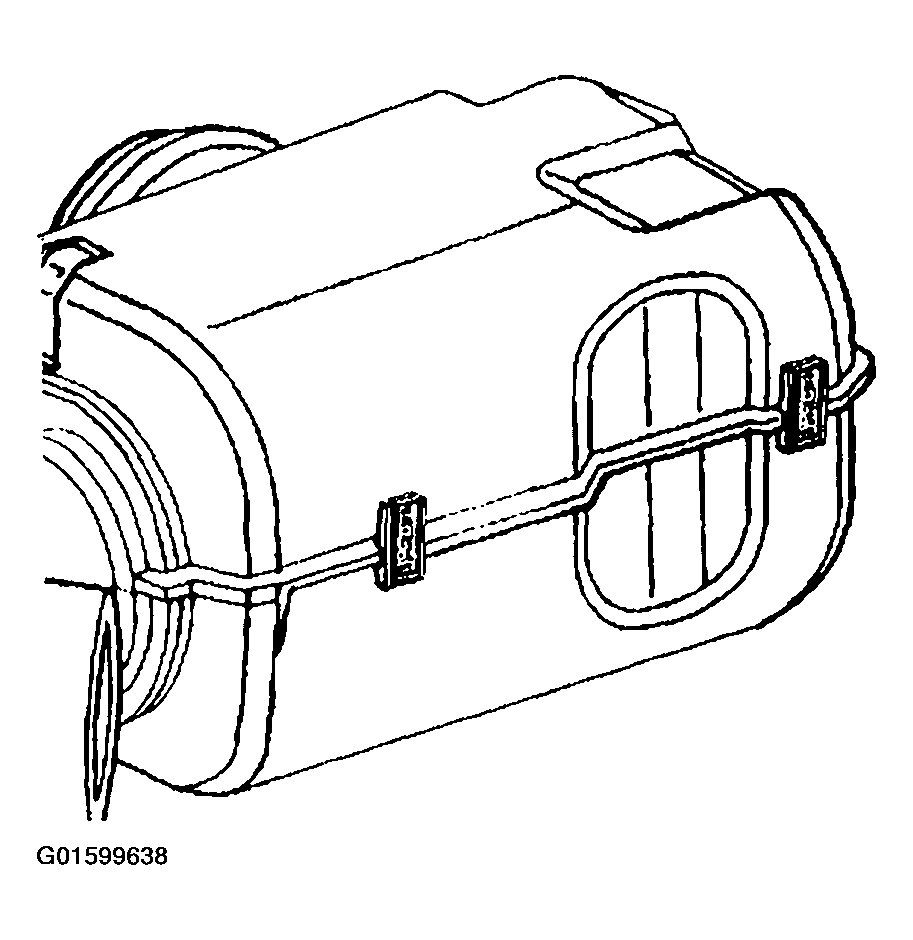

    Fig 2: Air Cleaner Cover
    G01599638Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner inlet elbow to the turbocharger inlet elbow and tighten the clamp.

    Tighten

    Tighten the inlet elbow clamp to 5 N.m (44 lb in).

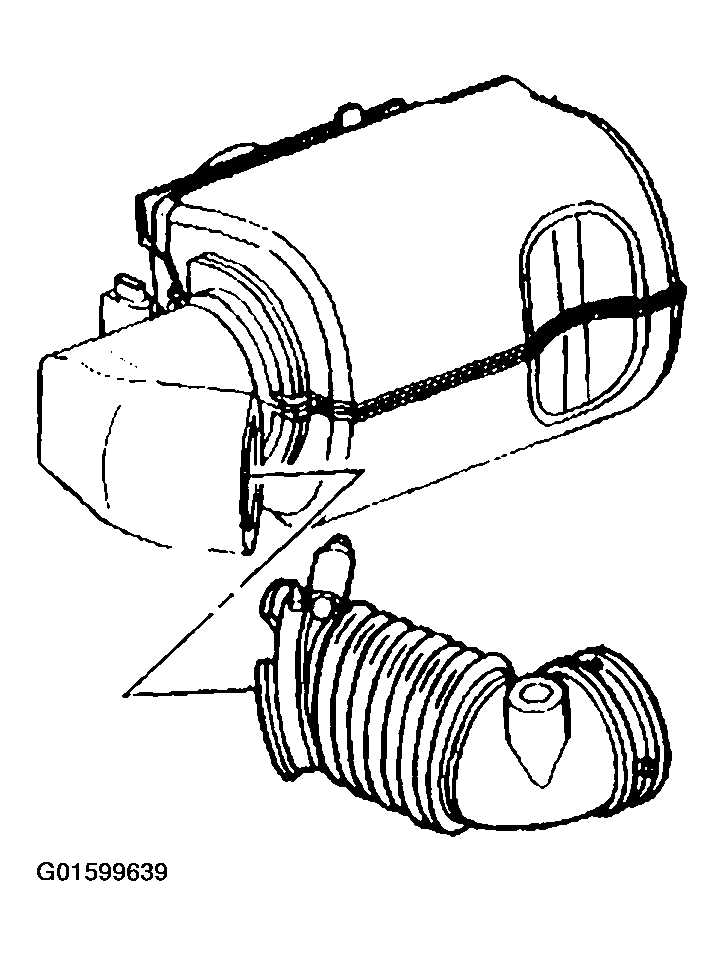

    Fig 3: Air Cleaner Inlet Elbow
    G01599639Courtesy of GENERAL MOTORS CORP.
