Installation Procedure

  1. Install the air inlet elbow on the filter by pushing on the inlet elbow.
  2. Install the air cleaner filter with the air inlet elbow attached into the housing.
  3. Install the MAF sensor electrical connector (L56 only).

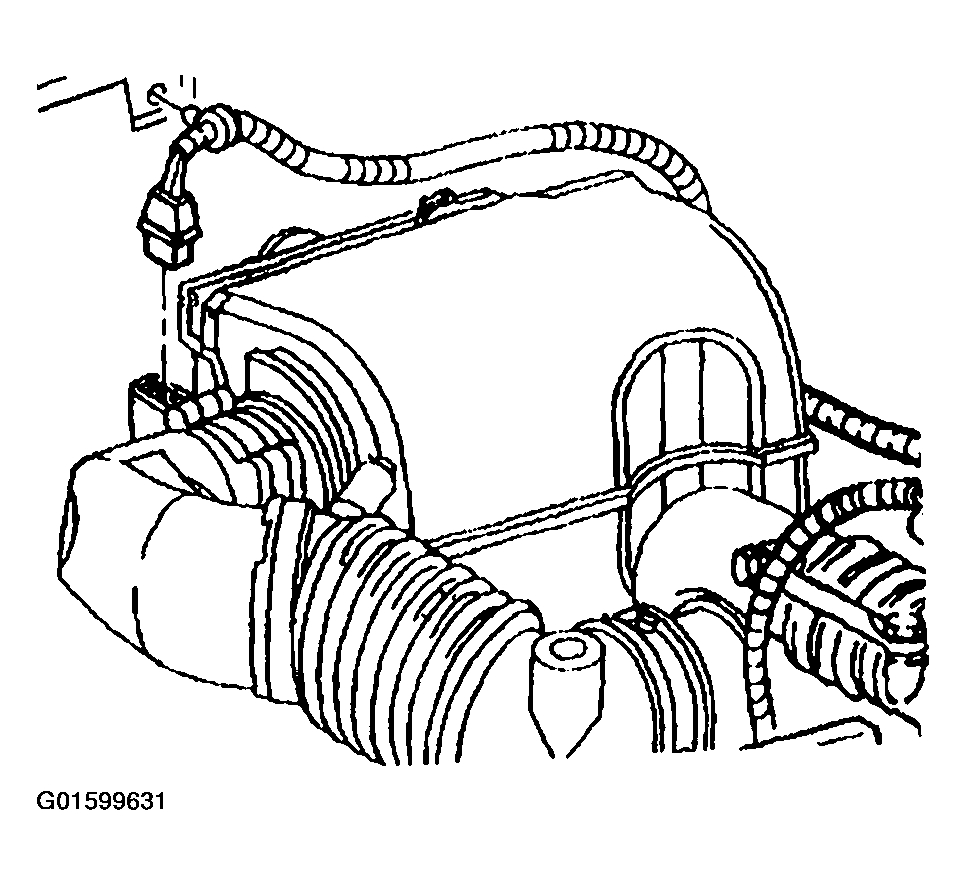

    Fig 1: MAF Sensor Electrical Connector (L56 Only)
    G01599631Courtesy of GENERAL MOTORS CORP.
  4. Install the air cleaner cover into the housing and clip into place.

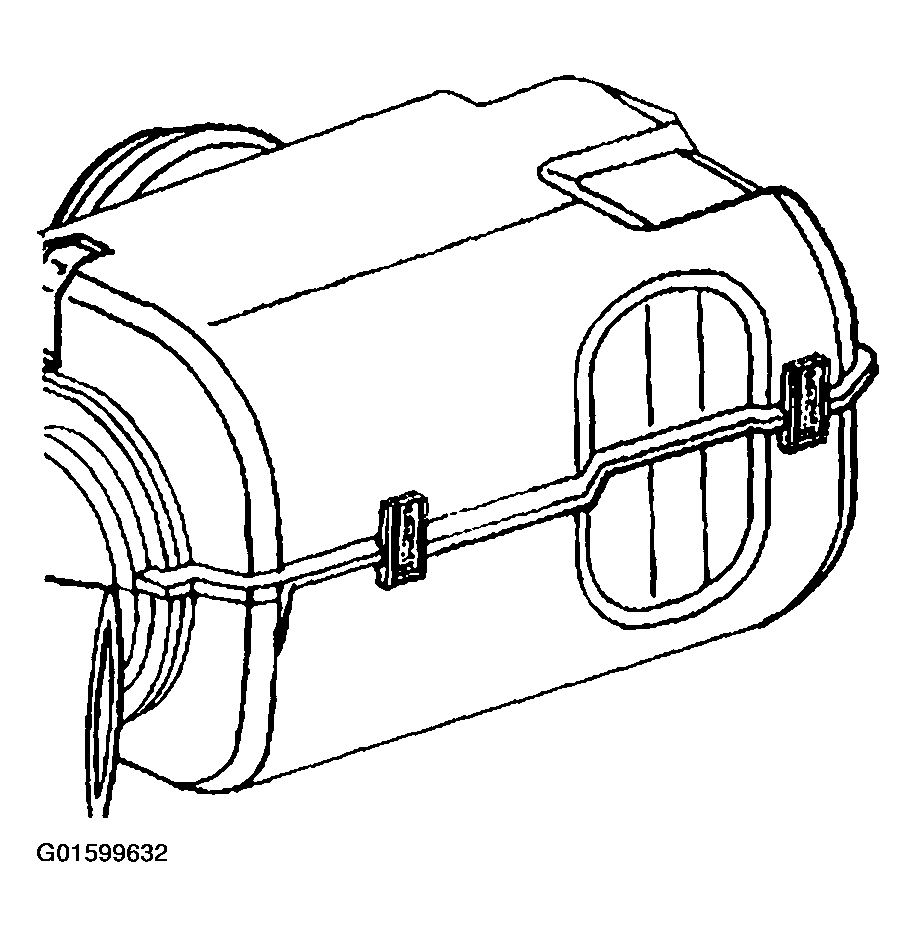

    Fig 2: Air Cleaner Cover
    G01599632Courtesy of GENERAL MOTORS CORP.
  5. Install the air cleaner inlet elbow into the turbocharger inlet elbow.
    NOTE: Refer to FASTENER NOTICE .
  6. Tighten the elbow clamp.

    Tighten

    Tighten the elbow clamp to 5 N.m (44 lb in).

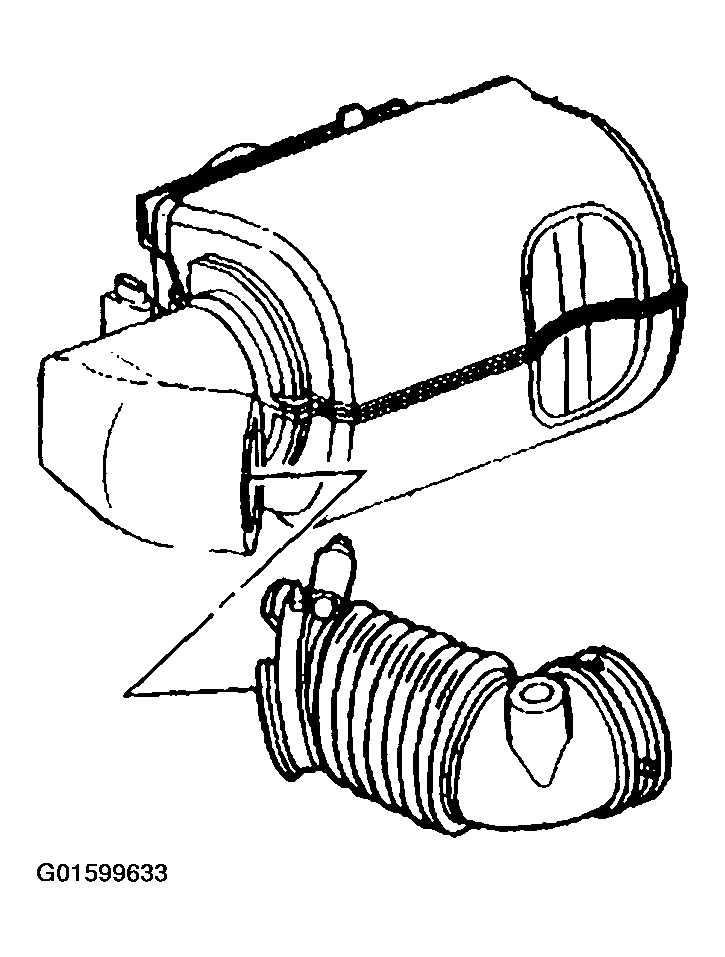

    Fig 3: Air Cleaner Inlet Elbow
    G01599633Courtesy of GENERAL MOTORS CORP.
