Installation Procedure

  1. Install the port gasket on sensor.
  2. Install the sensor.

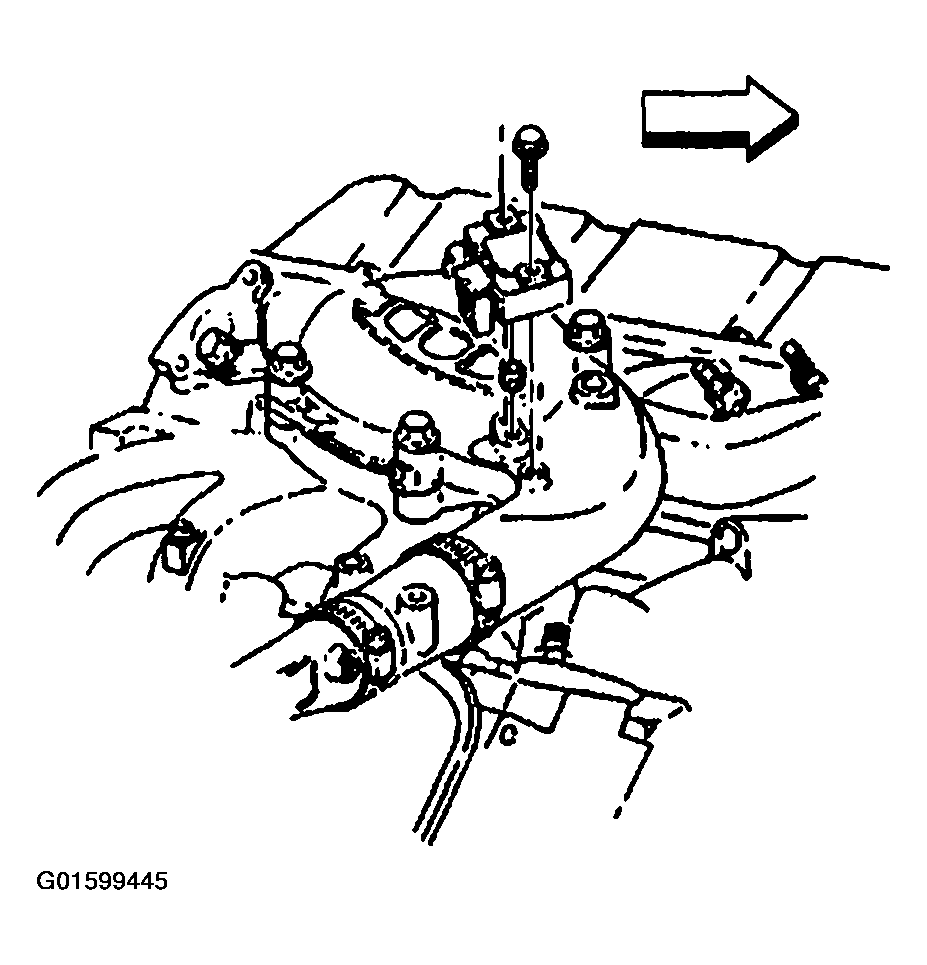

    Fig 1: Boost Sensor
    G01599445Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the mounting bolts.

    Tighten

    Tighten the mounting bolts to 3.5 N.m (27 lb in).

  4. Install the electrical connector.
  5. Install the negative battery cables.

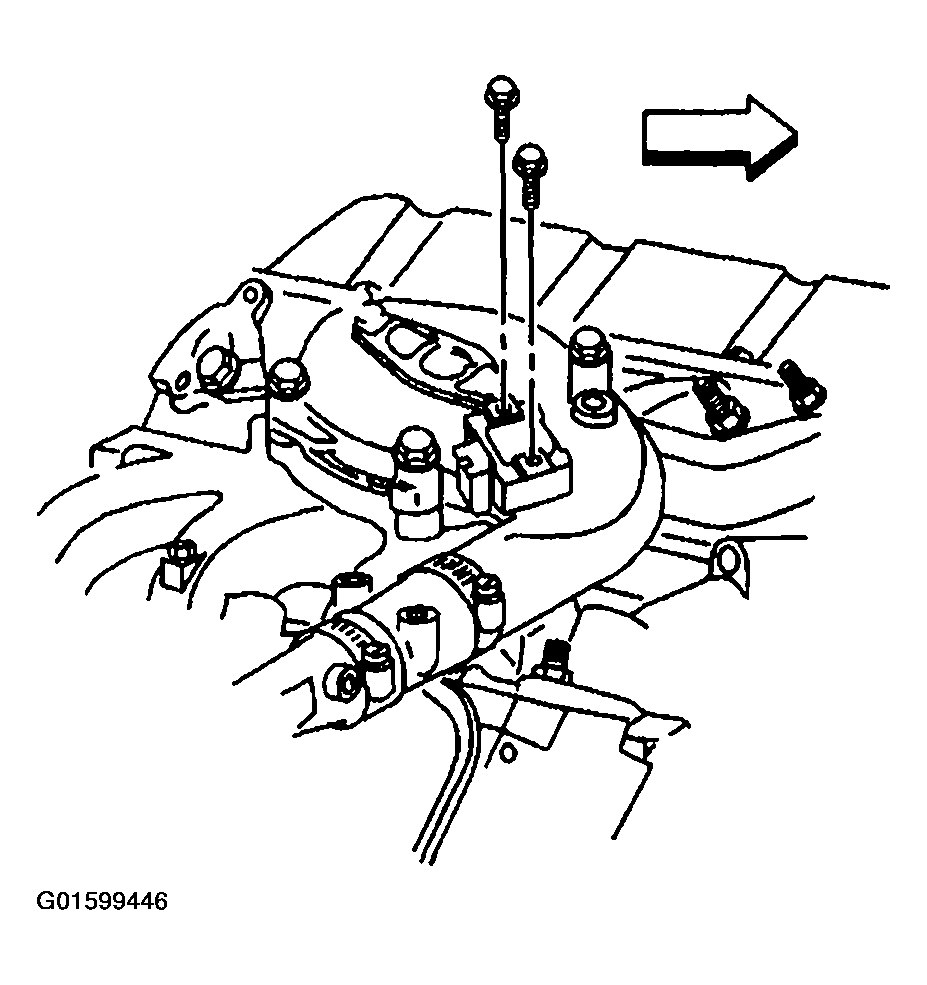

    Fig 2: Boost Sensor Mounting Bolts
    G01599446Courtesy of GENERAL MOTORS CORP.
