Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the sensor into the engine.

    Tighten

    Tighten the sensor to 25 N.m (18 lb ft).

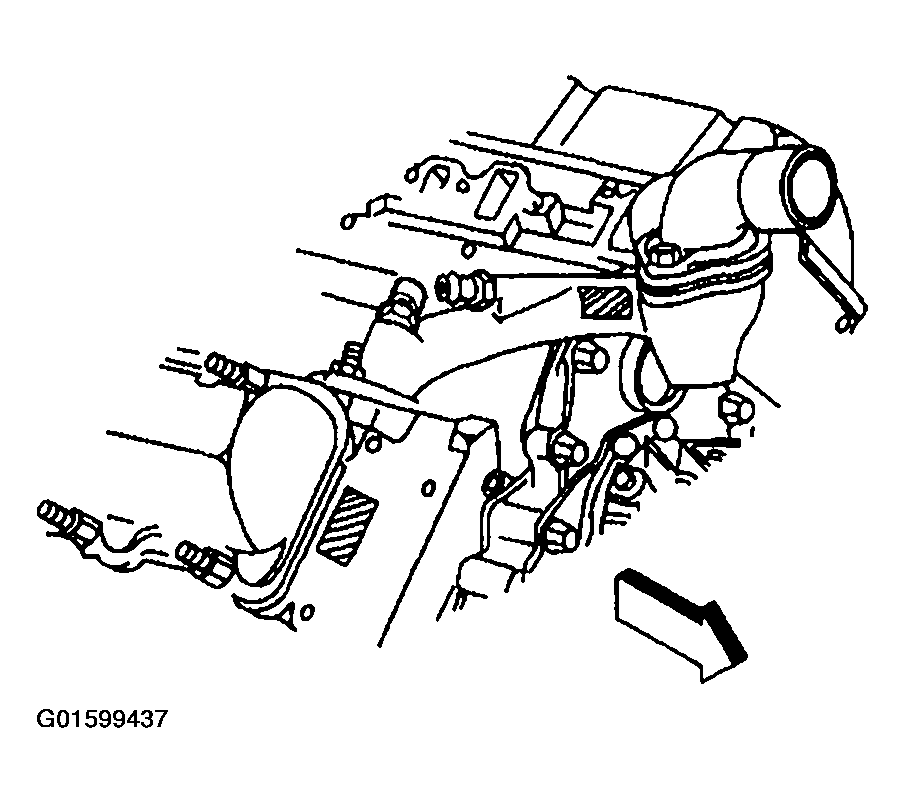

    Fig 1: ECT Sensor
    G01599437Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connector.
  3. Refill the coolant system.
  4. Install the negative battery cables.

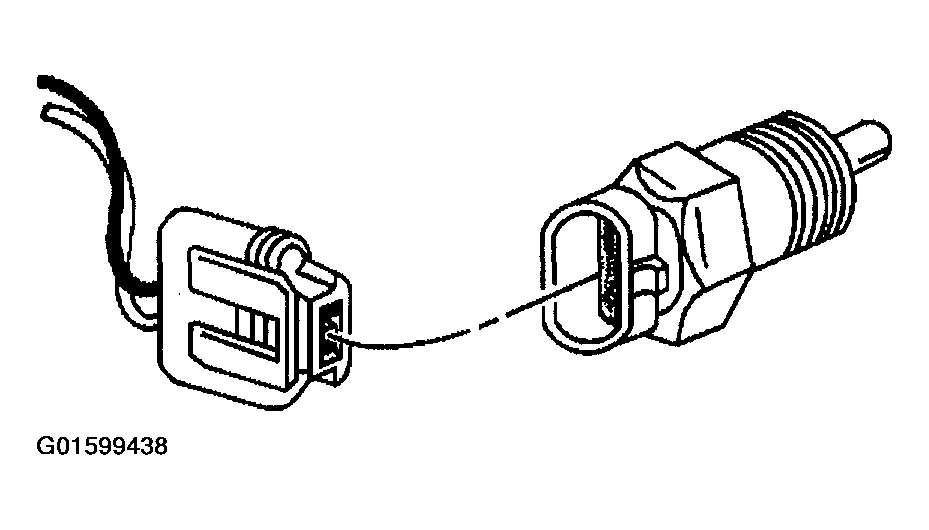

    Fig 2: ECT Electrical Connector
    G01599438Courtesy of GENERAL MOTORS CORP.
