Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove the negative battery cables.
  2. Drain the cooling system below the level of the sensor.
  3. Remove the electrical connector by releasing the locking tab.

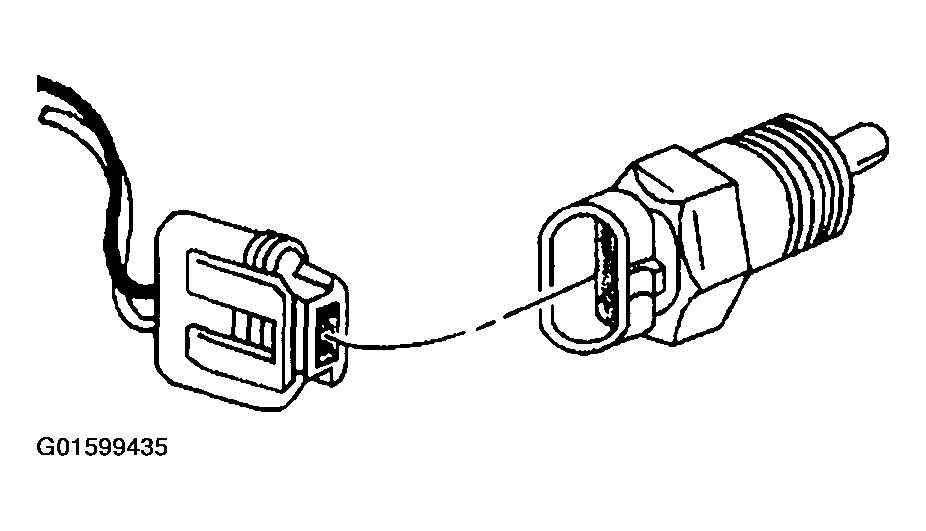

    Fig 1: ECT Electrical Connector
    G01599435Courtesy of GENERAL MOTORS CORP.
  4. Remove the sensor.

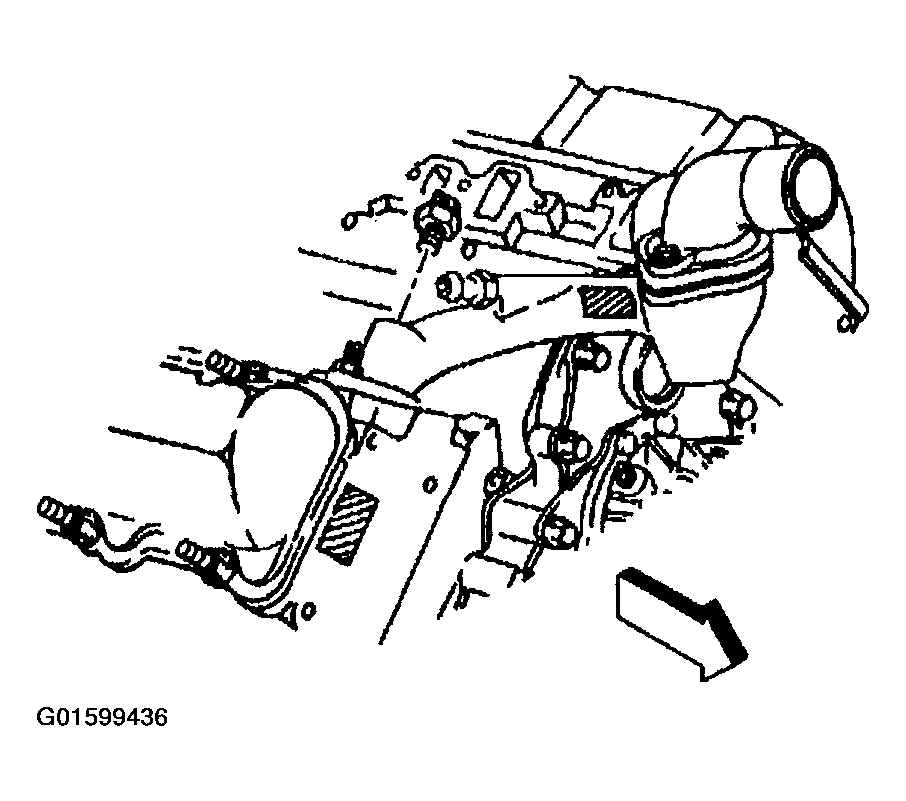

    Fig 2: ECT Sensor
    G01599436Courtesy of GENERAL MOTORS CORP.
