Installation Procedure

Install the cap seal into filter housing.

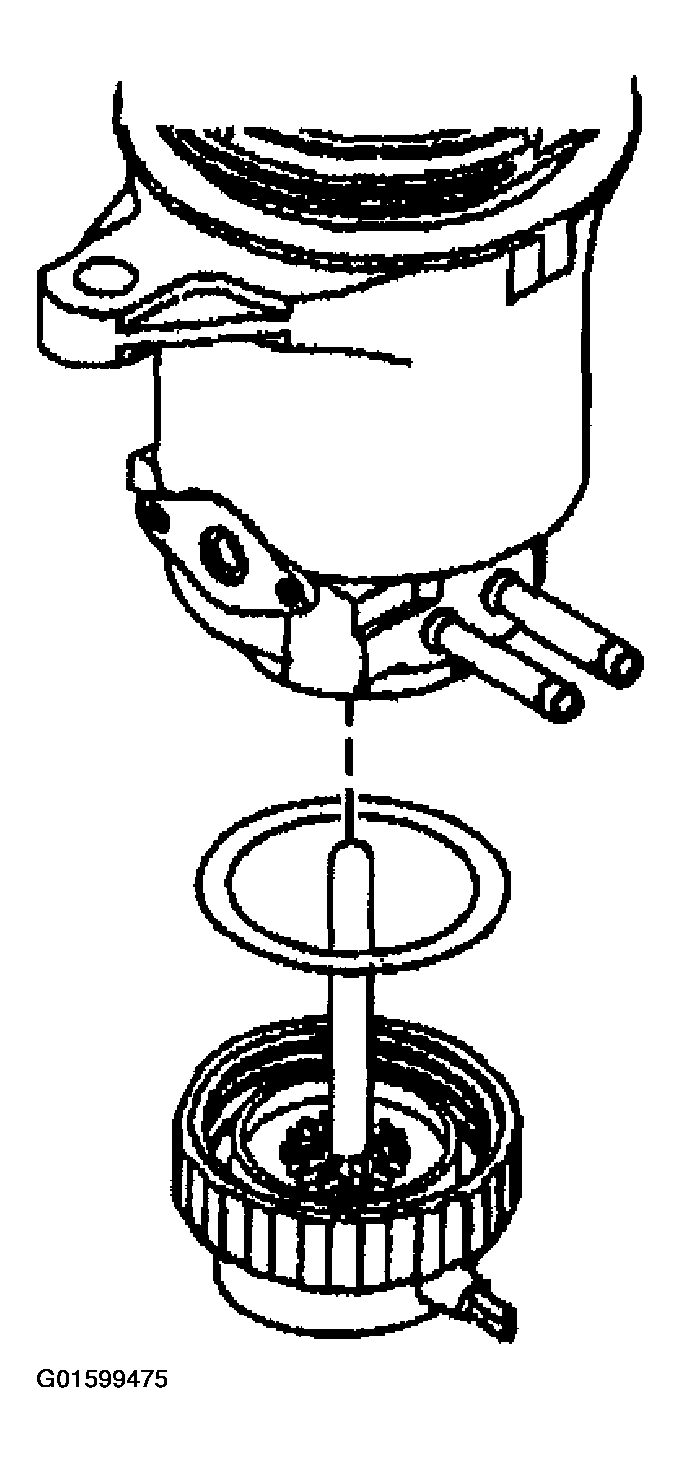

Fig 1: Fuel Heater Threaded Cap Nut, Cap Seal & Fuel Heater
Courtesy of GENERAL MOTORS CORP.
Install the fuel heater.
NOTE: Refer to FASTENER NOTICE .
Install the threaded cap nut.
Tighten

Tighten the cap nut securely by hand.

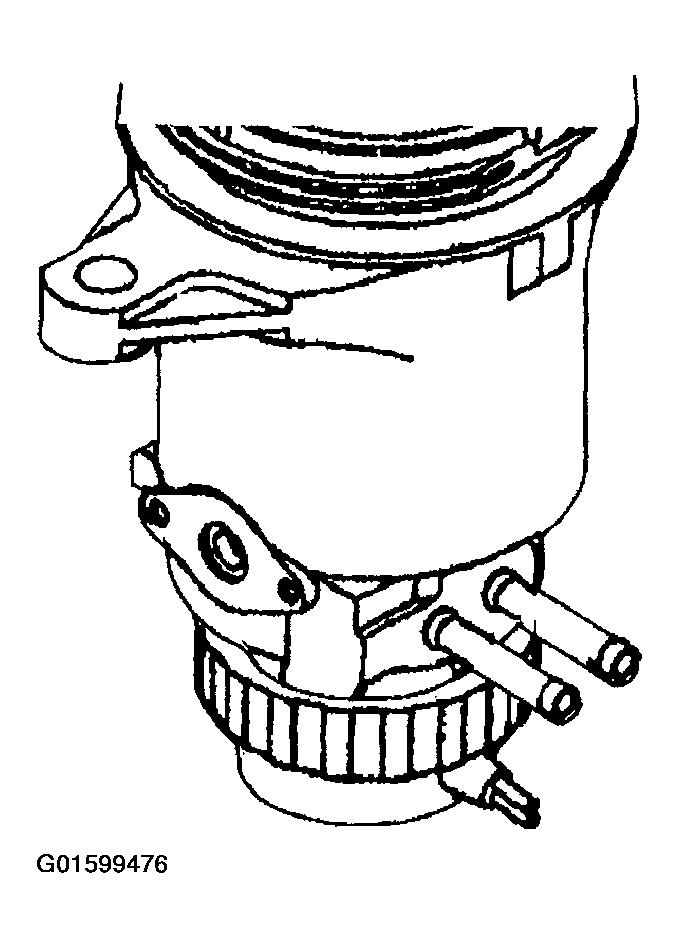

Fig 2: Fuel Heater
Courtesy of GENERAL MOTORS CORP.
Install the fuel manager/filter. Refer to Fuel Filter/Heater Element Housing Replacement .

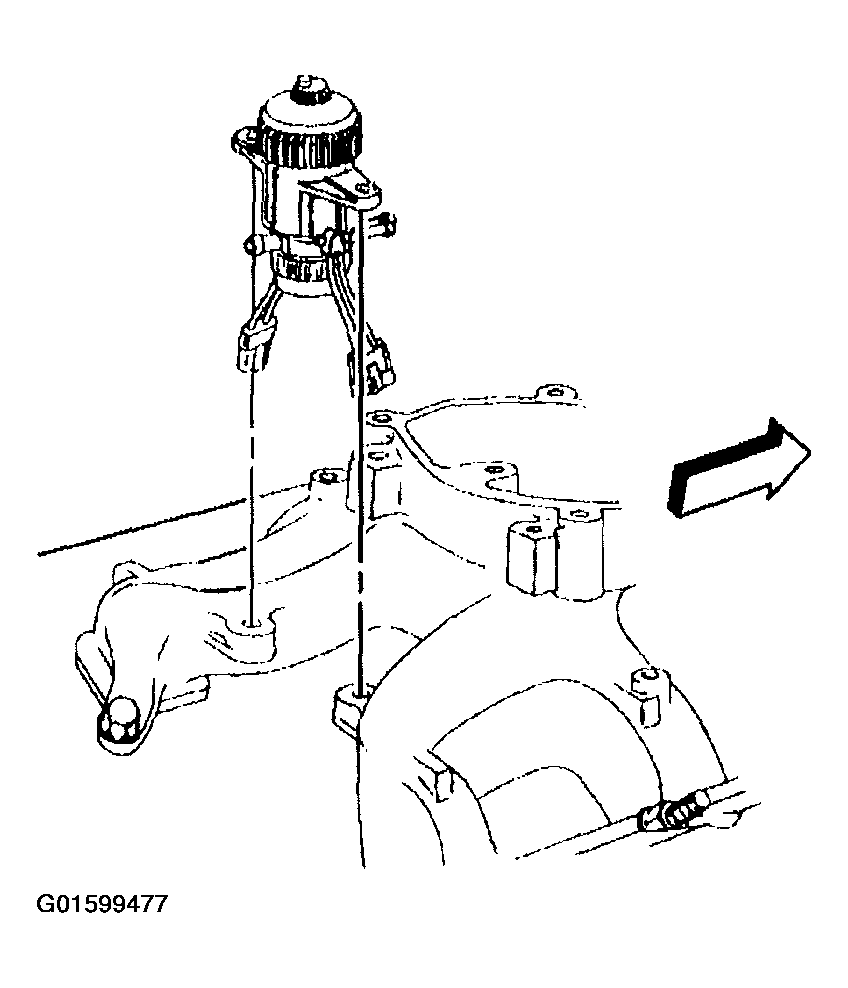

Fig 3: Fuel Manager/Filter
Courtesy of GENERAL MOTORS CORP.
Install the mounting bolts that connect the fuel manager/filter to the intake manifold.
Tighten

Tighten the mounting bolts to 25 N.m (18 lb ft).

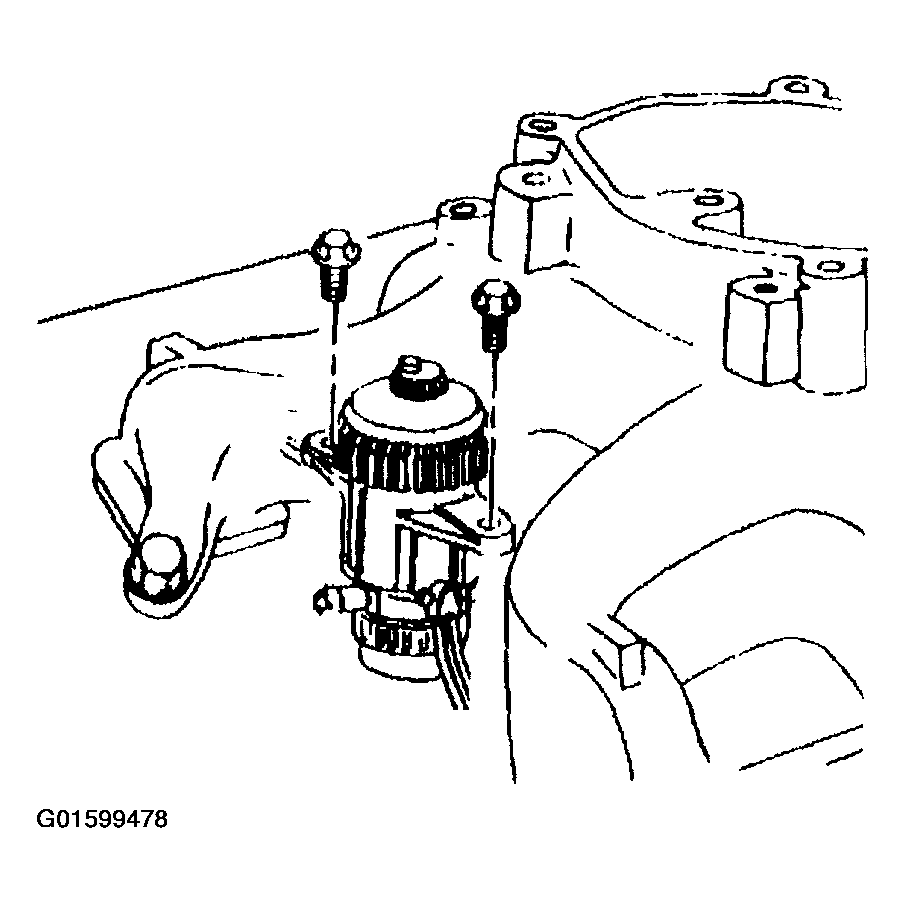

Fig 4: Fuel Manager/Filter Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Open the air bleed valve on top of the fuel manager/filter to bleed air from fuel supply system. Refer to Fuel Feed and Fuel Return Pipe Purge Procedure .

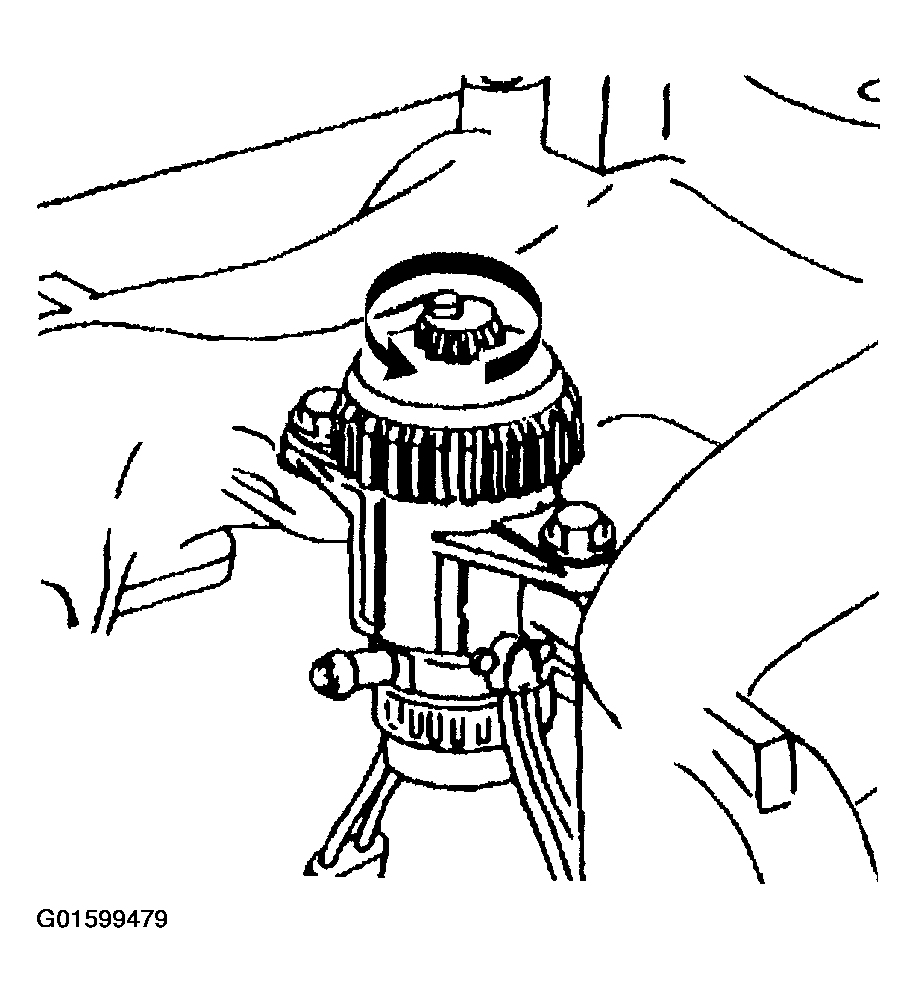

Fig 5: Opening Air Bleed Valve
Courtesy of GENERAL MOTORS CORP.
Install the upper intake manifold cover.

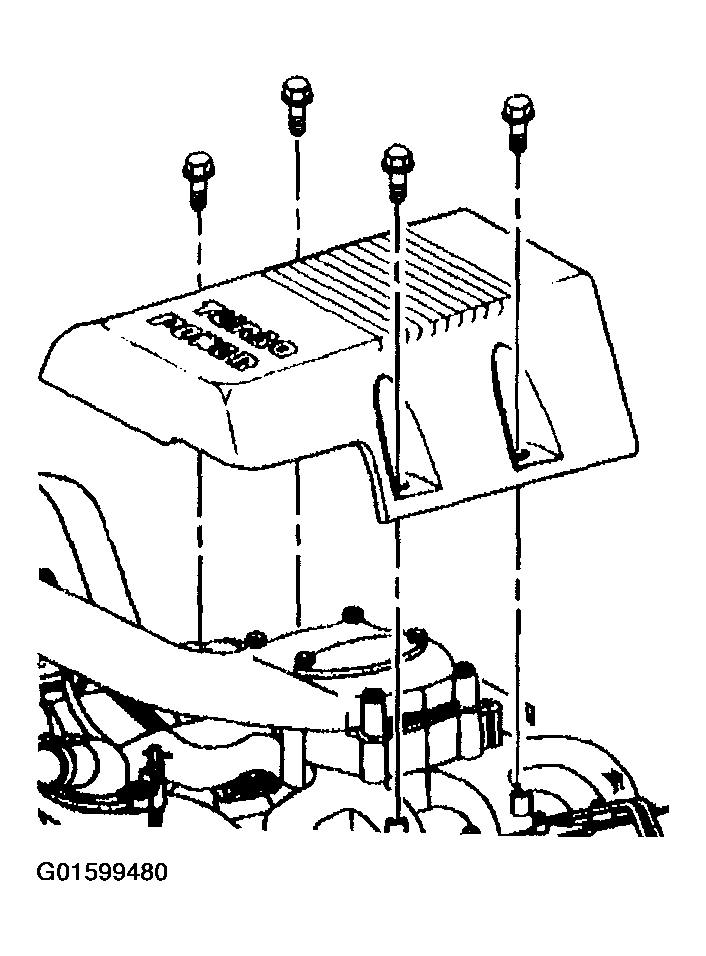

Fig 6: Upper Intake Manifold Cover
Courtesy of GENERAL MOTORS CORP.
