Removal Procedure

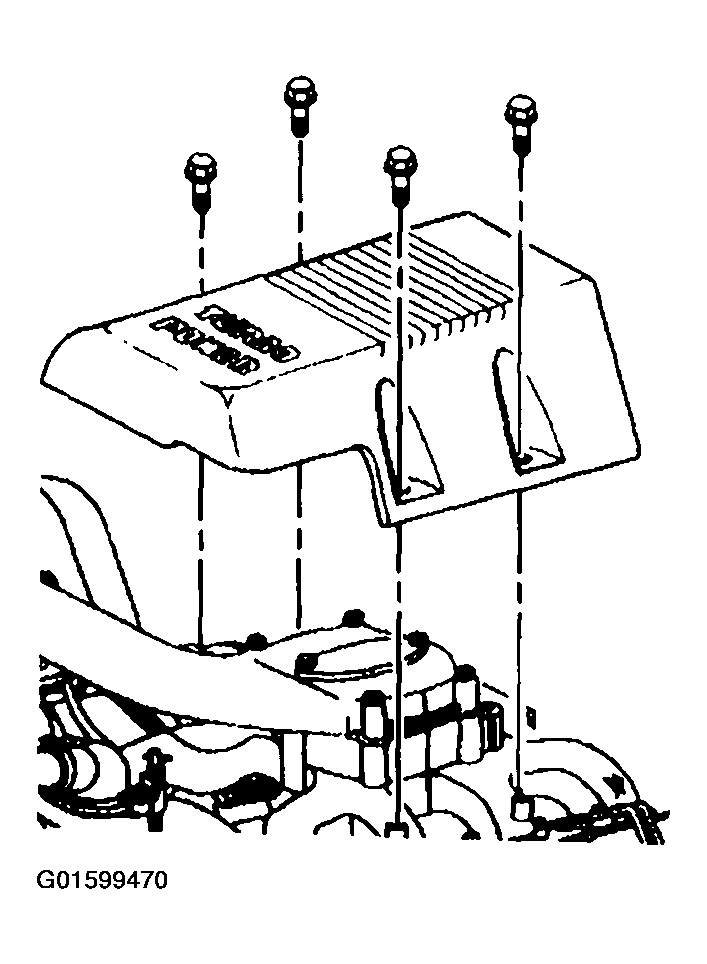

Remove the upper intake manifold cover.

Fig 1: Upper Intake Manifold Cover
Courtesy of GENERAL MOTORS CORP.

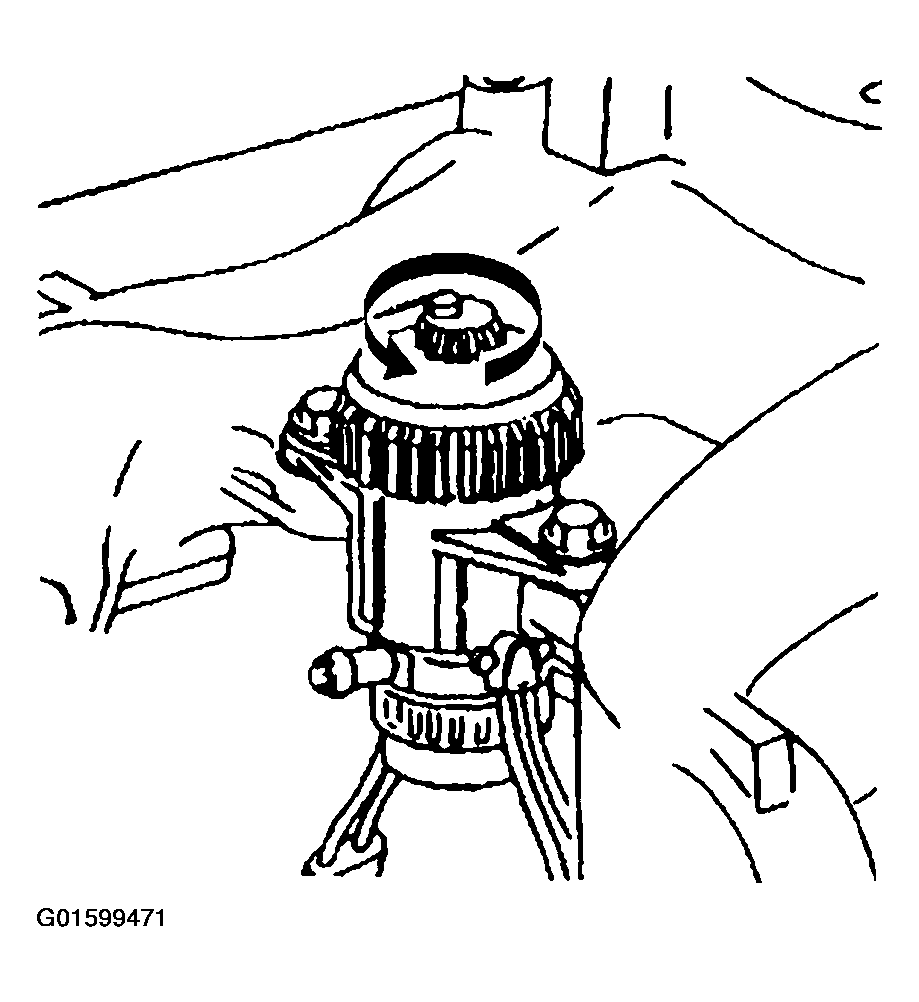

Open the air bleed valve on top of the fuel manager/filter to release any pressure in the fuel supply system.

Fig 2: Opening Air Bleed Valve
Courtesy of GENERAL MOTORS CORP.

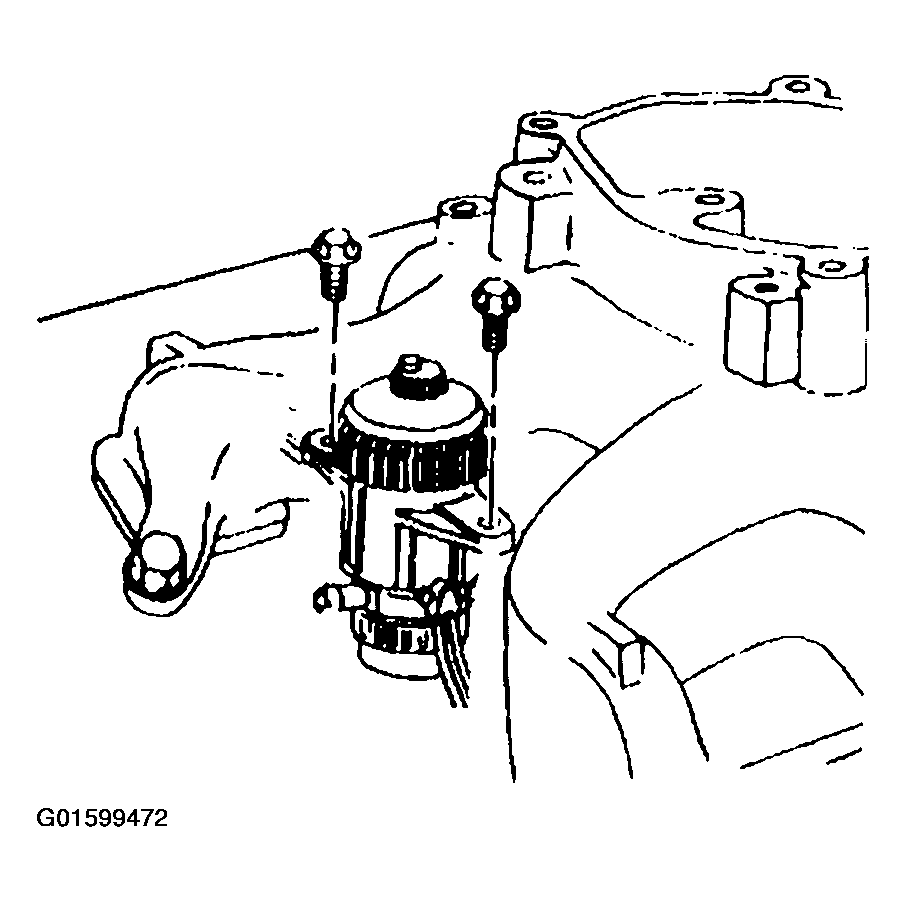

Remove the mounting bolts that connect the fuel manager/filter to the intake manifold.

Fig 3: Fuel Manager/Filter Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the wiring harnesses and fuel hoses.

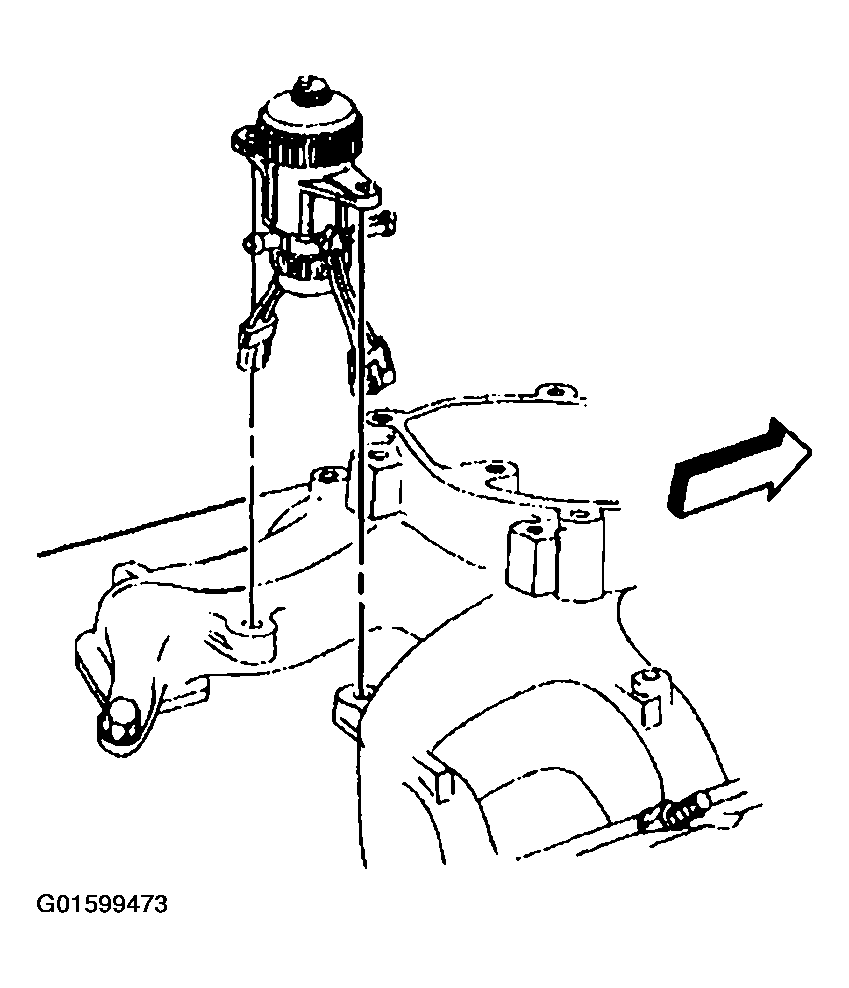

Remove the fuel manager/filter by lifting straight up.

Fig 4: Fuel Manager/Filter
Courtesy of GENERAL MOTORS CORP.
Remove the fuel heater threaded cap nut by using hand pressure or a strap wrench.
Remove the fuel heater from the filter housing.
Clean the fuel heater to housing sealing surfaces.

Fig 5: Fuel Heater Threaded Cap Nut, Cap Seal & Fuel Heater
Courtesy of GENERAL MOTORS CORP.
