Installation Procedure

Position the new pump in the pump bracket.

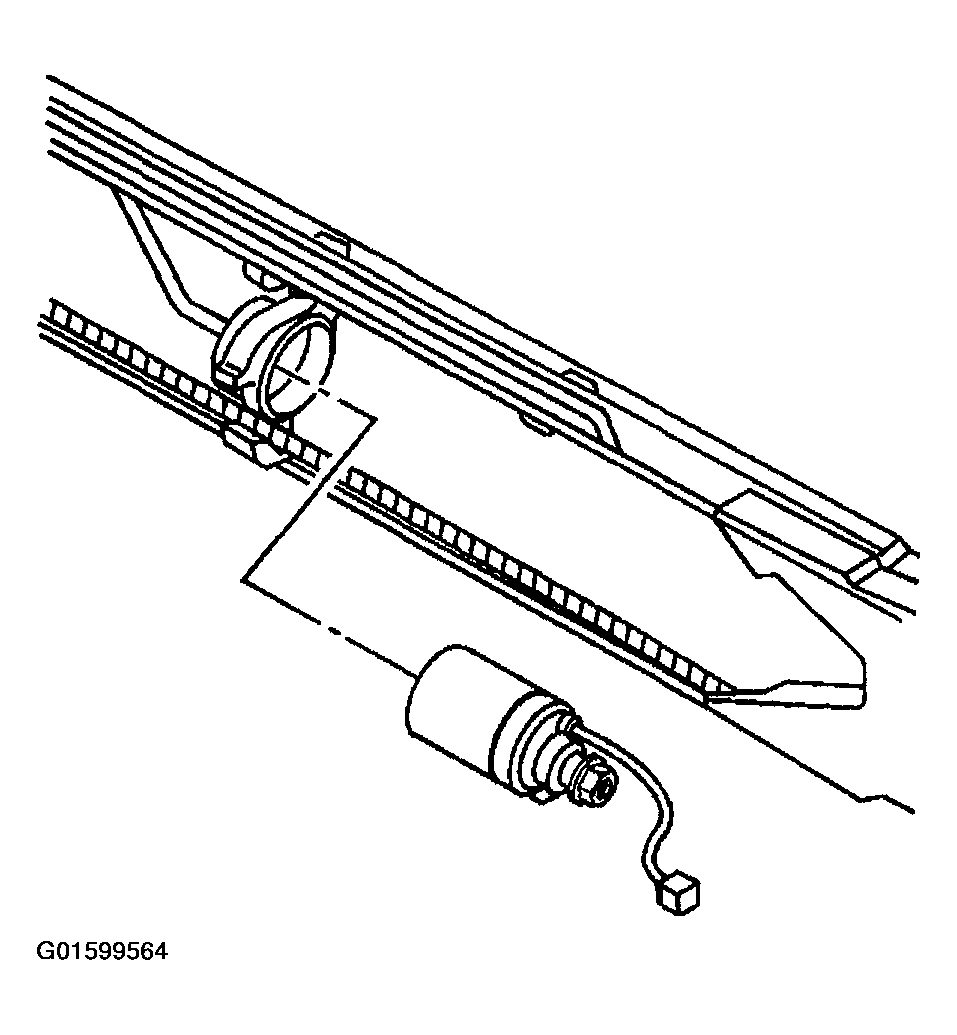

Fig 1: Fuel Pump
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install both fuel lines on the fuel pump.
Tighten

Use a backup wrench in order to prevent the pump from turning. Tighten the fuel line fittings to 30 N.m (22 lb ft).

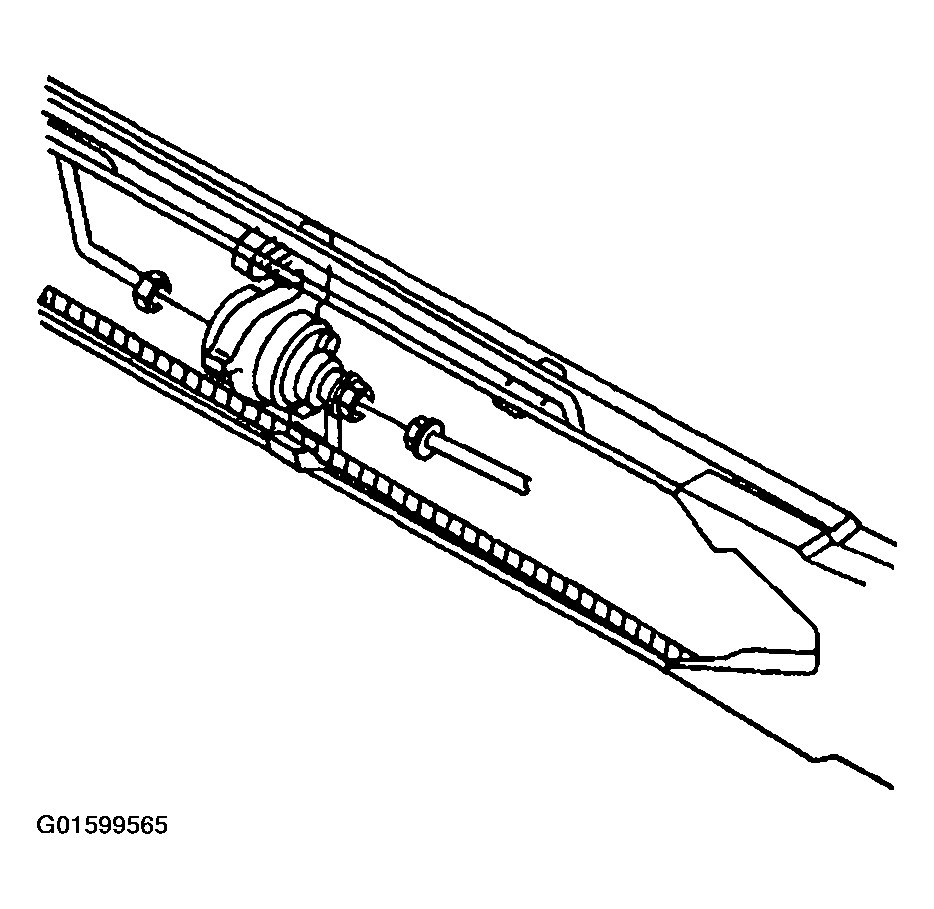

Fig 2: Fuel Pump Fuel Lines
Courtesy of GENERAL MOTORS CORP.
Connect the fuel pump electrical harness connector.
Connect the negative battery cables.
Tighten the fuel tank filler caps.
Bleed the air from the system.
Start the engine and check for leaks.

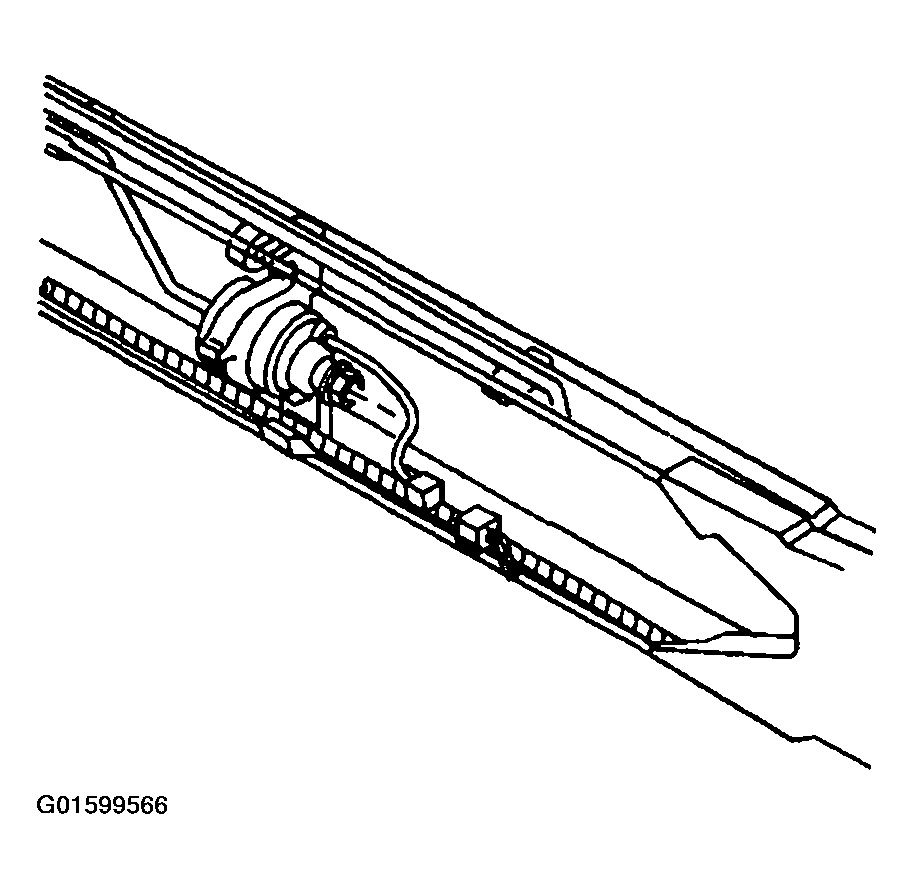

Fig 3: Fuel Pump Electrical Connector
