Installation Procedure
NOTE:
Refer to FASTENER NOTICE
.
- Install the glow plug into cylinder 8.
Tighten
Tighten the glow plugs to 17 N.m (13 lb ft).
- Install the lead wire to cylinder 8 glow plug.
- Install the glow plugs into cylinders 2, 4, and 6 by reaching through the right front wheel well.
Tighten
Tighten the glow plugs to 17 N.m (13 lb ft).

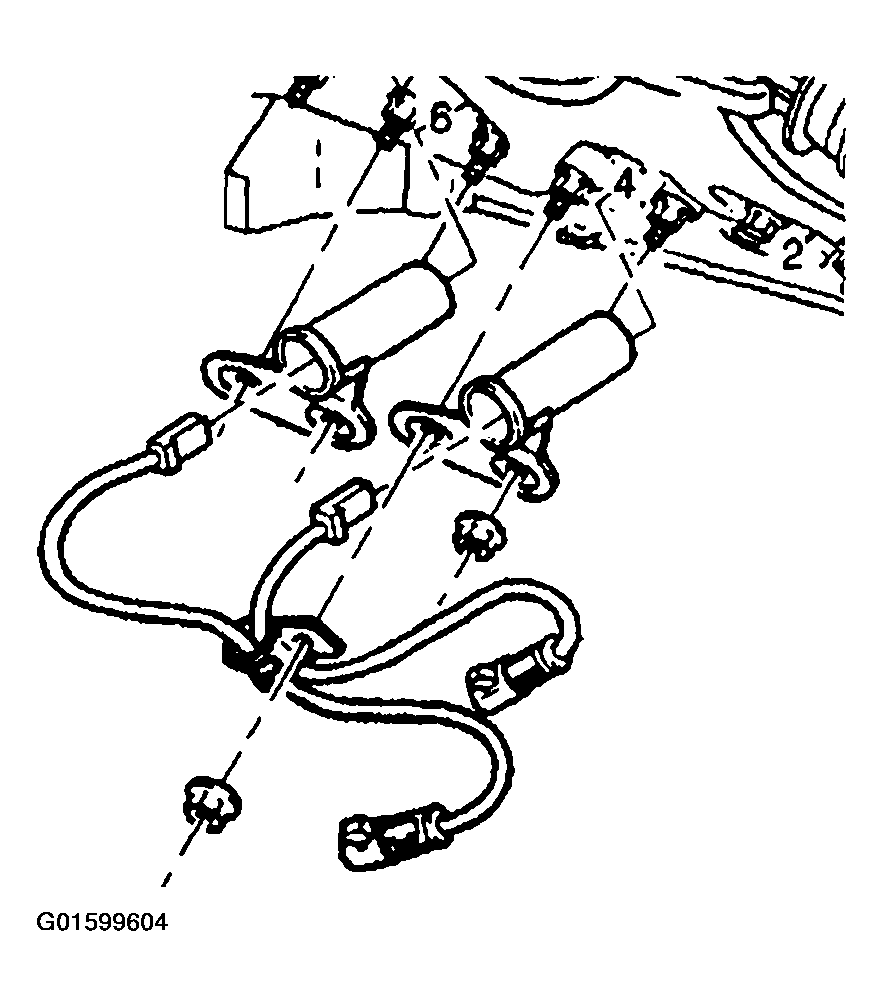

- Install lead wire to glow plug 6.
- Slide the shroud over the wire lead and fasten to the studs.
- Repeat Step 4 for the cylinder 4 glow plug.
Tighten
Tighten the heat shroud nuts to 23 N.m (17 lb ft).
- Install the wires for glow plugs in cylinders 4 and 6 to connectors at the wire harness.
- Install the lead wire for cylinder 2 glow plug.
- Install the splash shield in the right front wheel well.
- Inspect the wire routing, making sure the lead wires are not rubbing against the exhaust manifold or any part that may harm the wire insulation.
- Install the right front tire.
