Installation Procedure

  1. Install the wastegate solenoid.
  2. Install the wastegate mounting bolt.
  3. Install the vacuum hoses.
  4. Install the electrical connector.
  5. Install the negative battery cables.

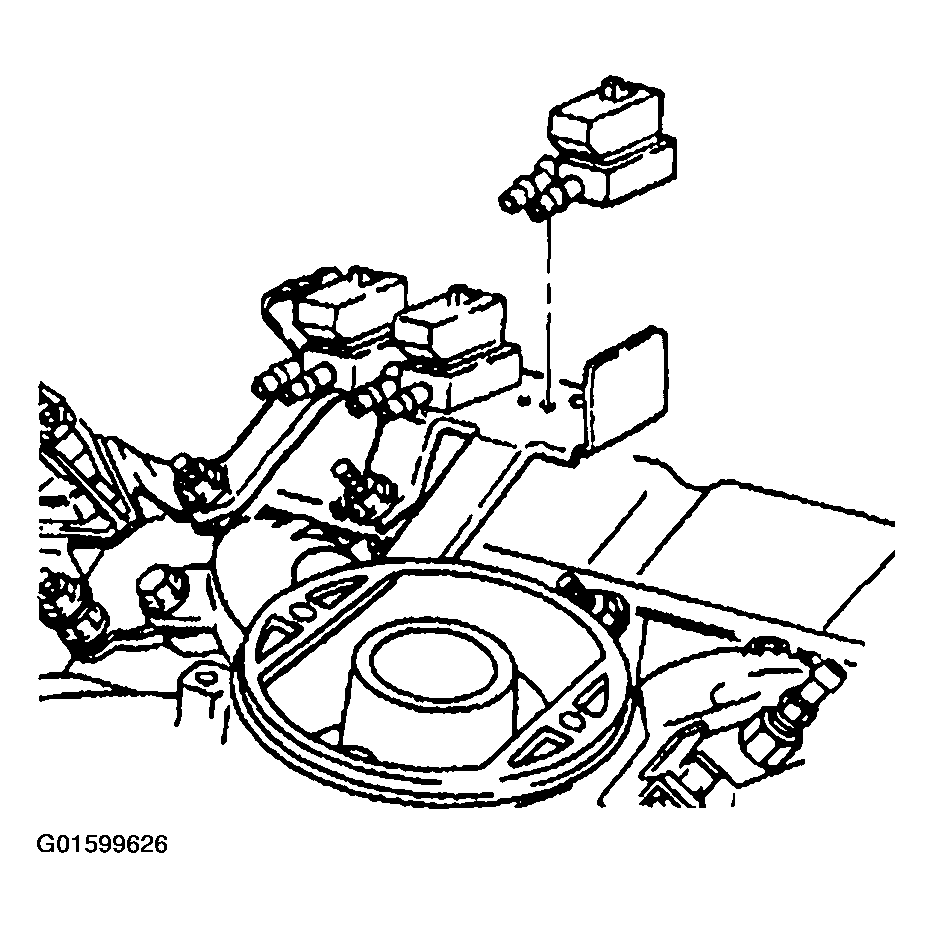

    Fig 1: Wastegate Solenoid
    G01599626Courtesy of GENERAL MOTORS CORP.
