Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove negative battery cables.
  2. Remove the electrical connector from the solenoid.
  3. Remove the vacuum hoses.
  4. Remove the solenoid mounting bolt.
  5. Remove the wastegate solenoid.

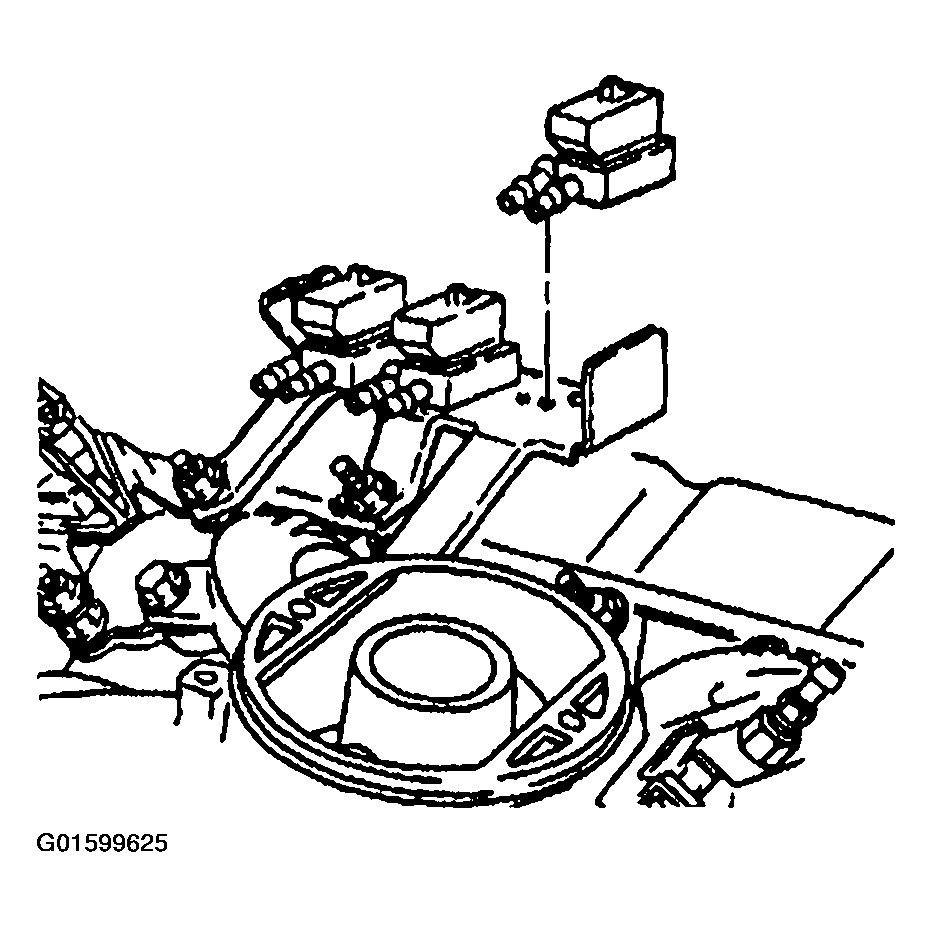

    Fig 1: Wastegate Solenoid
    G01599625Courtesy of GENERAL MOTORS CORP.
