Temperature vs Resistance

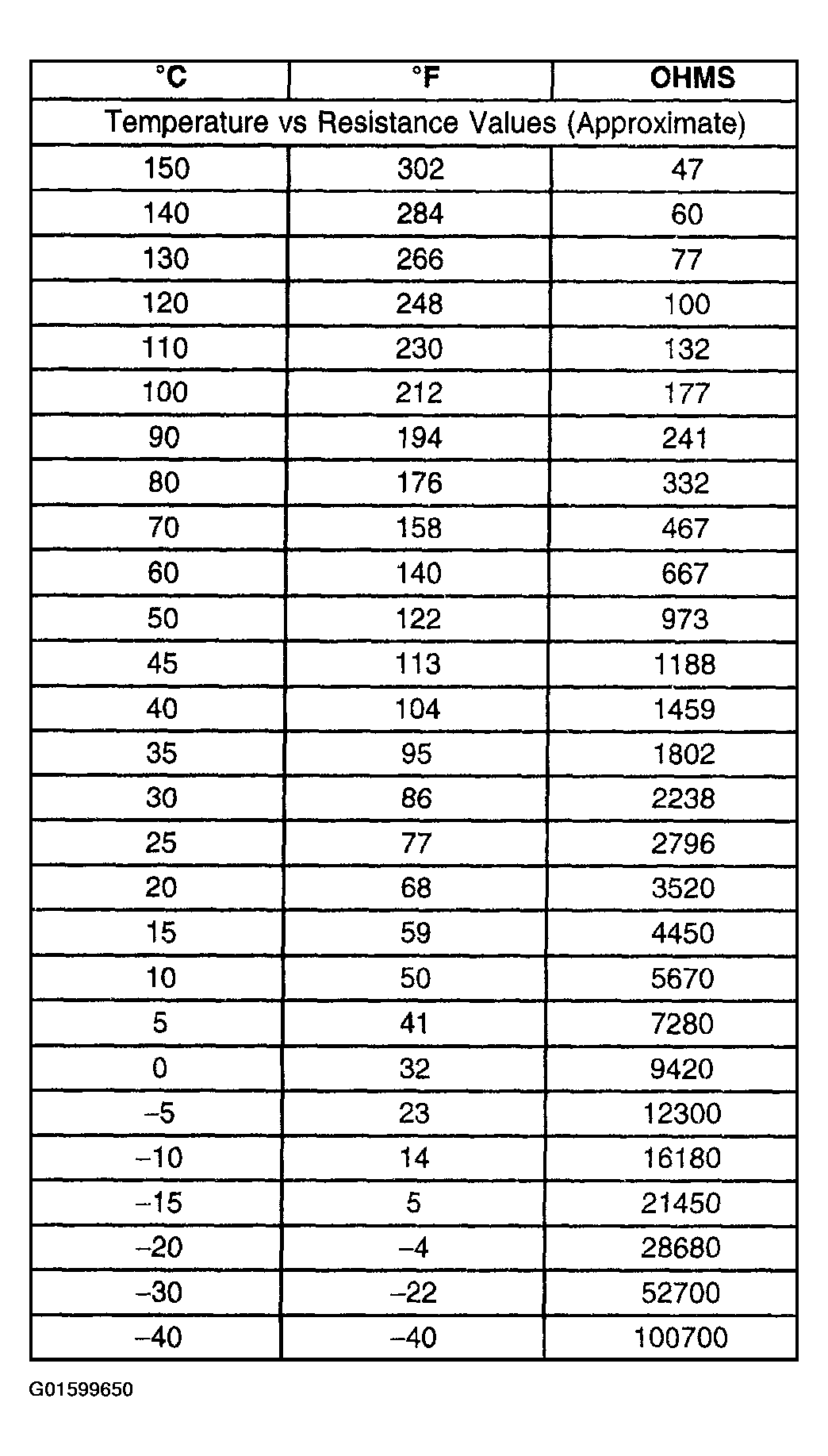

Fig 1: Temperature Vs Resistance
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
