Removal Procedure

  1. Put the shift lever clevis into the neutral position.
  2. Remove the knee bolster.
  3. Disconnect the electrical connector.
  4. Use a small screwdriver to pry the electrical automatic transmission shift lock control actuator from the steering column jacket assembly.
  5. Remove the automatic transmission shift lock control actuator from the steering column.

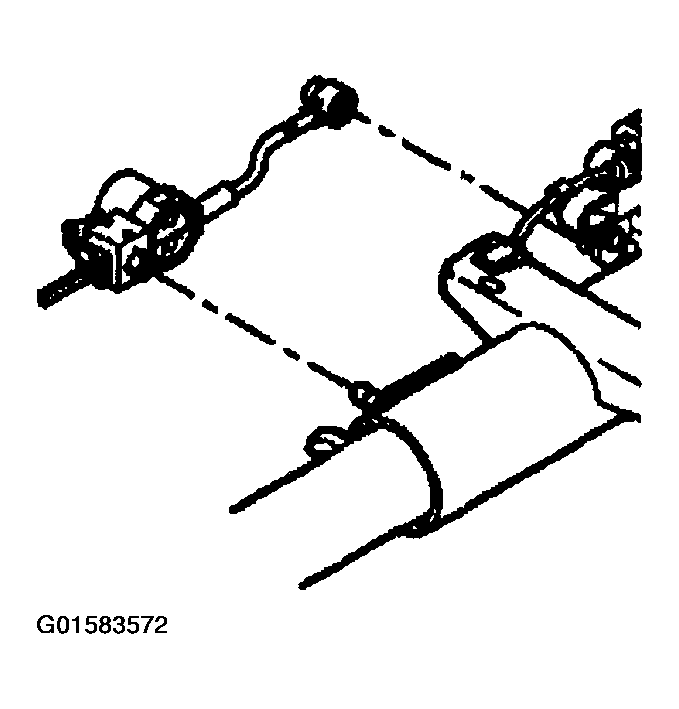

    Fig 1: Automatic Transmission Shift Lock Control Actuator
    G01583572Courtesy of GENERAL MOTORS CORP.
