Automatic Transmission Shift Lock Control Schematics

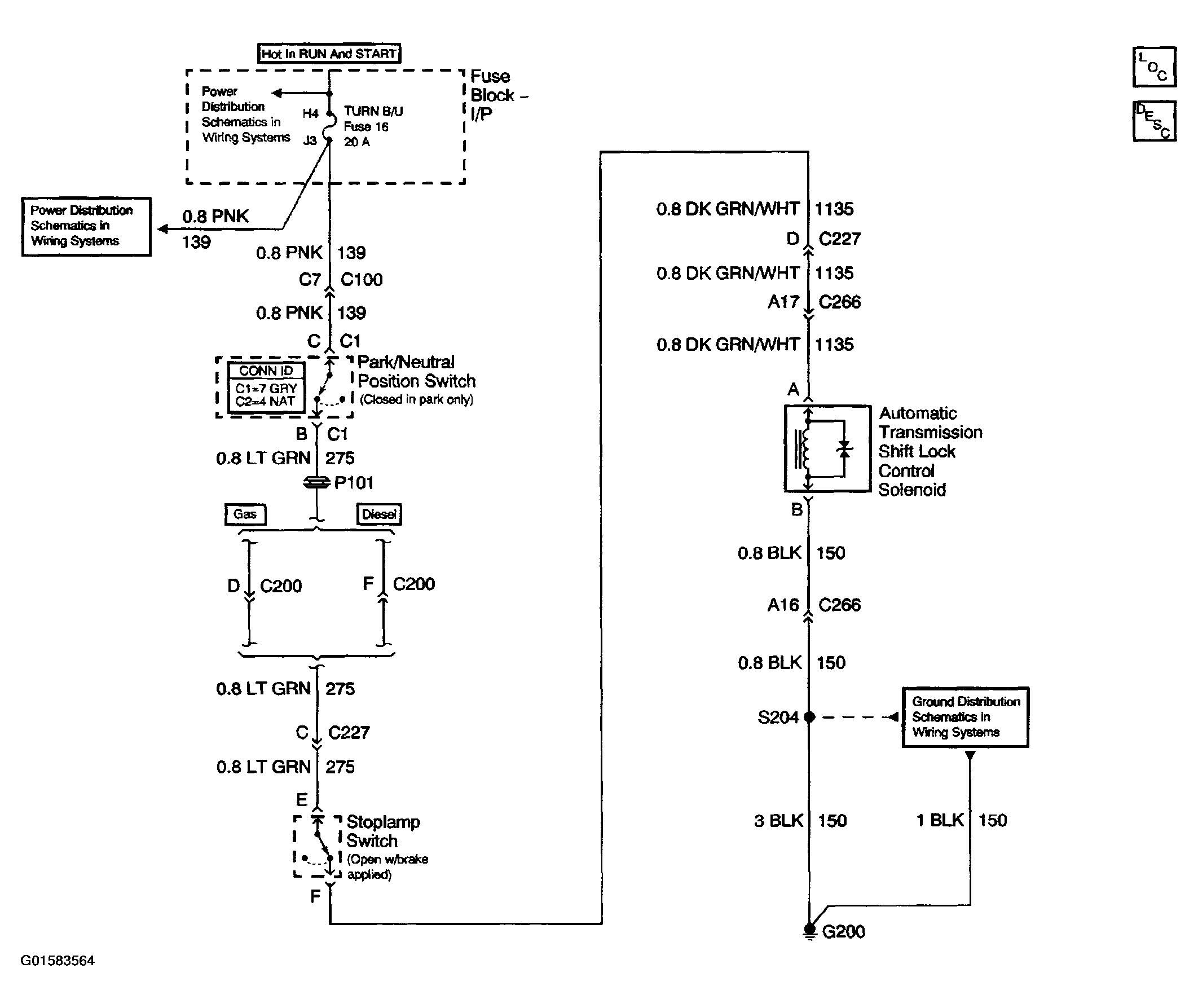

Fig 1: Automatic Transmission Shift Lock Control Schematics
G01583564Courtesy of GENERAL MOTORS CORP.
