Diagnostic Information and Procedures: Surges/Chuggles

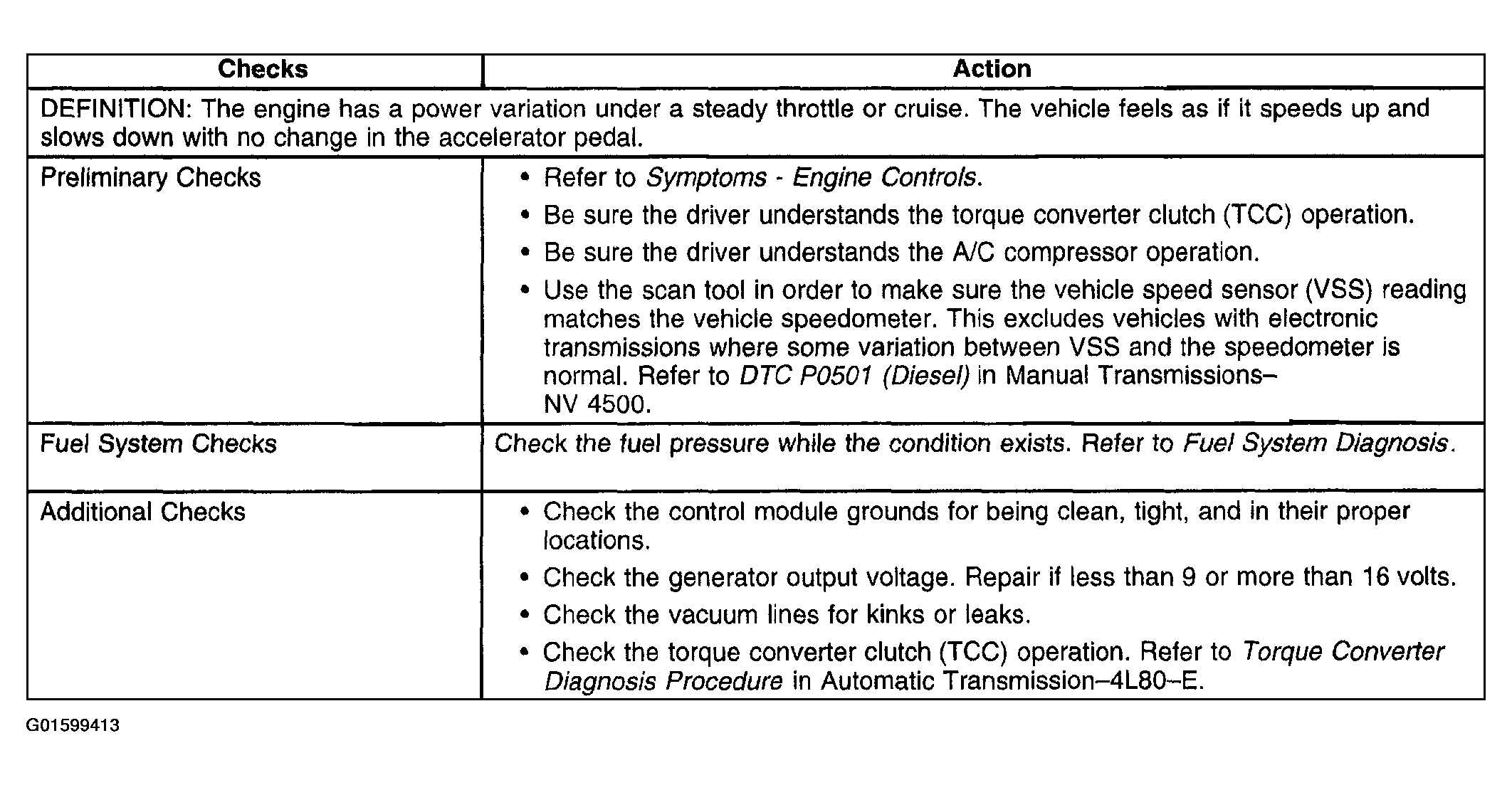

Fig 1: Surges/Chuggles

G01599413

Courtesy of GENERAL MOTORS CORP.
