Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Remove the negative battery cables.
  2. Remove the glow plug lead wires using the J 39083  and installer.
  3. Remove the glow plugs (1) from cylinders 1, 3, 5 and 7.

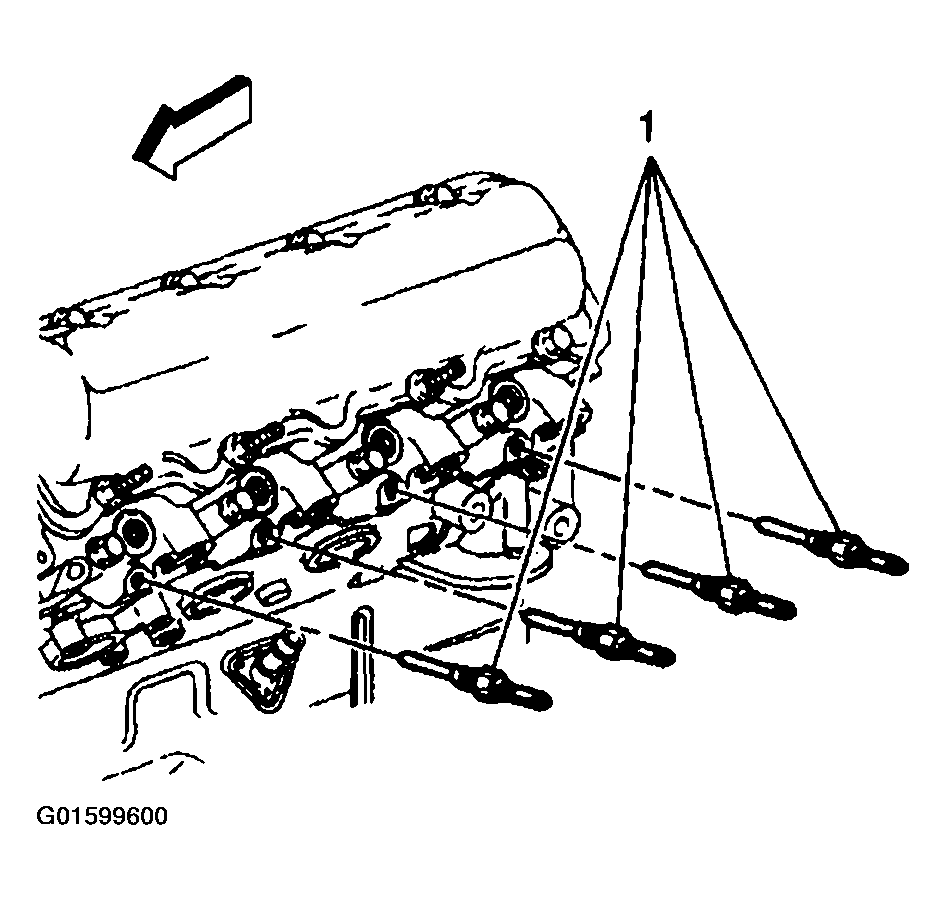

    Fig 1: Glow Plugs (Bank 1)
    G01599600Courtesy of GENERAL MOTORS CORP.
