Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the IAT sensor.

    Tighten

    Tighten the IAT sensor to 25 N.m (18 lb ft).

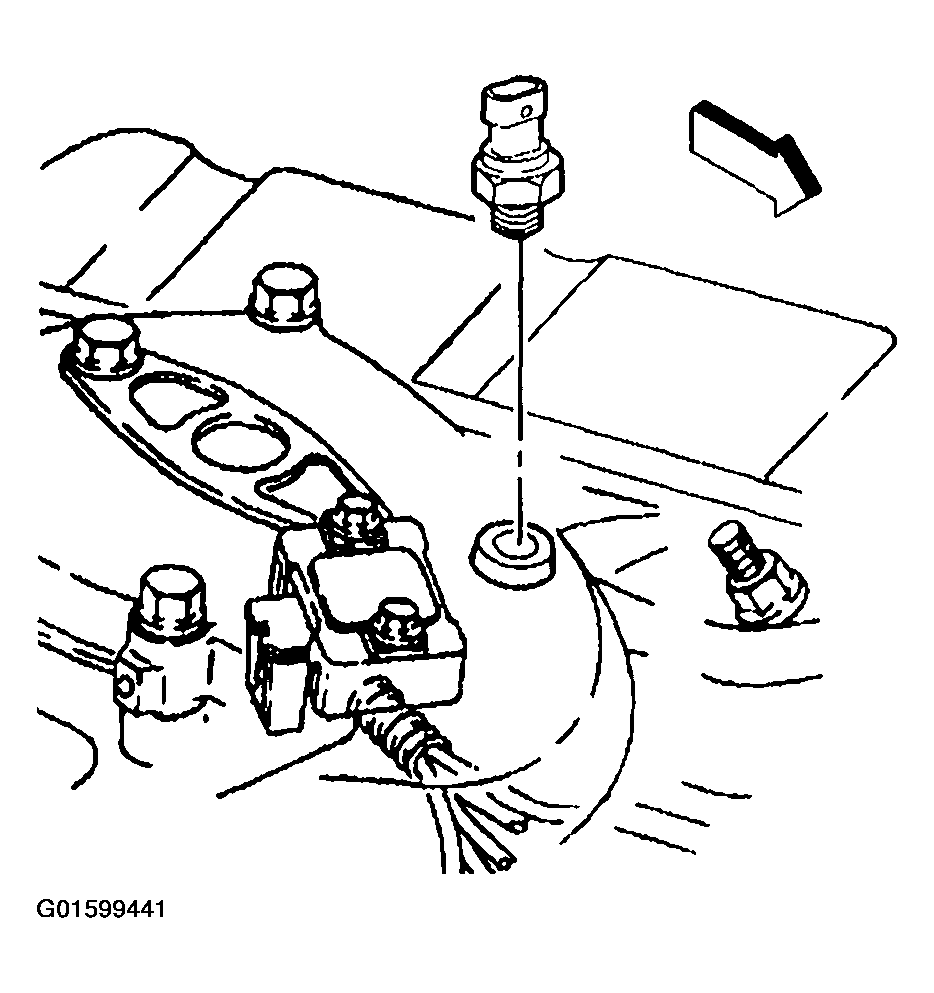

    Fig 1: IAT Sensor
    G01599441Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connector.
  3. Install the negative battery cables.

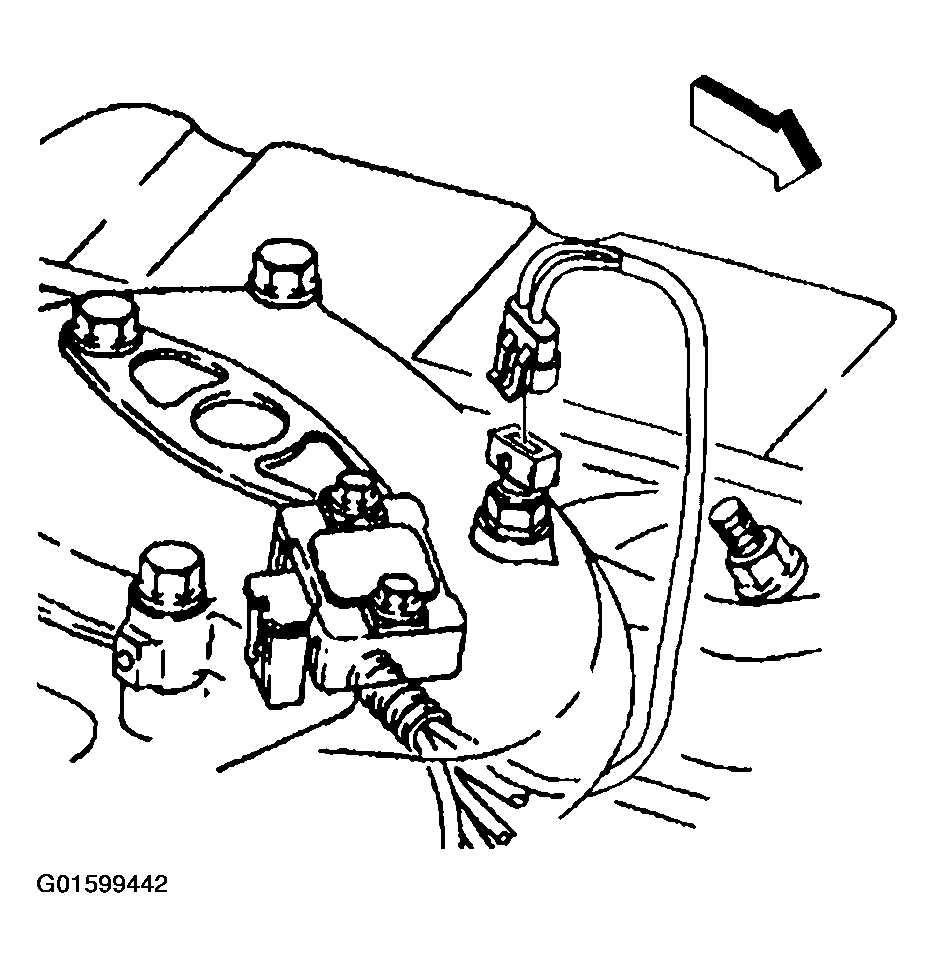

    Fig 2: IAT Electrical Connector
    G01599442Courtesy of GENERAL MOTORS CORP.
