Engine Speed vs Hertz (Hz)

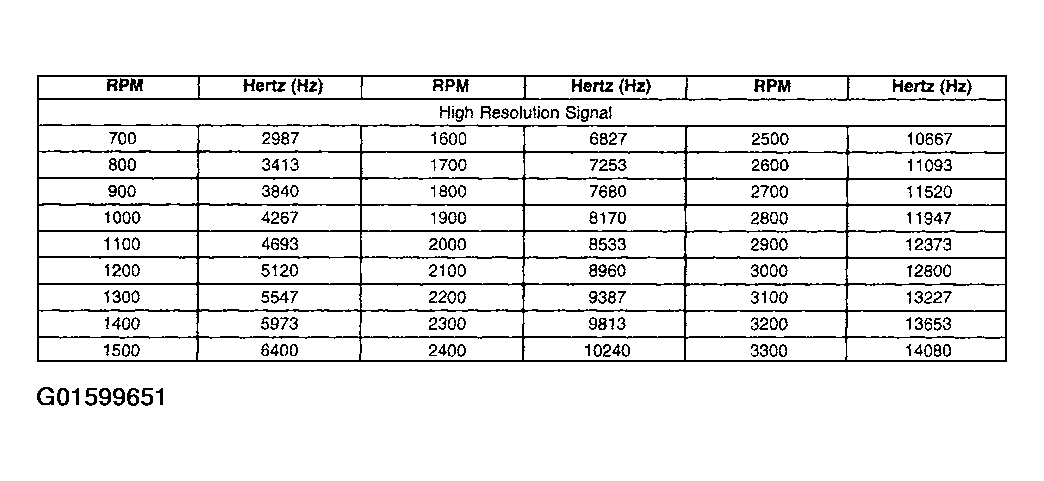

Fig 1: Engine Speed Vs Hertz (High Resolution Signal)
G01599651Courtesy of GENERAL MOTORS CORP.

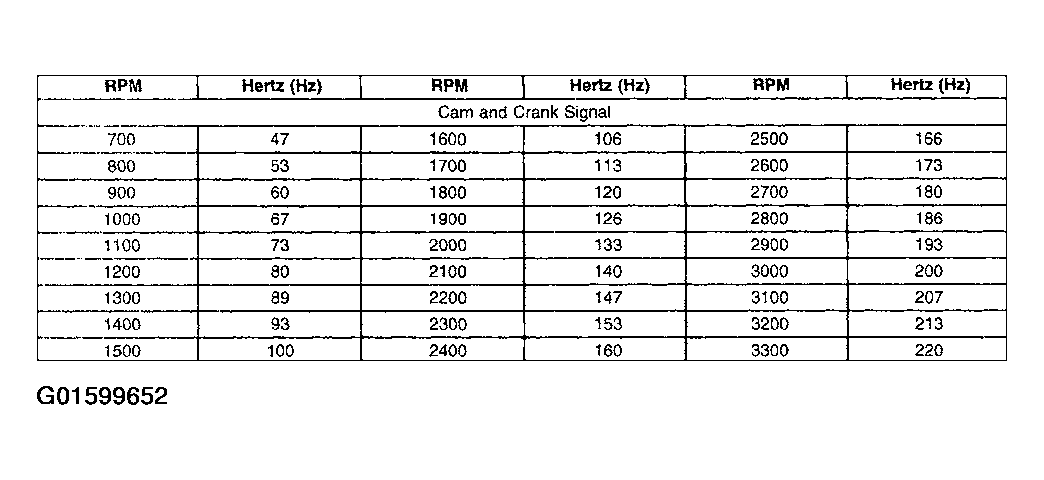

Fig 2: Engine Speed Vs Hertz (Cam & Crank Signal)
G01599652Courtesy of GENERAL MOTORS CORP.
