Engine Controls Connector End Views

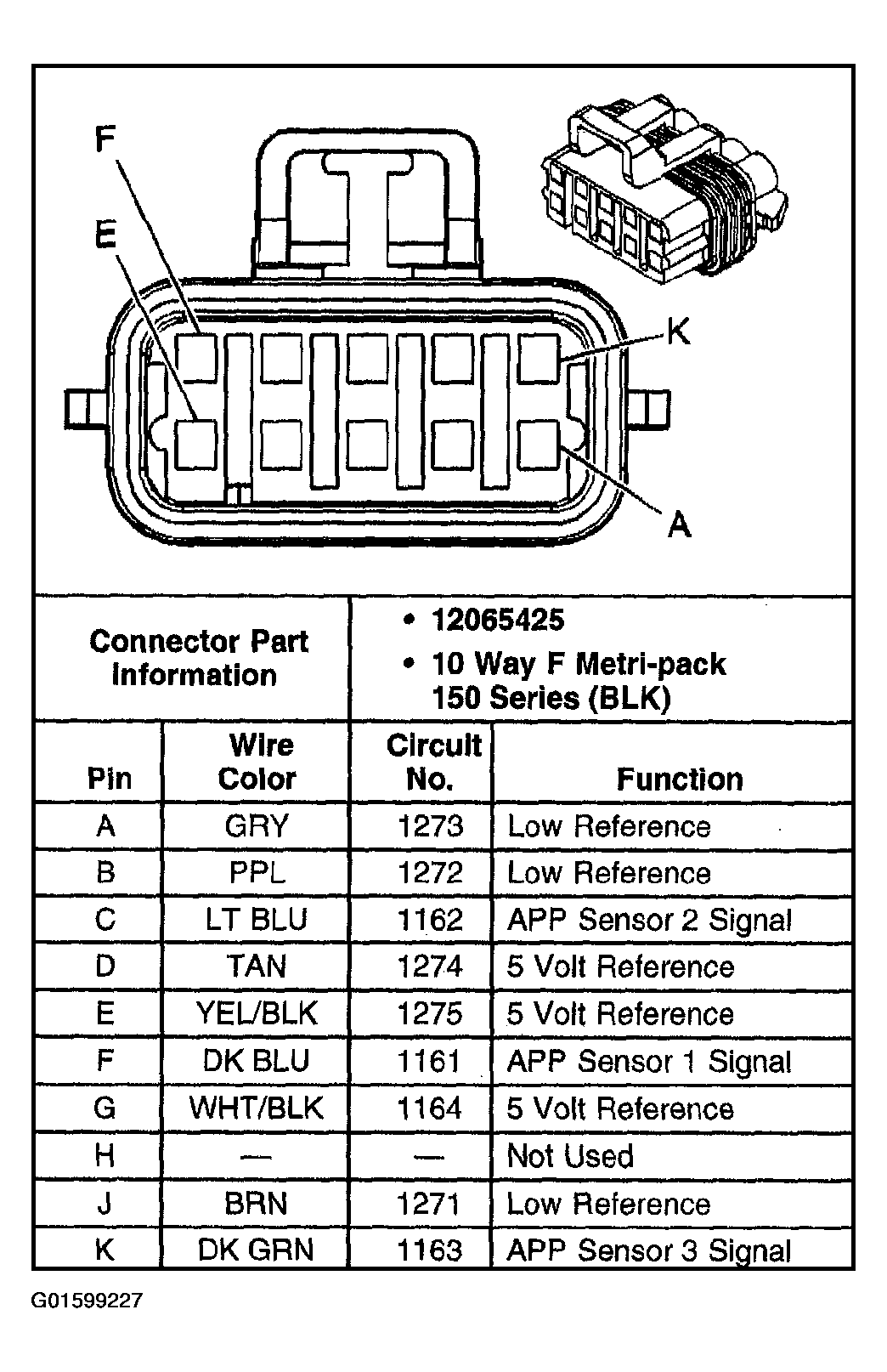

Fig 1: Accelerator Pedal Position (APP) Sensor

G01599227

Courtesy of GENERAL MOTORS CORP.

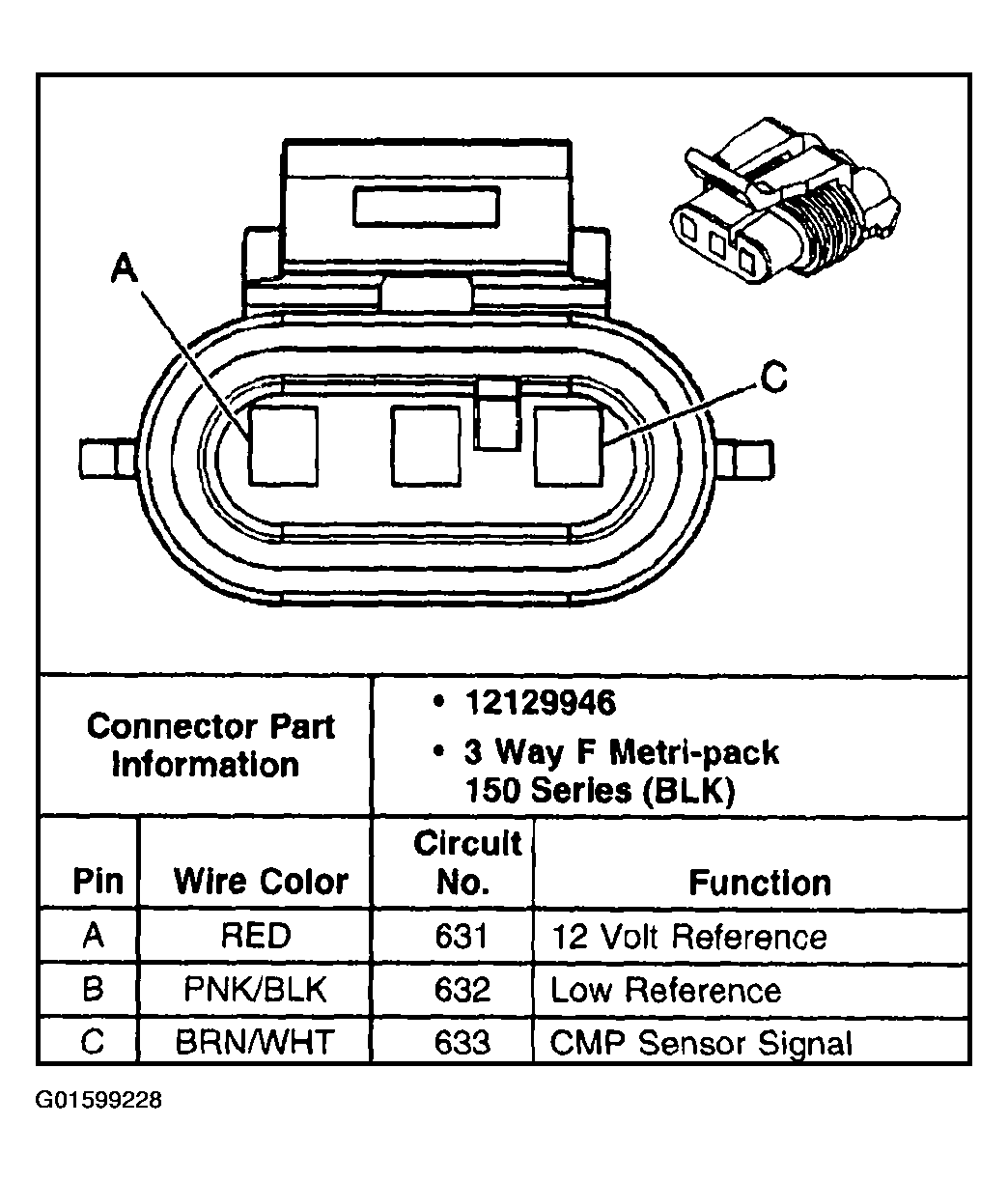

Fig 2: Camshaft Position (CMP) Sensor

G01599228

Courtesy of GENERAL MOTORS CORP.

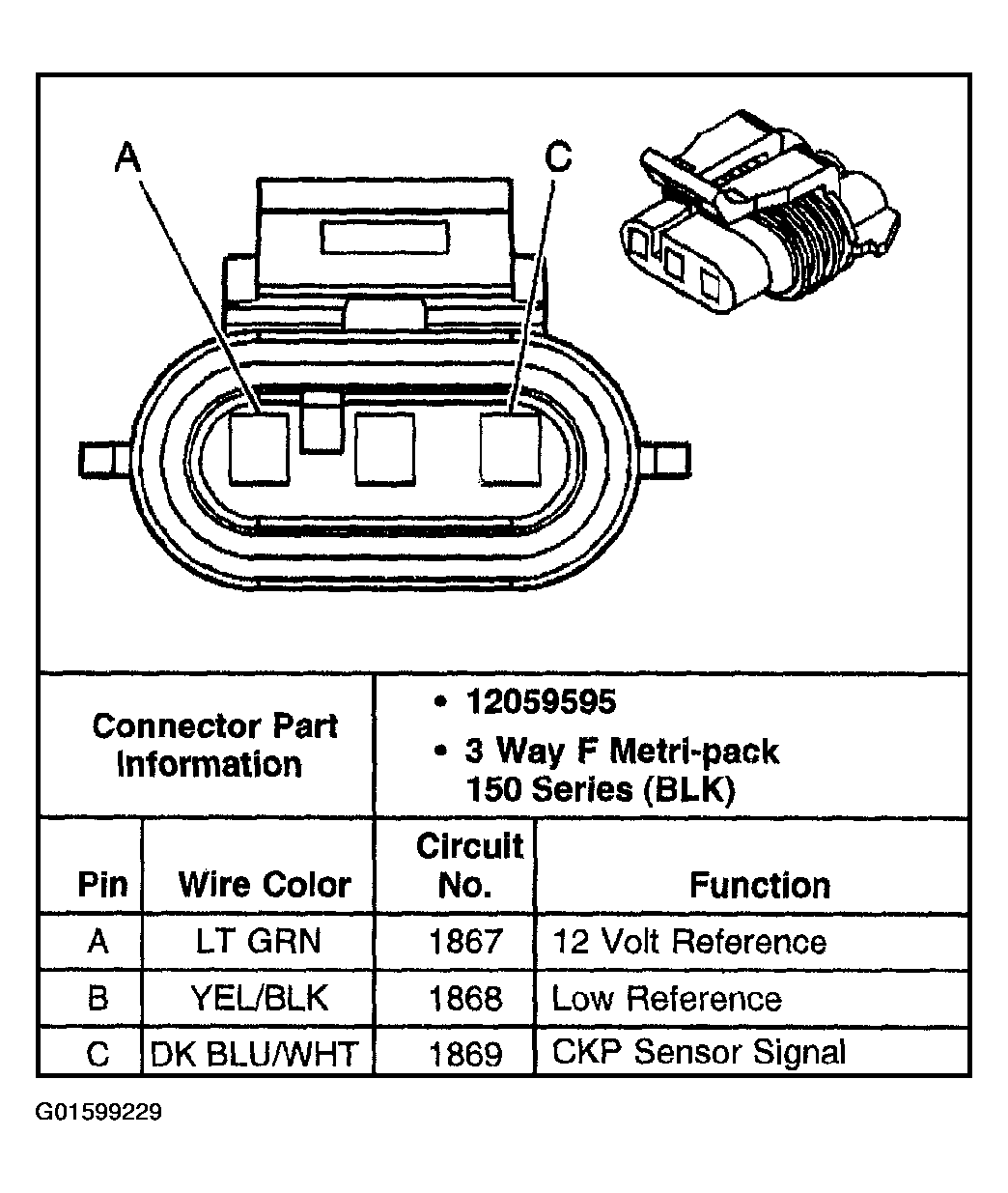

Fig 3: Crankshaft Position (CKP) Sensor

G01599229

Courtesy of GENERAL MOTORS CORP.

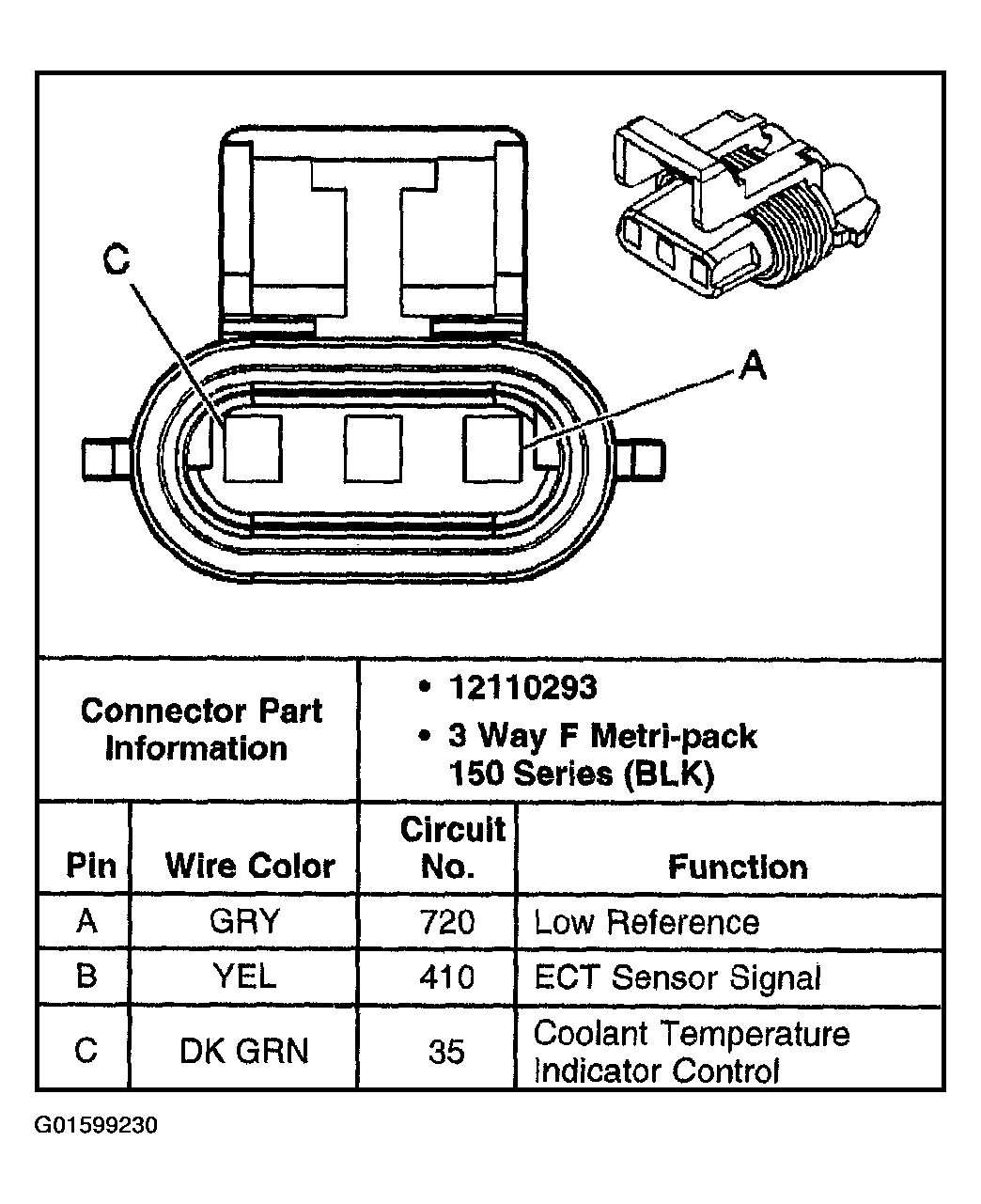

Fig 4: Engine Coolant Temperature (ECT) Sensor

G01599230

Courtesy of GENERAL MOTORS CORP.

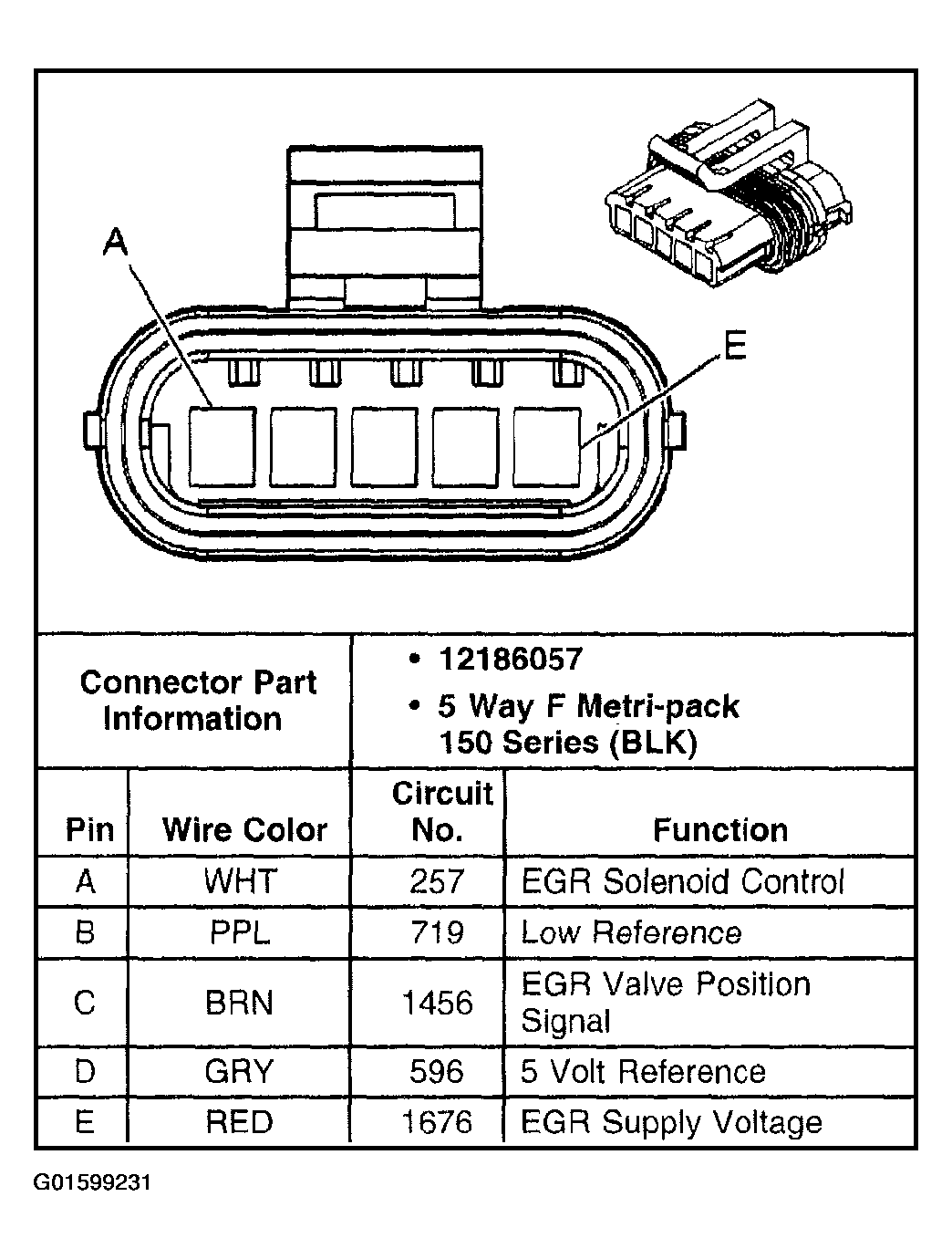

Fig 5: Exhaust Gas Recirculation (EGR) Valve

G01599231

Courtesy of GENERAL MOTORS CORP.

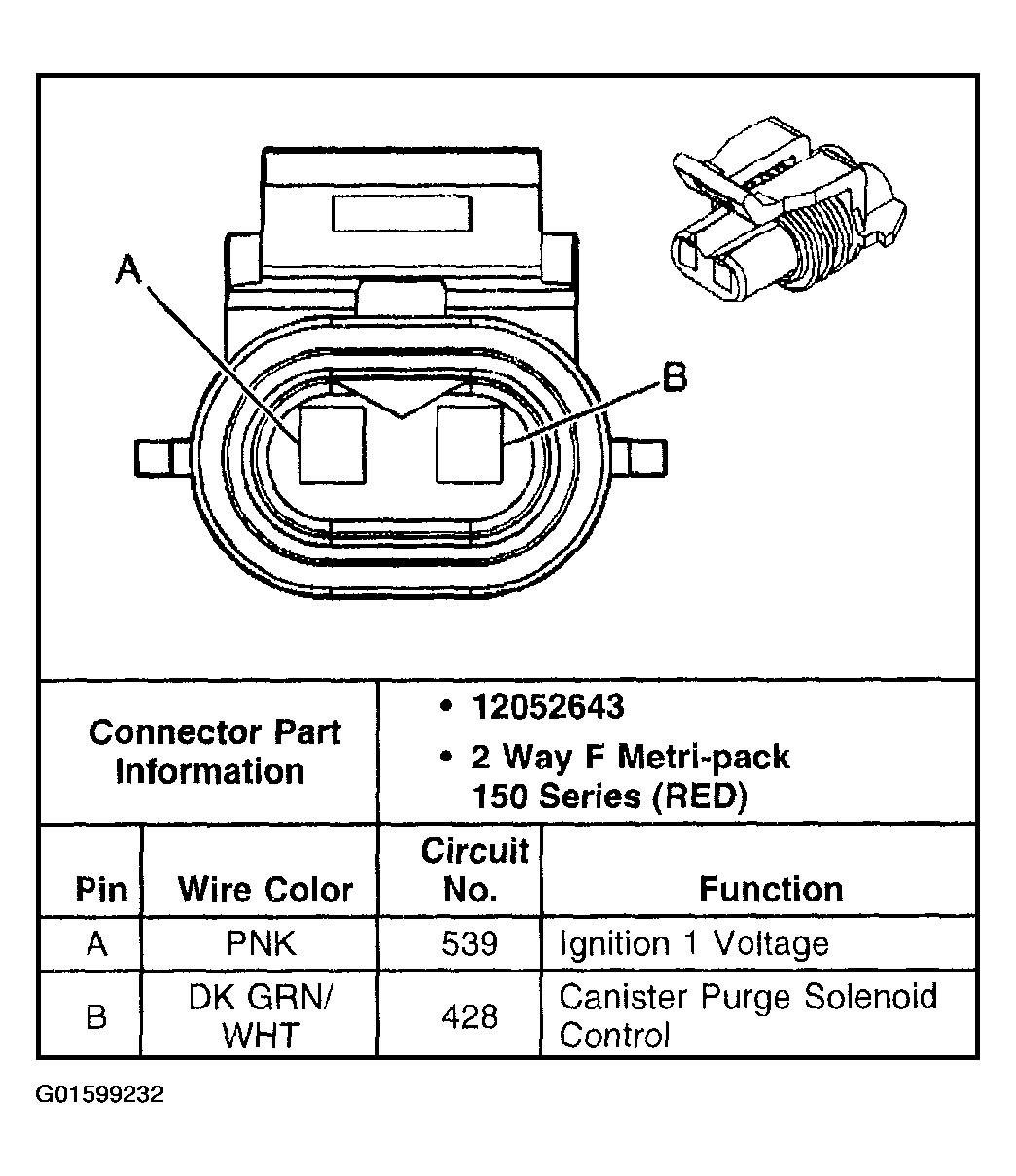

Fig 6: Evaporative Emission (EVAP) Canister Purge Valve

G01599232

Courtesy of GENERAL MOTORS CORP.

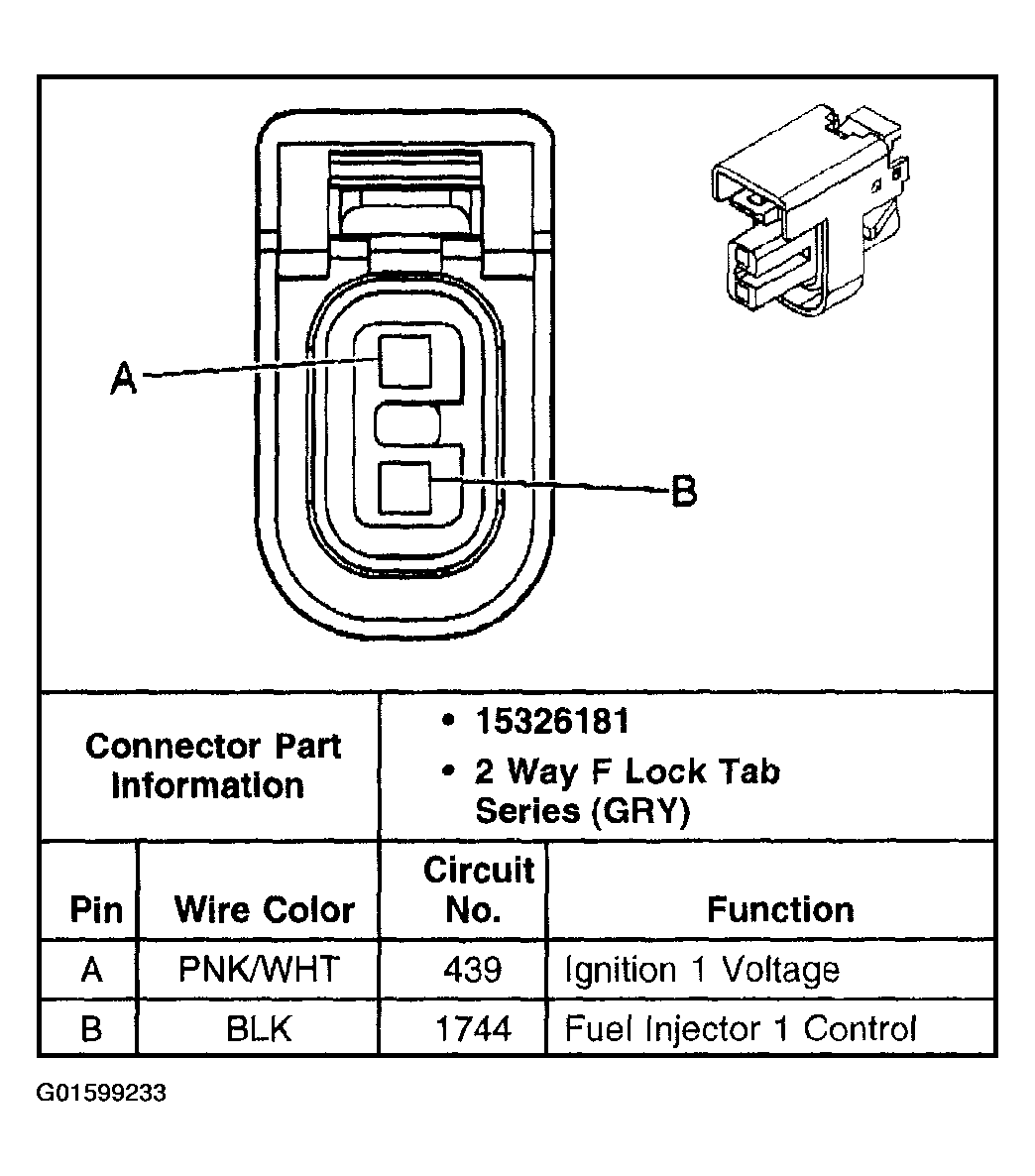

Fig 7: Fuel Injector 1

G01599233

Courtesy of GENERAL MOTORS CORP.

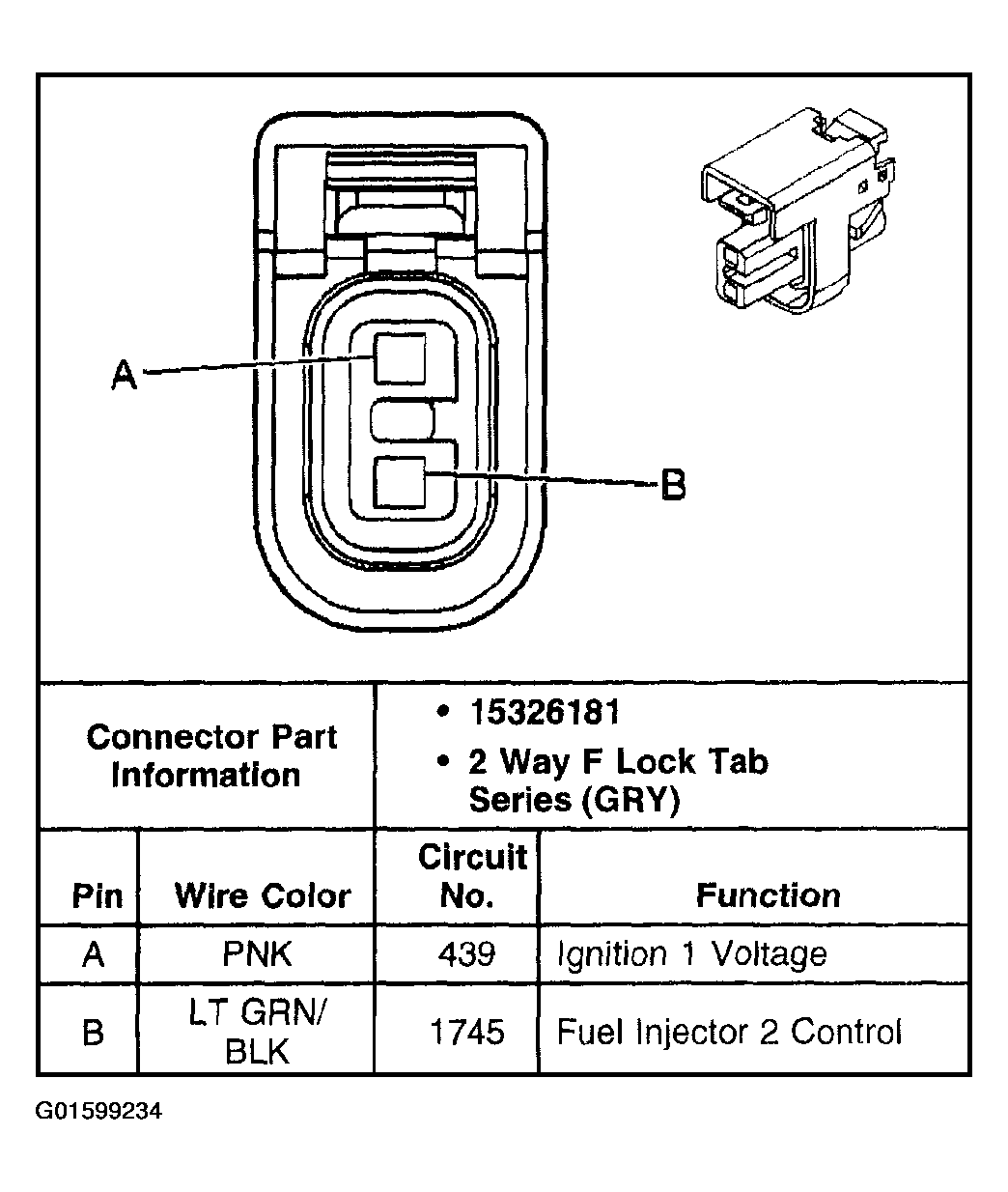

Fig 8: Fuel Injector 2

G01599234

Courtesy of GENERAL MOTORS CORP.

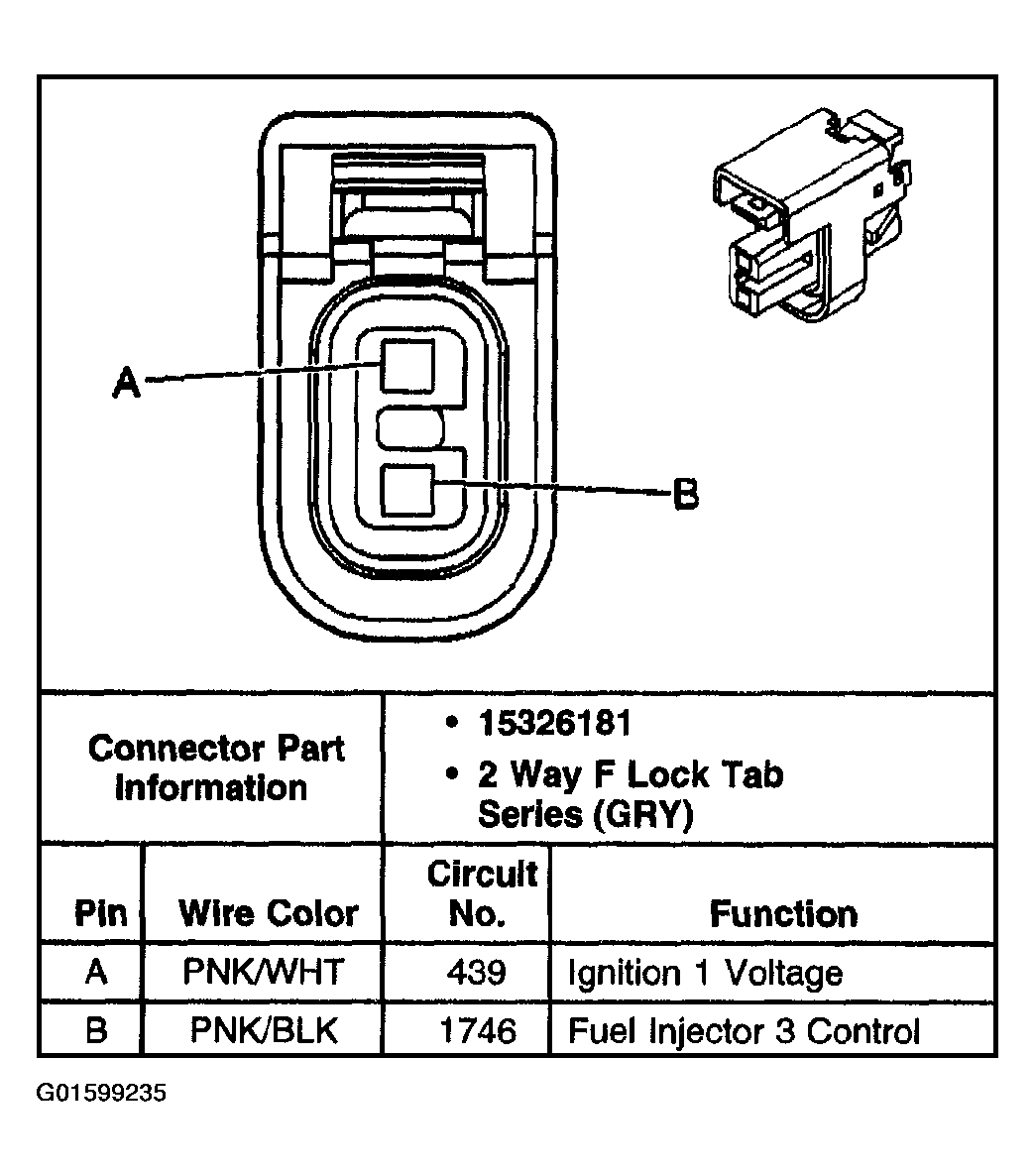

Fig 9: Fuel Injector 3

G01599235

Courtesy of GENERAL MOTORS CORP.

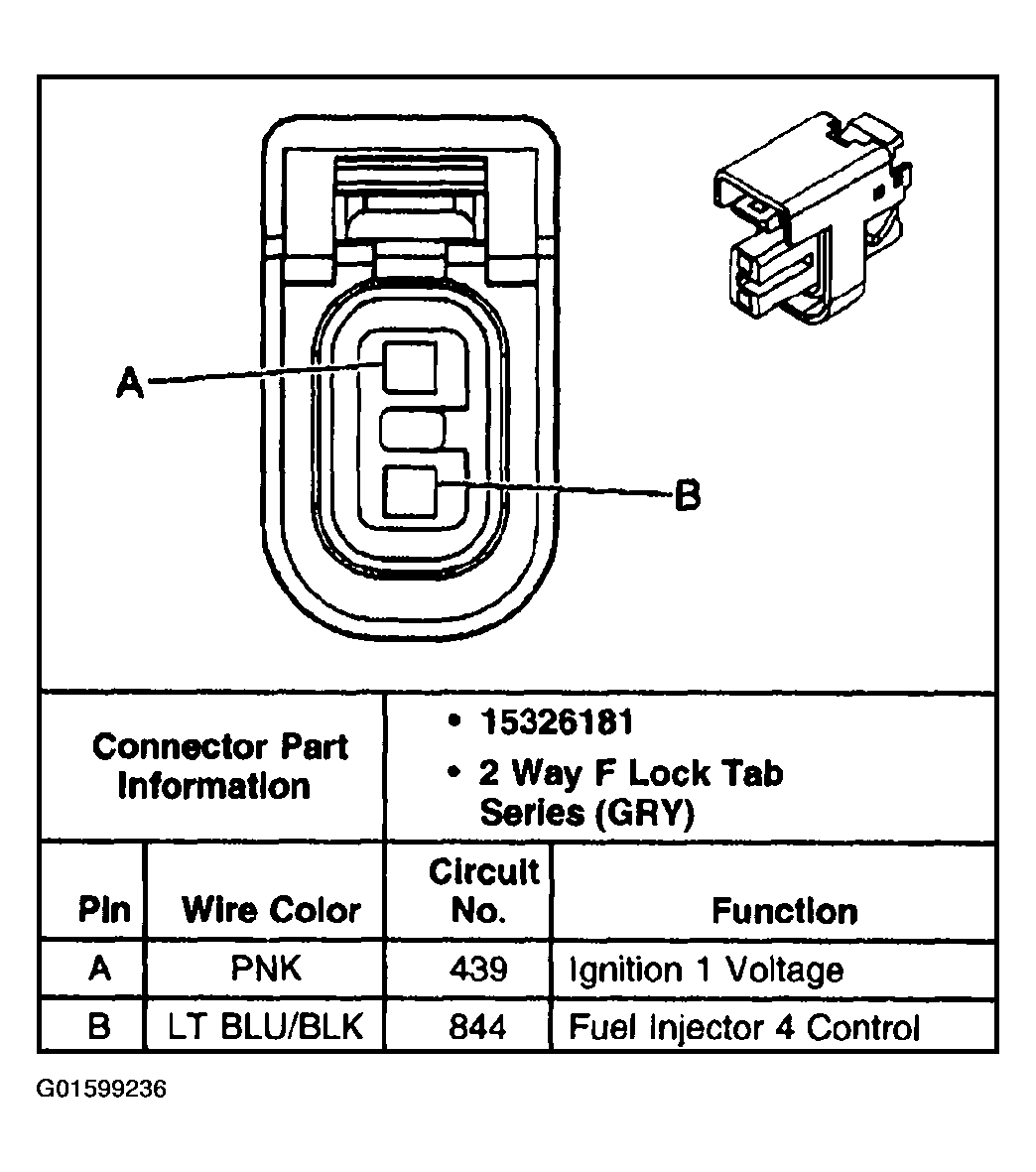

Fig 10: Fuel Injector 4

G01599236

Courtesy of GENERAL MOTORS CORP.

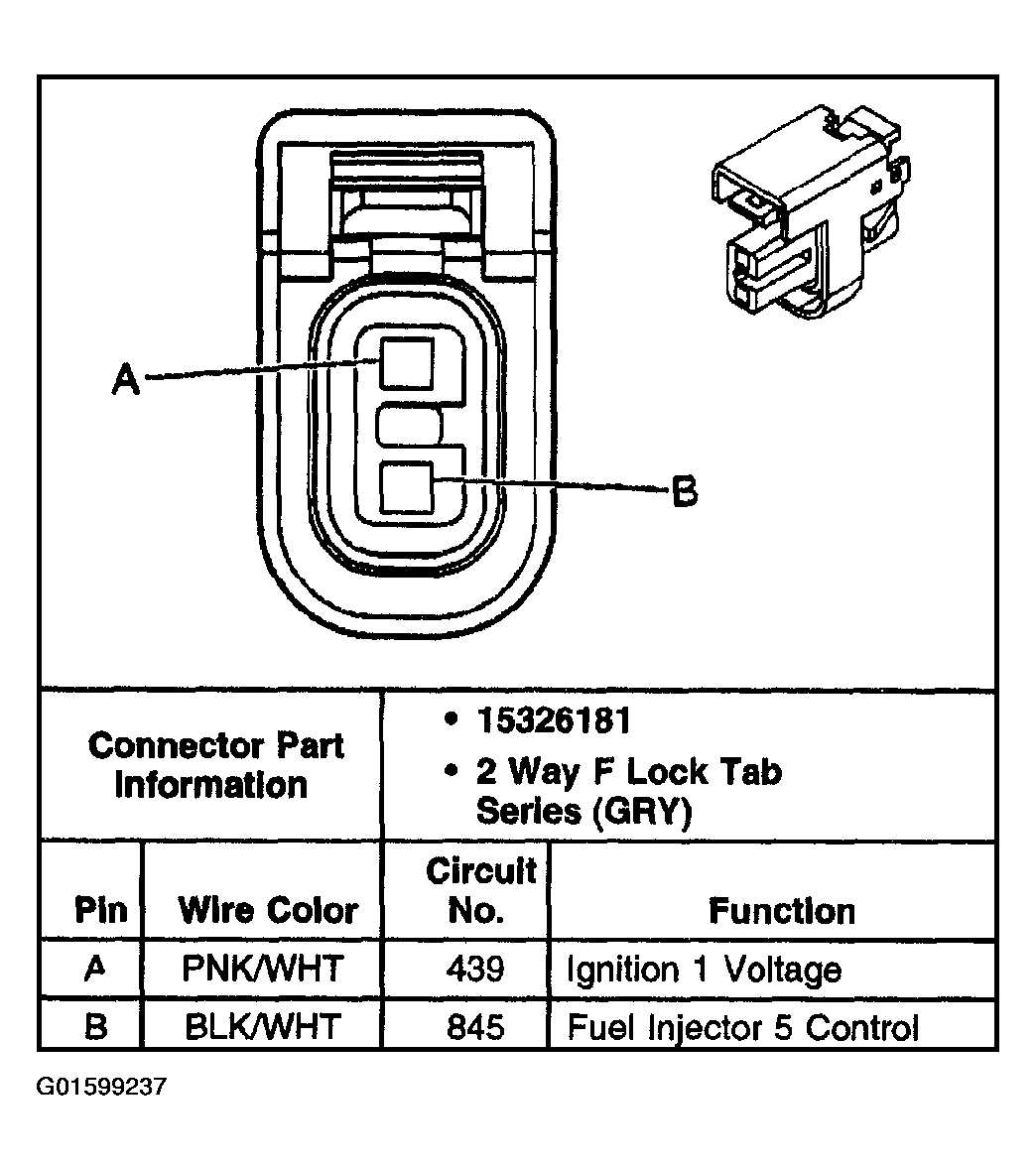

Fig 11: Fuel Injector 5

G01599237

Courtesy of GENERAL MOTORS CORP.

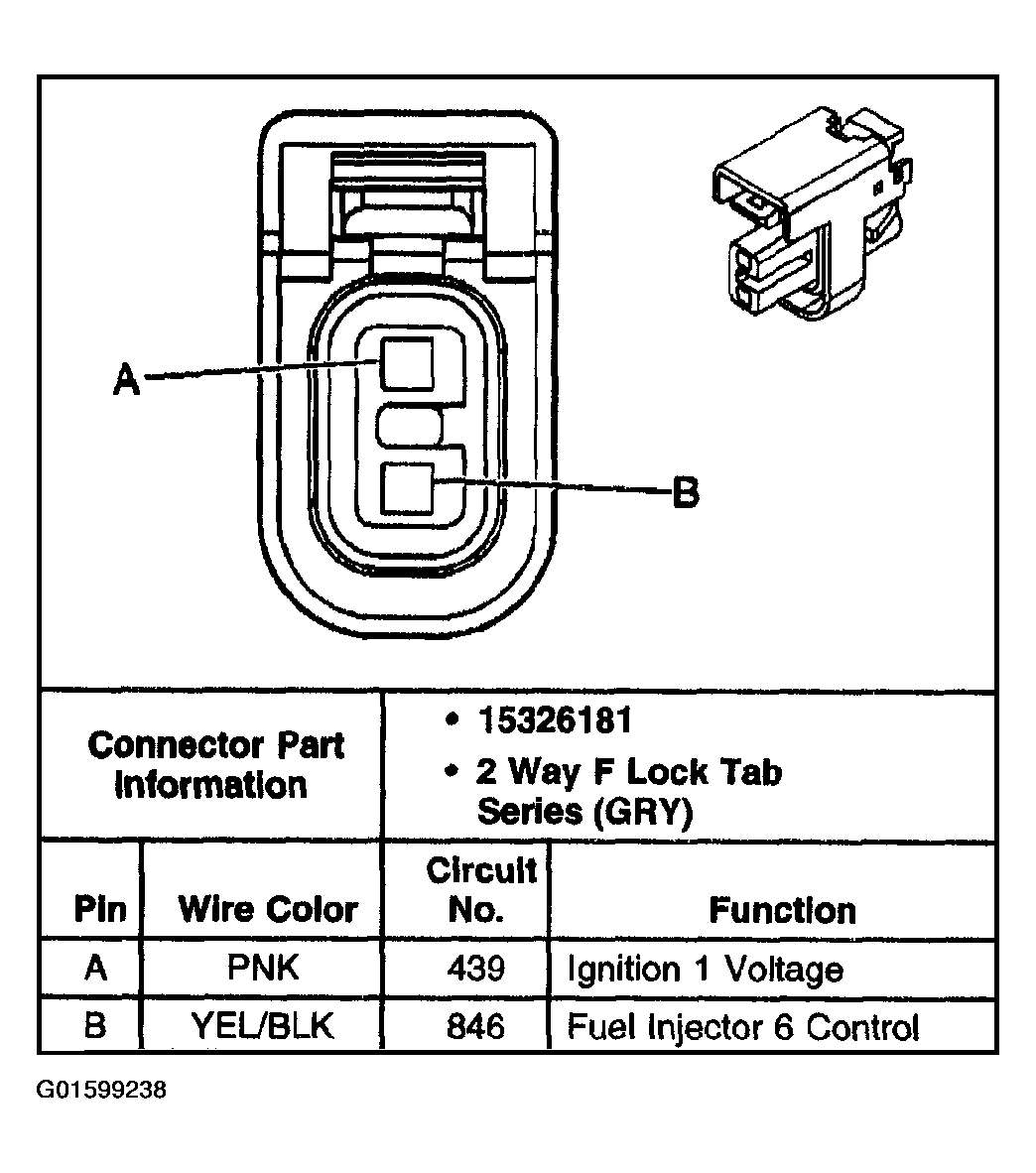

Fig 12: Fuel Injector 6

G01599238

Courtesy of GENERAL MOTORS CORP.

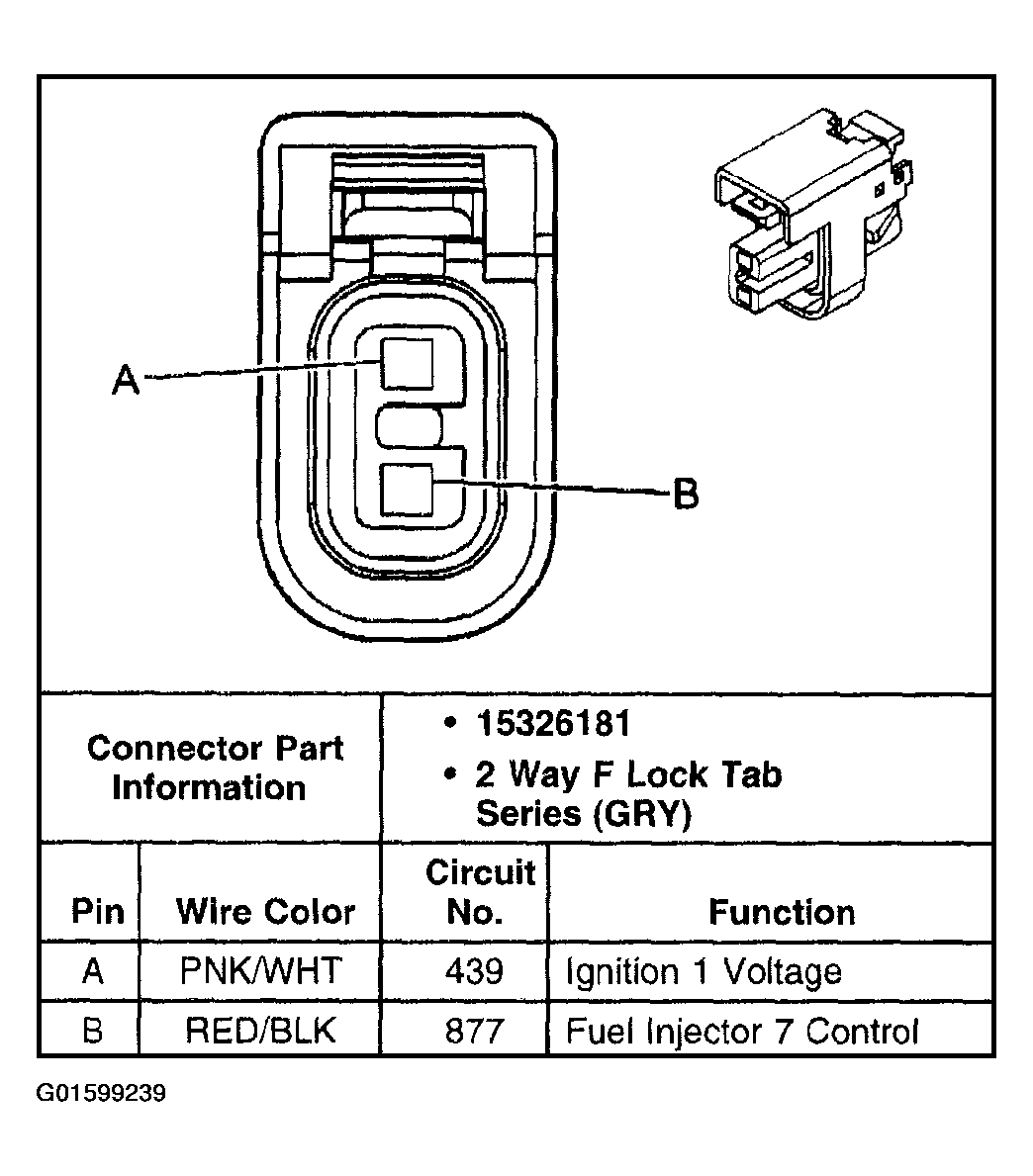

Fig 13: Fuel Injector 7

G01599239

Courtesy of GENERAL MOTORS CORP.

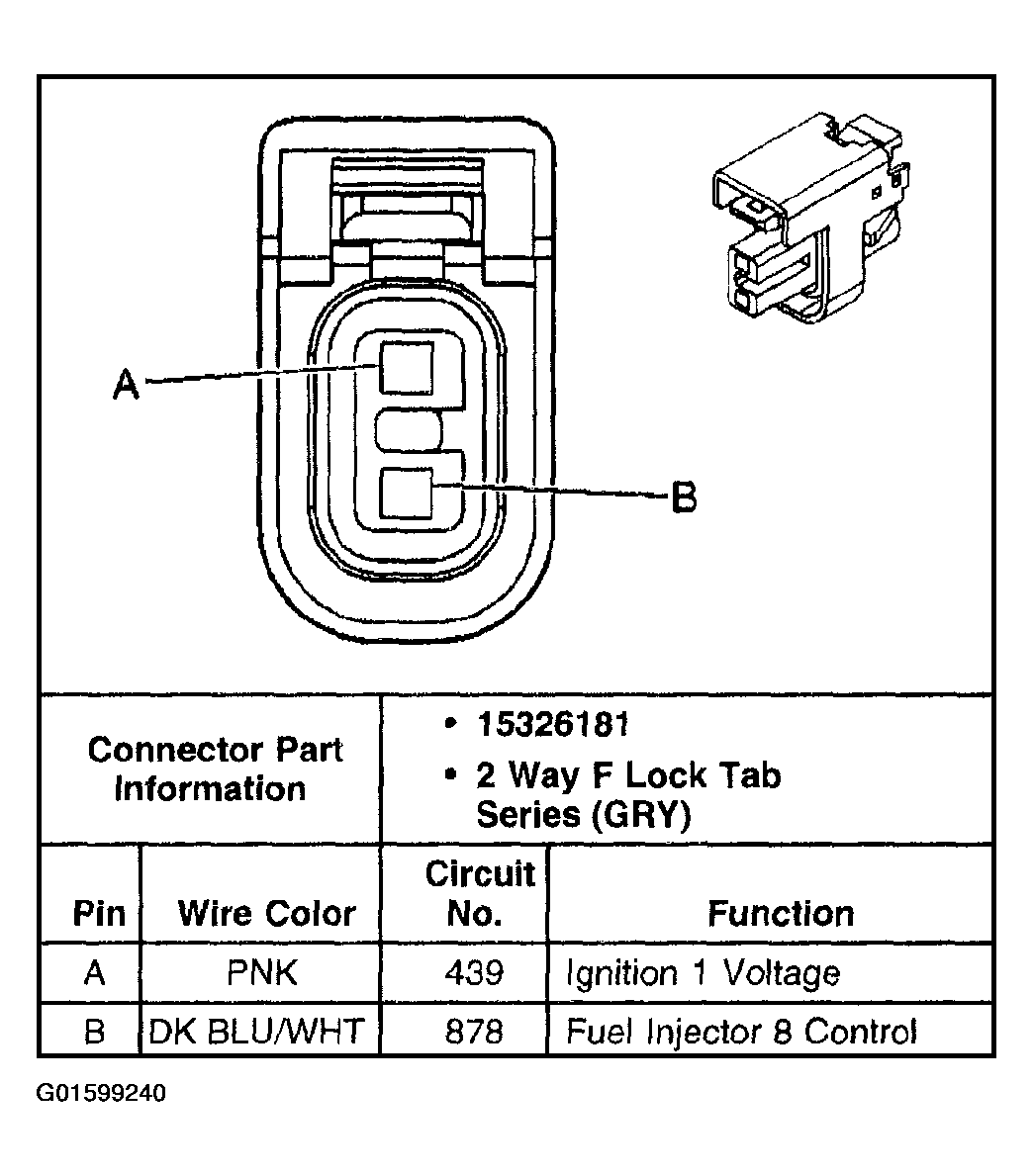

Fig 14: Fuel Injector 8

G01599240

Courtesy of GENERAL MOTORS CORP.

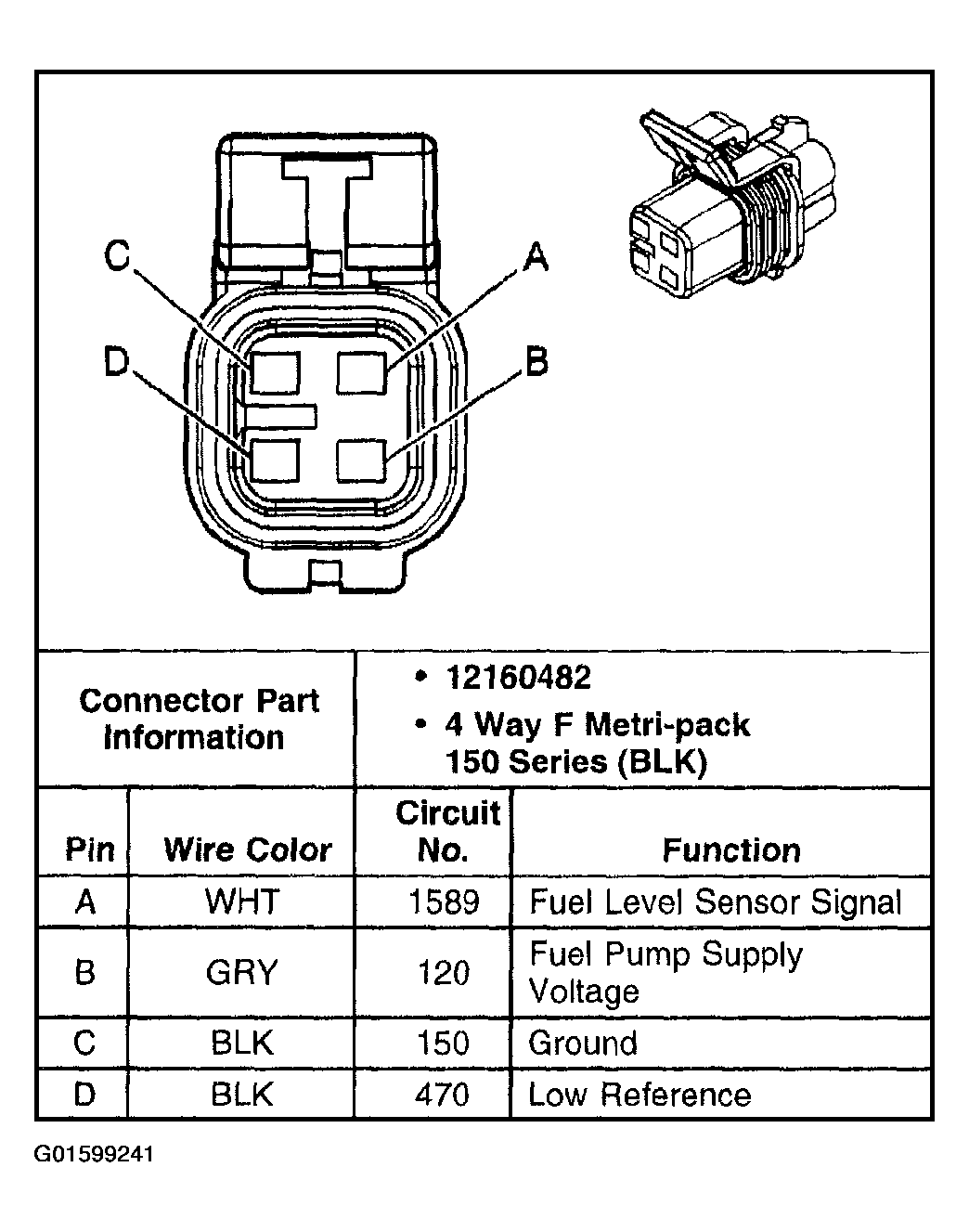

Fig 15: Fuel Pump & Sender - Single Tank

G01599241

Courtesy of GENERAL MOTORS CORP.

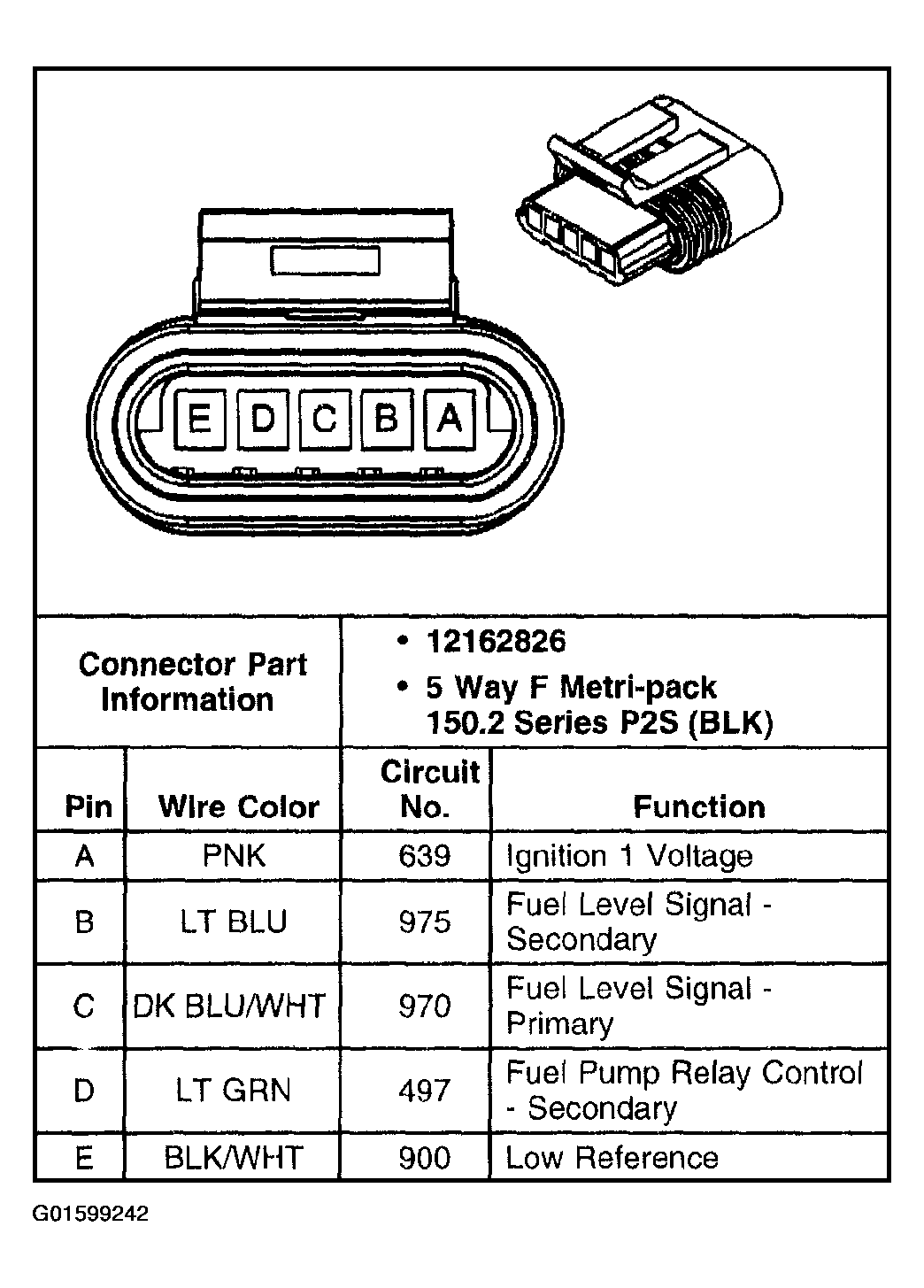

Fig 16: Fuel Balance Pump Module - C1 (Dual Tanks)

G01599242

Courtesy of GENERAL MOTORS CORP.

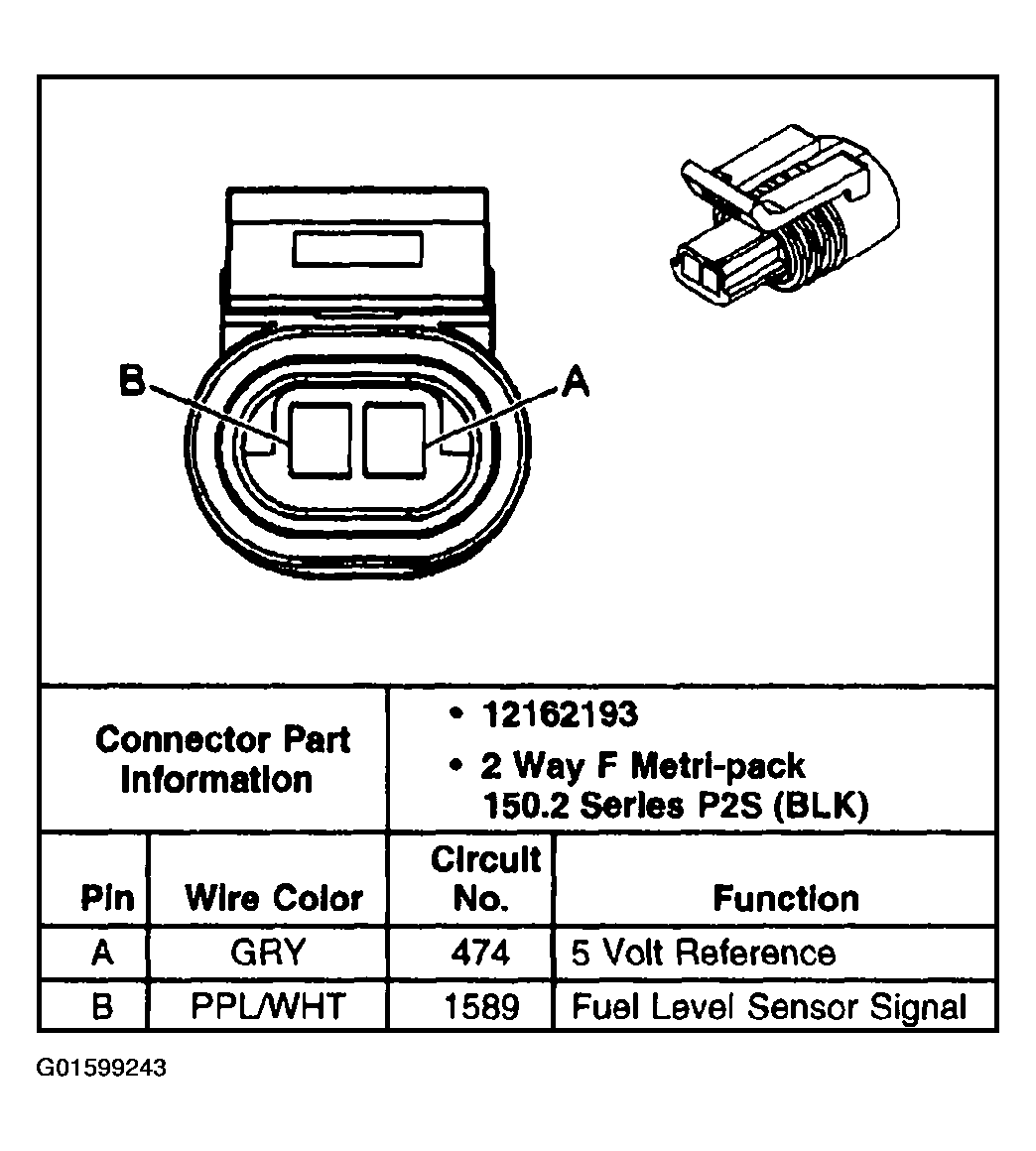

Fig 17: Fuel Balance Pump Module - C2 (Dual Tanks)

G01599243

Courtesy of GENERAL MOTORS CORP.

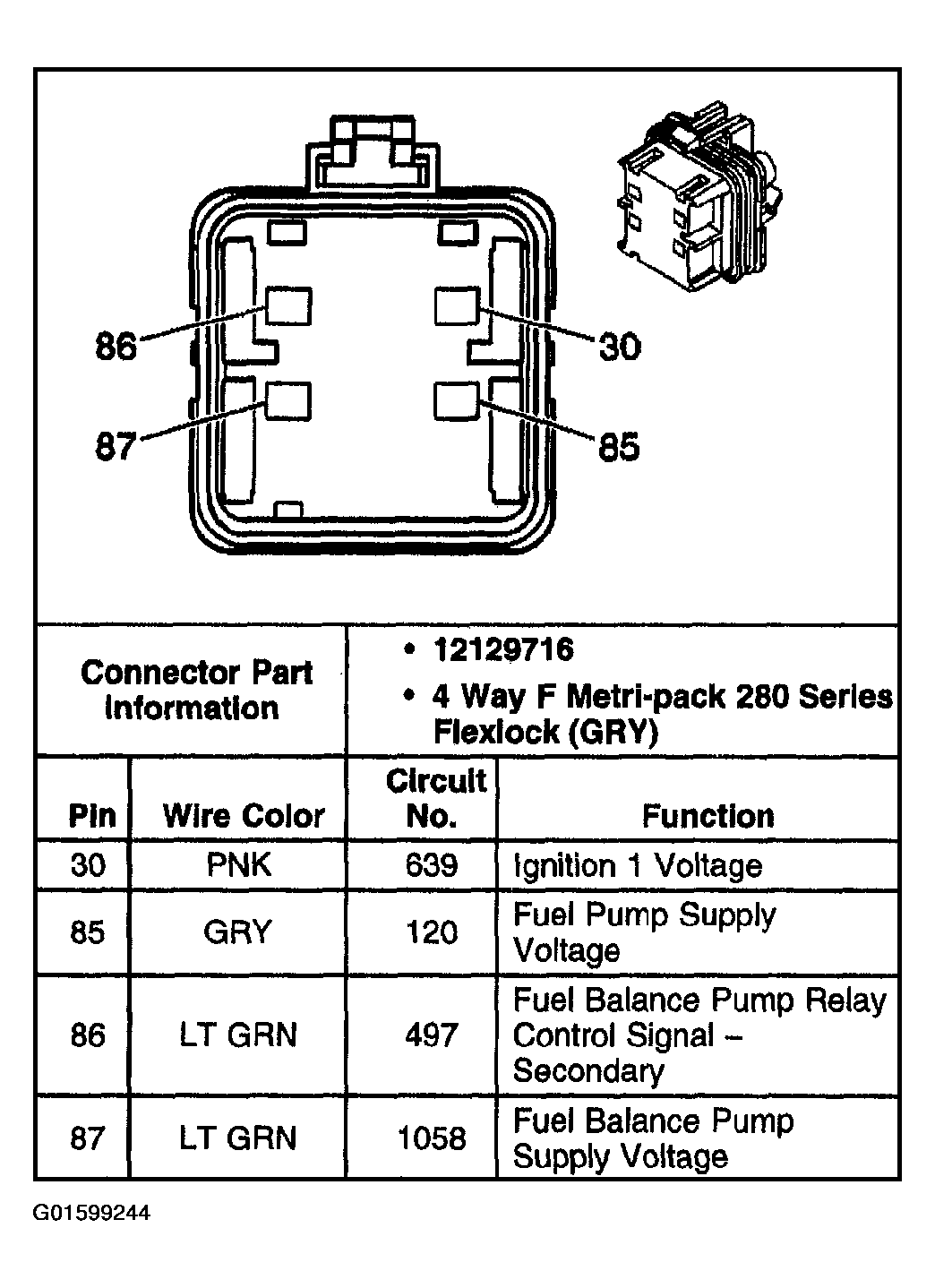

Fig 18: Fuel Balance Pump Relay (Dual Tanks)

G01599244

Courtesy of GENERAL MOTORS CORP.

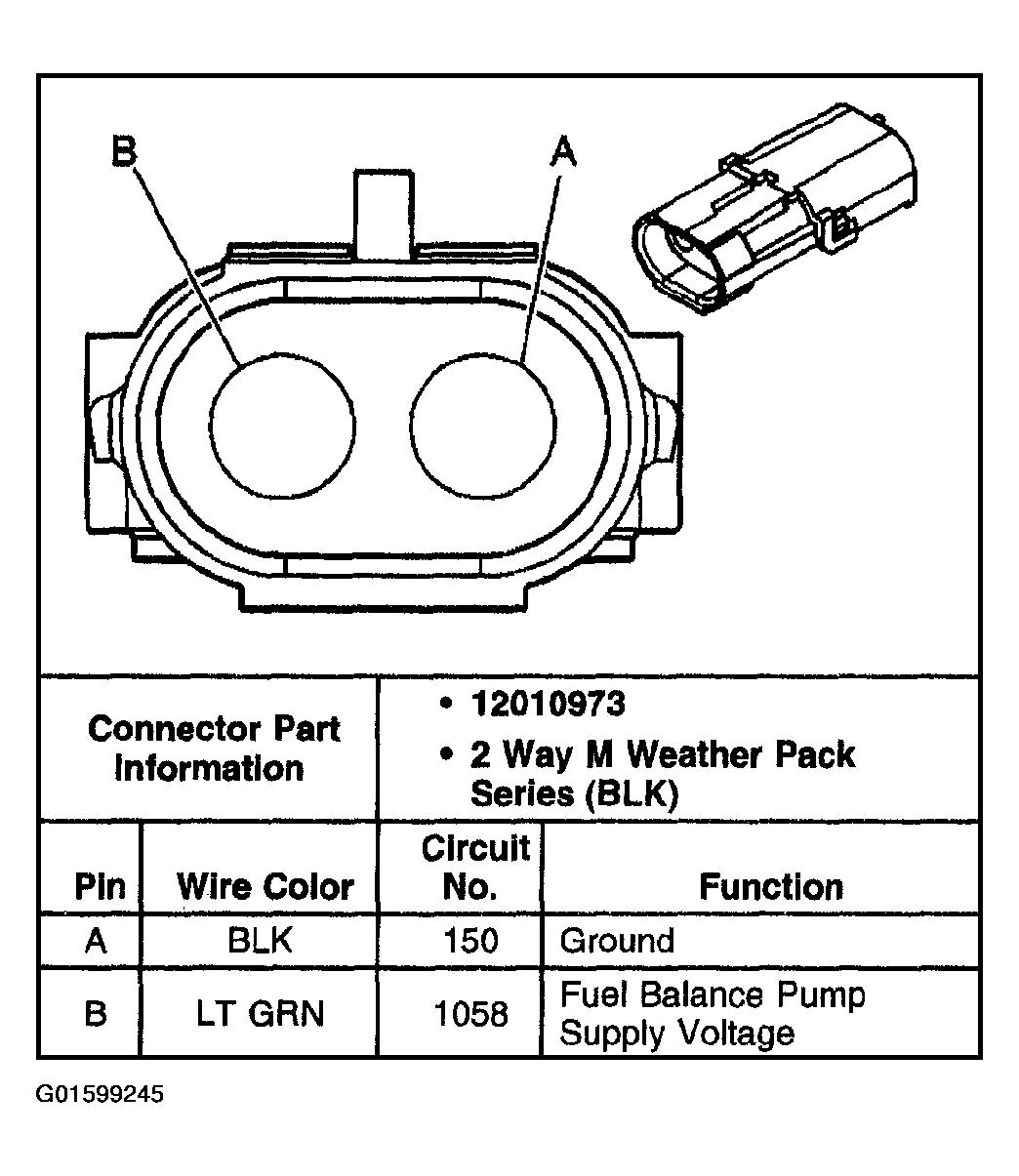

Fig 19: Fuel Balance Pump (Dual Tanks)

G01599245

Courtesy of GENERAL MOTORS CORP.

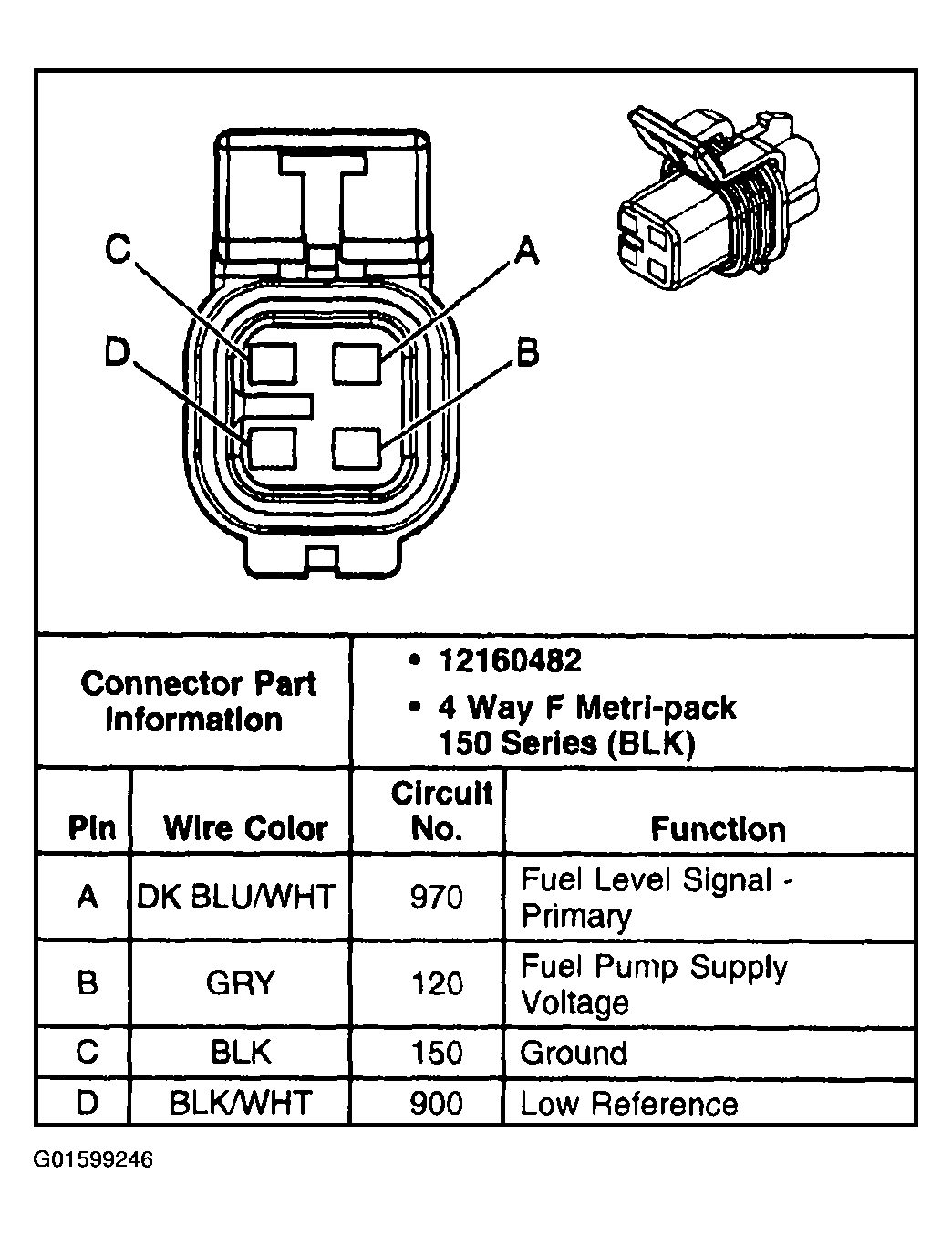

Fig 20: Fuel Pump & Sender - Primary (Dual Tanks)

G01599246

Courtesy of GENERAL MOTORS CORP.

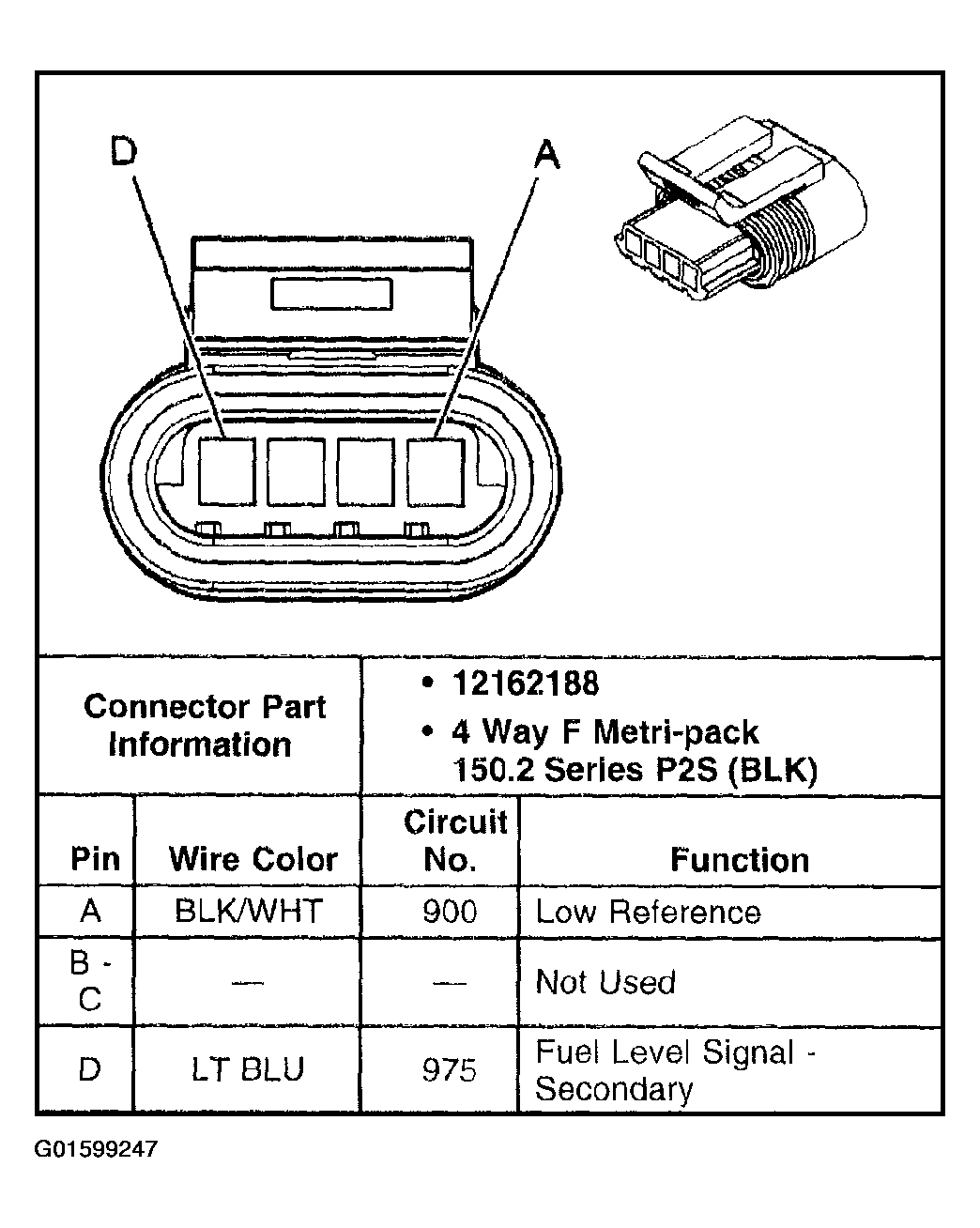

Fig 21: Fuel Level Sender - Secondary - Dual Tanks (Dual Tanks)

G01599247

Courtesy of GENERAL MOTORS CORP.

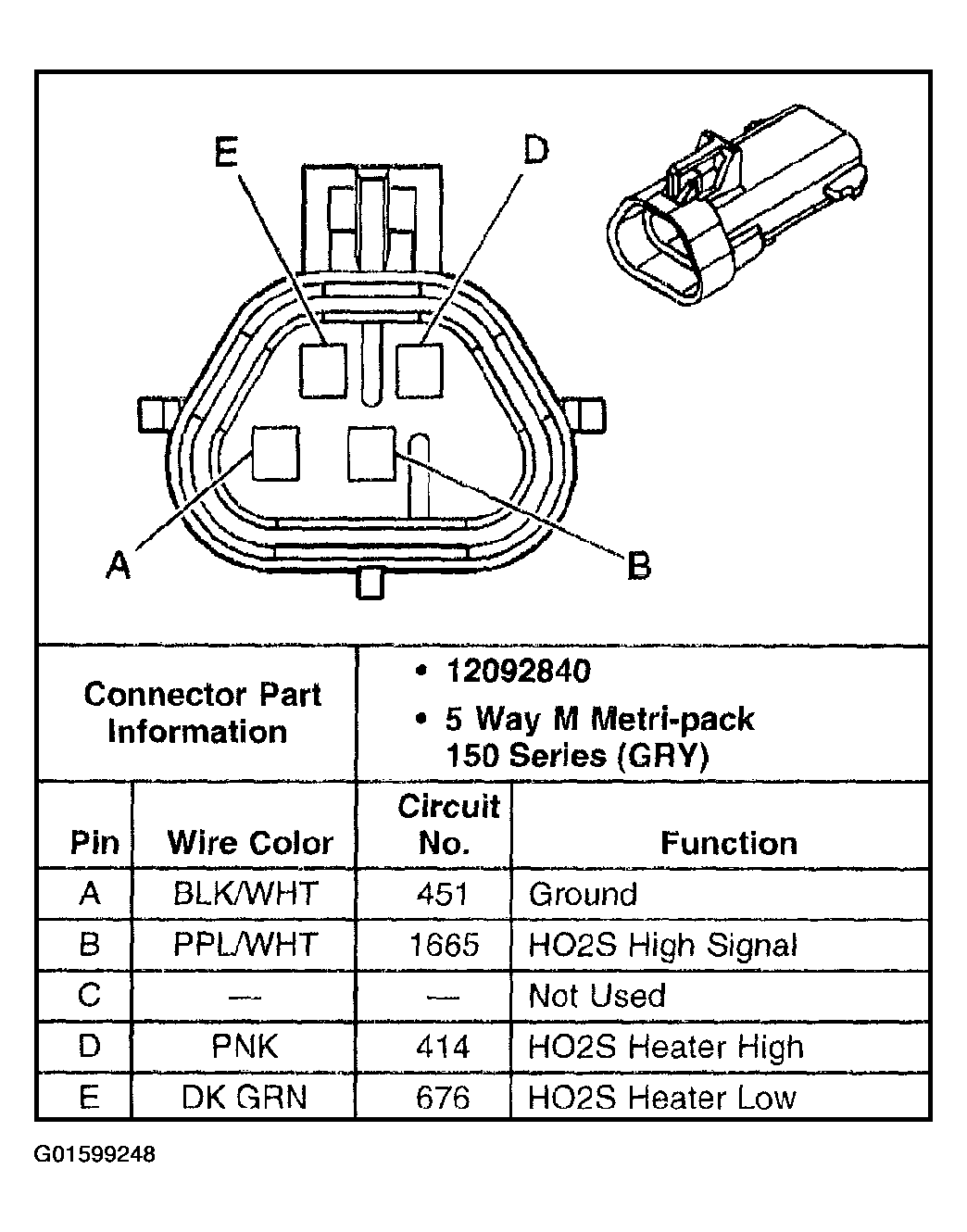

Fig 22: Heated Oxygen Sensor (HO2S) - Bank 1

G01599248

Courtesy of GENERAL MOTORS CORP.

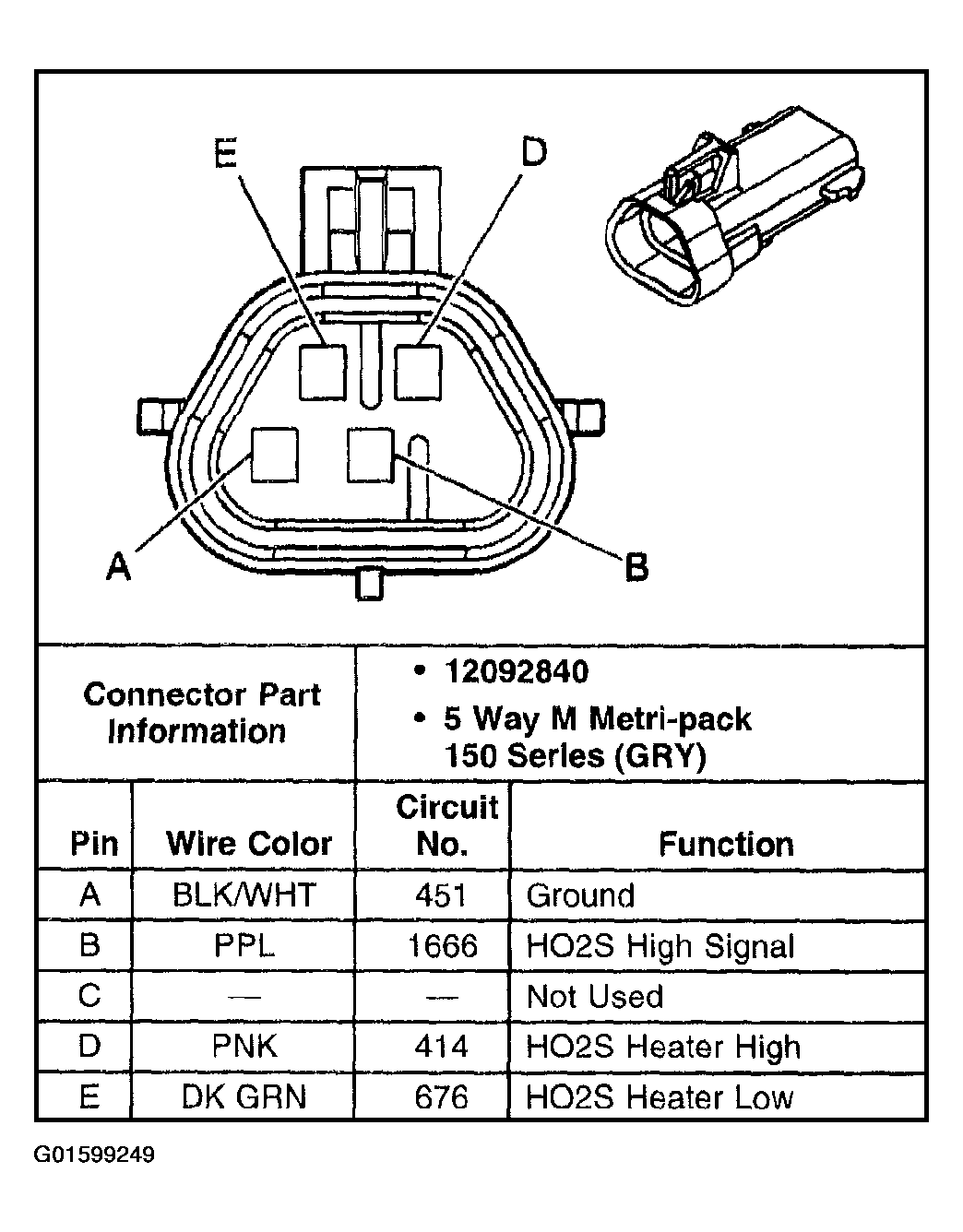

Fig 23: Heated Oxygen Sensor (HO2S) - Bank 2

G01599249

Courtesy of GENERAL MOTORS CORP.

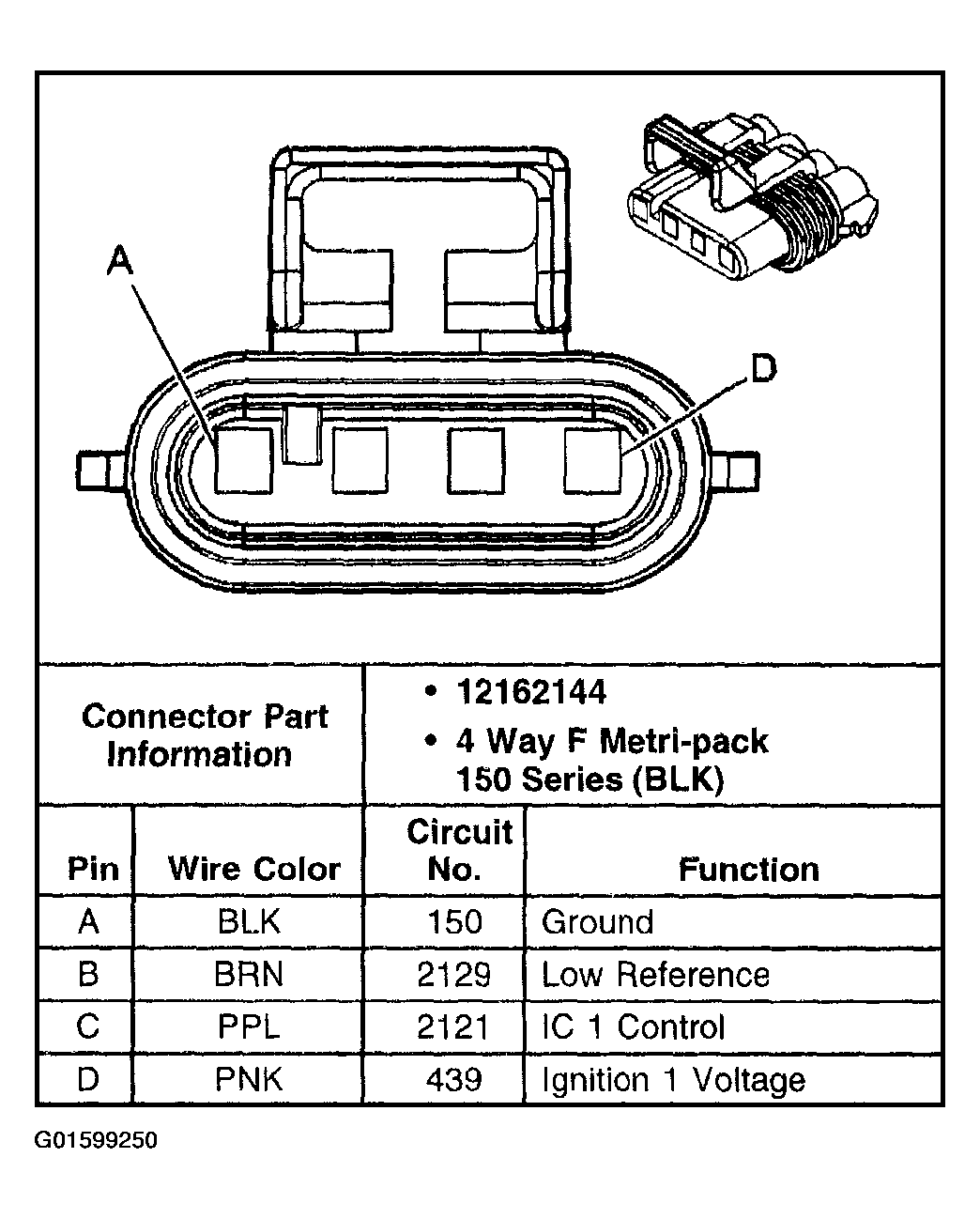

Fig 24: Ignition Coil 1

G01599250

Courtesy of GENERAL MOTORS CORP.

Fig 25: Ignition Coil 2

G01599251

Courtesy of GENERAL MOTORS CORP.

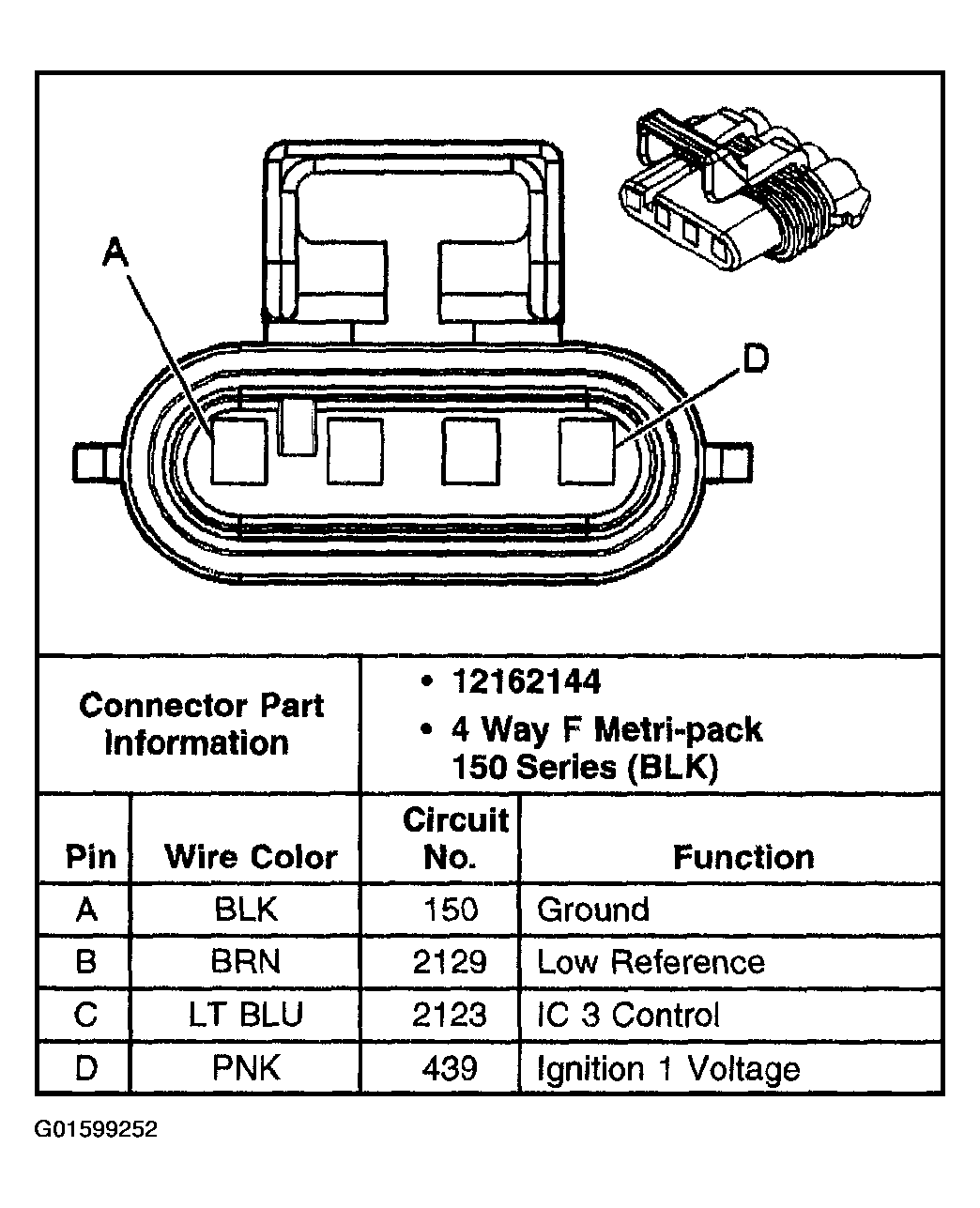

Fig 26: Ignition Coil 3

G01599252

Courtesy of GENERAL MOTORS CORP.

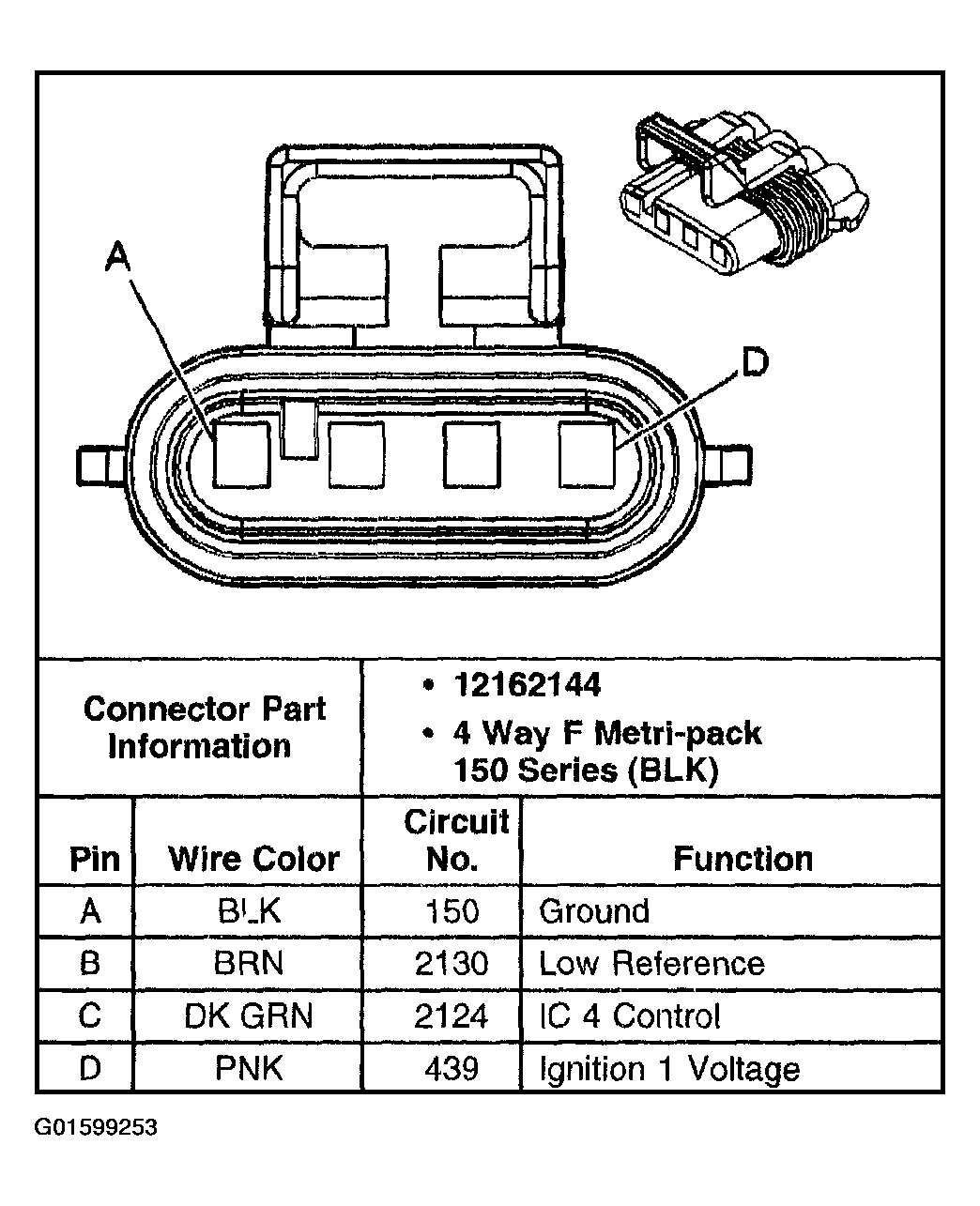

Fig 27: Ignition Coil 4

G01599253

Courtesy of GENERAL MOTORS CORP.

Fig 28: Ignition Coil 5

G01599254

Courtesy of GENERAL MOTORS CORP.

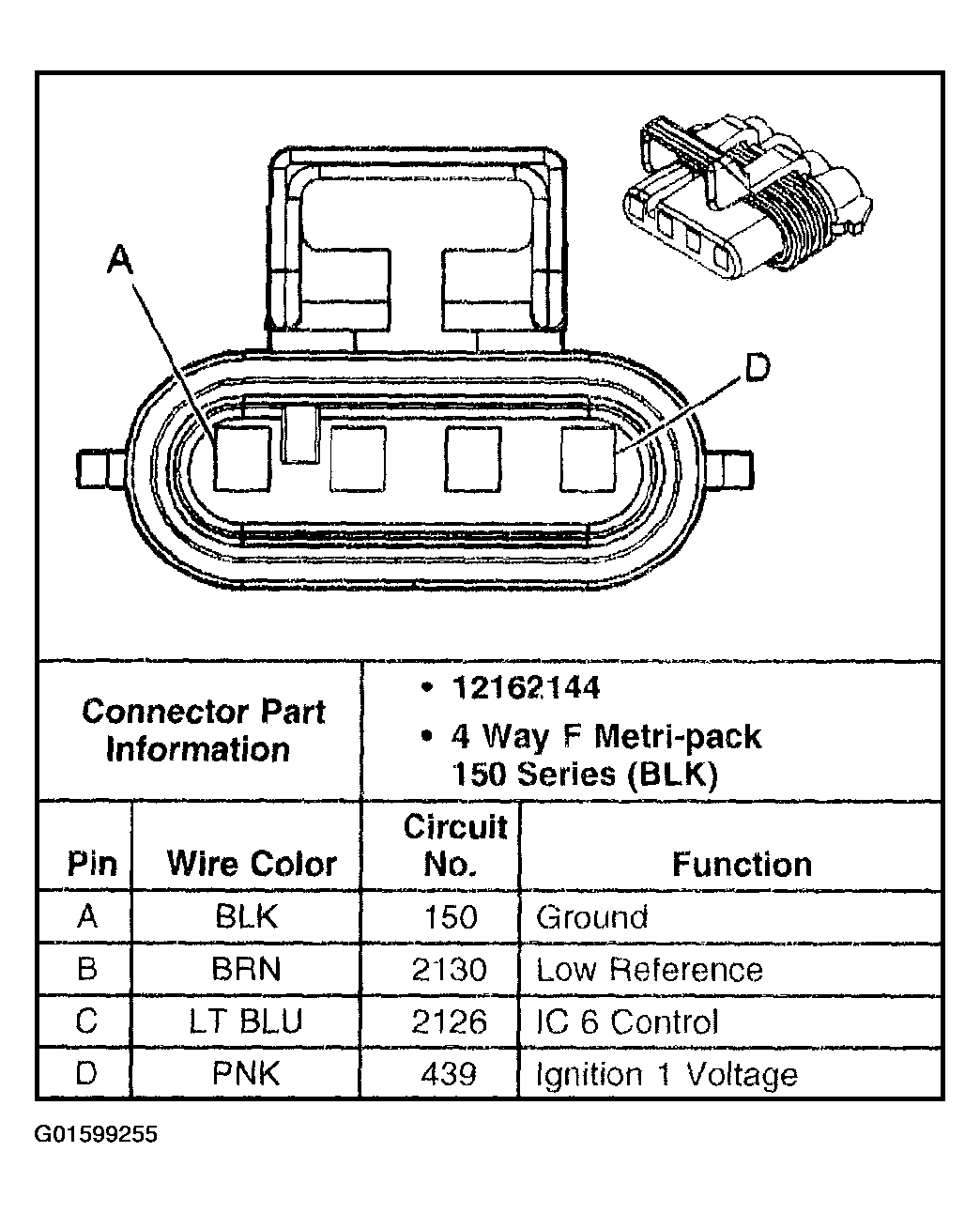

Fig 29: Ignition Coil 6

G01599255

Courtesy of GENERAL MOTORS CORP.

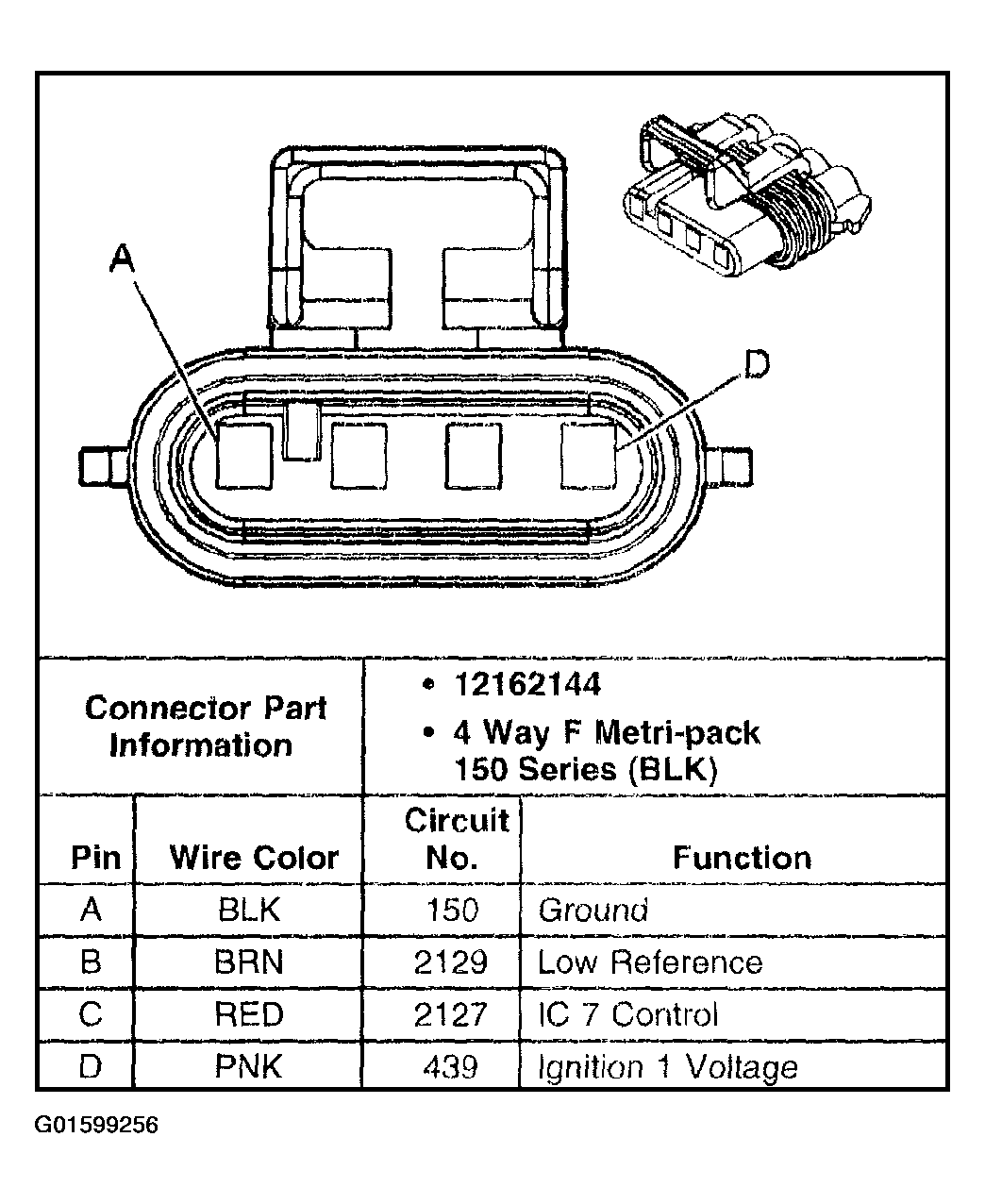

Fig 30: Ignition Coil 7

G01599256

Courtesy of GENERAL MOTORS CORP.

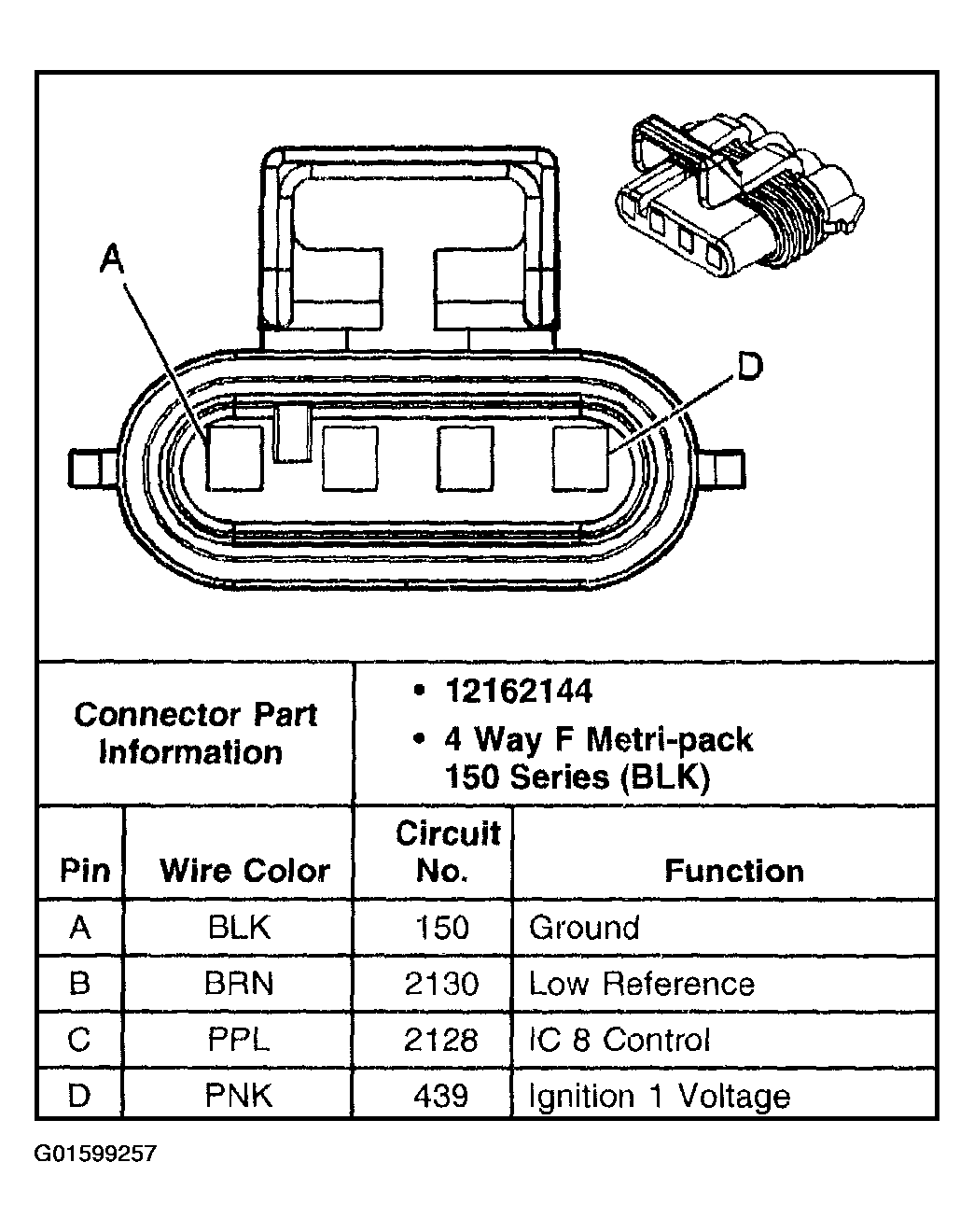

Fig 31: Ignition Coil 8

G01599257

Courtesy of GENERAL MOTORS CORP.

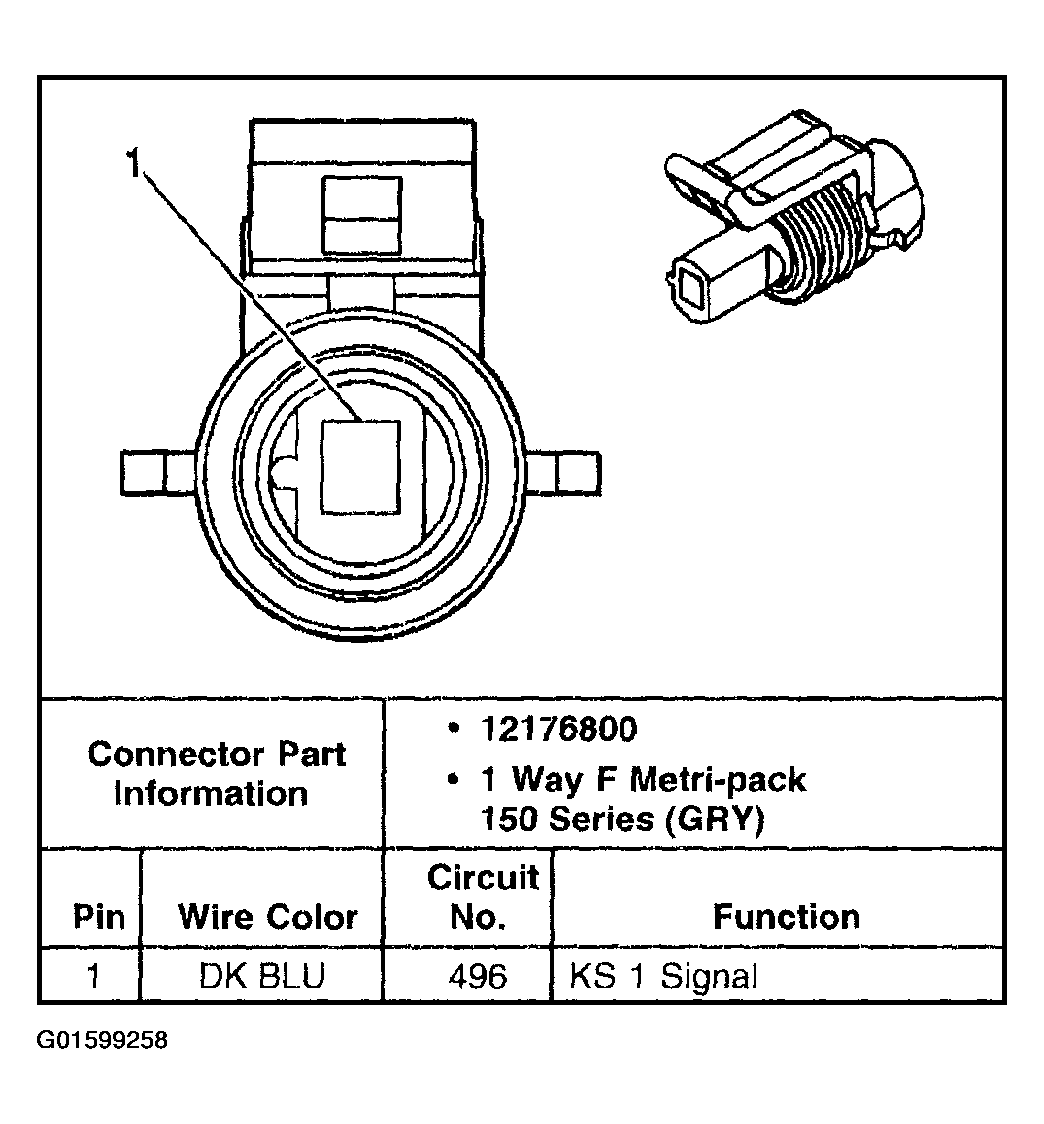

Fig 32: Knock Sensor (KS) - Bank 1

G01599258

Courtesy of GENERAL MOTORS CORP.

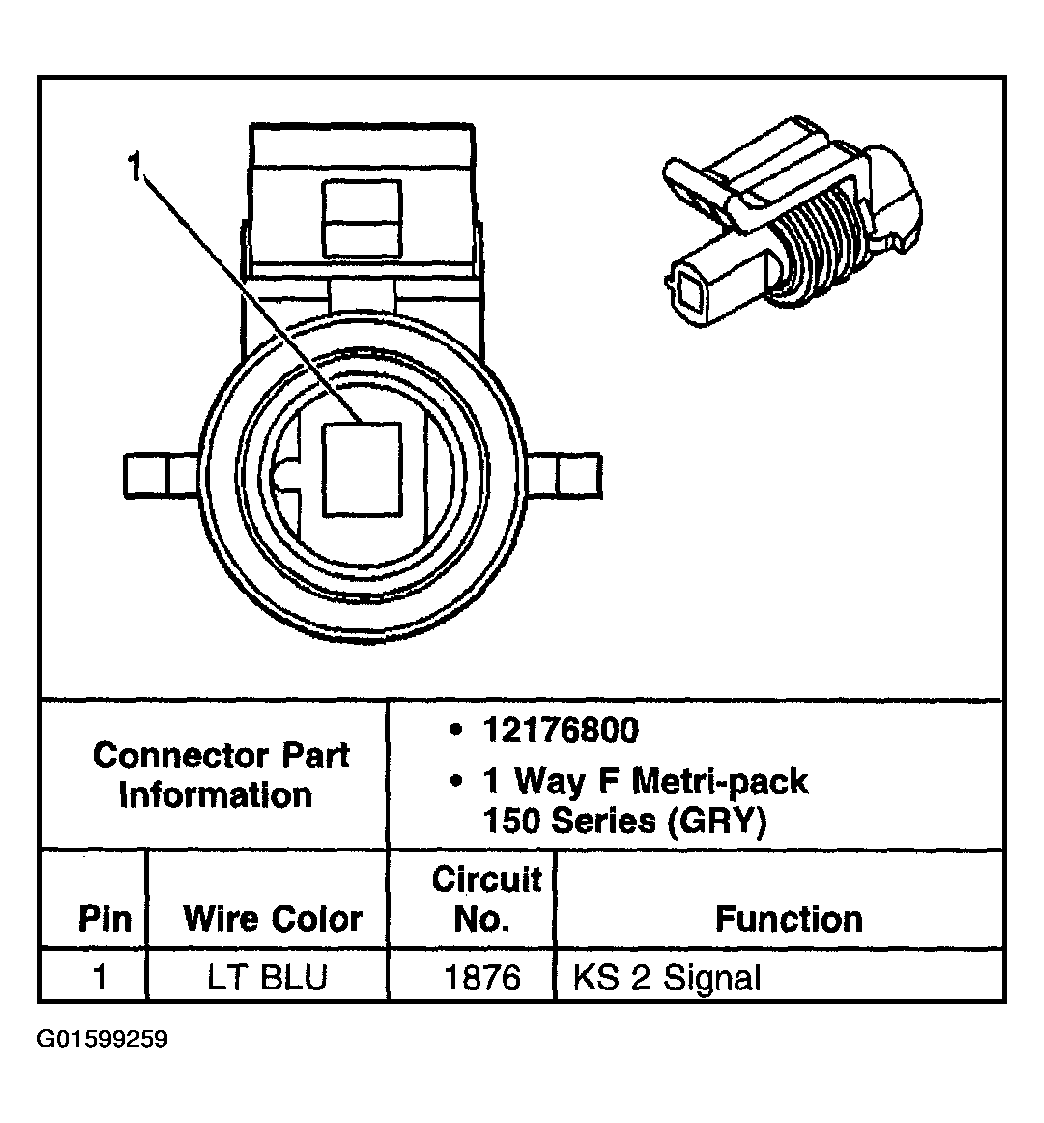

Fig 33: Knock Sensor (KS) - Bank 2

G01599259

Courtesy of GENERAL MOTORS CORP.

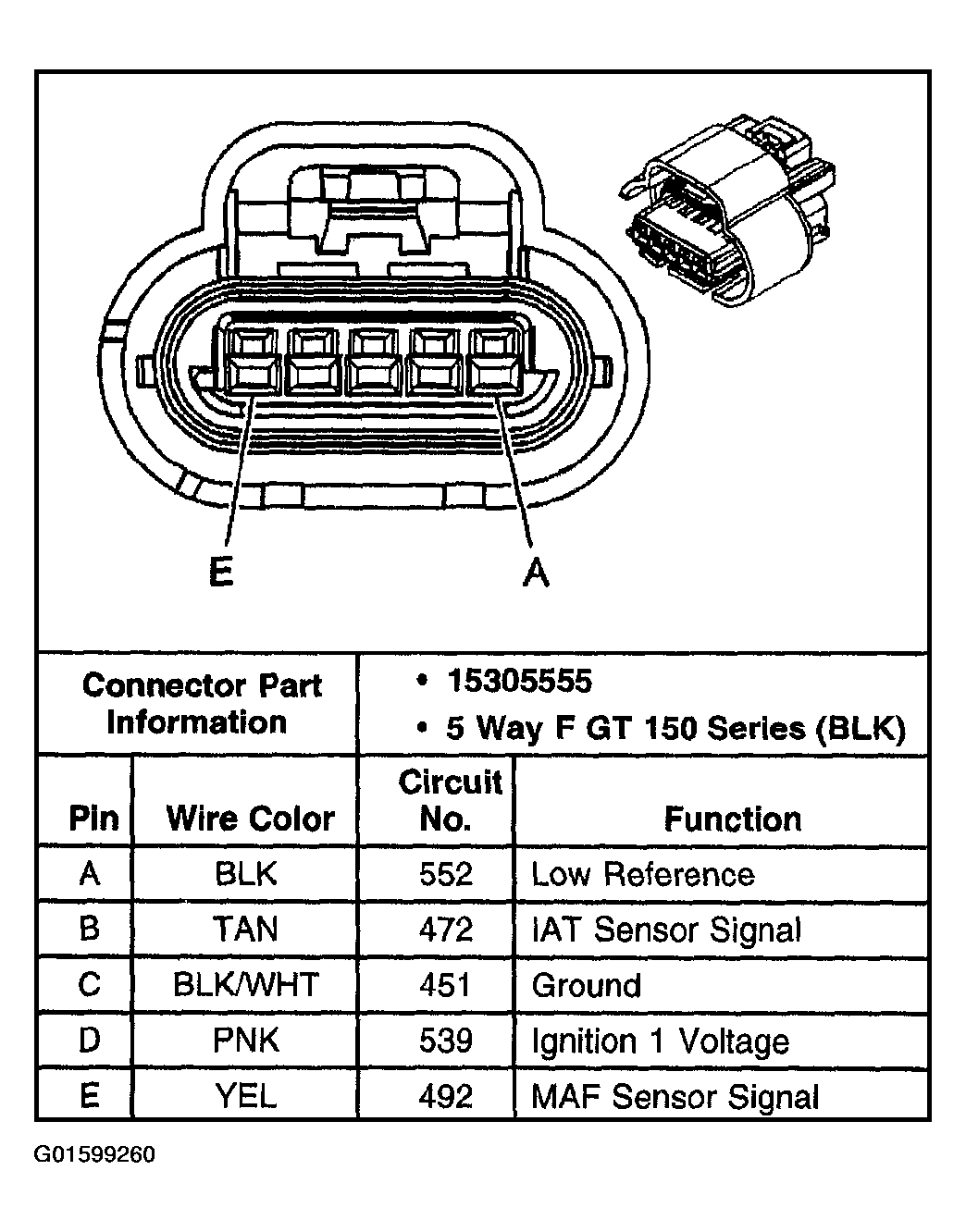

Fig 34: MAF & IAT Sensor

G01599260

Courtesy of GENERAL MOTORS CORP.

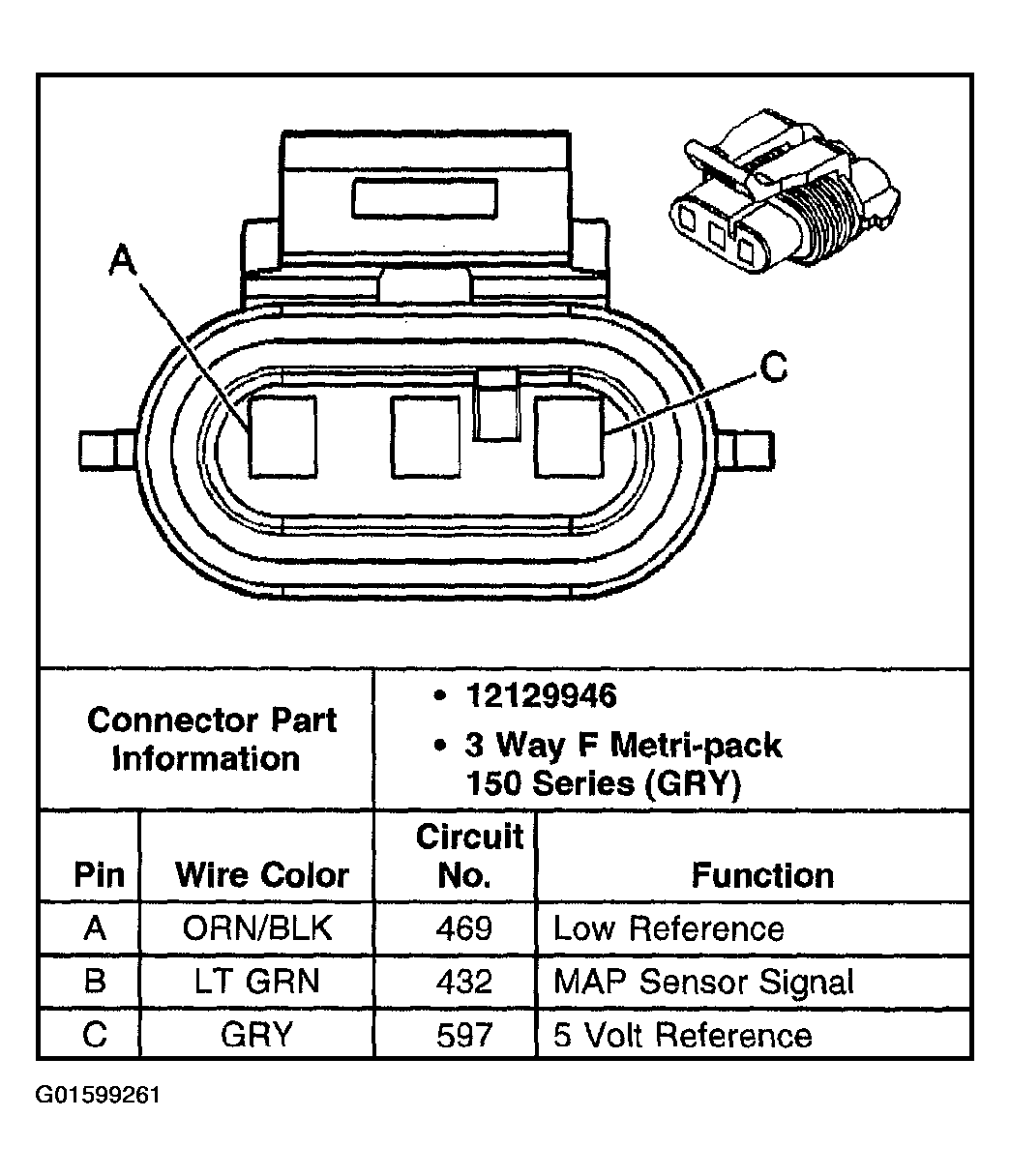

Fig 35: Manifold Absolute Pressure (MAP) Sensor

G01599261

Courtesy of GENERAL MOTORS CORP.

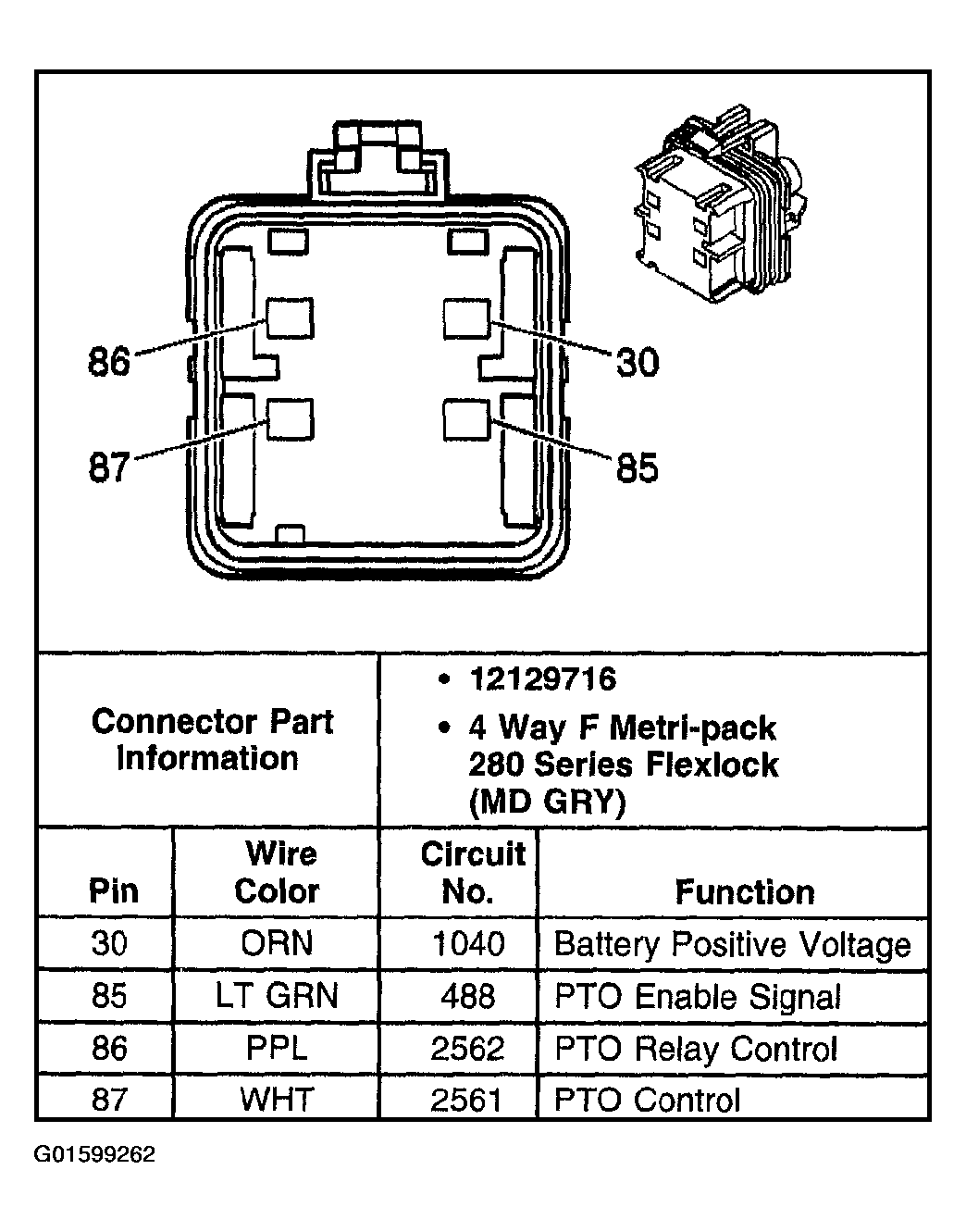

Fig 36: PTO Relay

G01599262

Courtesy of GENERAL MOTORS CORP.

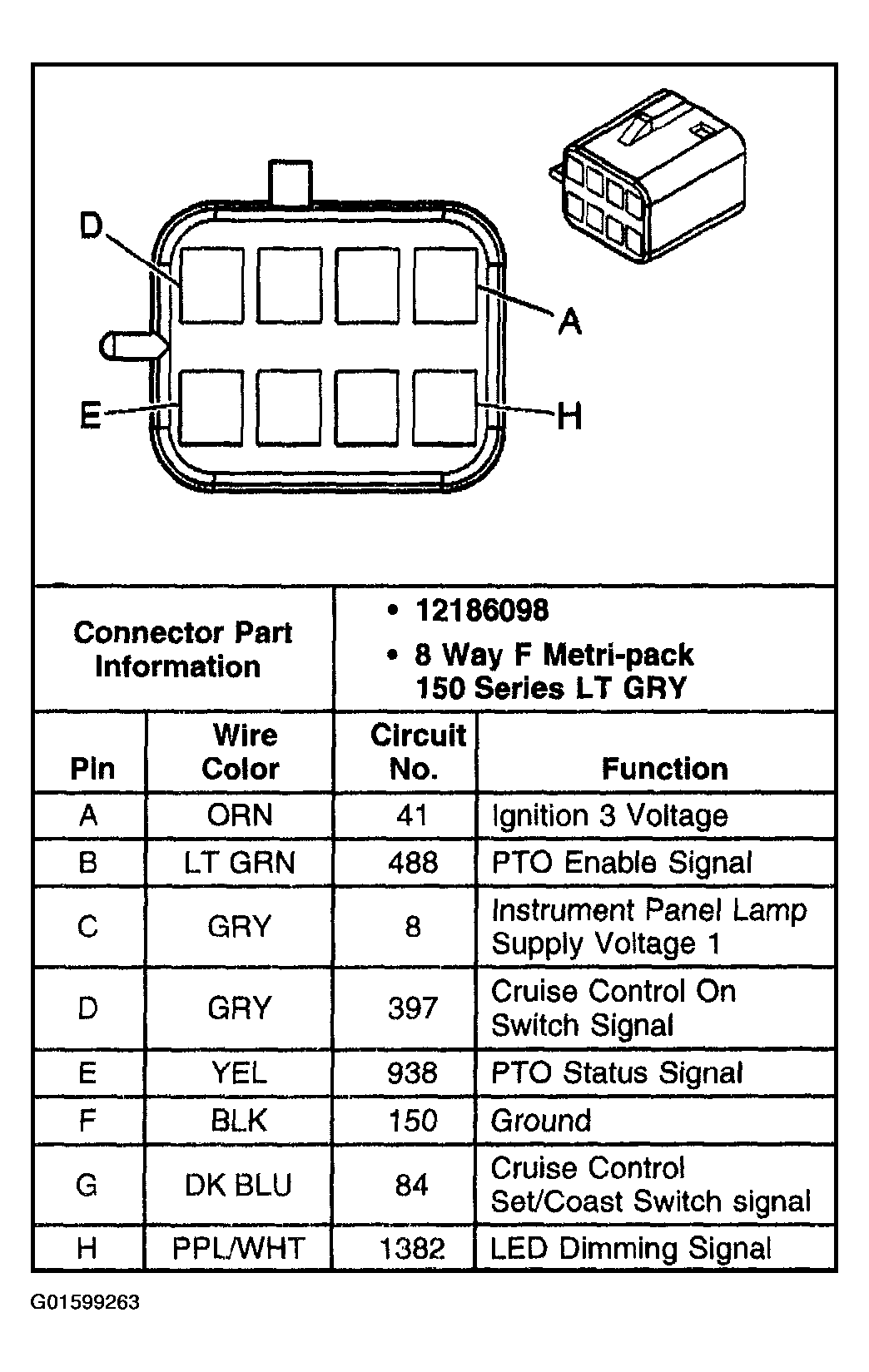

Fig 37: PTO Switch

G01599263

Courtesy of GENERAL MOTORS CORP.

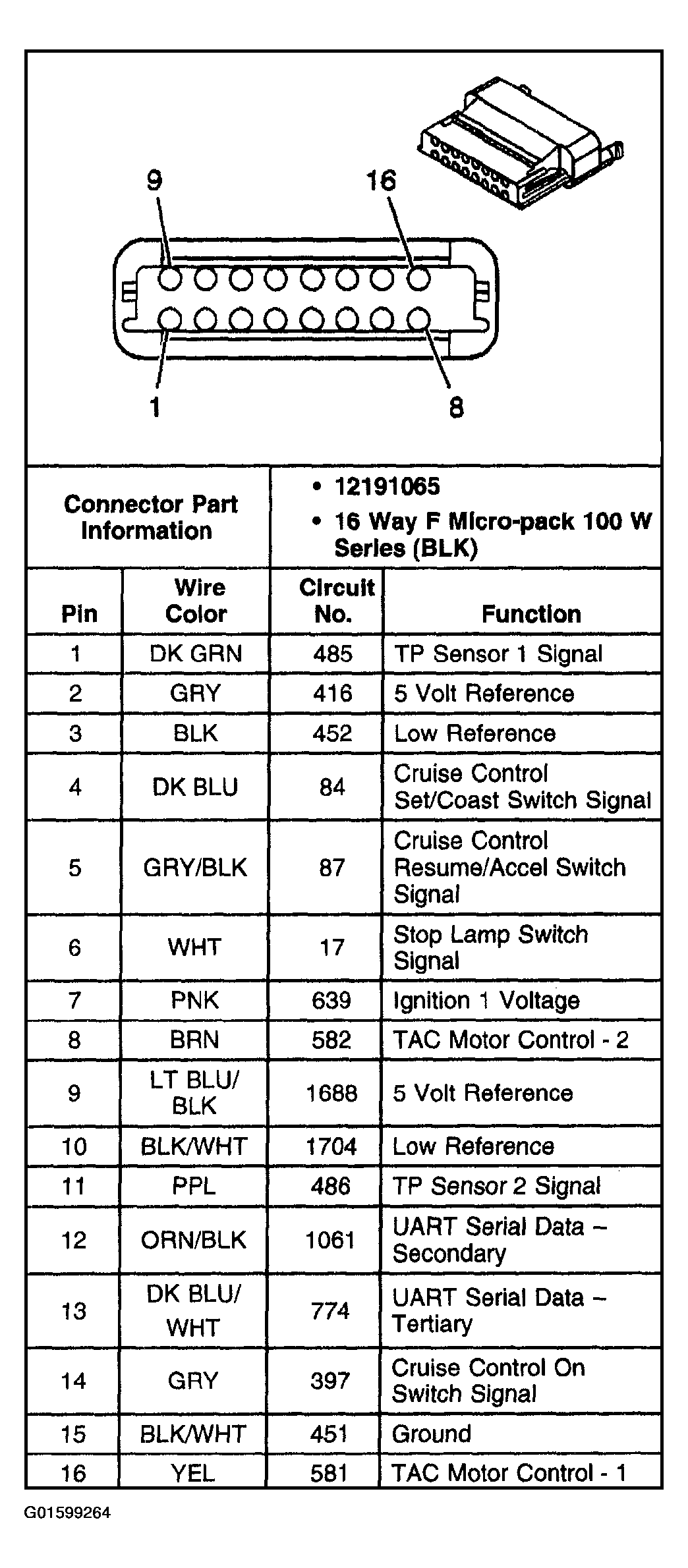

Fig 38: Throttle Actuator Control (TAC) Module - C1

G01599264

Courtesy of GENERAL MOTORS CORP.

Fig 39: Throttle Actuator Control (TAC) Module - C2

G01599265

Courtesy of GENERAL MOTORS CORP.

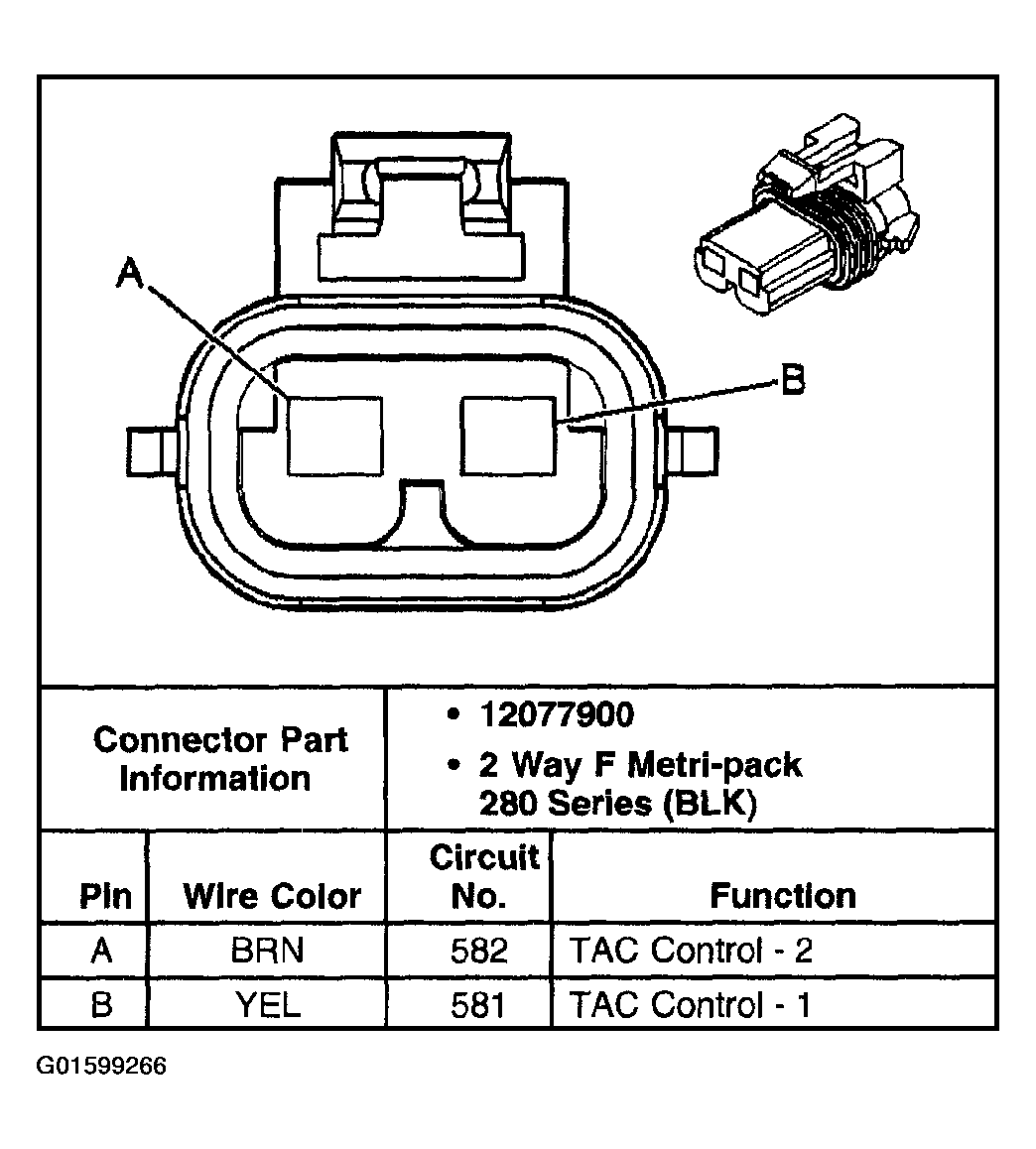

Fig 40: Throttle Actuator Control Motor

G01599266

Courtesy of GENERAL MOTORS CORP.

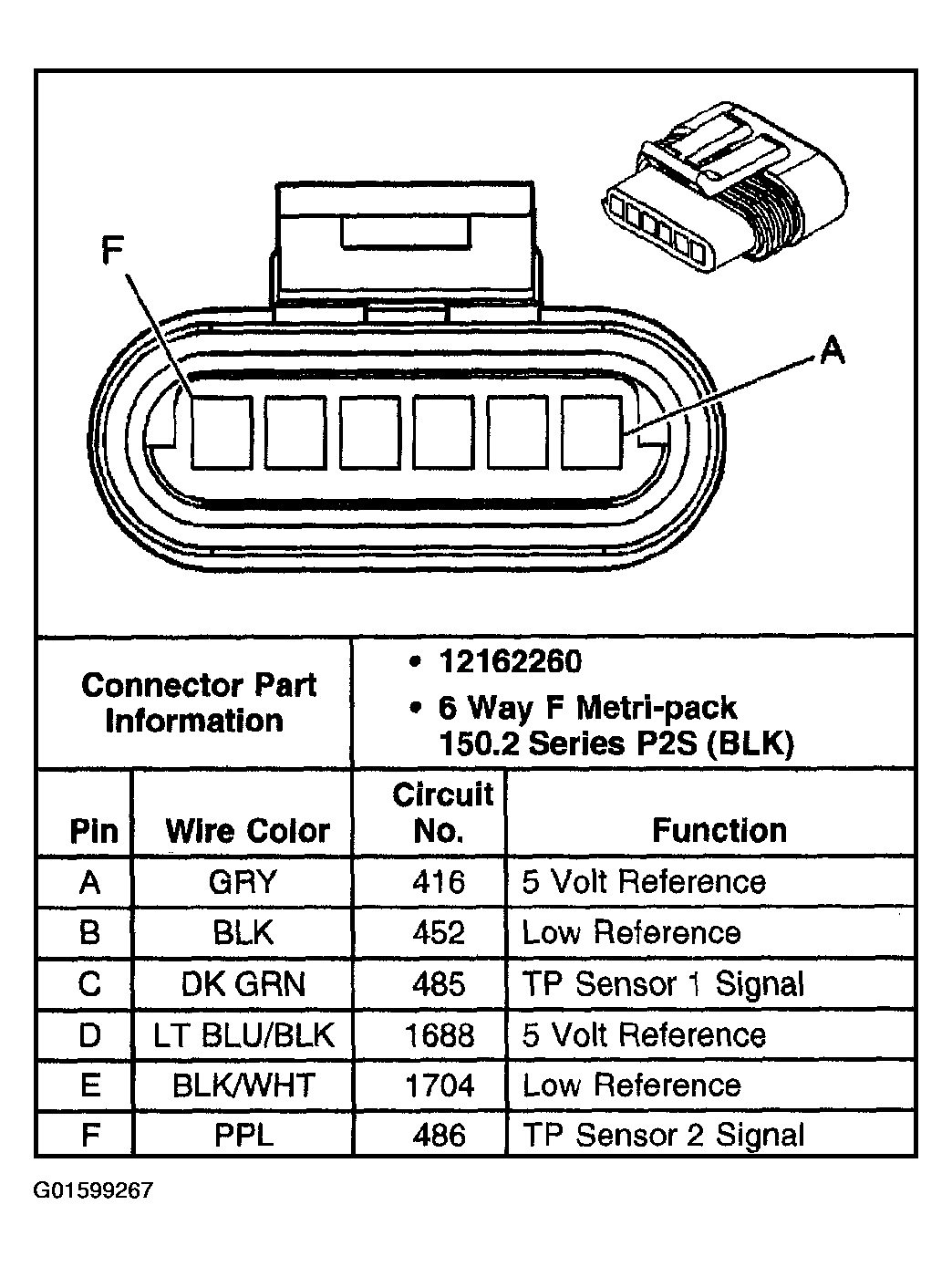

Fig 41: Throttle Position (TP) Sensor

G01599267

Courtesy of GENERAL MOTORS CORP.

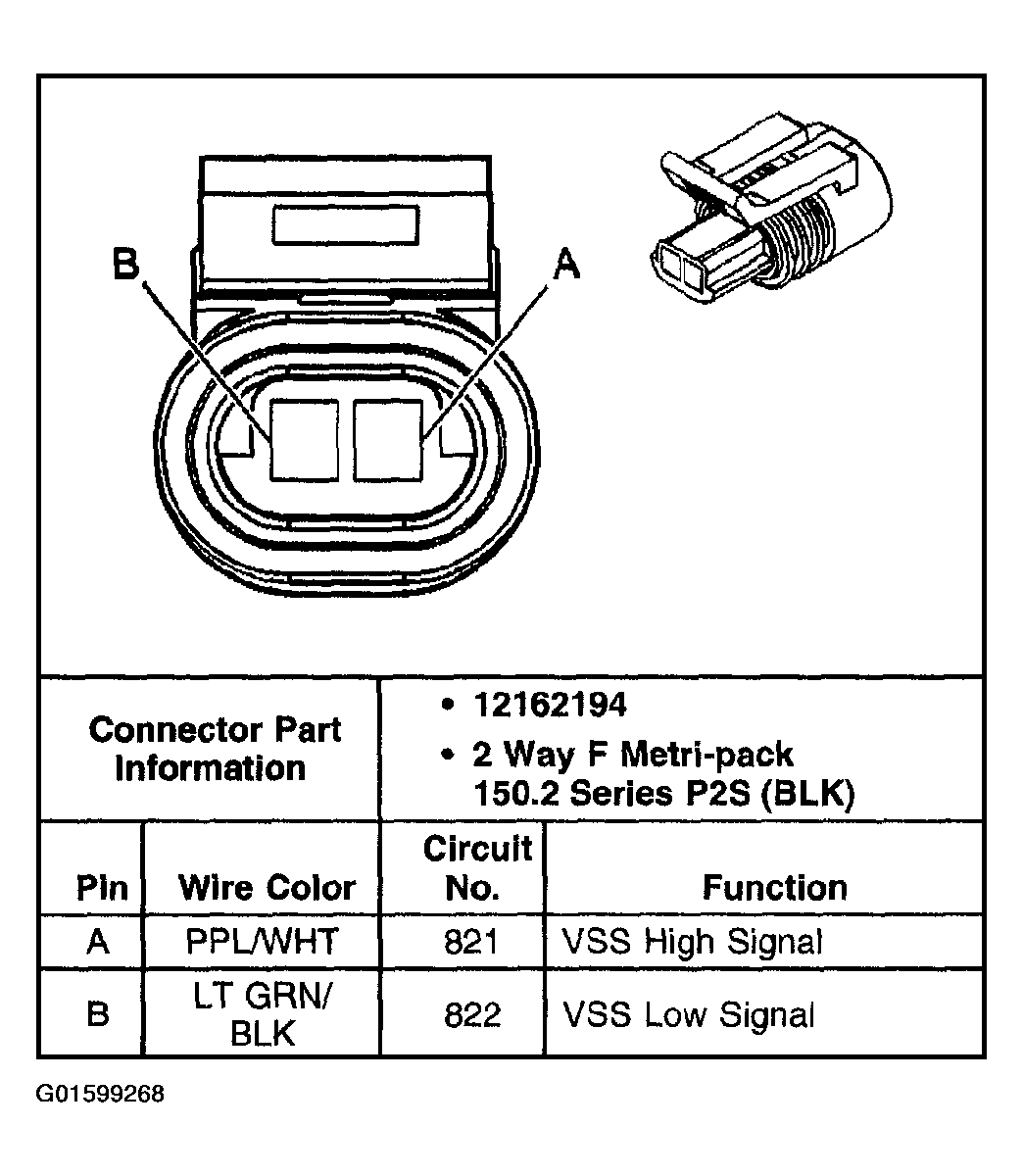

Fig 42: Vehicle Speed Sensor (VSS) - A/T

G01599268

Courtesy of GENERAL MOTORS CORP.

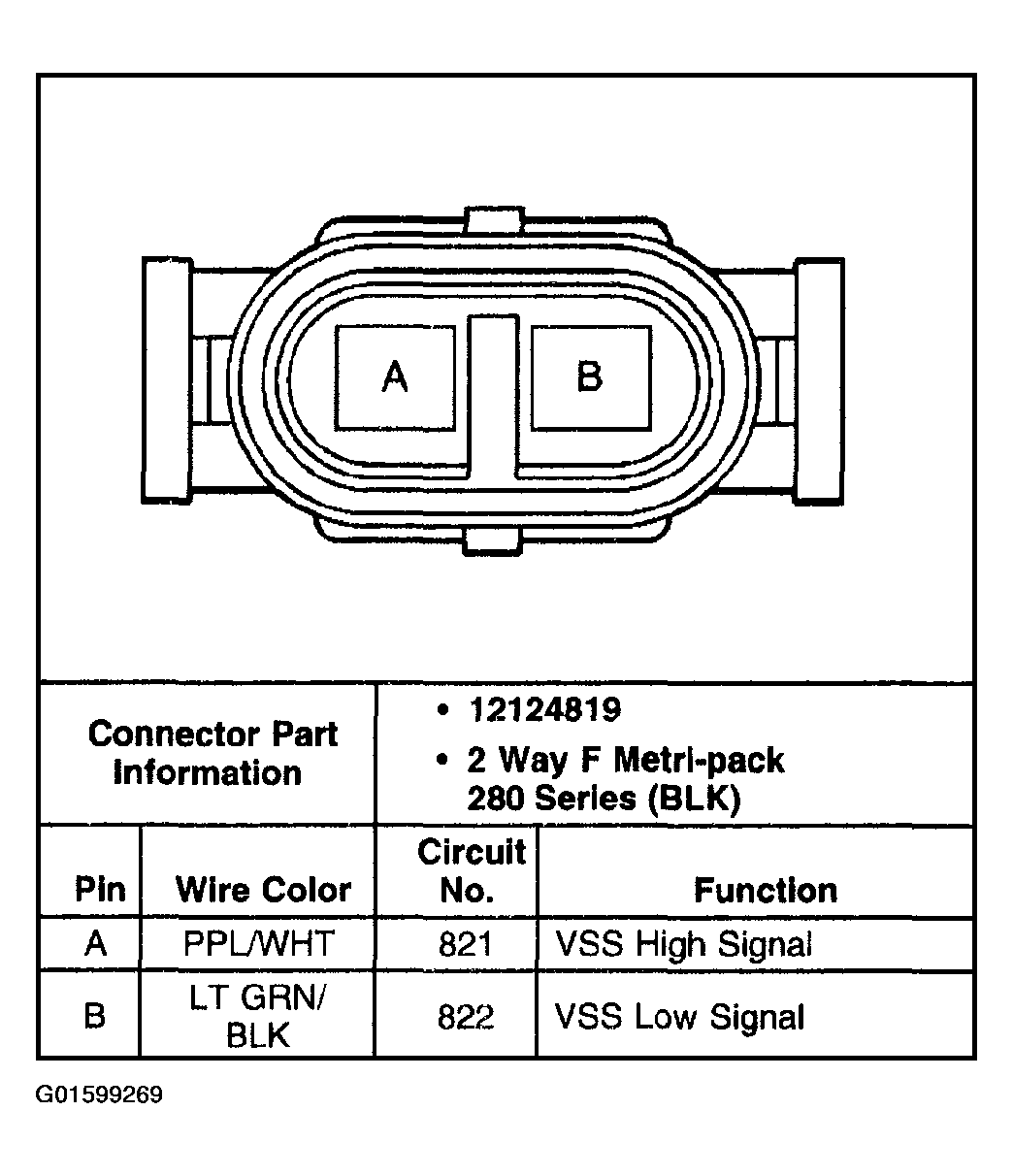

Fig 43: Vehicle Speed Sensor (VSS) - M/T

G01599269

Courtesy of GENERAL MOTORS CORP.
