Powertrain Control Module (PCM) Connector End Views

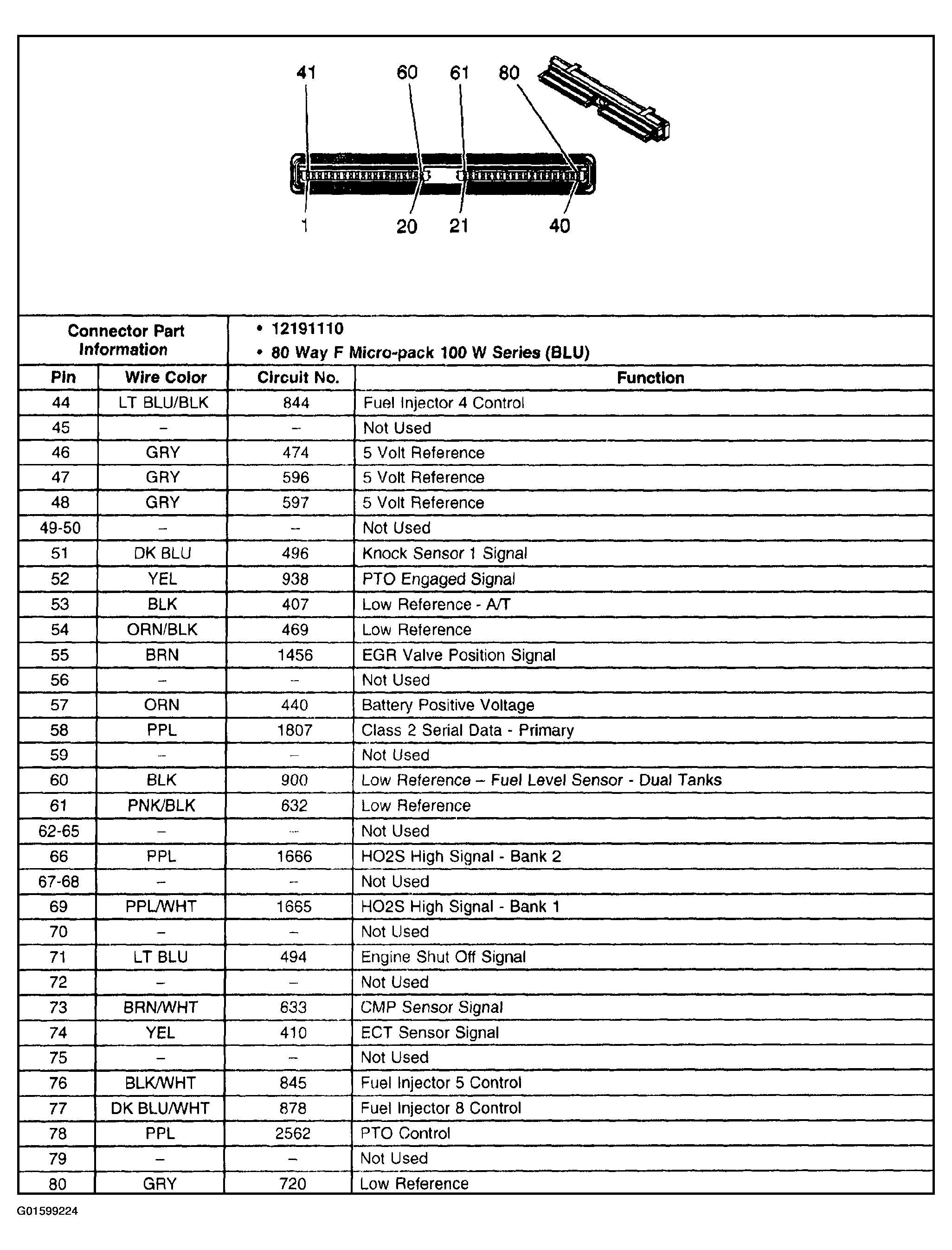

Fig 1: PCM Connector C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

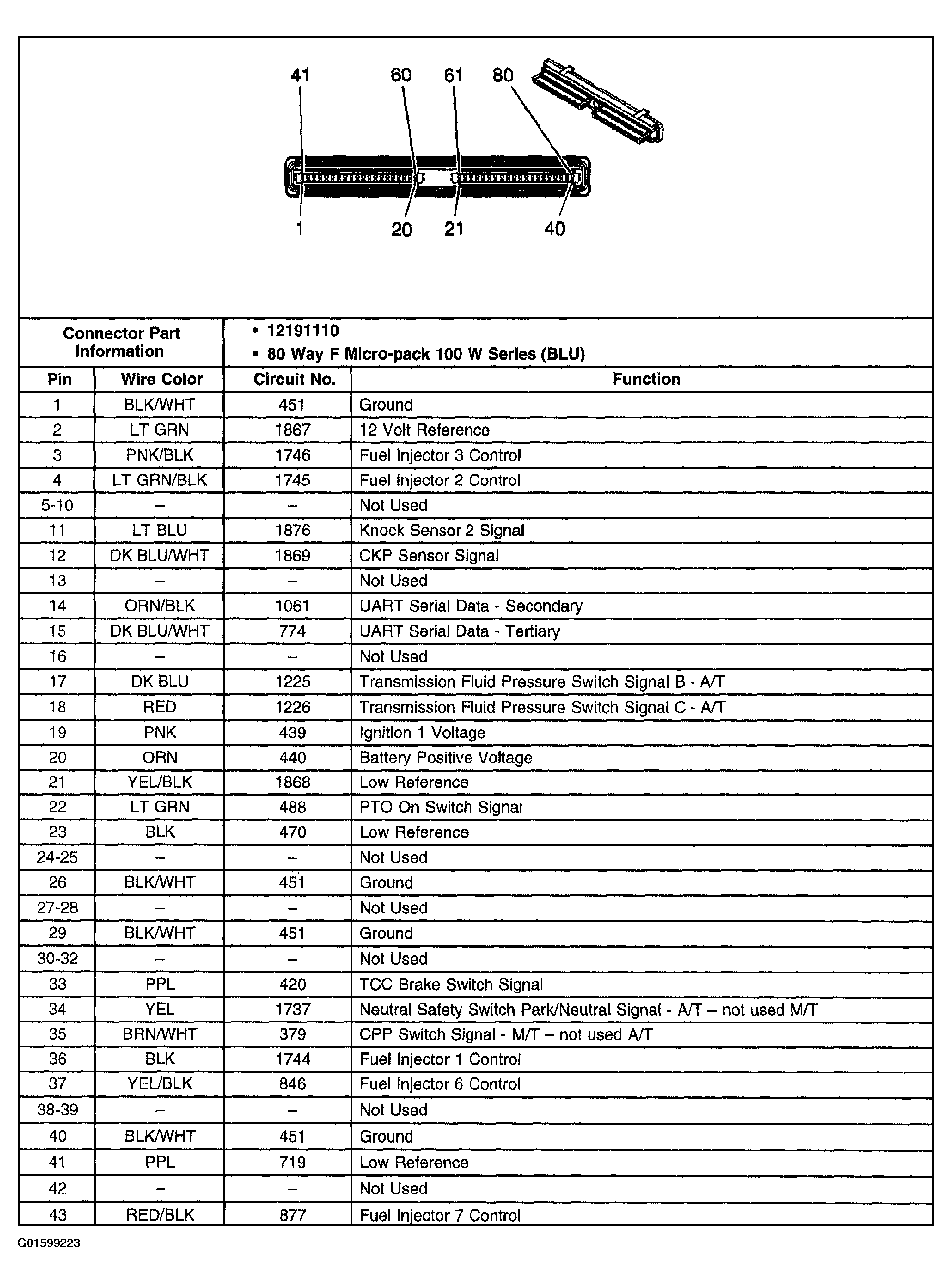

Fig 2: PCM Connector C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

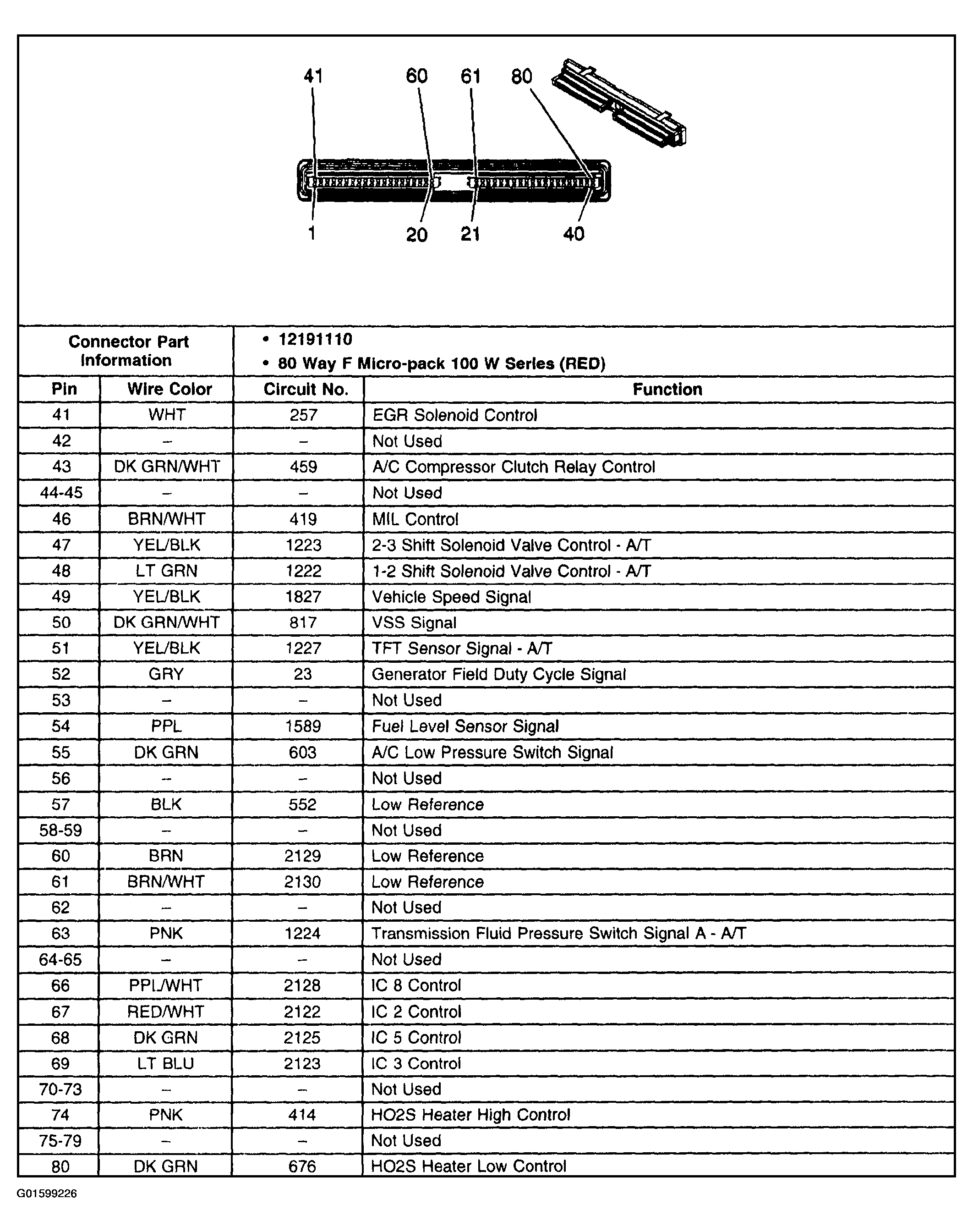

Fig 3: PCM Connector C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

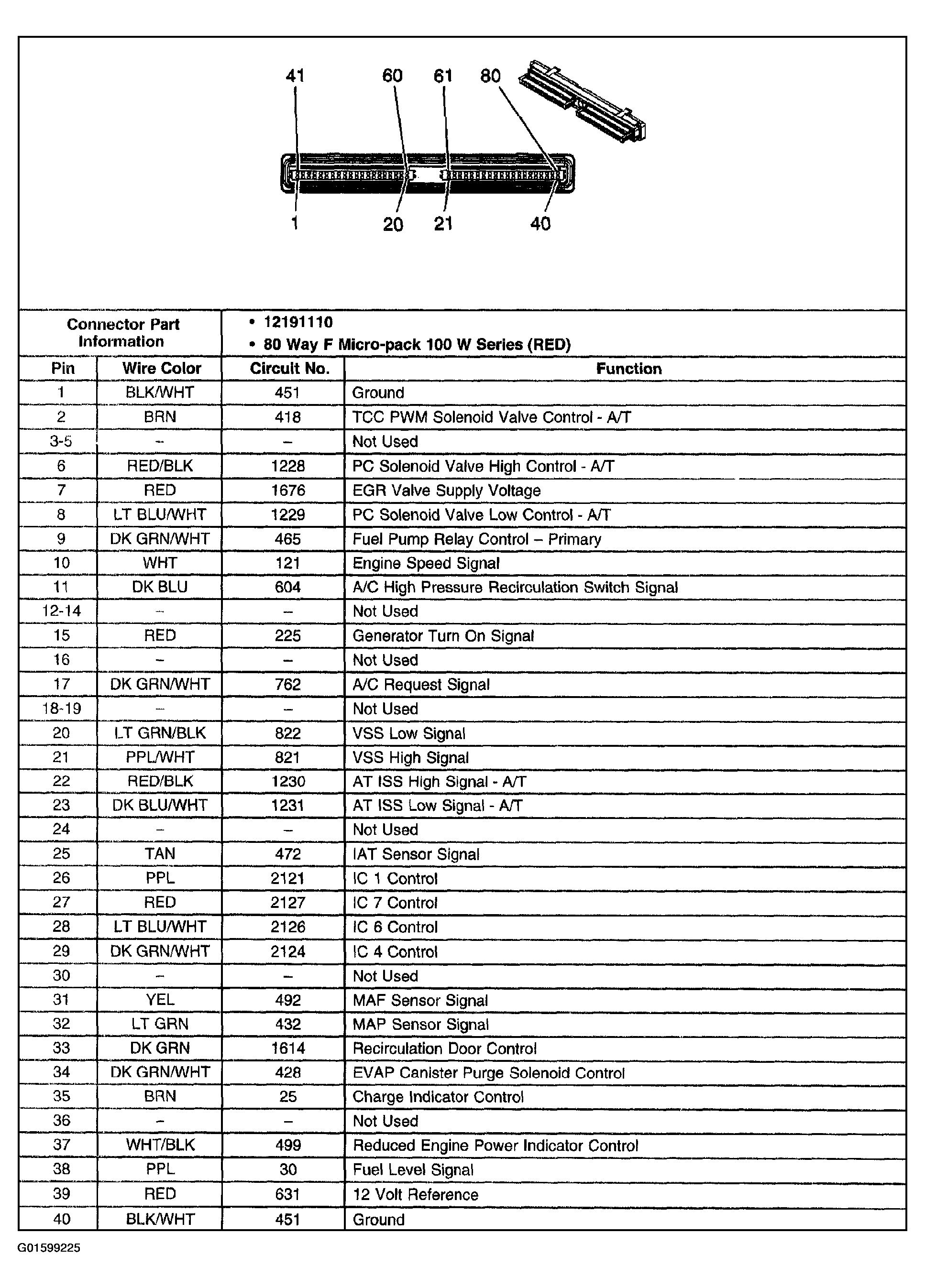

Fig 4: PCM Connector C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
