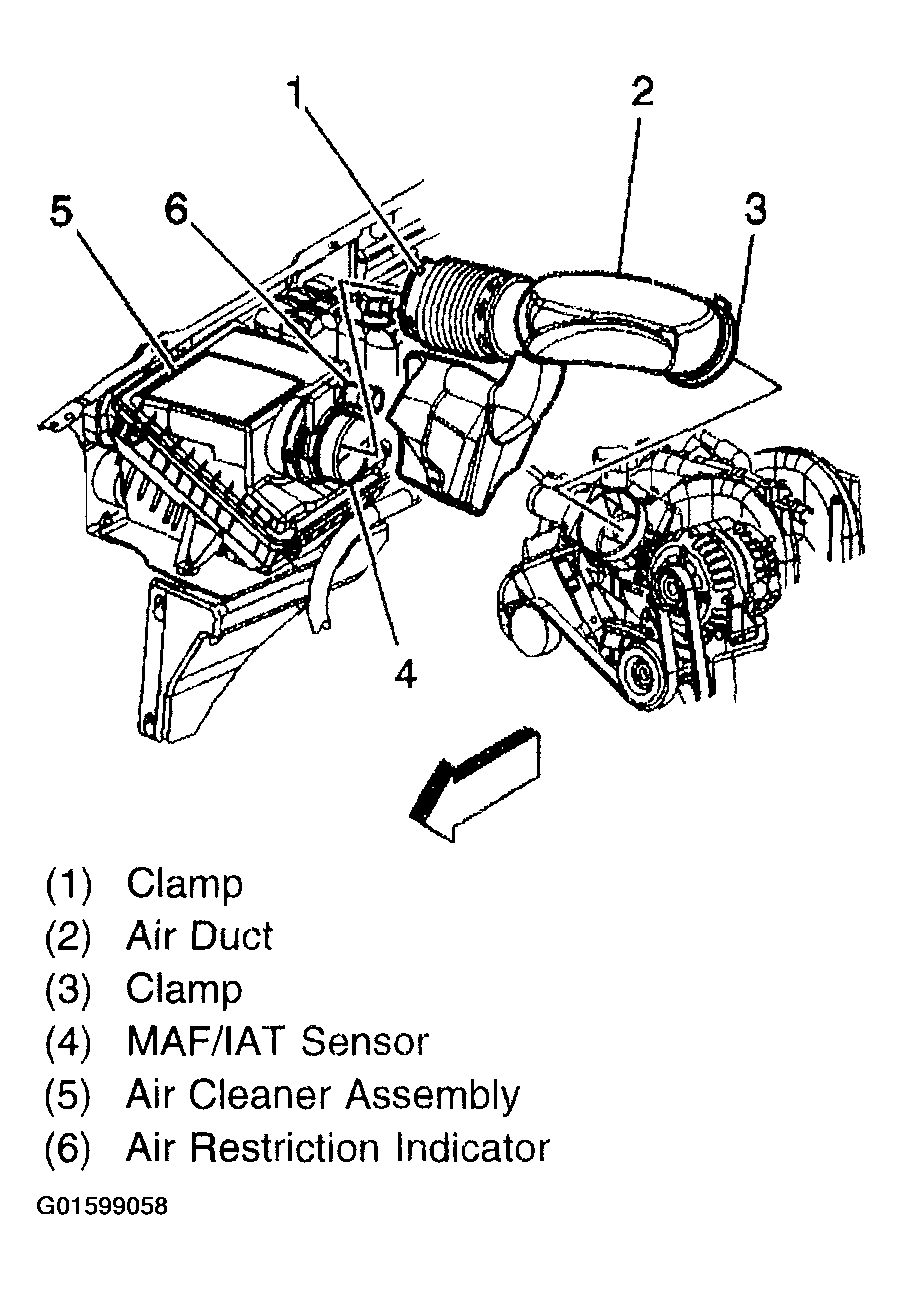

Air Induction Components

Fig 1: Air Induction Components

Courtesy of GENERAL MOTORS CORP.

The air cleaner assembly is remotely mounted. The air intake system draws outside air through the side of the air cleaner assembly and filter element of the forward mounted air cleaner. The air is then routed through the mass airflow (MAF) sensor and then into the throttle body to the intake manifold. The air is then directed into the intake manifold runners, through the cylinder heads and into the cylinders.

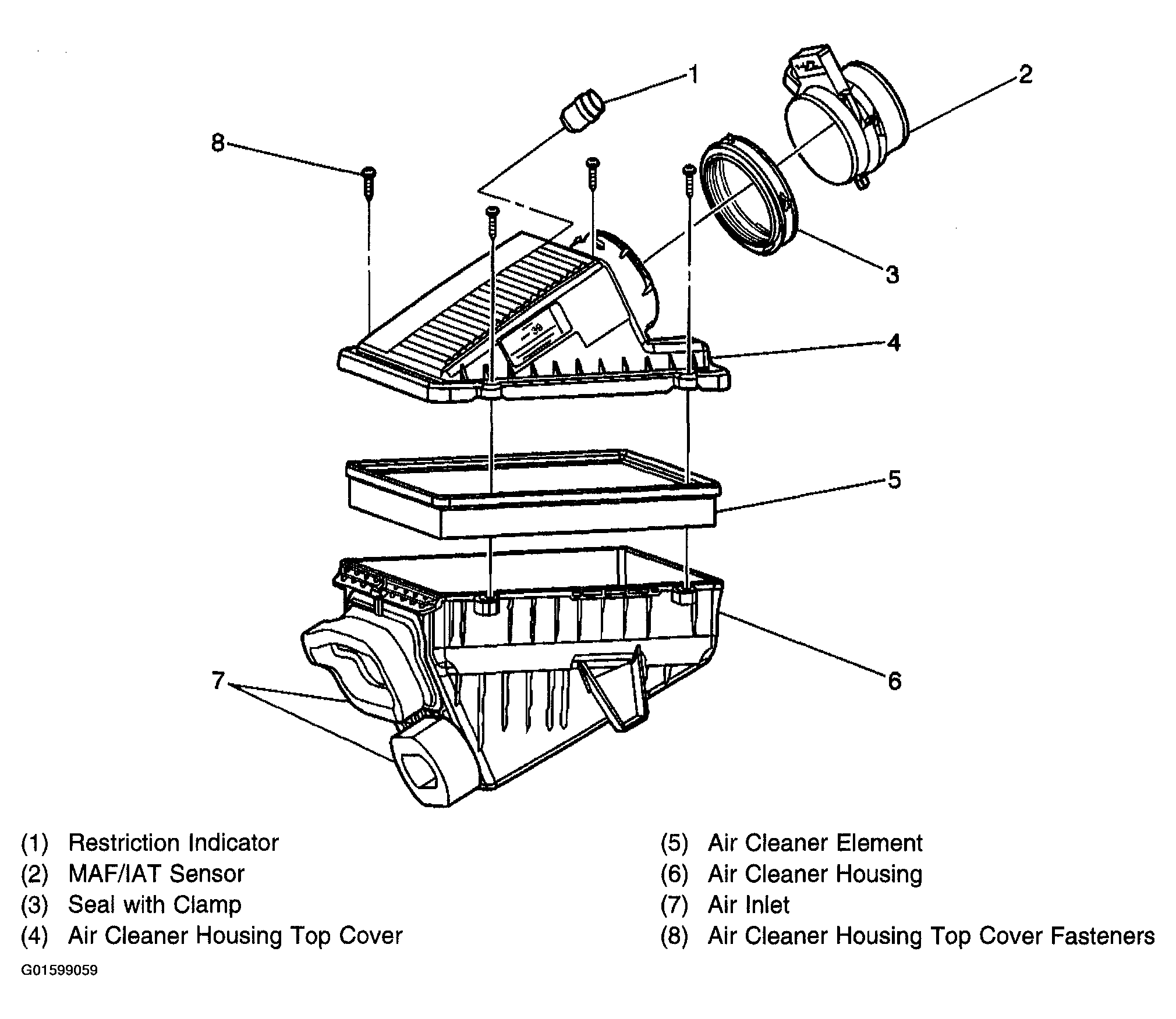

Fig 2: Air Cleaner Housing

Courtesy of GENERAL MOTORS CORP.

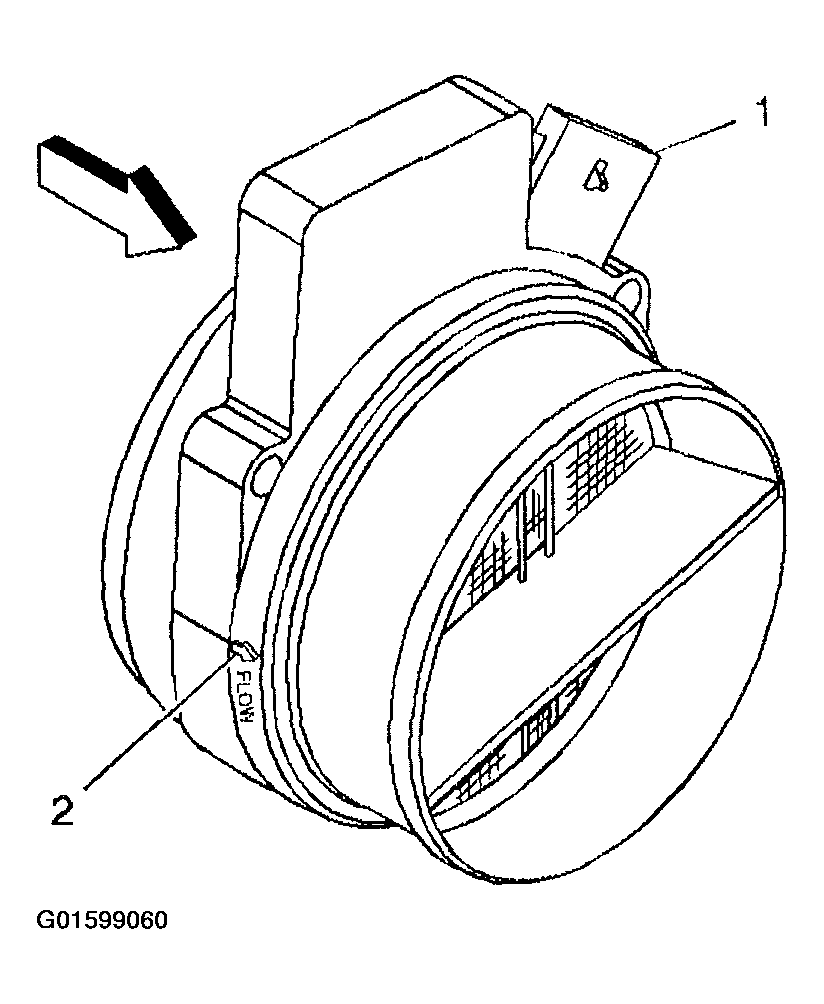

Fig 3: Airflow Direction Arrow

Courtesy of GENERAL MOTORS CORP.

If the MAF sensor is installed backwards, the system will go rich. An arrow (2) cast into the plastic portion of the sensor indicates proper airflow direction. The arrow must point toward the engine.
