Diagnostic Information and Procedures: Backfire

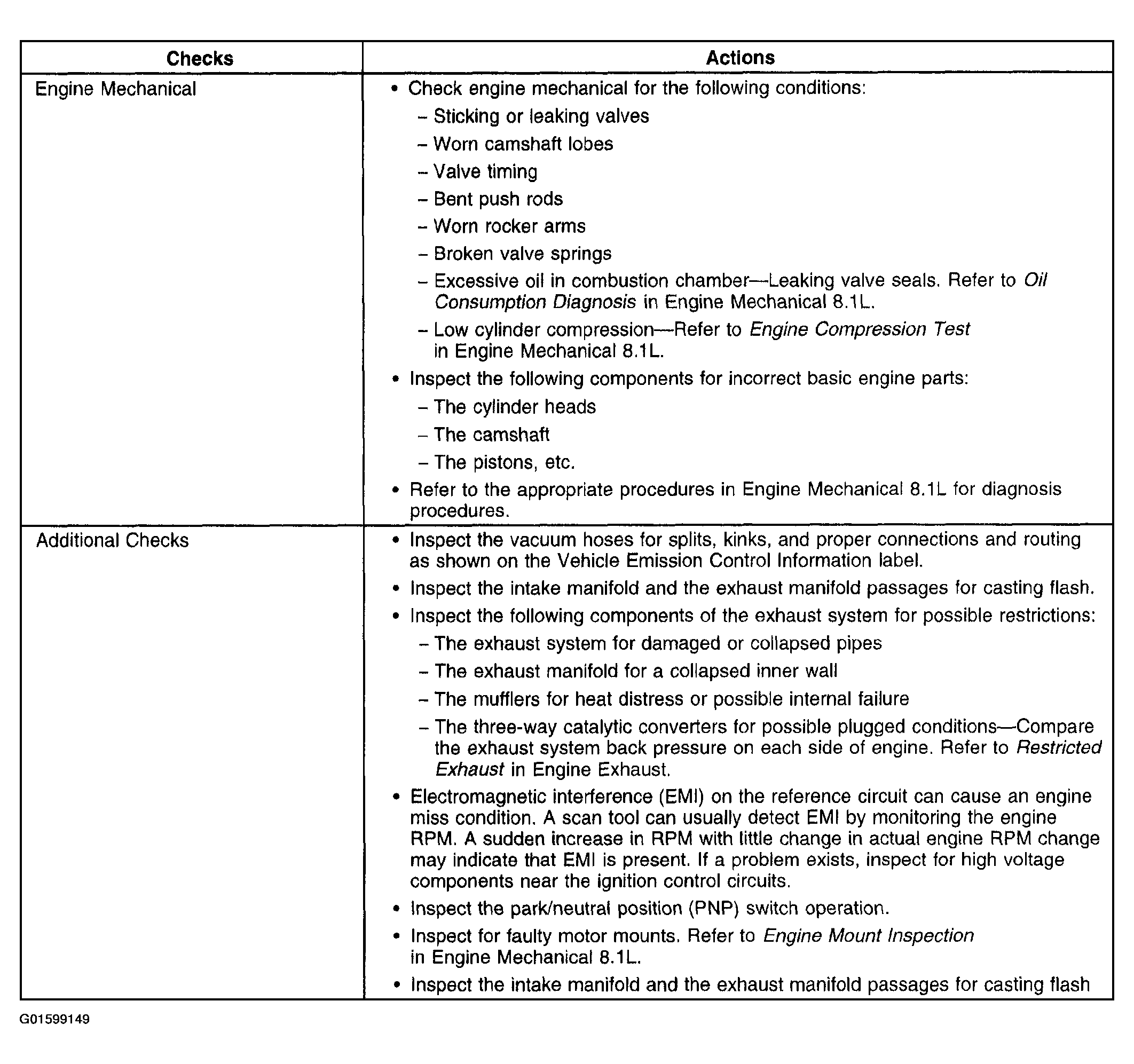

Fig 1: Backfire (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

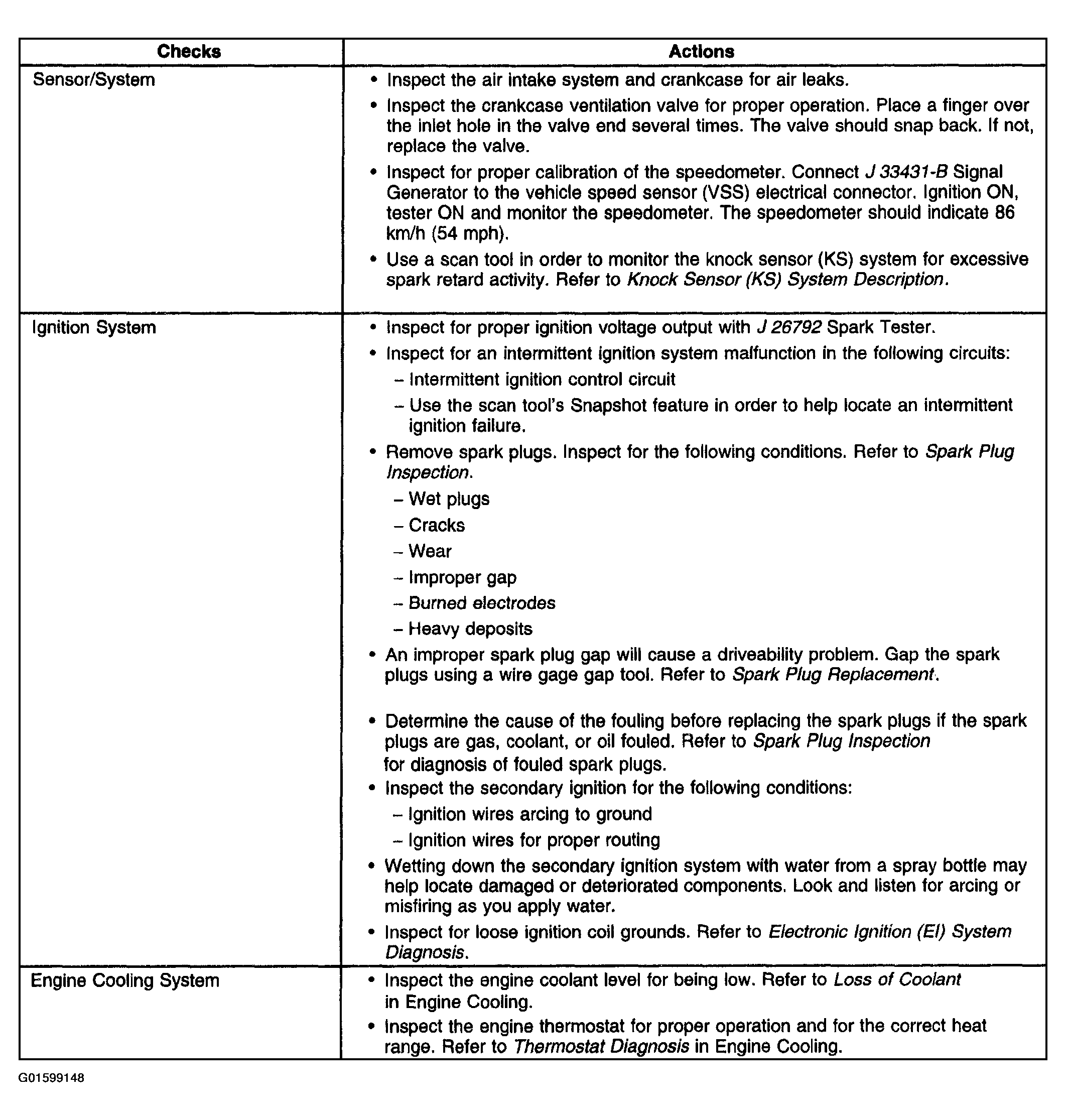

Fig 2: Backfire (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

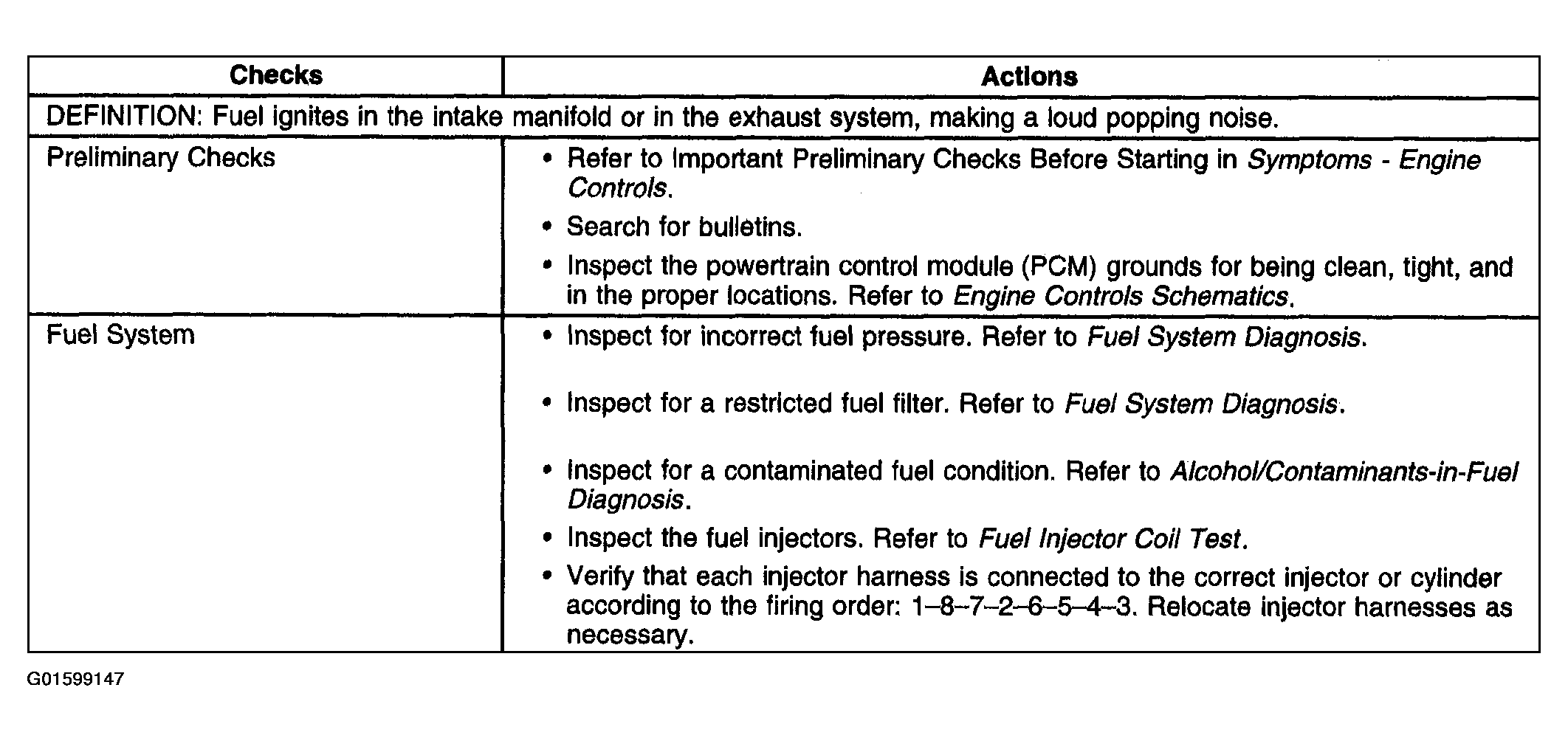

Fig 3: Backfire (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
