Test Description

The number below refers to the step number on the diagnostic table.

1. 6. This step tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.

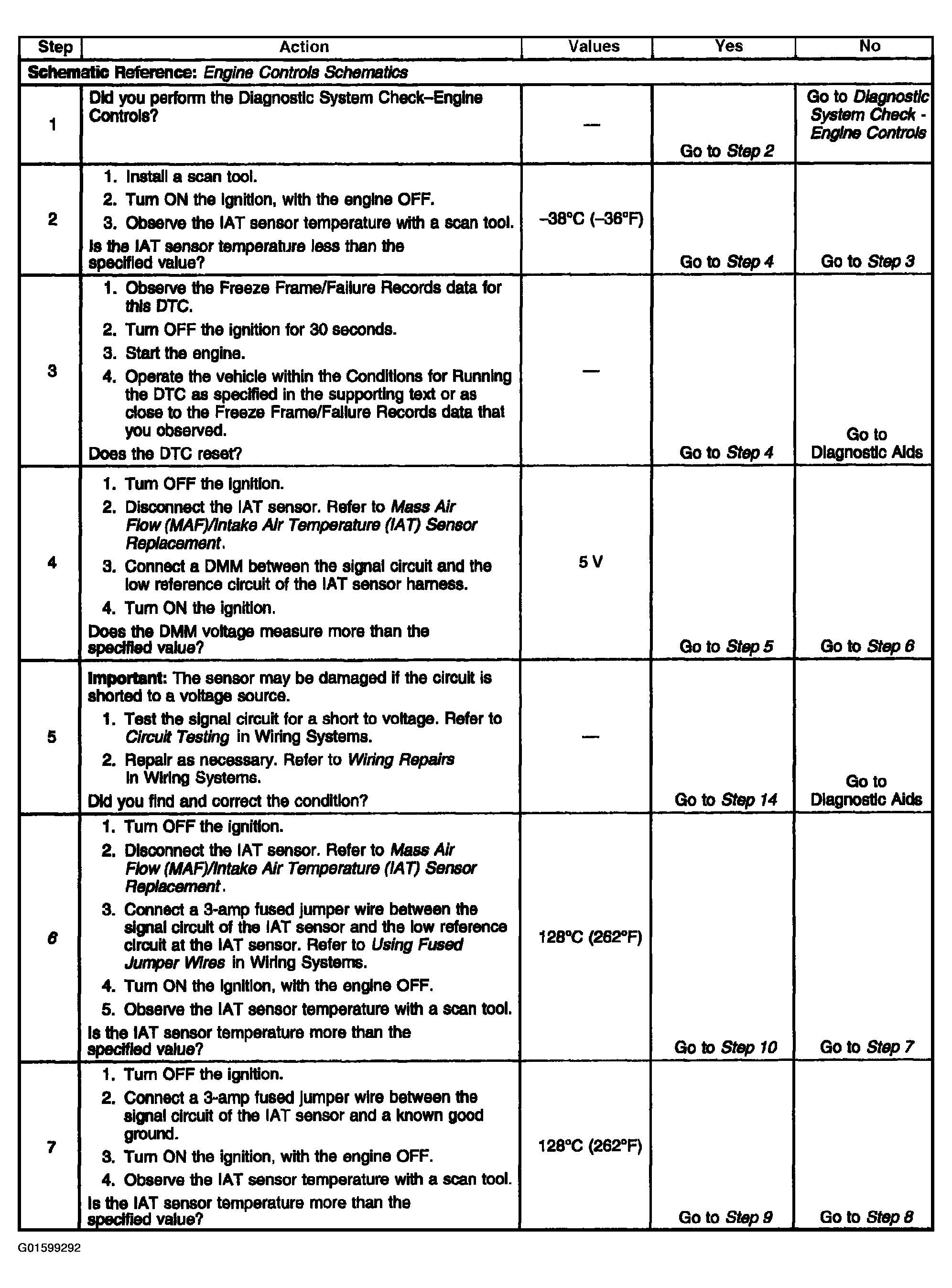

Fig 1: DTC P0113 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

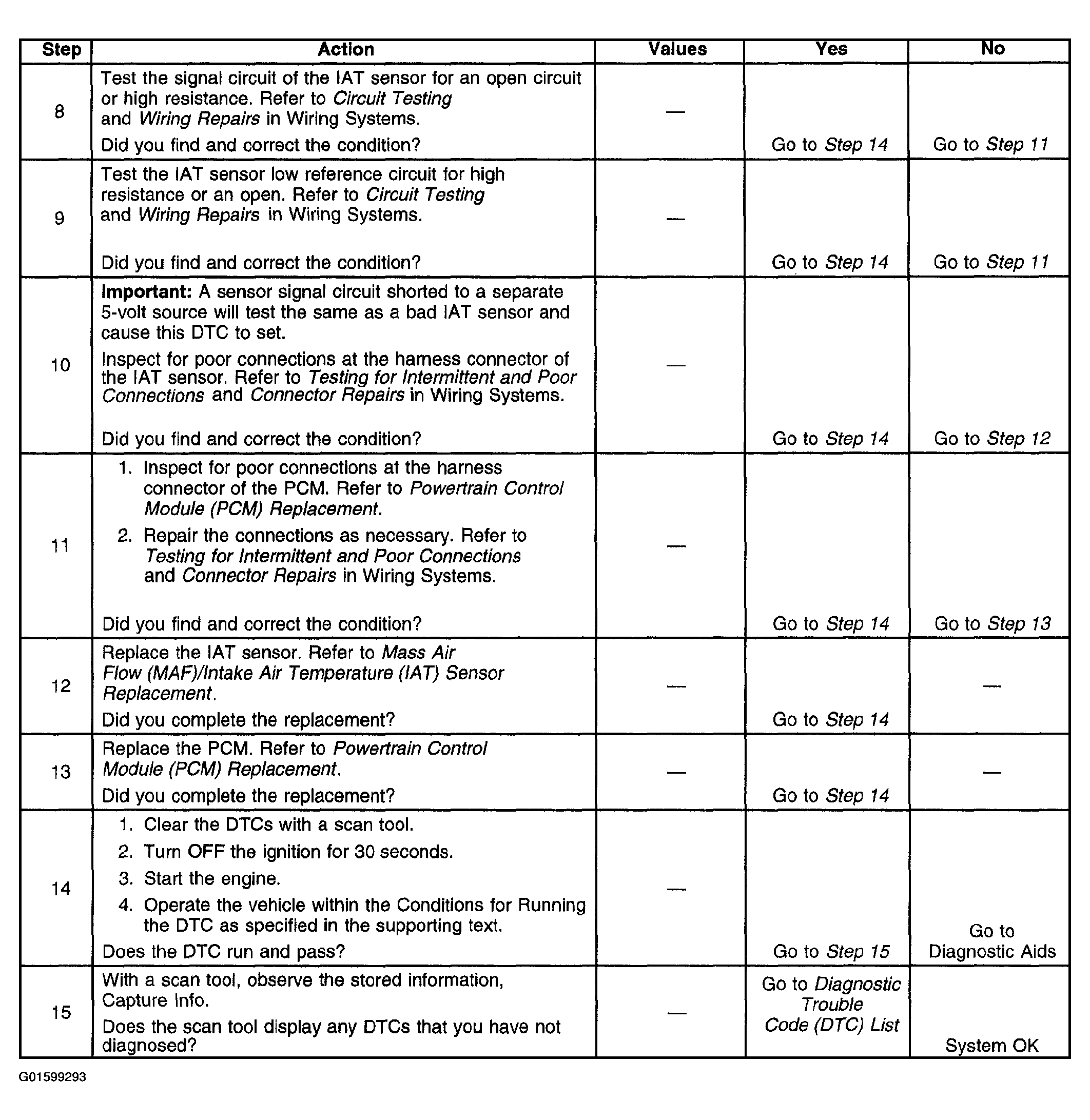

Fig 2: DTC P0113 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
