Intermittent Conditions

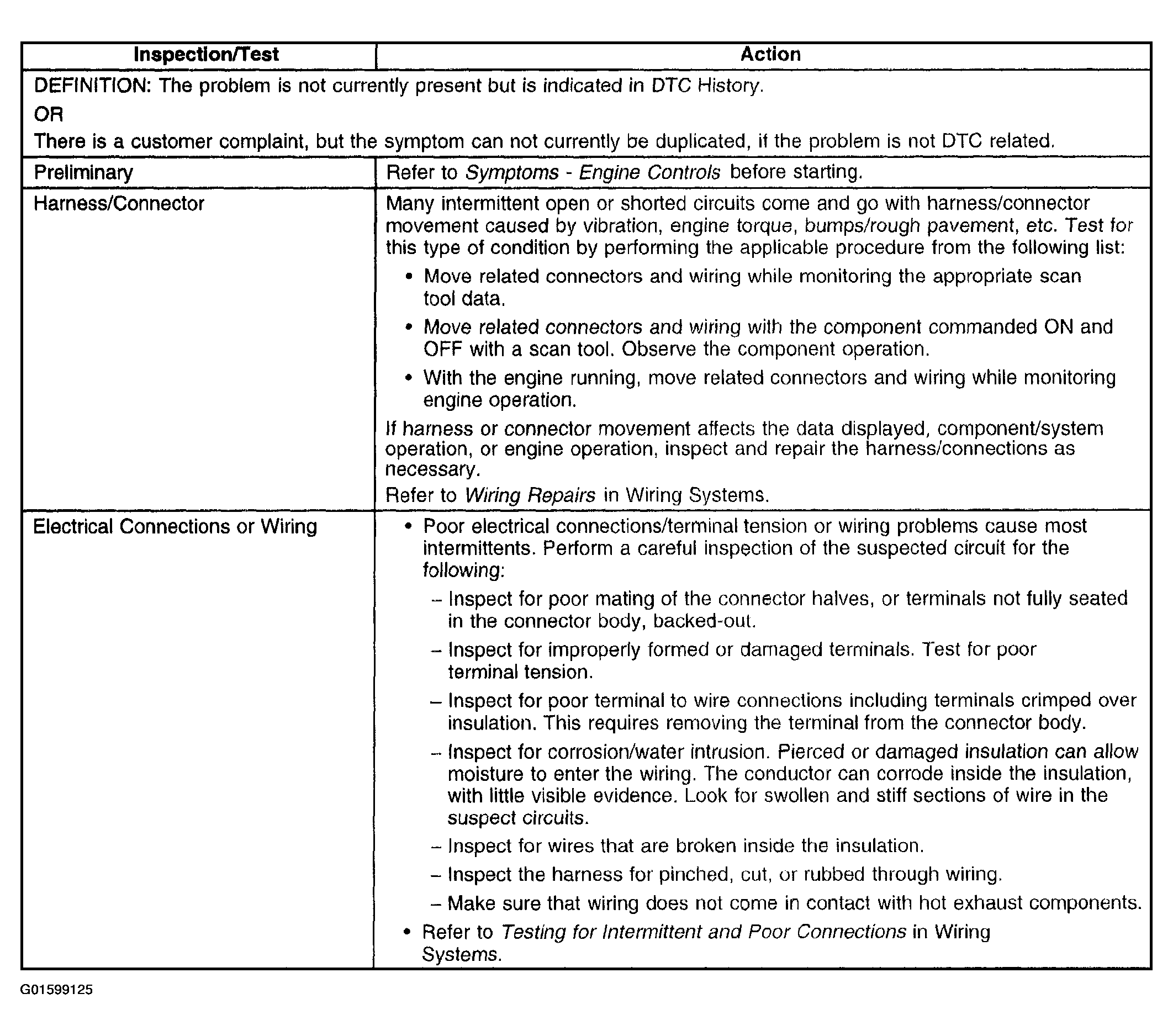

Fig 1: Intermittent Conditions (1 Of 3)
G01599125Courtesy of GENERAL MOTORS CORP.

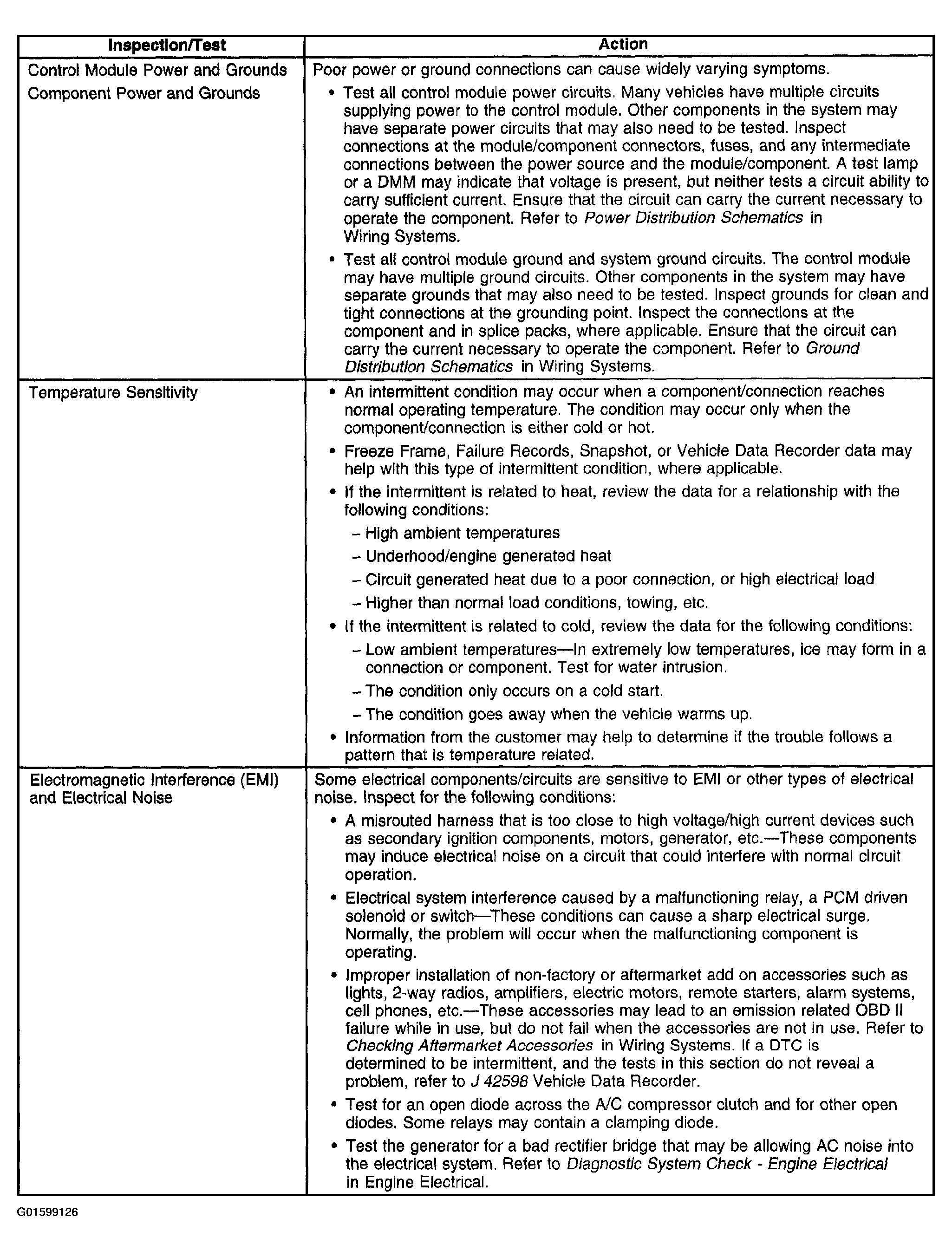

Fig 2: Intermittent Conditions (2 Of 3)
G01599126Courtesy of GENERAL MOTORS CORP.

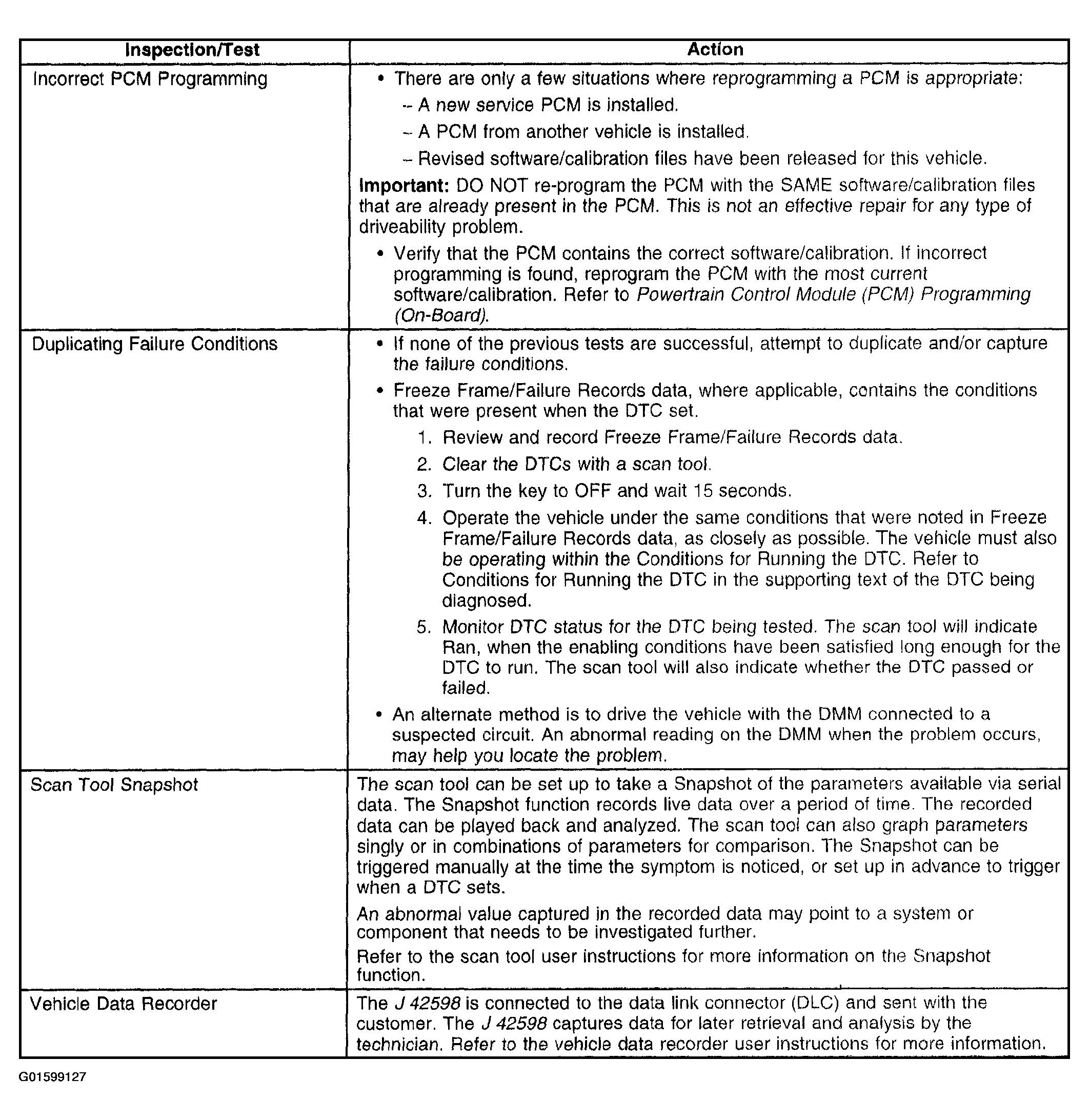

Fig 3: Intermittent Conditions (3 Of 3)
G01599127Courtesy of GENERAL MOTORS CORP.
