Installation Procedure

Position the air cleaner assembly (1) onto the air cleaner adapter. Ensure the retainers fit properly into the air cleaner adapter.
Secure the air cleaner assembly (1) onto the air cleaner adapter.

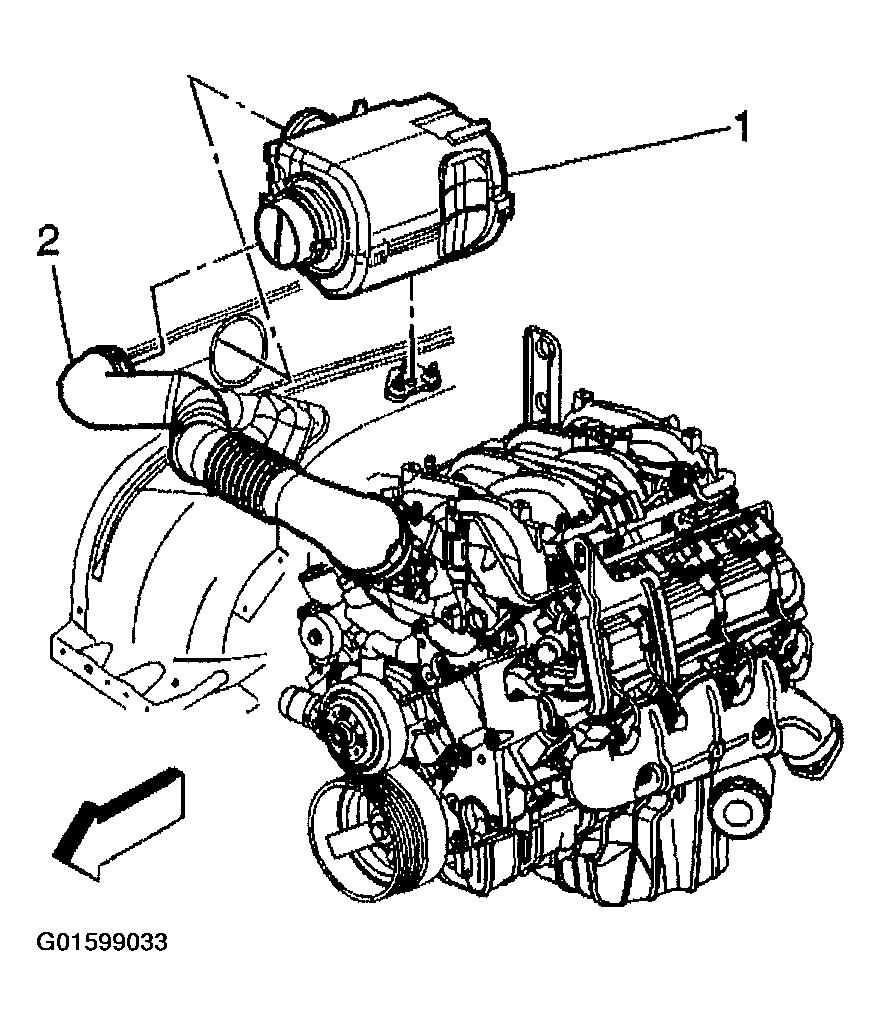

Fig 1: Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.

Important: If the MAF/IAT sensor is installed backwards, the fuel system goes rich. An arrow (2) cast into the plastic portion of the sensor indicates proper air flow direction. The arrow must point toward the engine.
Install the MAF/IAT sensor (3) to the air cleaner assembly (1).

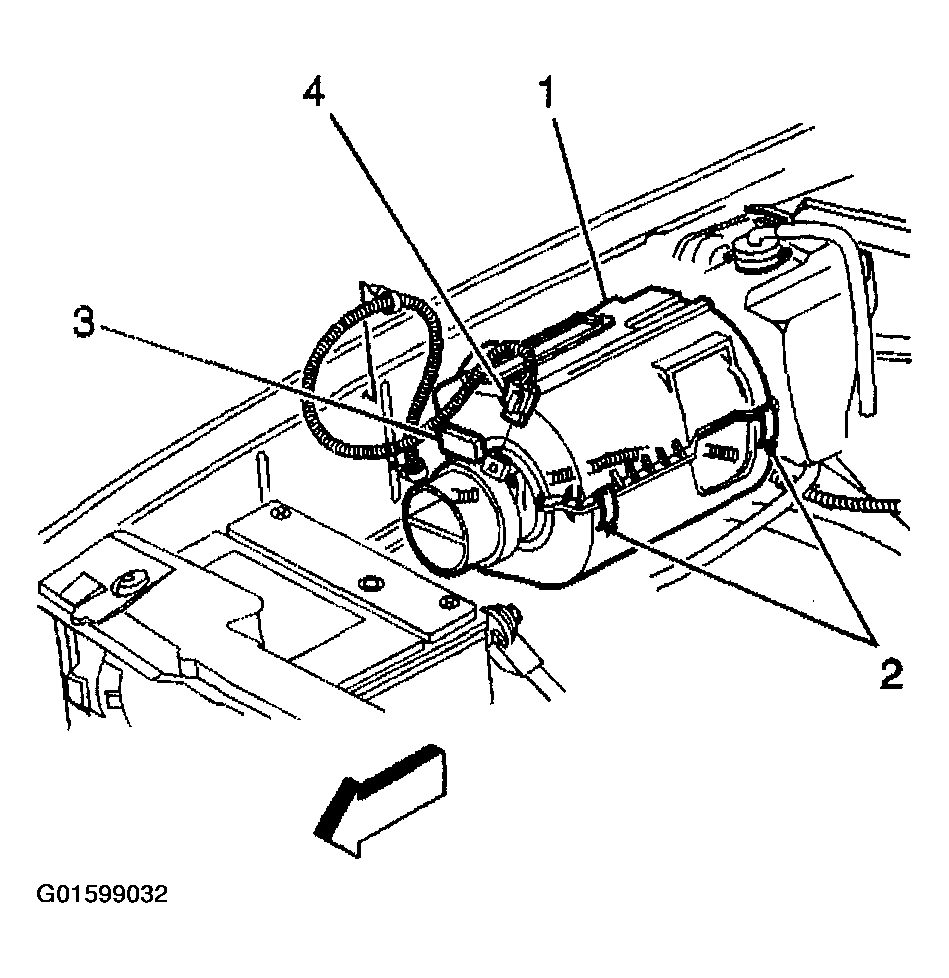

Fig 2: MAF/IAT Sensor & Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.
Secure the clamps at the MAF/IAT sensor and the air cleaner assembly (1).
Connect the MAF/IAT connector.
Install the air intake duct (2).
Tighten the clamps on the air intake duct (2) at the throttle body and at the MAF/IAT sensor.

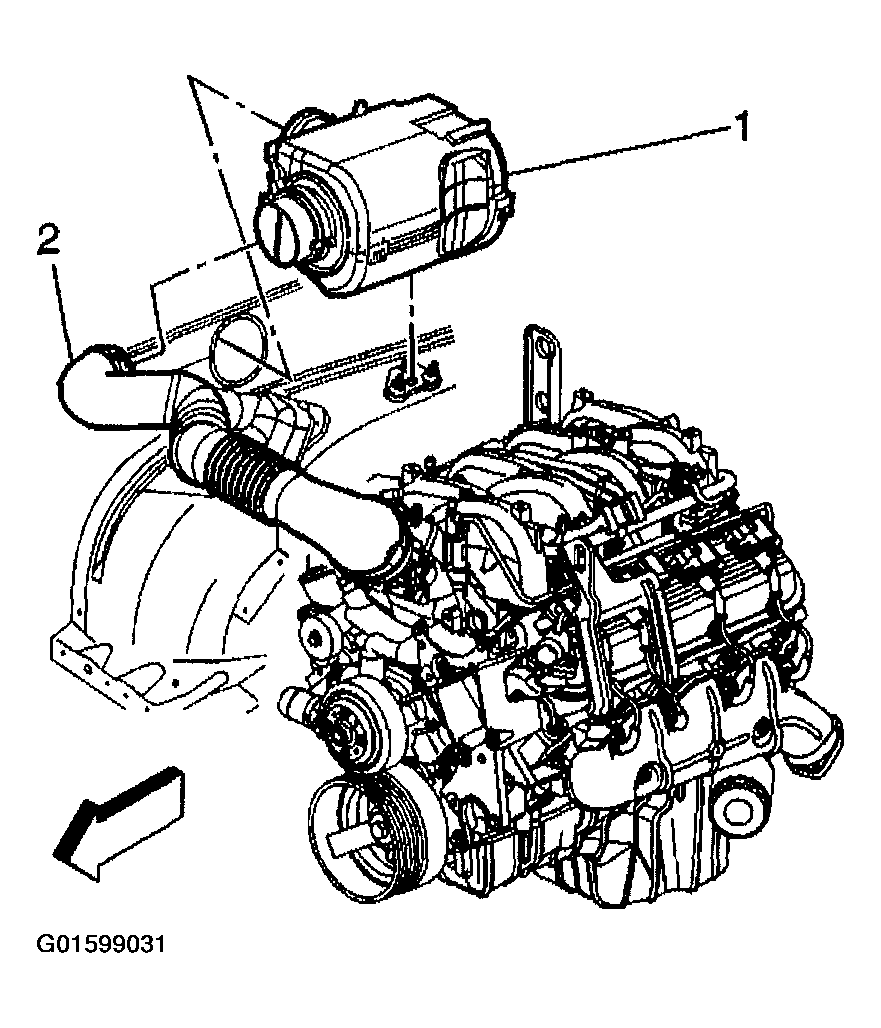

Fig 3: Air Intake Duct
