Installation Procedure

Important:  Inspect the CMP sensor O-ring for wear or damage. If a problem is found, replace the O-ring. Lubricate the new O-ring with engine oil before installing.

1. Install the CMP sensor (1).
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the CMP sensor retaining bolt (2).

   Tighten

   Tighten the bolt to 12 N.m (106 lb in).

3. Connect the CMP sensor harness connector (3).
4. Install the steering linkage shield, if equipped.
5. Lower the vehicle.

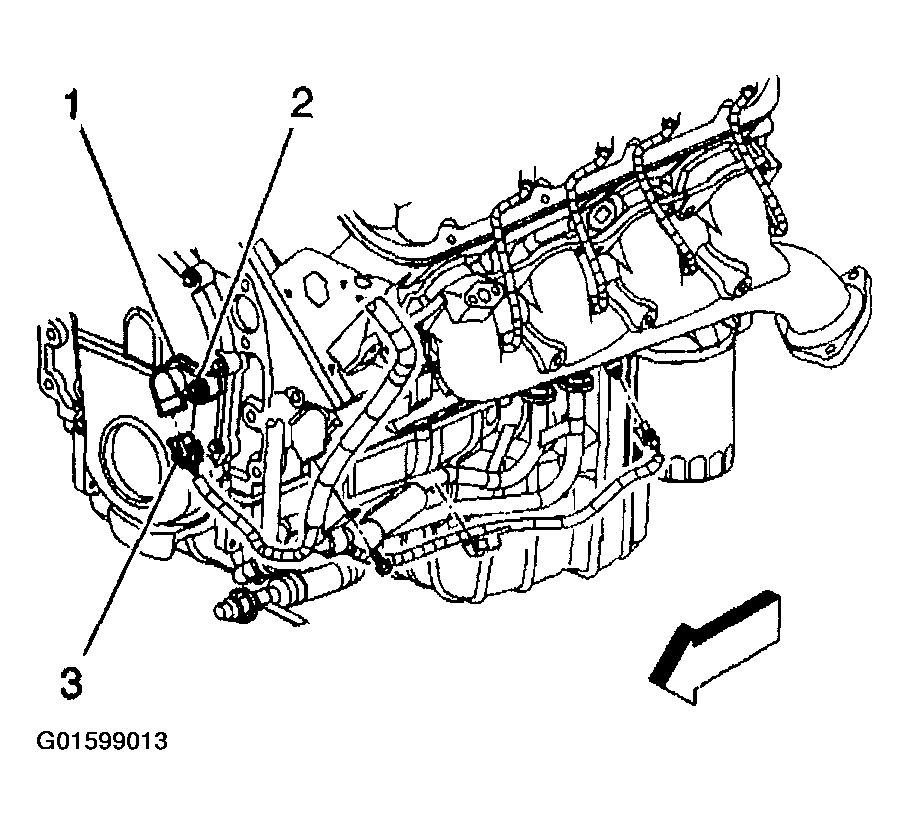

   Fig 1: CMP Sensor, Retaining Bolt & Harness Connector

   Courtesy of GENERAL MOTORS CORP.
