Installation Procedure

  1. Install new gaskets.
  2. Install the EGR valve pipe (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retaining bolts (4).

    Tighten

    Tighten the bolts to 30 N.m (22 lb ft).

  4. Install the EGR valve pipe-to-cylinder head bolts (3) to the right side head.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  5. Install the nuts (1) to exhaust manifold.

    Tighten

    Tighten the nuts to 30 N.m (22 lb ft).

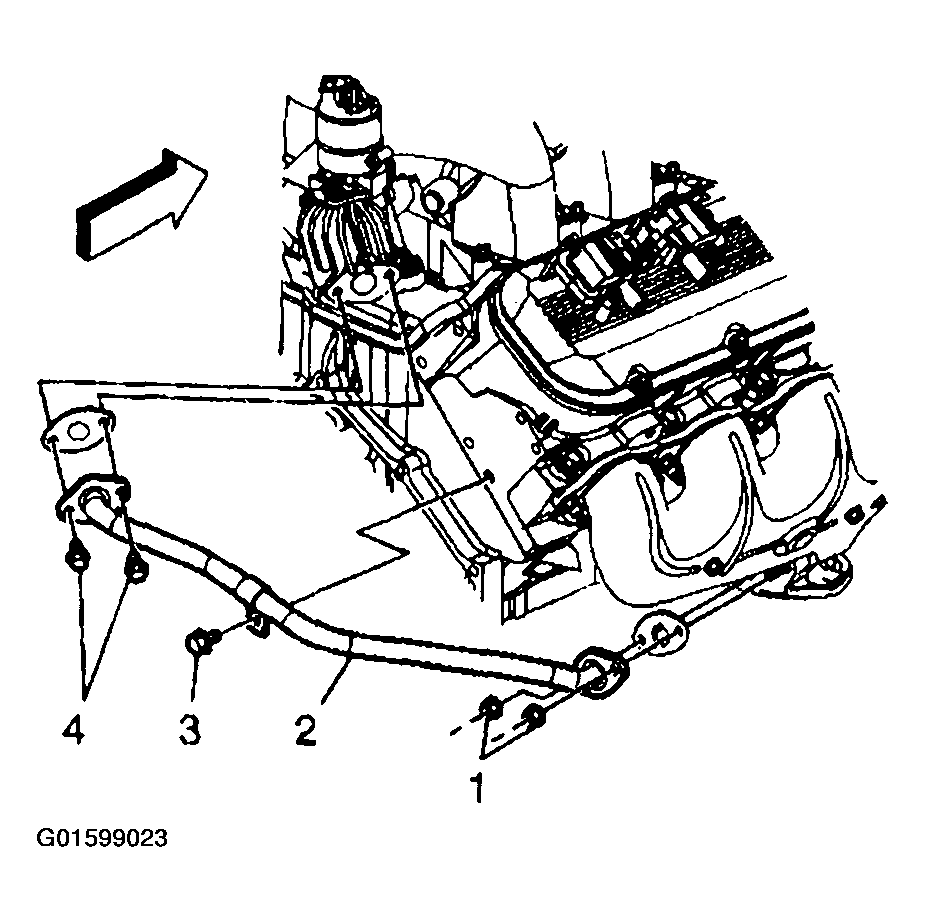

    Fig 1: EGR Valve Pipe, Nuts & Bolts
    G01599023Courtesy of GENERAL MOTORS CORP.
