Installation Procedure
- Uncap the fuel tank.

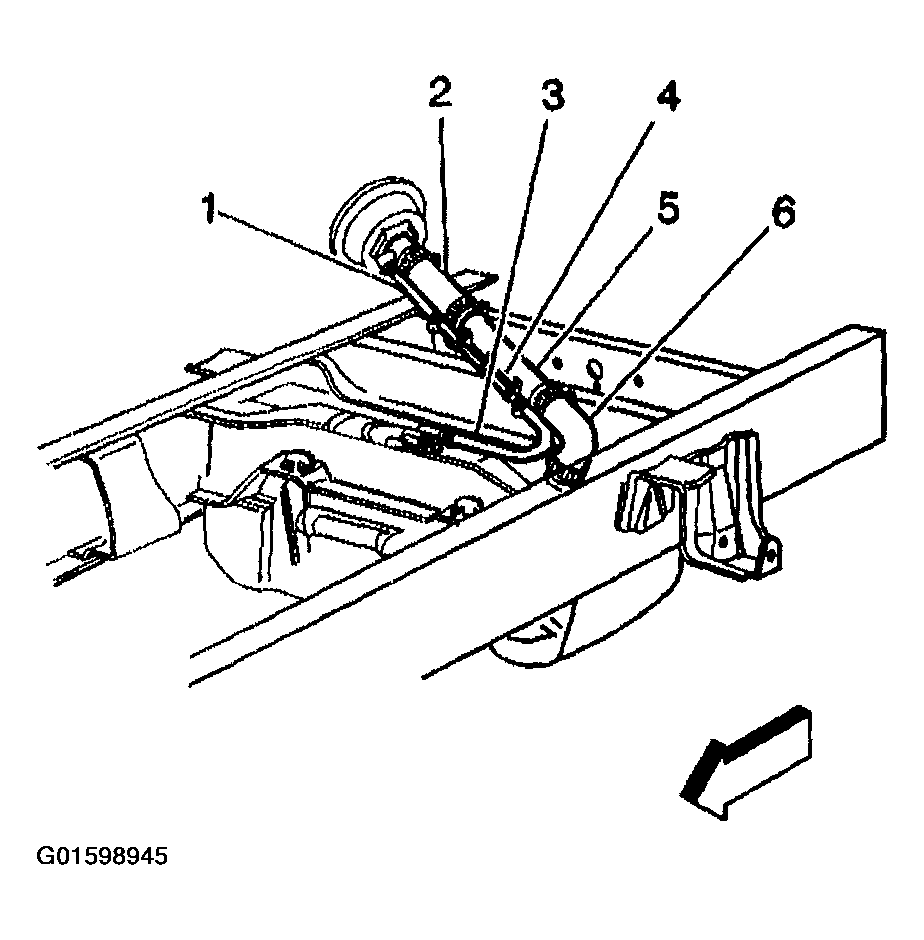

- Install the fuel fill (2) and vent pipe and hose (1) assembly to the fuel tank.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Align the fuel fill pipe to the fuel fill pipe housing.
Tighten
- Tighten the fuel fill hose clamp to 2.5 N.m (22 lb in).
- Tighten the vent hose clamp to 2.5 N.m (22 lb in).
- Lower the vehicle.
- Install the fuel fill pipe housing to the fuel fill pipe bolts.
Tighten
Tighten the fuel fill pipe housing to fuel fill pipe bolts to 2.3 N.m (20 lb in).
- Install the fuel fill pipe ground strap screw.
Tighten
Tighten the screw to 9 N.m (80 lb in)
- Refill the fuel system.
- Install the fuel filler cap.
- Connect the negative battery cable.
