Installation Procedure

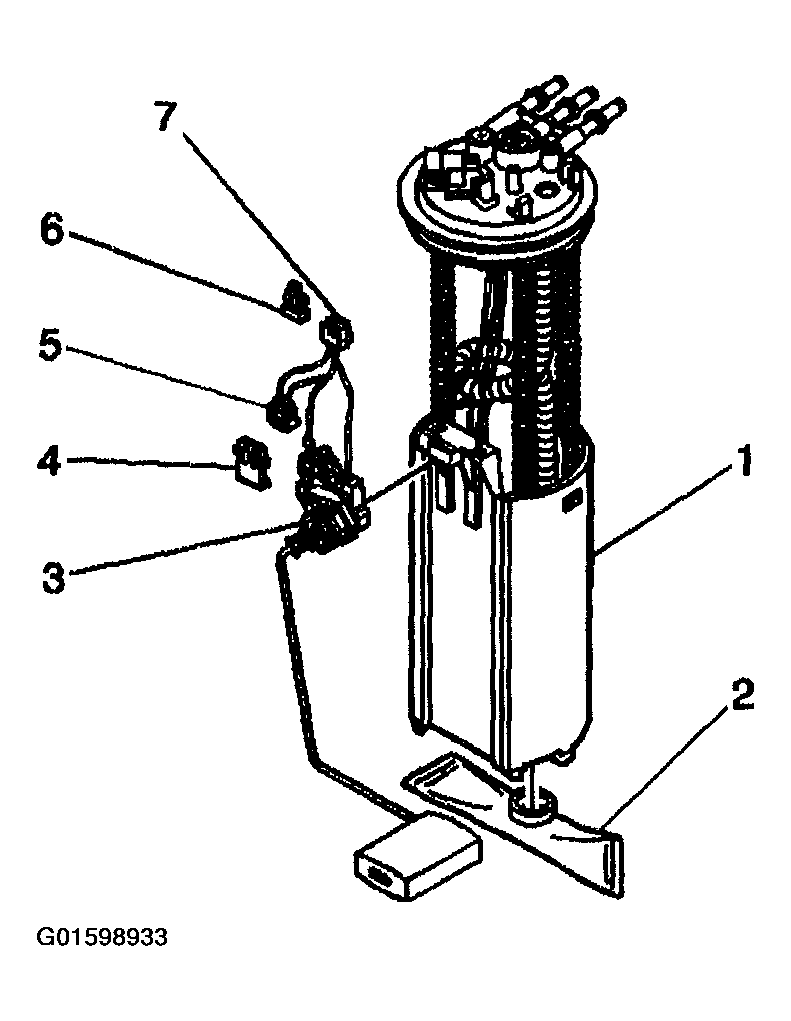

- Install a new fuel strainer (2) in the same position as noted during disassembly. Push the strainer on the bottom of the fuel sender until the strainer is fully seated.
- Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
