Removal Procedure

  1. Disconnect the spark plug wires at the ignition coils. Refer to Spark Plug Wire Replacement .
  2. Disconnect the ignition coil harness connector.
  3. Remove the ignition coil mounting bolts.
  4. Remove the ignition coil.

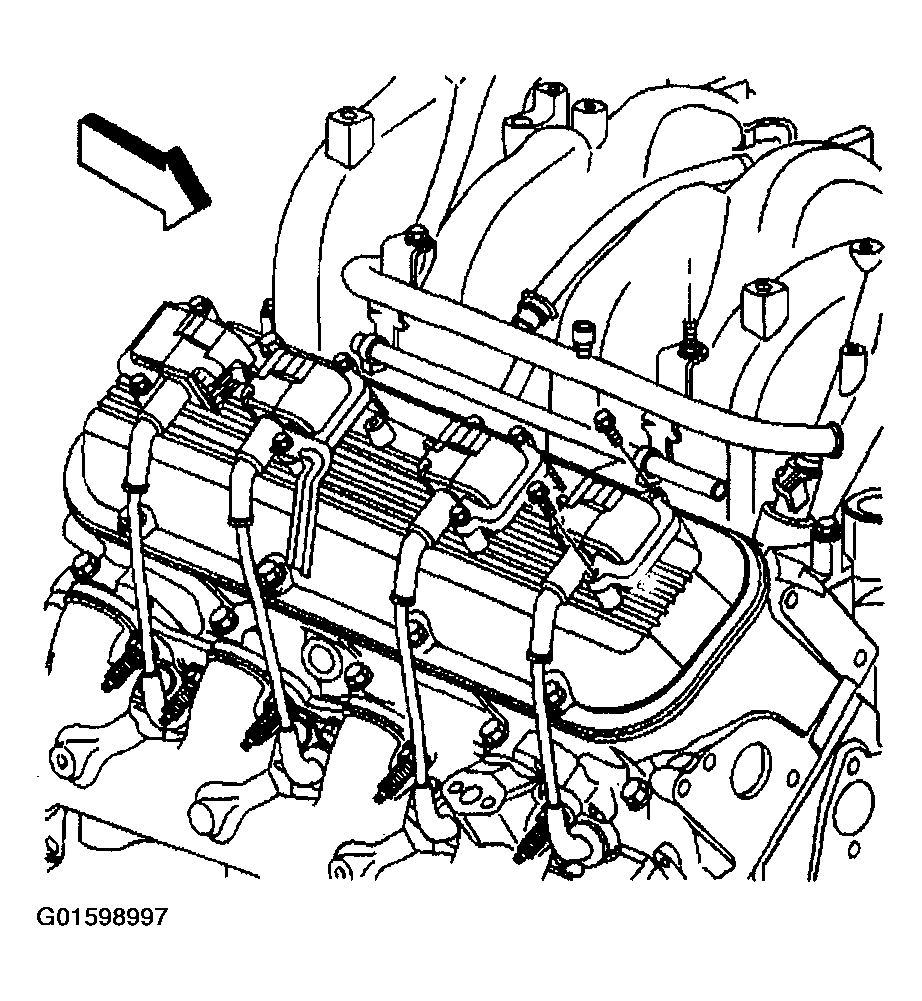

    Fig 1: Ignition Coils
    G01598997Courtesy of GENERAL MOTORS CORP.
