Removal Procedure

  1. Raise the vehicle.
  2. Remove the wiring harness connector (1) from the knock sensor (KS) (2).
  3. Remove the KS (2) from the engine block.

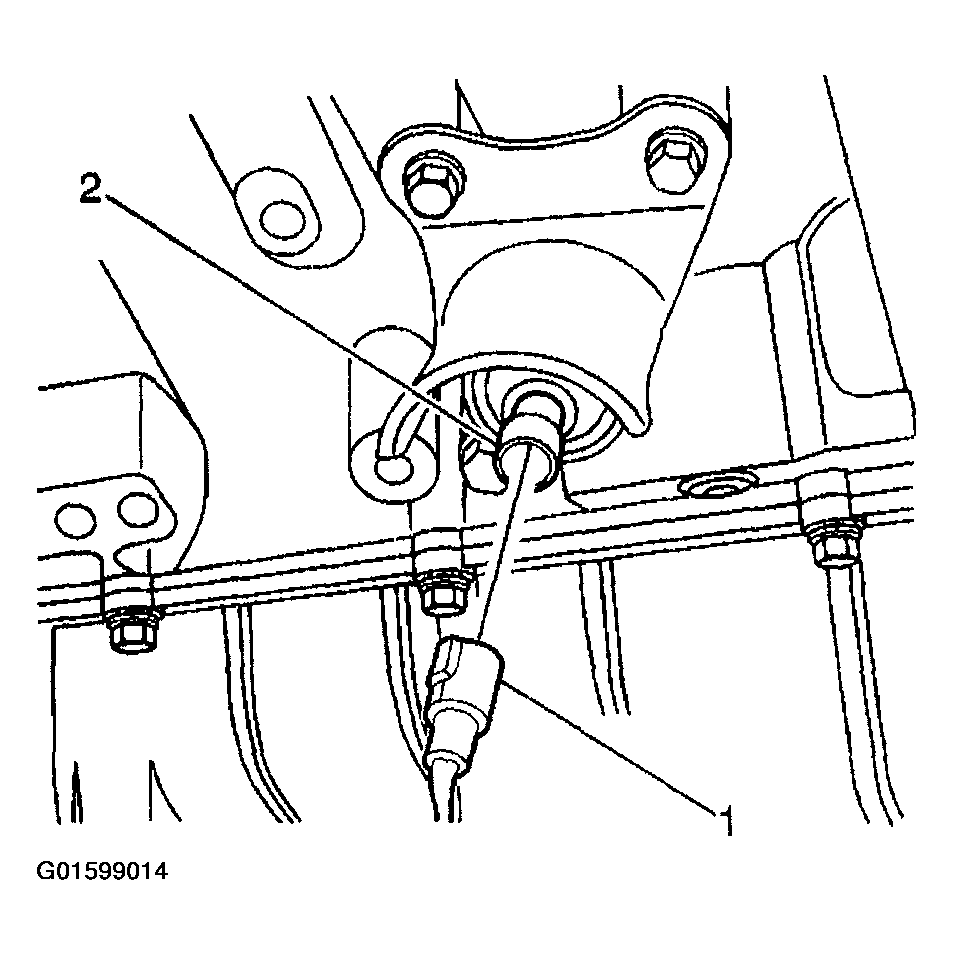

    Fig 1: Knock Sensor & Harness Connector
    G01599014Courtesy of GENERAL MOTORS CORP.
