Installation Procedure

  1. Install the spark plug wires at the ignition coil.
  2. Install the spark plug wire to each spark plug.
  3. Inspect the wires for proper installation:
    • Push sideways on each boot in order to inspect the seating.
    • Reinstall any loose boot.

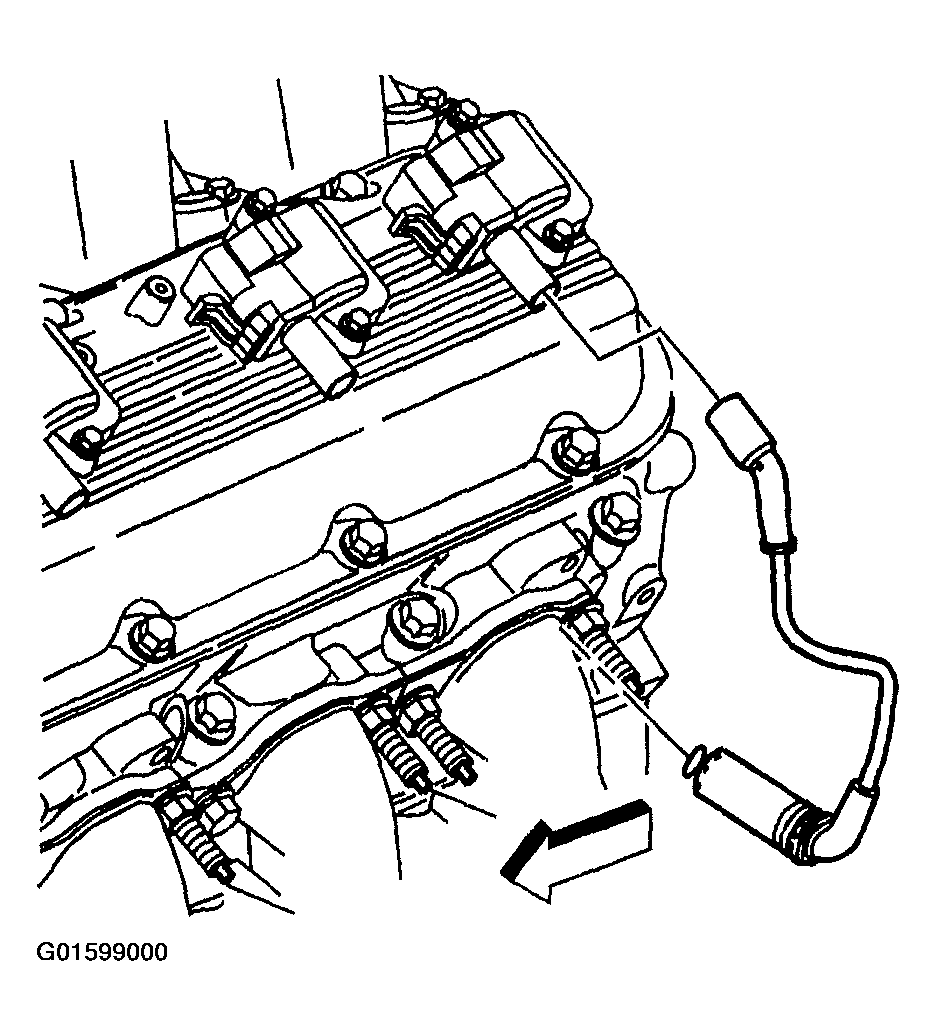

    Fig 1: Spark Plug Wire & Boot
    G01599000Courtesy of GENERAL MOTORS CORP.
