Installation Procedure

  1. Connect the TAC module harness connectors to the TAC module.
  2. Slide the TAC module into the TAC module bracket.
  3. Push the TAC module towards the bracket in order to snap the TAC module into the bracket.

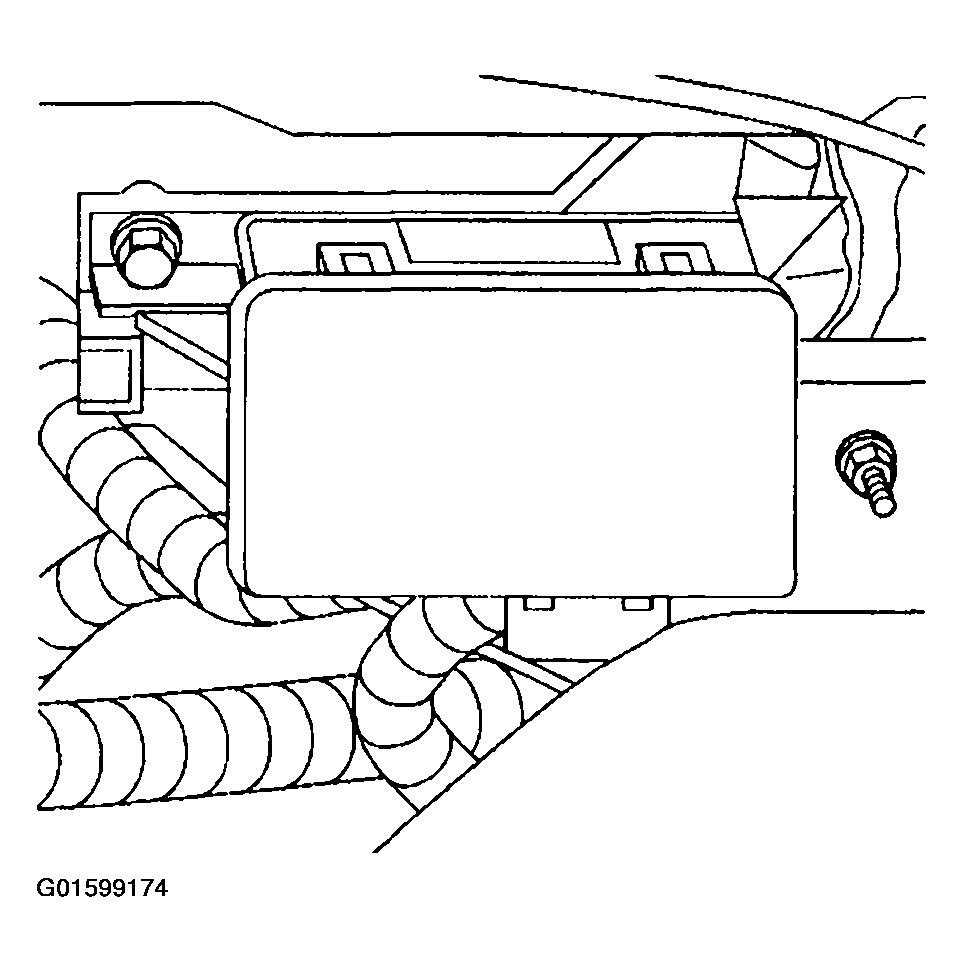

    Fig 1: TAC Module
    G01599174Courtesy of GENERAL MOTORS CORP.
